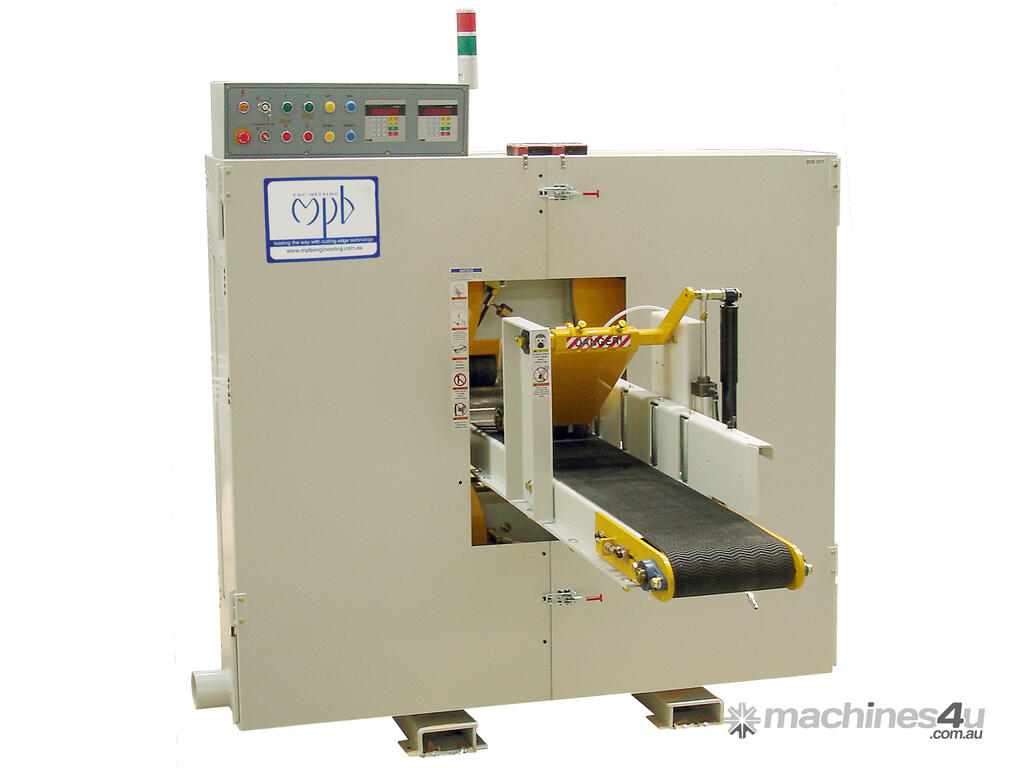

MPB Engineering Twin Head Horizontal Bandsaw – Engineered for High Accuracy in Band Resawing!

The HP66 Band resaw is designed and engineered for high accuracy in cutting, rugged construction throughout and minimum maintenance.

FEATURES:
Two head saw configuration
Digital controllers allow accurate saw wheel positioning.
Automatic blade tension is controlled by hydraulic cylinders.
Variable feed speed by hydraulic motor drive.

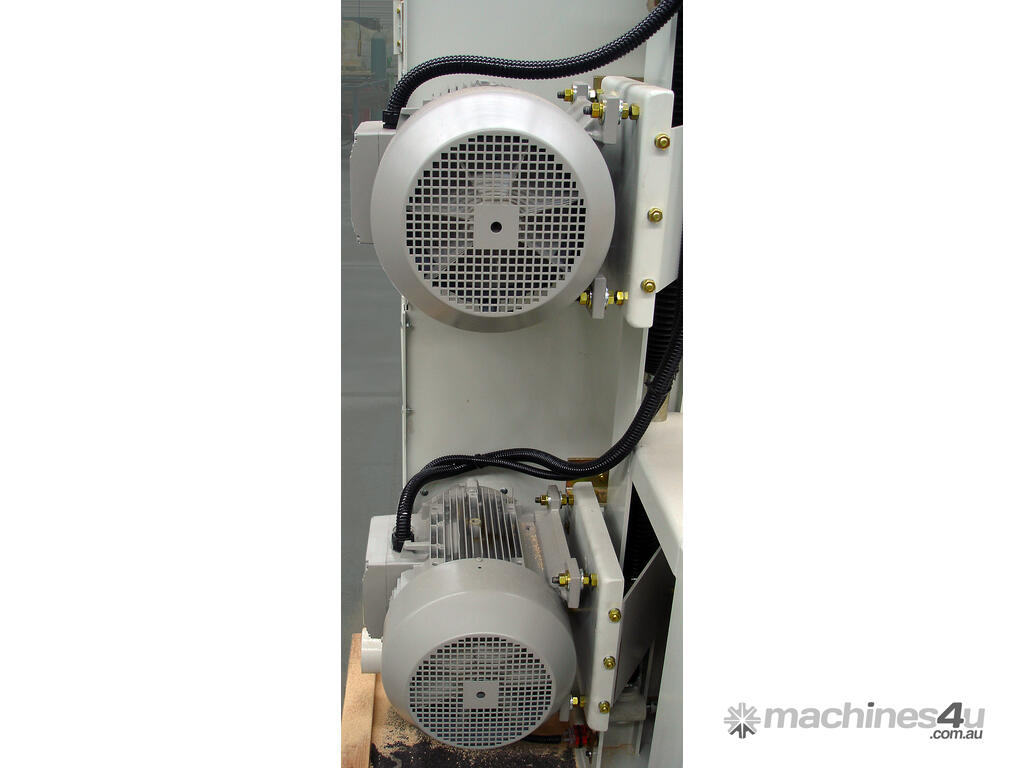

Large horsepower Seimens or equivalent saw wheel motors drive the blades allowing for heavy duty cutting.

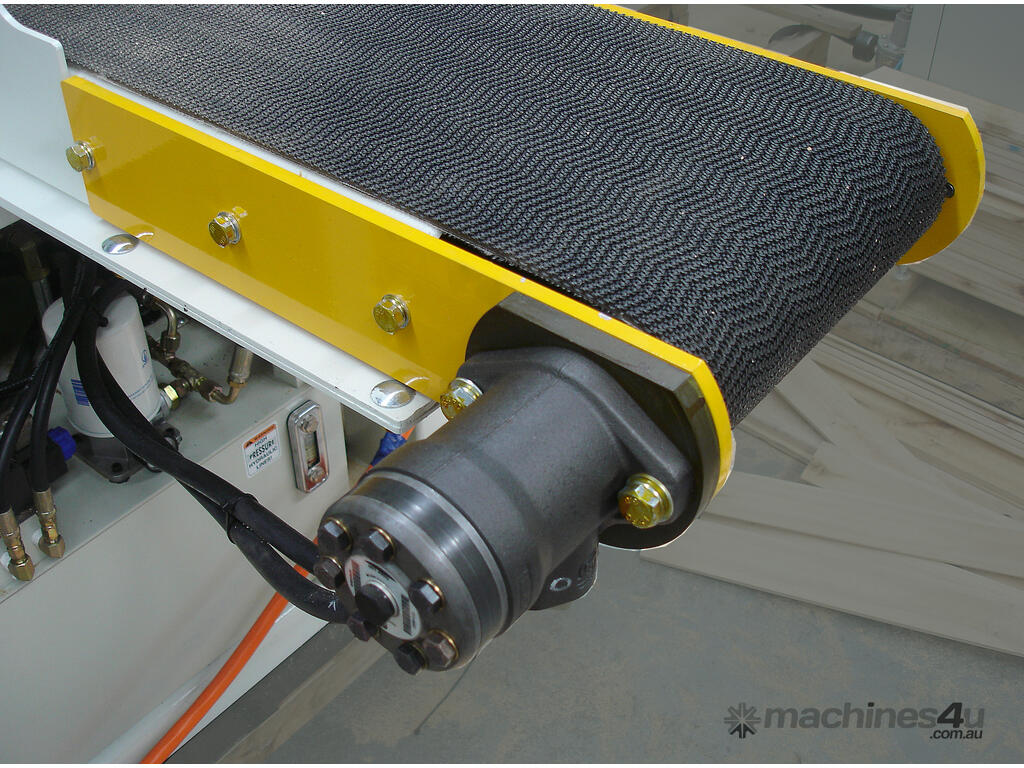

The conveyor belt is driven by a high performance hydraulic motor. Adjustable feed speed allows flexibility to saw hard and soft wood.
Full wheel and blade Lubrication
Safety cage

SPECIFICATIONS:
Max work pieces ................ 300W x 250H
Min distance between.............. 2 blades 12mm
Conveyor belt size .............. 285x5,480mm
Saw wheel diameter ............... 28" x 1"
Feed speed ...................... 5-25m/min
Saw blade size ................... 4,265x27x0.90 (168"x1")
Saw wheel motor .................. 20Hp
Net weight........................ 1,400kgs.
