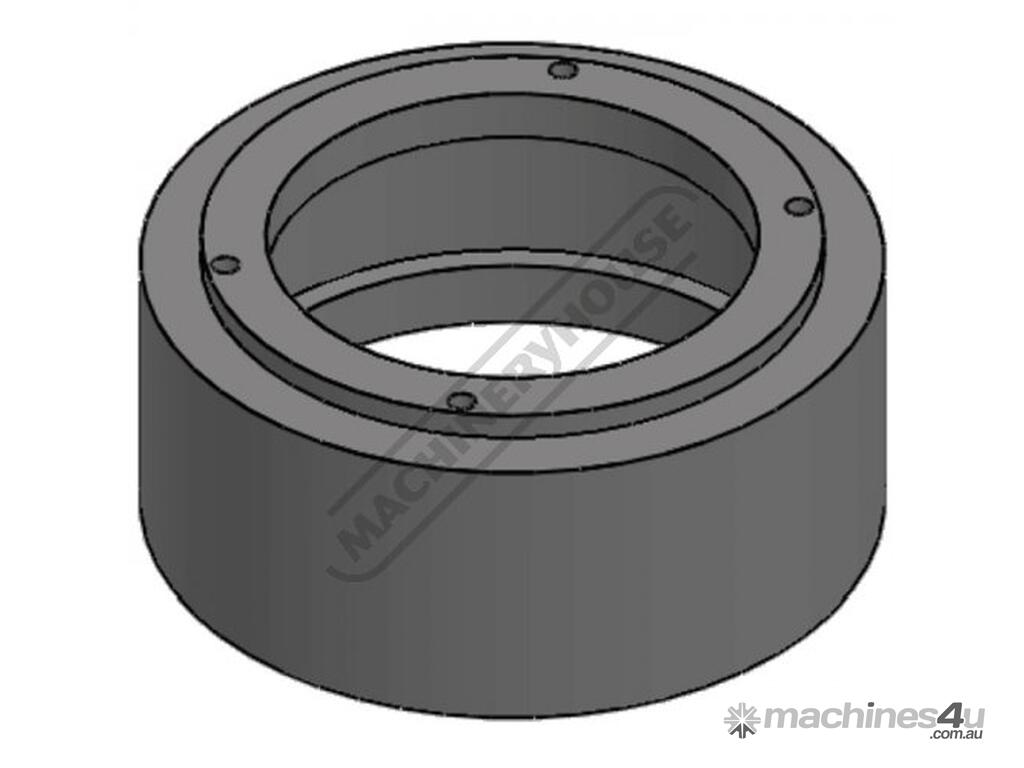

HAFCO-METALMASTER MRB-150W Riser Spacer - Suits Turret Milling Machines 1/2" x 12tpi BSW Whitworth Thread 152mm (6") Spacer Height Gain
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M223

152mm Riser Block Spacer Suits The Following Models:
BM-20A - (order code M588)
BM-20A - (order code M589)
BM-20E - (order code M590)
BM-30A - (order code M603D)
BM-30 - (order code M604D)
BM-40V - (order code M607D)
BM-50VE - (order code M612)
BM-65VE - (order code M629D)
BM-70VE - (order code M630D) - requires longer bolts

Features:

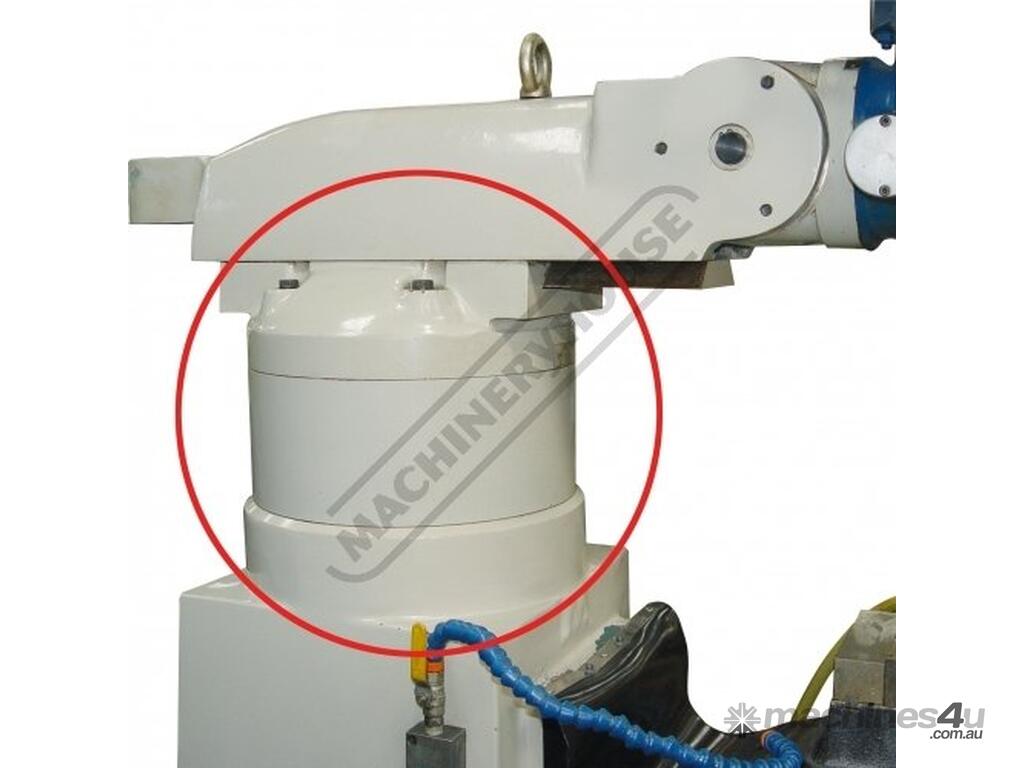

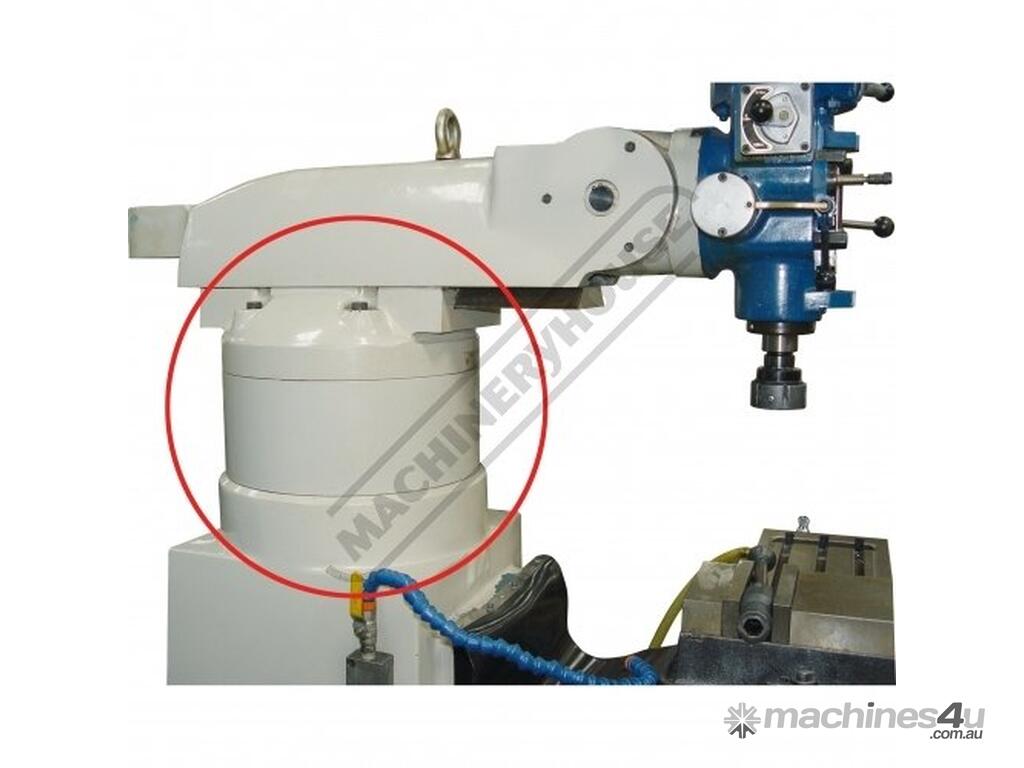

152mm spacer increases your milling machine Z-Axis height clearance
Includes 4 x 318mm long bolts with 1/2" x 12tpi BSW thread

Please Note:
BM-70VE requires 13.5" long bolts 1/2" x 12tpi BSW thread
This Riser Block Spacer may need a little machining to fit on some models


Specifications:
ORDER CODE: M223
MODEL: MRB-150W
Spacer Height Gain (mm): 152
Locating Recess & Spigot Ø (mm): 317
Bolt Thread Size (Type): 1/2" x 12tpi BSW


To Purchase Online Please Visit The Machineryhouse & Search For 'M223'
