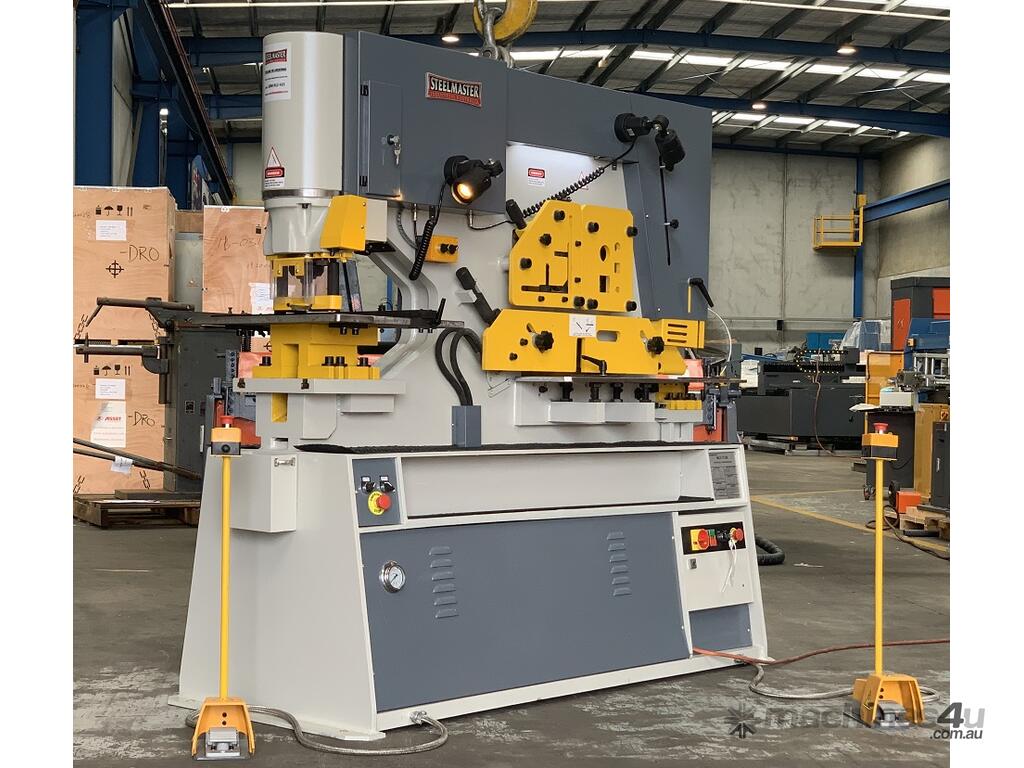

MULTI 125 Ton Twin Cylinder Punch & Shear - Hydraulic Clamping Included & 10 Sets Tooling

Industrial Built Workhorse - Currently Ex Stock - Check out its Features

##SPECIAL PRICE WHILE CURRENT STOCK LASTS##

* 610mm Deep Punching Throat.
* 700mm Pressbrake Bending Attachment Inc
* 10 Sets Kingsland Tooling Included
* Laser Line Punch Marker
MULTI 125. Punch & Shear. Steelmaster 125Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch. 10 Sets Tooling, 610mm Deep Throat, Laser Guide, Hydraulic Shear Clamping, Pressbrake Attachment.
Description

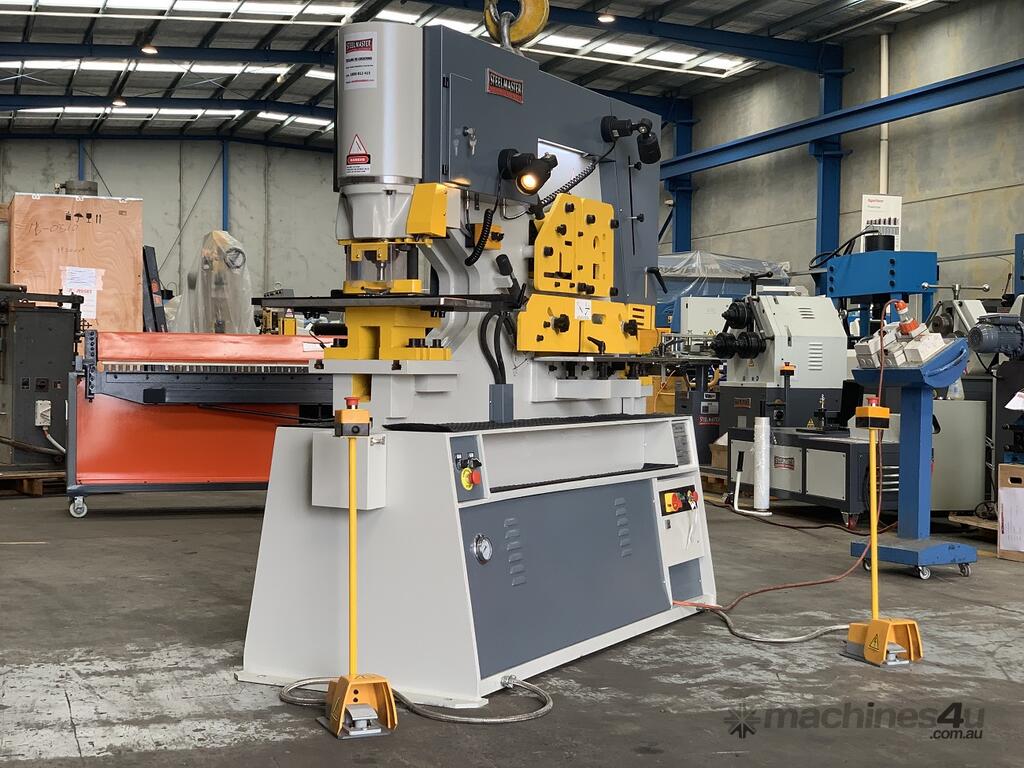

This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.

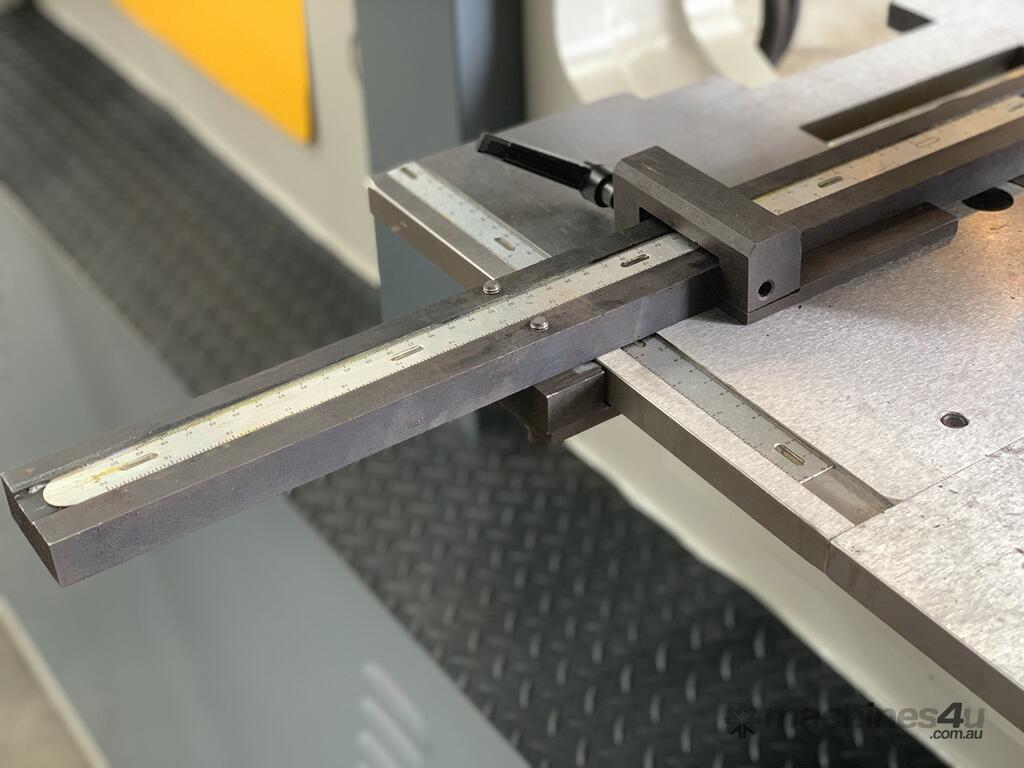

With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods. A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Production tooling pack also supplied with 10 complete sets of round punch and dies along with a multi vee Pressbrake attachment for bending applications.

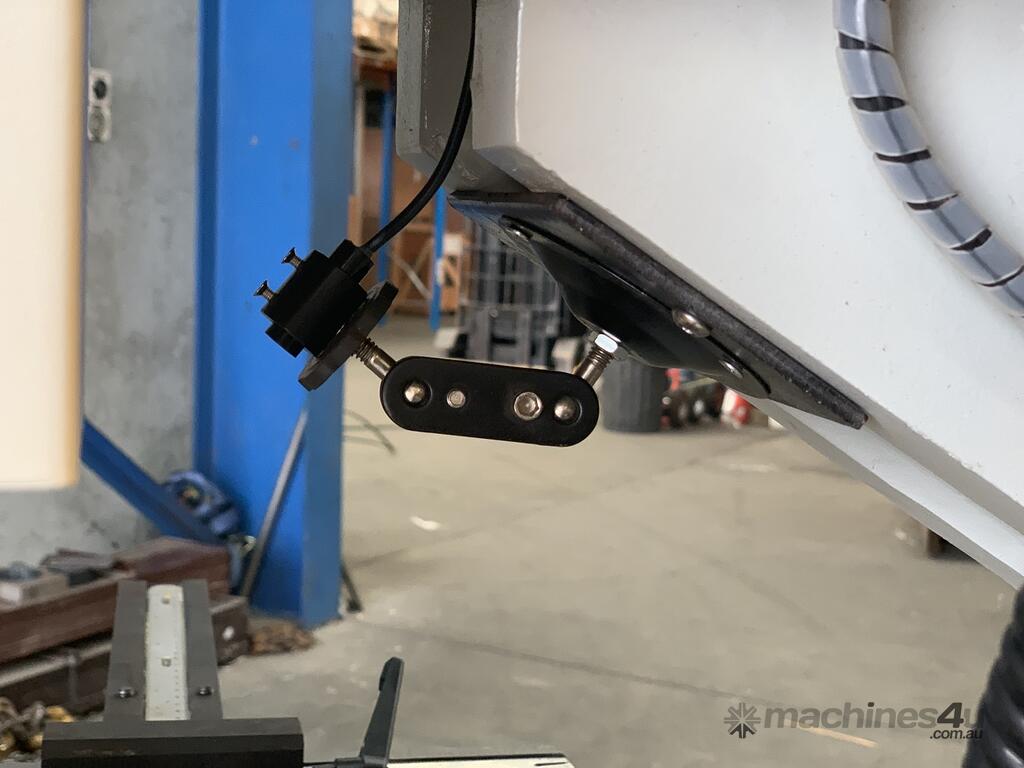

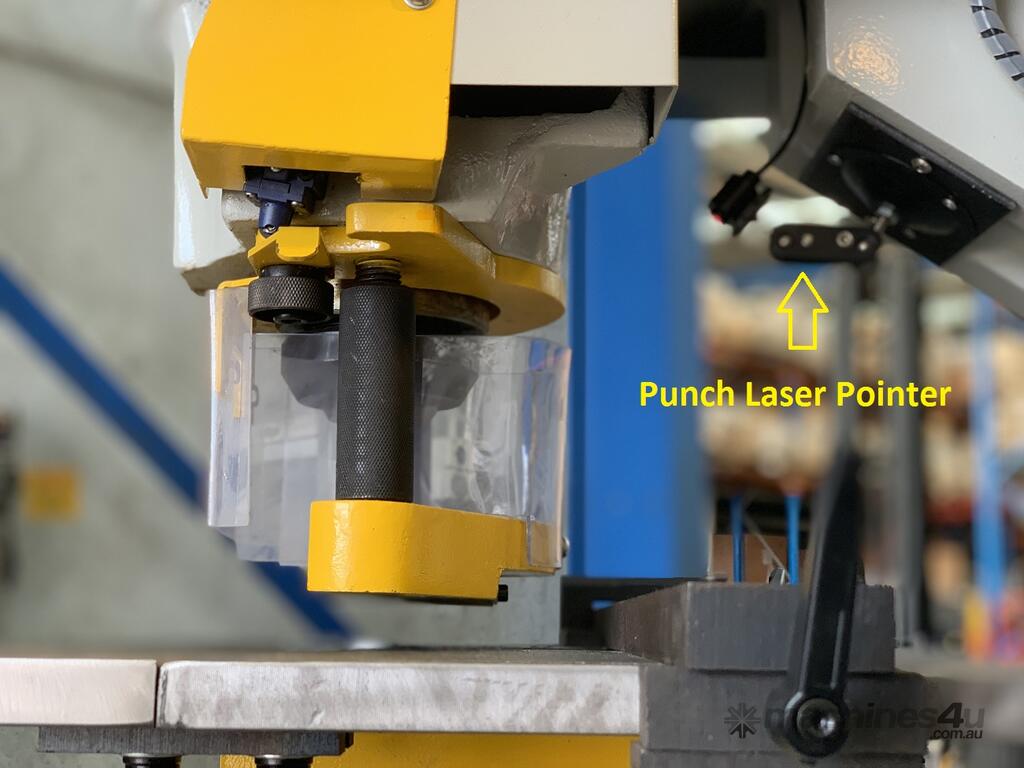

Now also included we have added laser punch guide for easy alignment!

Features
? double cylinder hydraulic punch & shear machine
? hydraulic flat plate shear clamping now standard

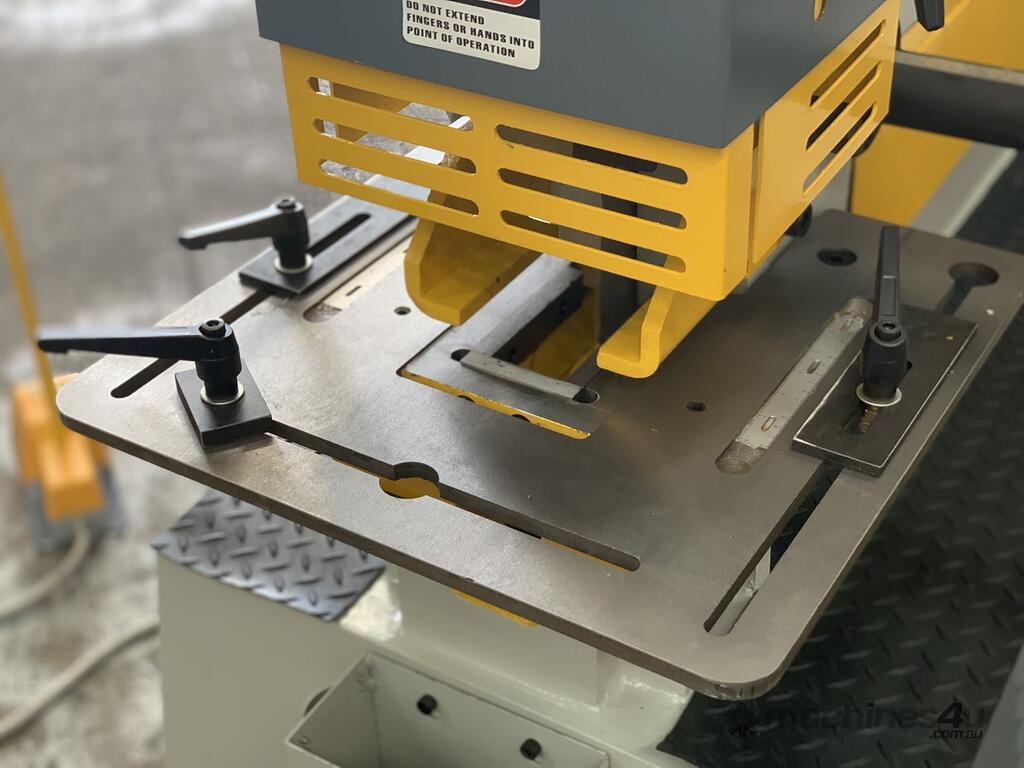

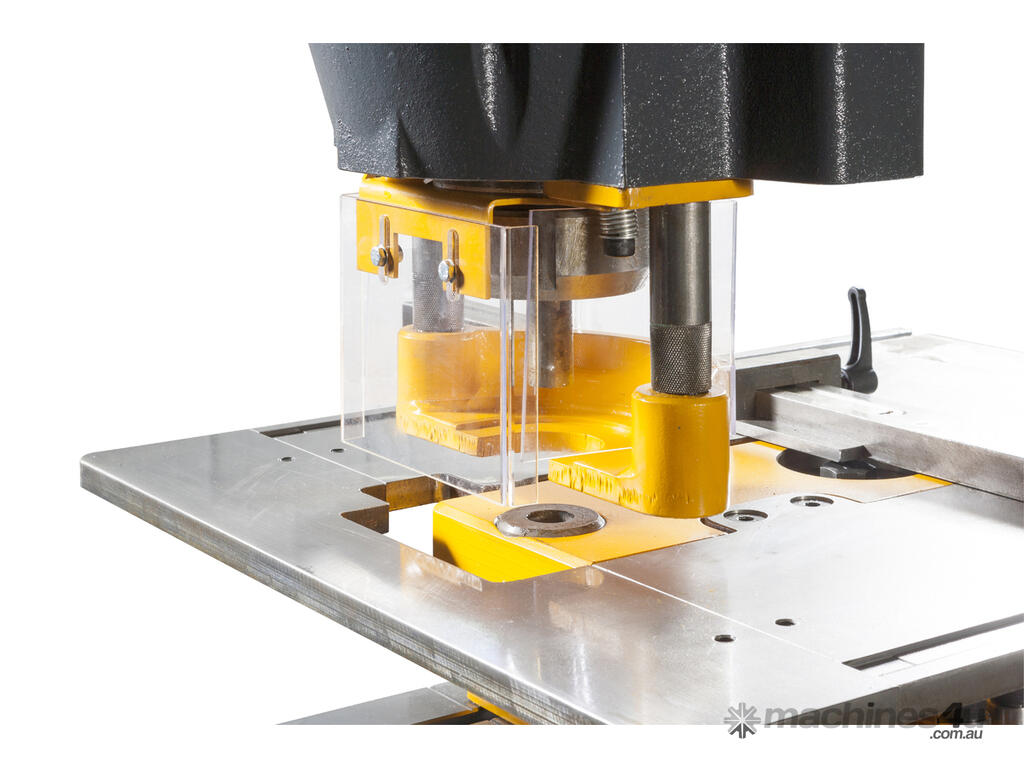

? large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications
? swing-away punch-stripper unit
? two universal bottom die holders included

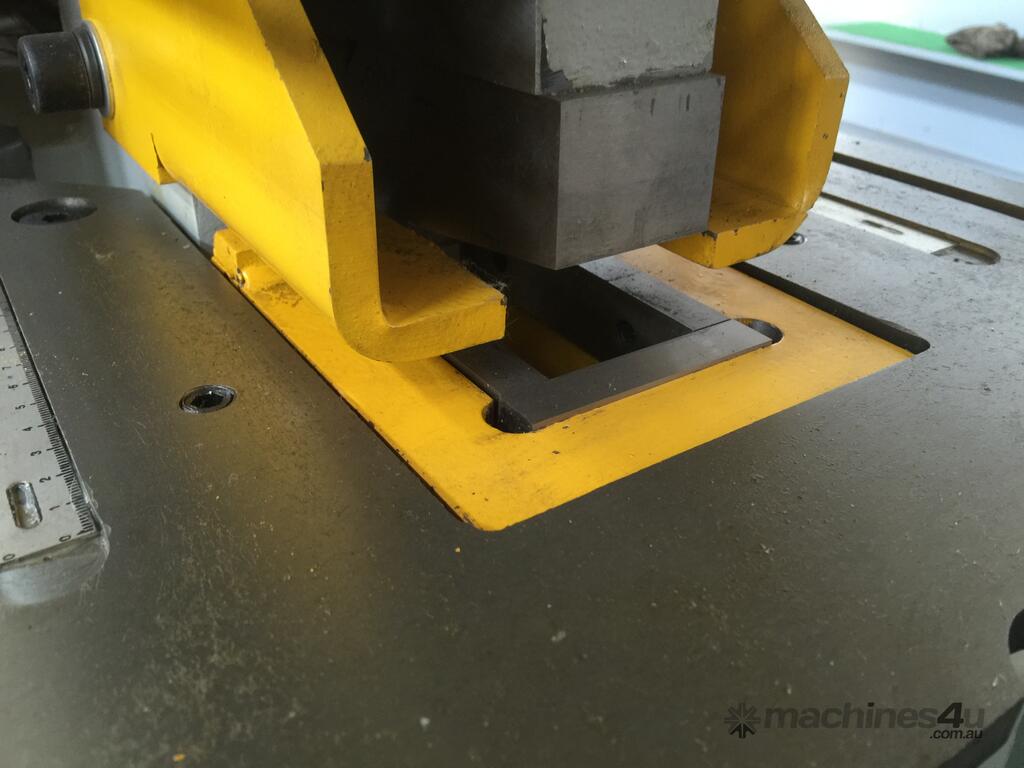

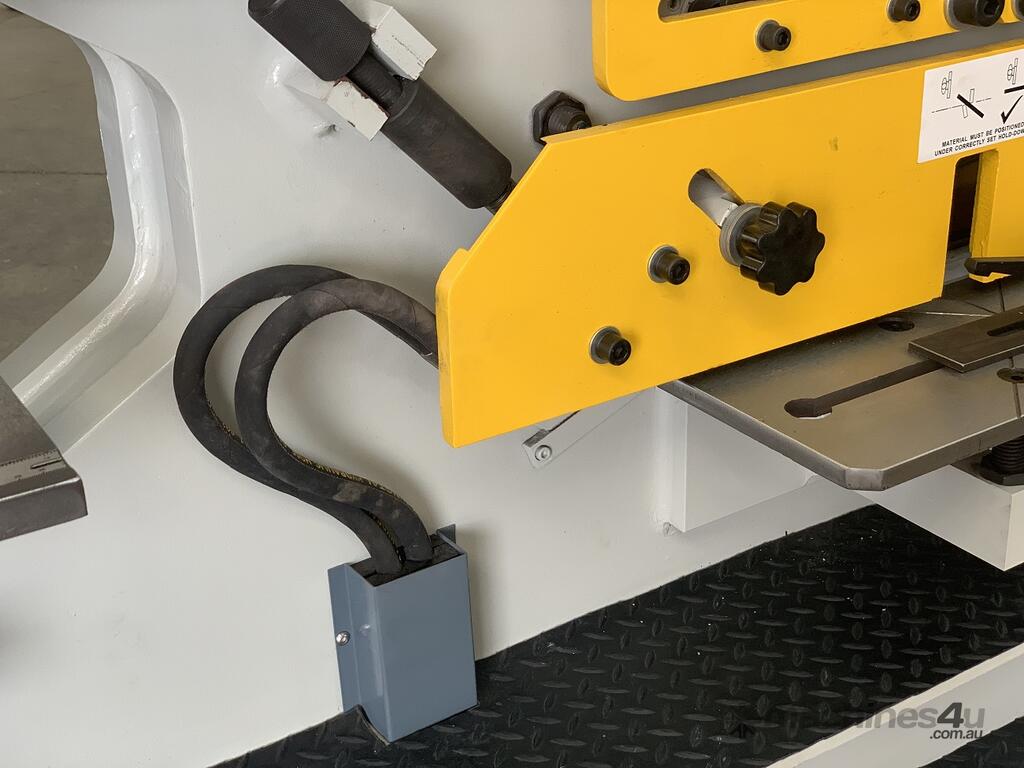

? hydraulic clamp assist flat plate shearing station with square & angle guides

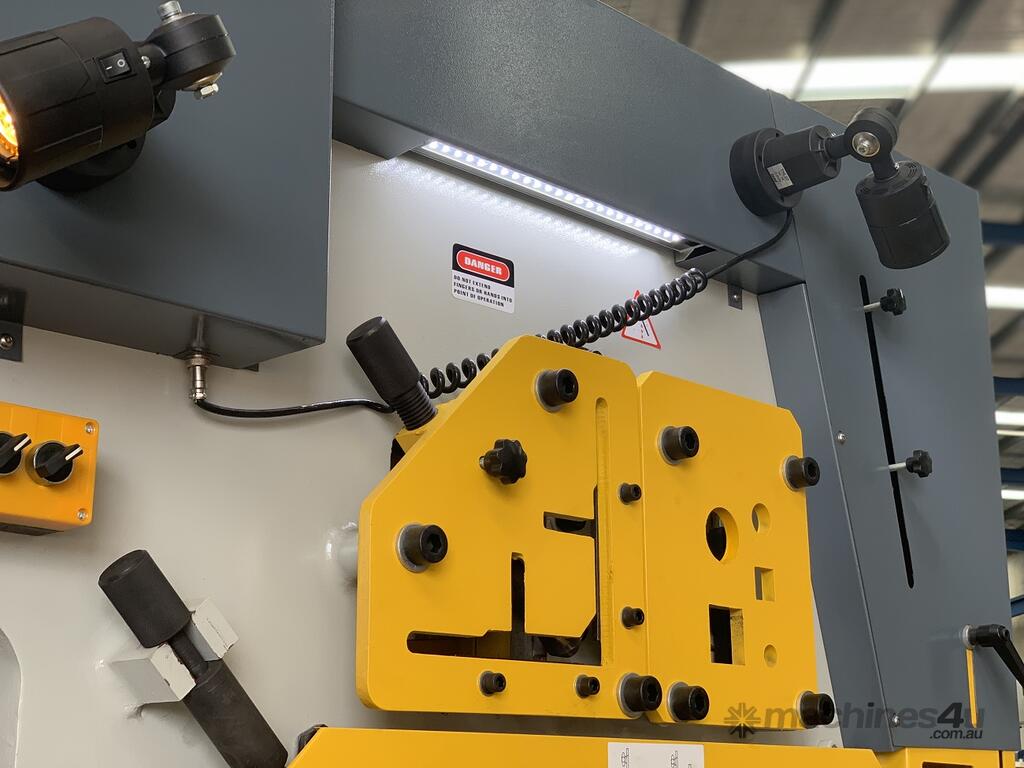

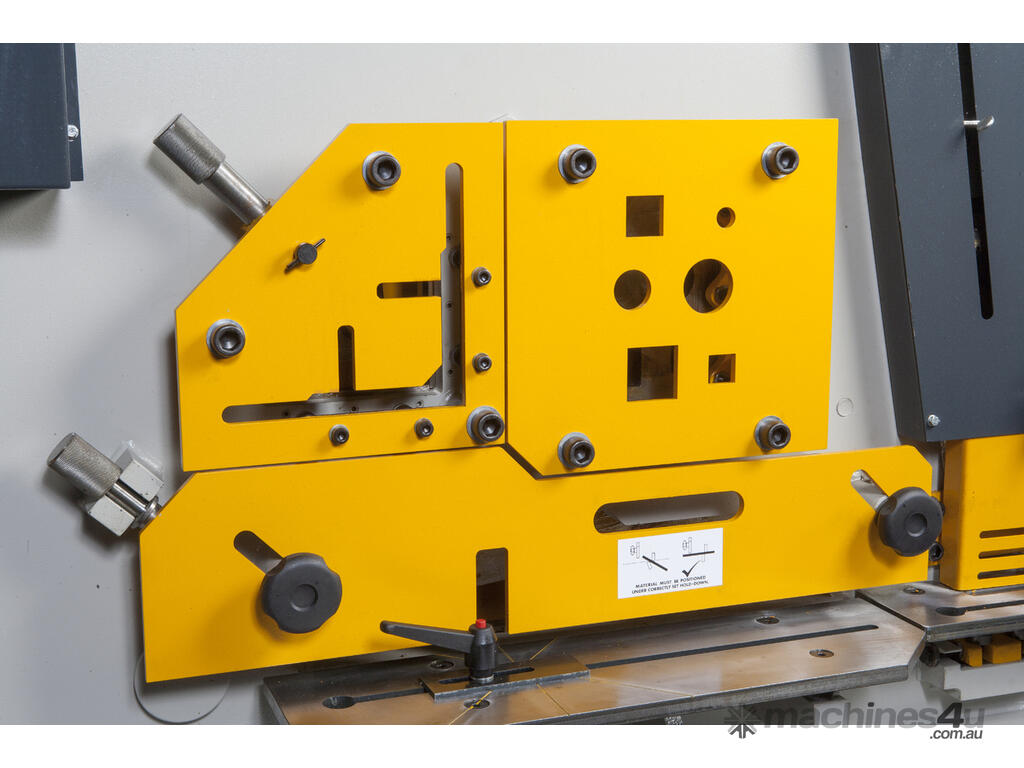

? angle cropping station
? round and square solid cropping station
? rear notching station

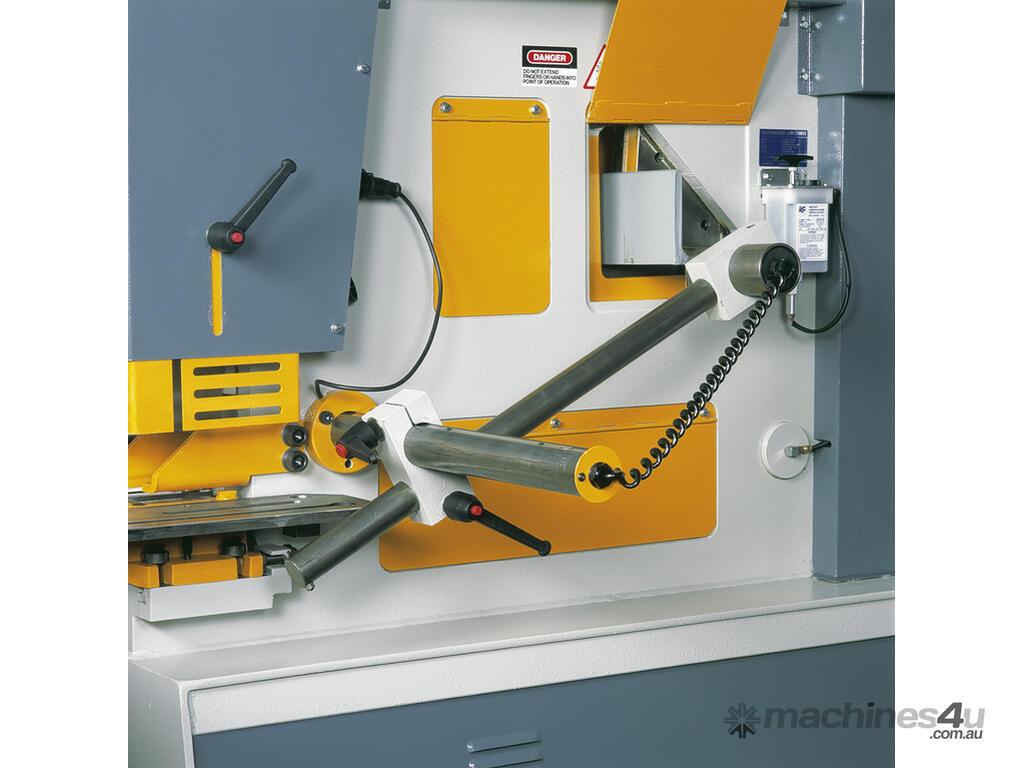

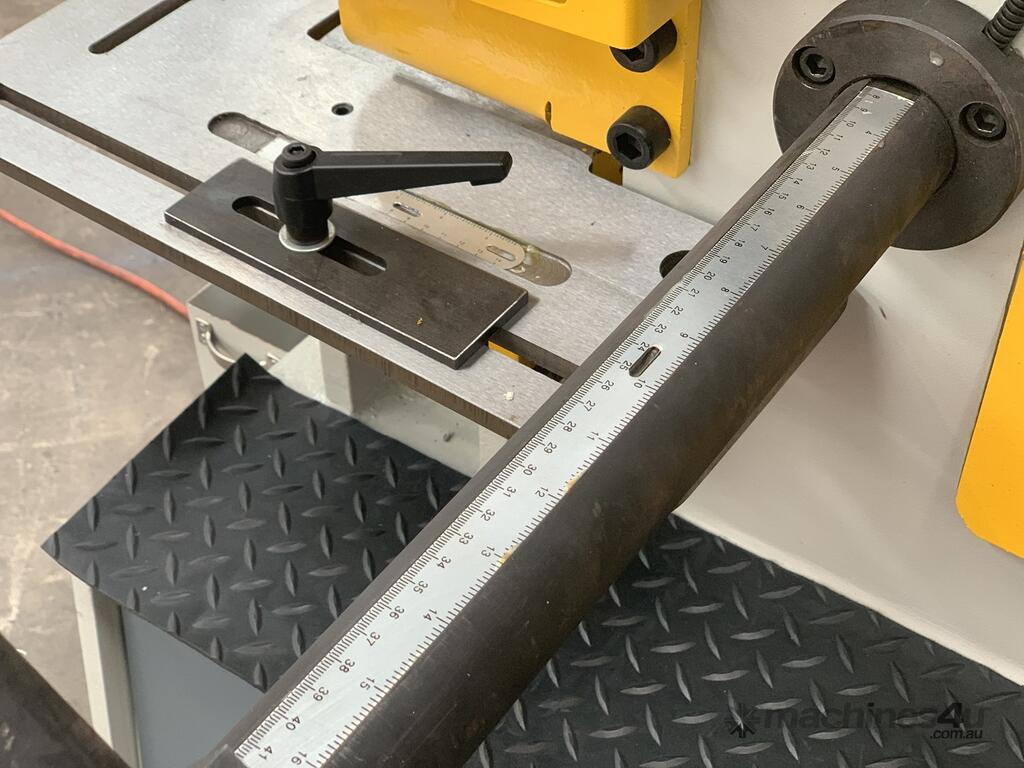

? 1000mm electric touch and cut feature

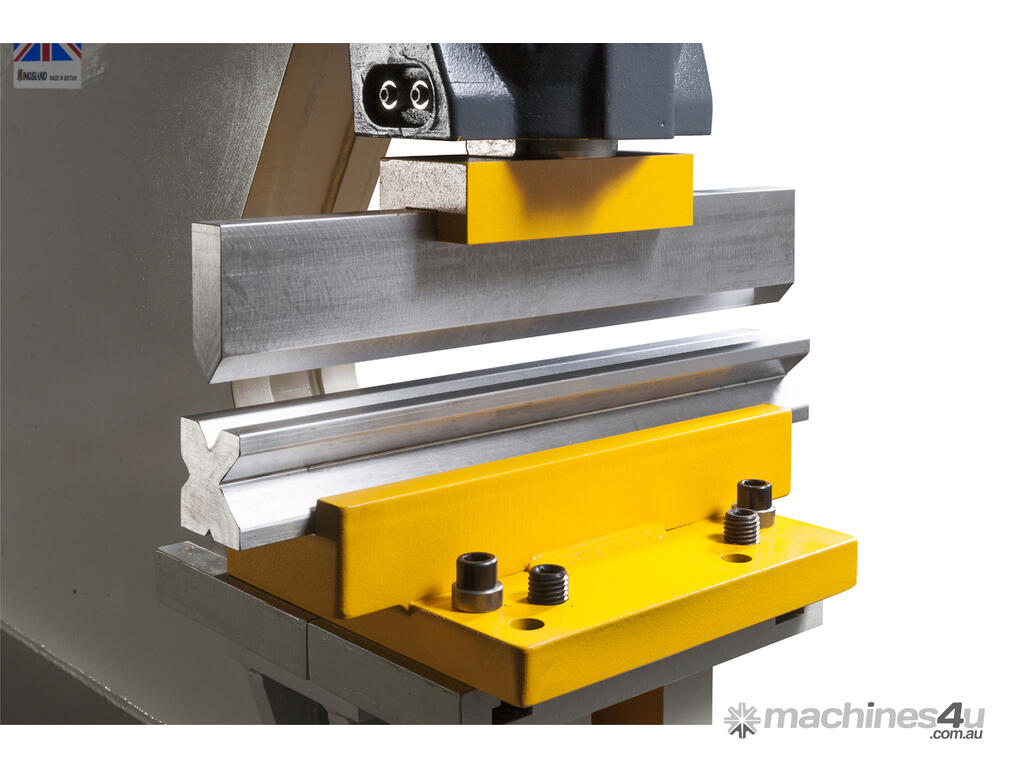

? pressbrake bending attachment supplied
? 10 sets of standard Kingsland type punch and die tooling included
? low power inching and adjustable stroke at punch station
? overload relief on the hydraulic system

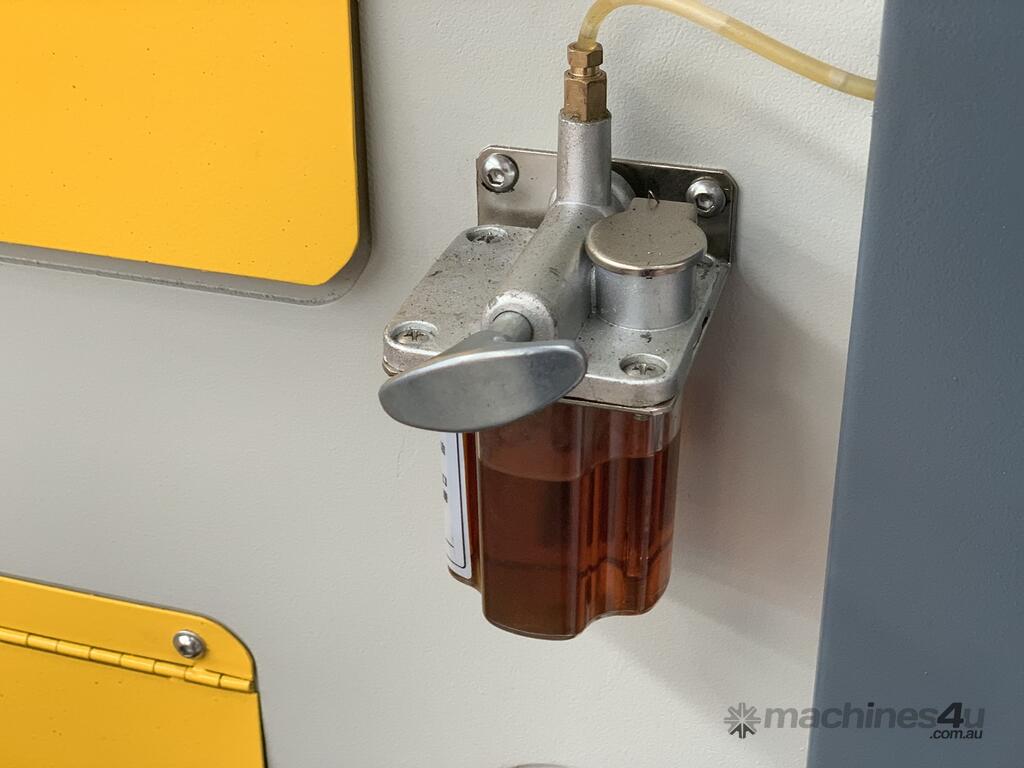

? centralised pressure lubrication system
? roving foot pedal operation
? emergency stops
? machine manual
? service toolkit
? hydraulic oil supplied
?CE compliant

Technical Data Snap-Shot
?New hydraulic clamping on shearing station
?35mm hole in 25mm plate (optional 57mm x 16mm)
?80mm stroke length
?1056mm working height
?610mm deep punch throat depth – this is a must for all base plate work!
?600mm x 15mm flat plate shear / also 380mm x 25mm
?150mm x 150mm x 18mm angle crop also 80mm x 10mm at 45 degrees.
?55mm round & square cropping
?100mm x 60mm x 13mm rear notch
?700mm x pressbrake bending kit supplied
?200mm x 100mm section channel available – optional **
?shipping dimensions - 2000mm x 800mm x 2030mm
?weight - 3100Kg
?power - 7.5Kw

Accessories Included
?10 sets round punch & dies / long series punches (9006)
?electric touch & cut feature
?pressbrake attachment for bending
?toolbox & manual

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.

Asset Plant & Machinery - Steelmaster Machinery
118 Logis Boulevard Dandenong South VIC 3175
