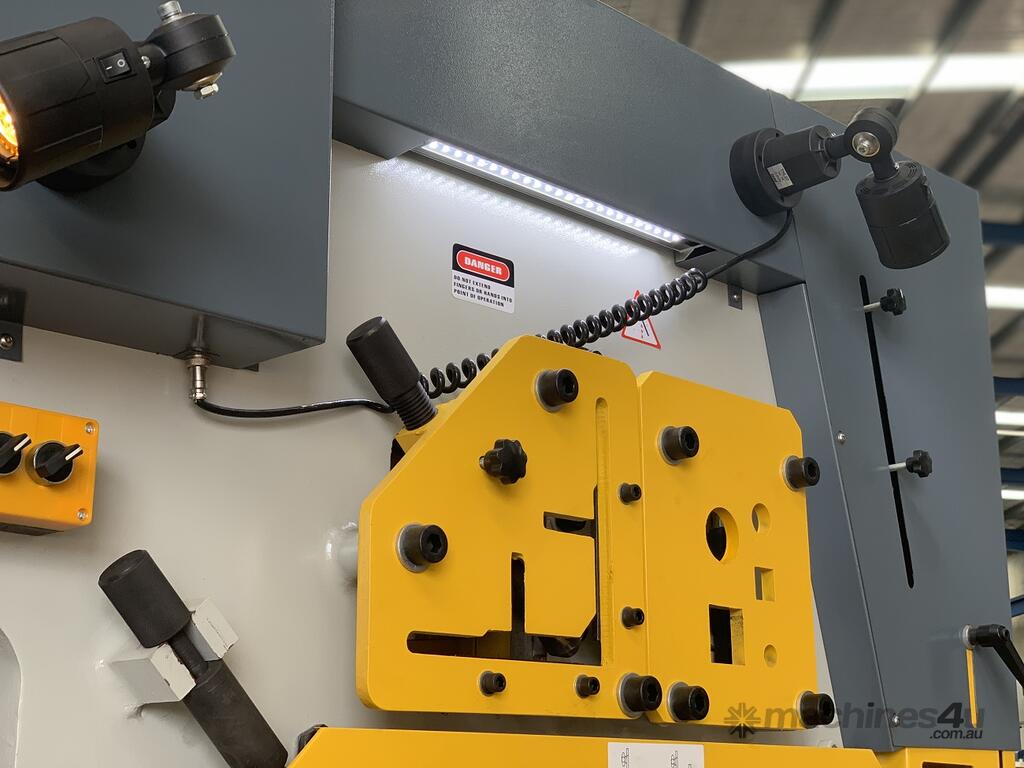

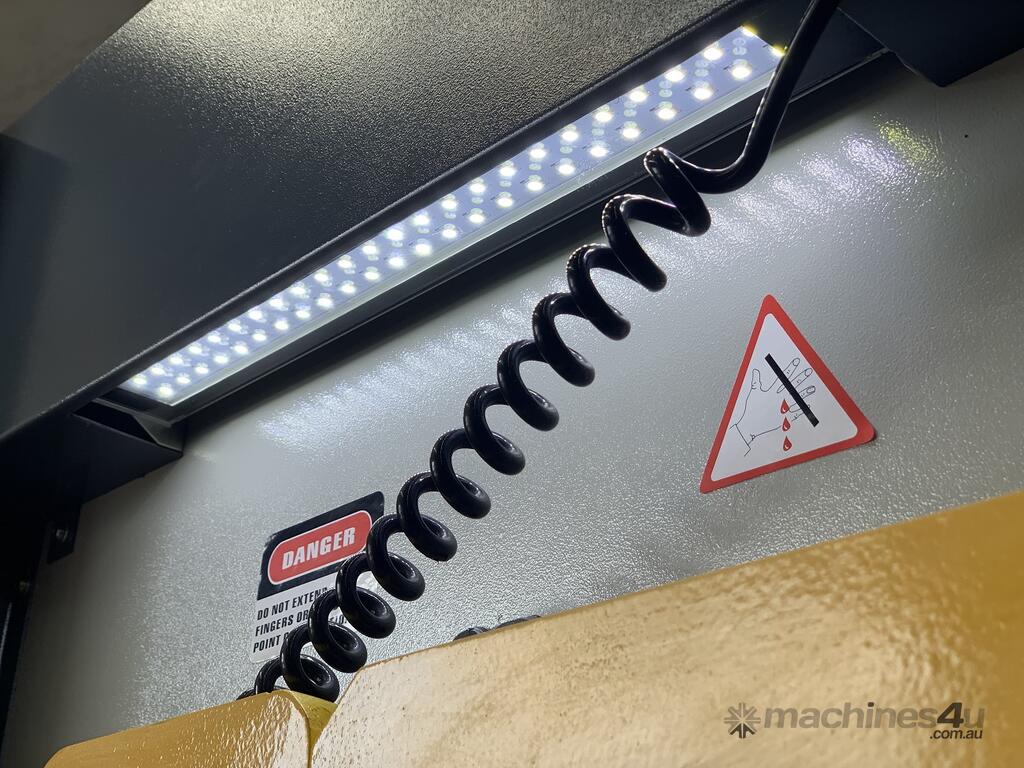

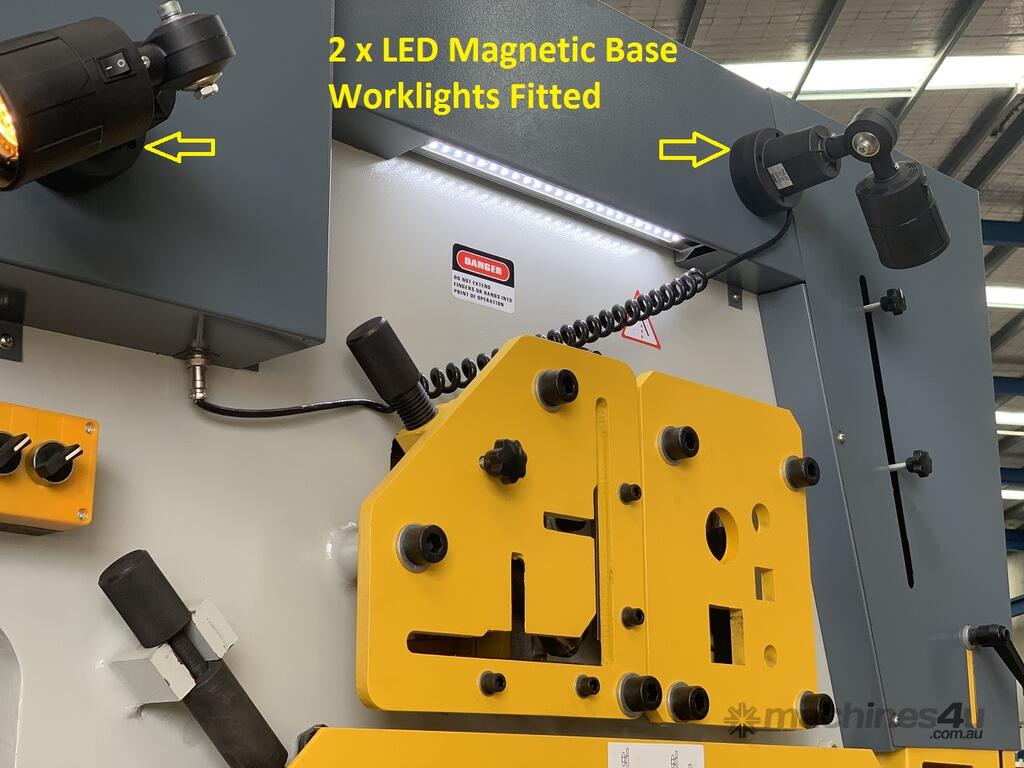

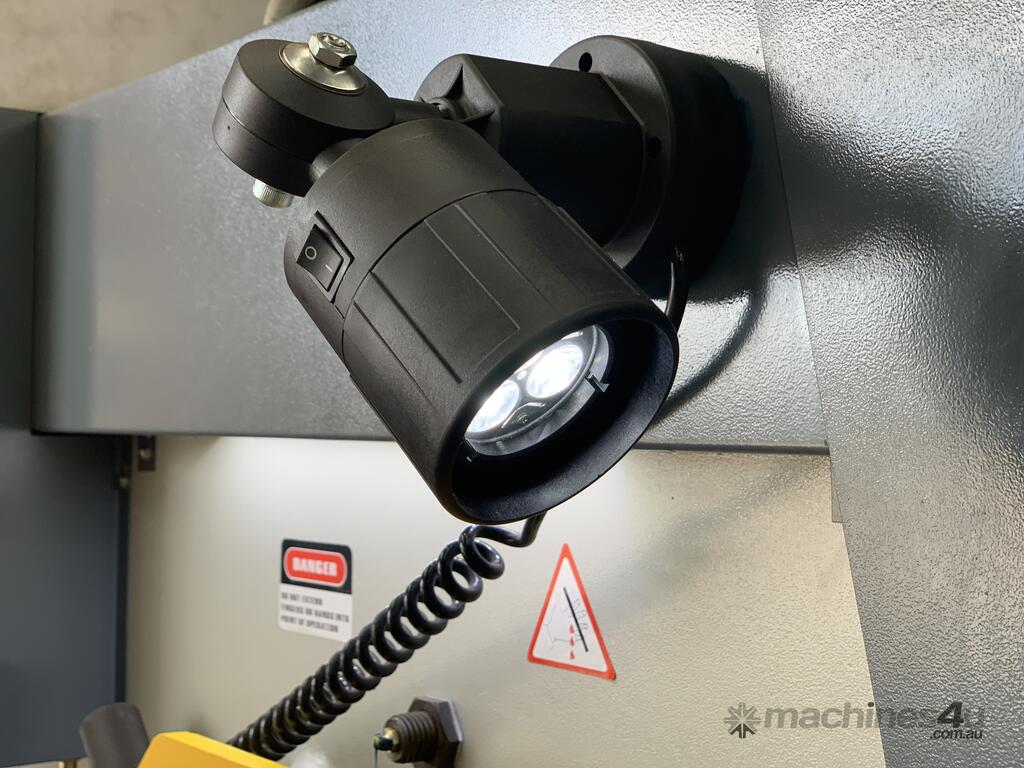

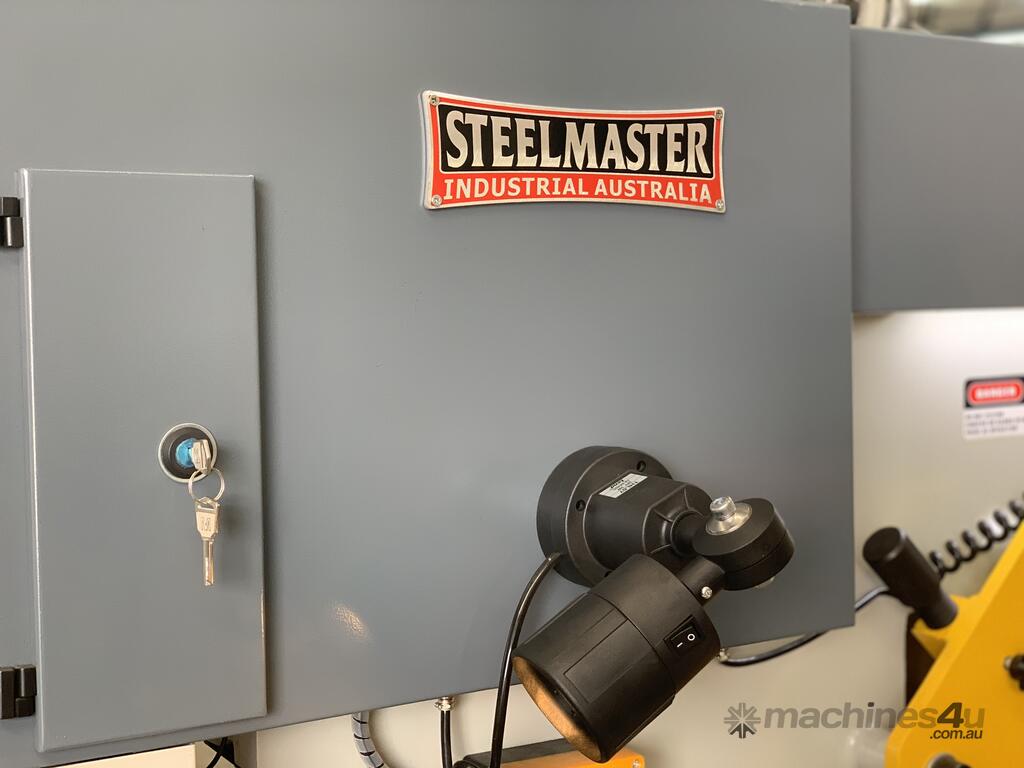

MULTI 70 Ton Twin Cylinder - Hydraulic Clamping New LED Work Lights & Laser Punch Pointer

## INCLUSIONS AS NOTED BELOW ##
* 450mm Deep Punching Throat.
* 500mm Pressbrake Bending Attachment Inc
* 10 Sets Kingsland Tooling Included

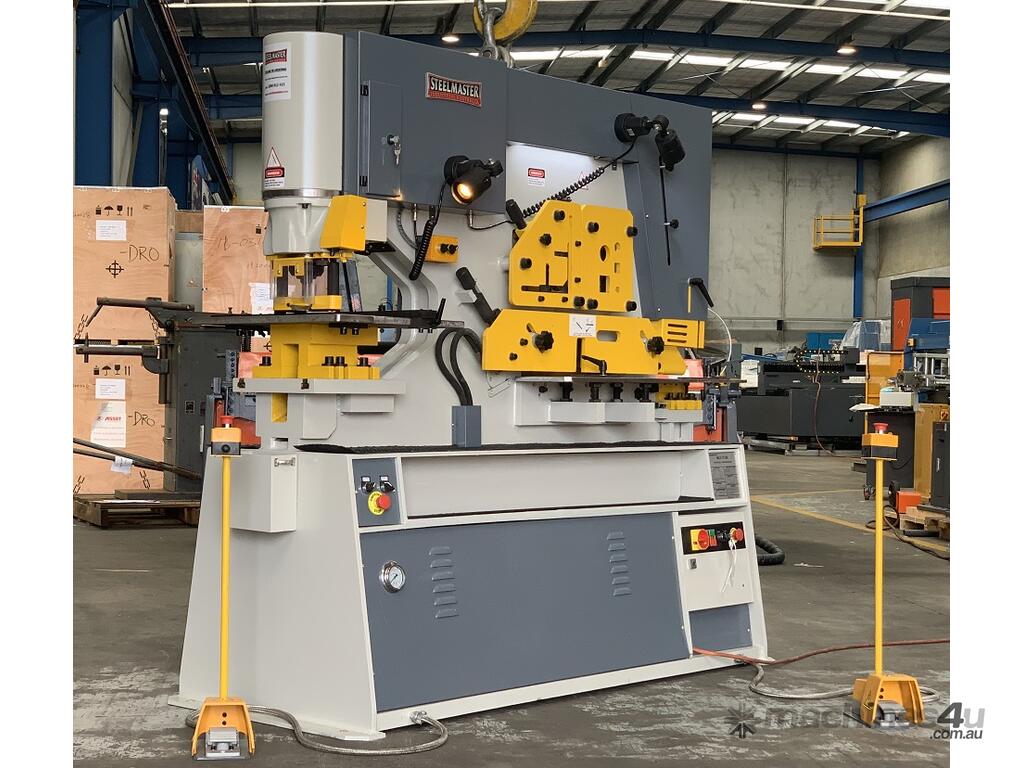

MULTI 70. Punch & Shear. Steelmaster 70Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch.10 Sets Tooling, 450mm Deep Throat, Laser Guide, Hydraulic Shear Clamping, Pressbrake Attachment.
Description
This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.
With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods. A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Production tooling pack also supplied with 10 complete sets of round punch and dies along with a multi vee Pressbrake attachment for bending applications.

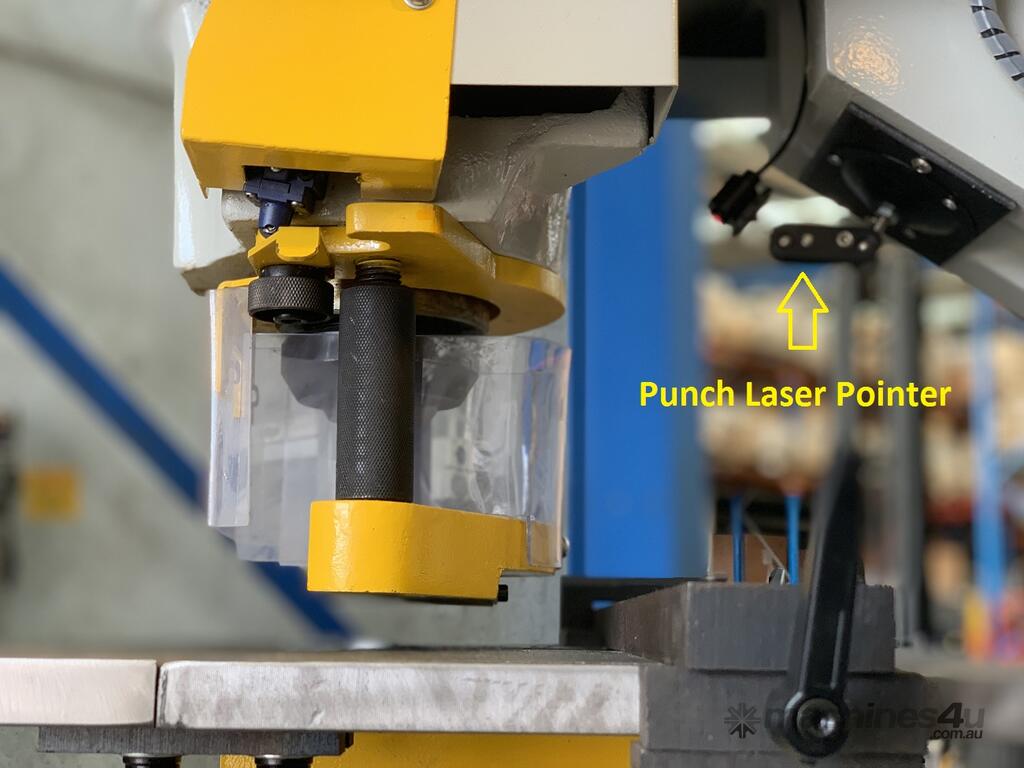

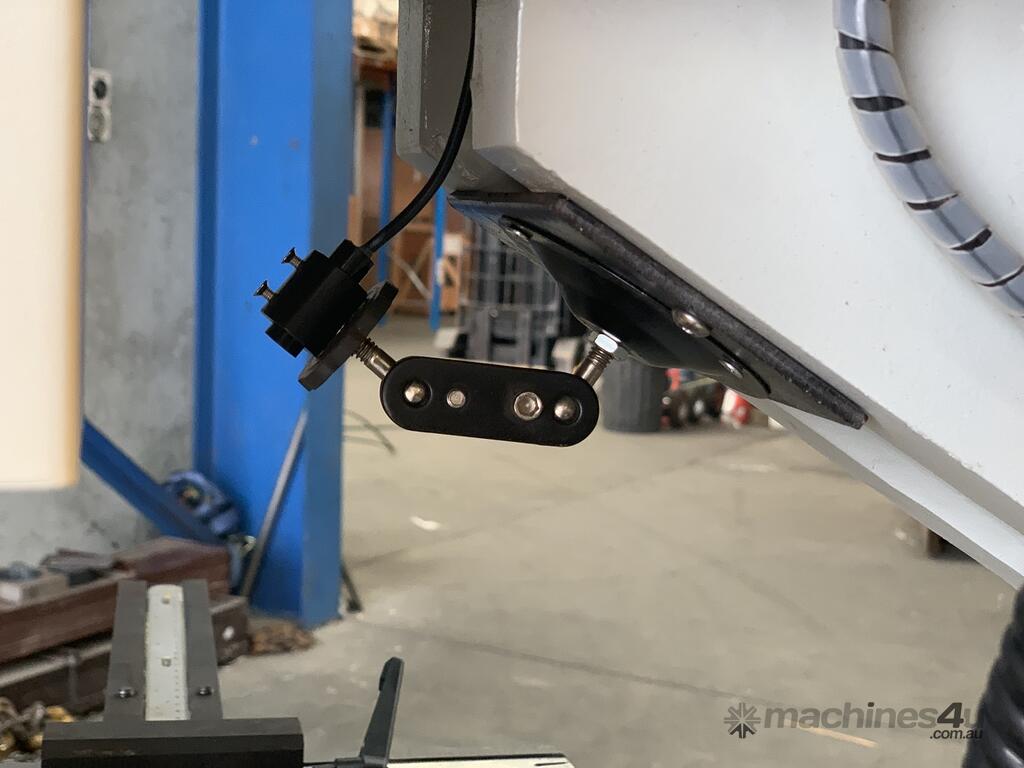

Now also included we have added laser punch guide for easy alignment!

Features
double cylinder hydraulic punch & shear machine
hydraulic flat plate shear clamping now standard

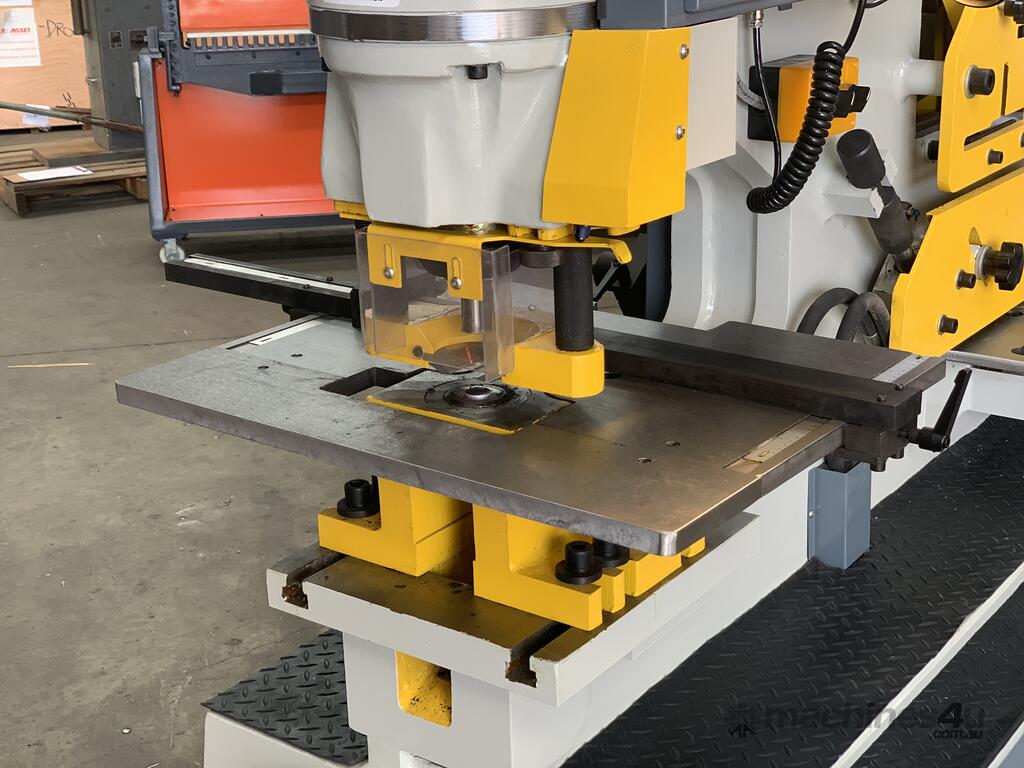

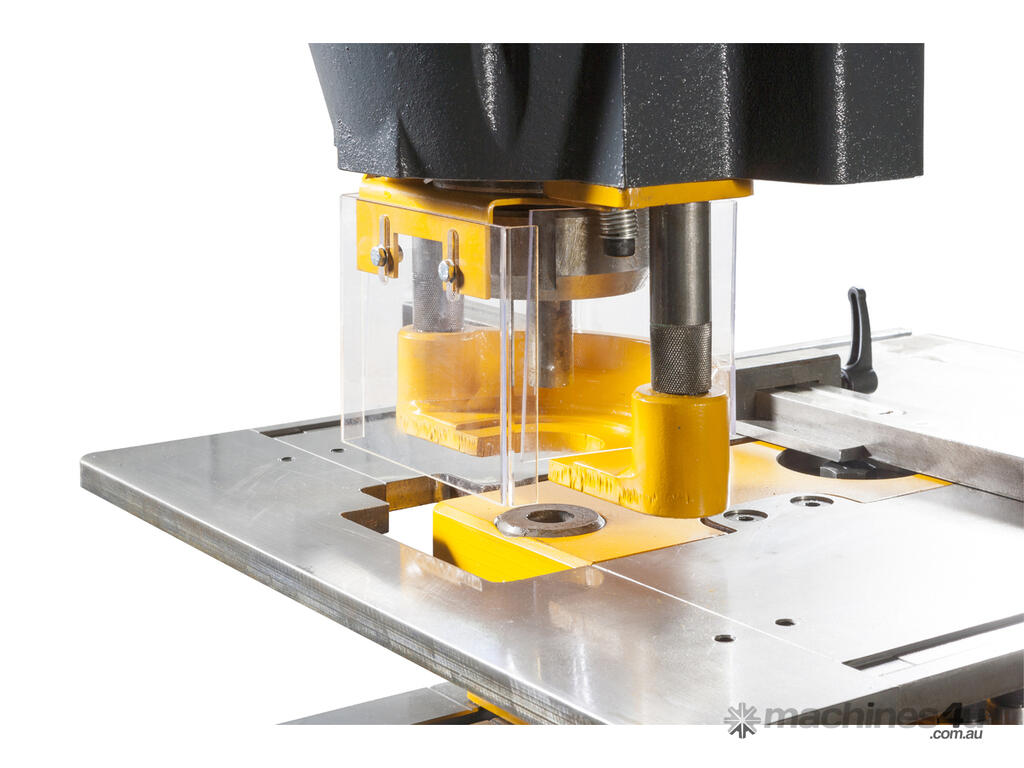

large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications
swing-away punch-stripper unit
two universal bottom die holders included

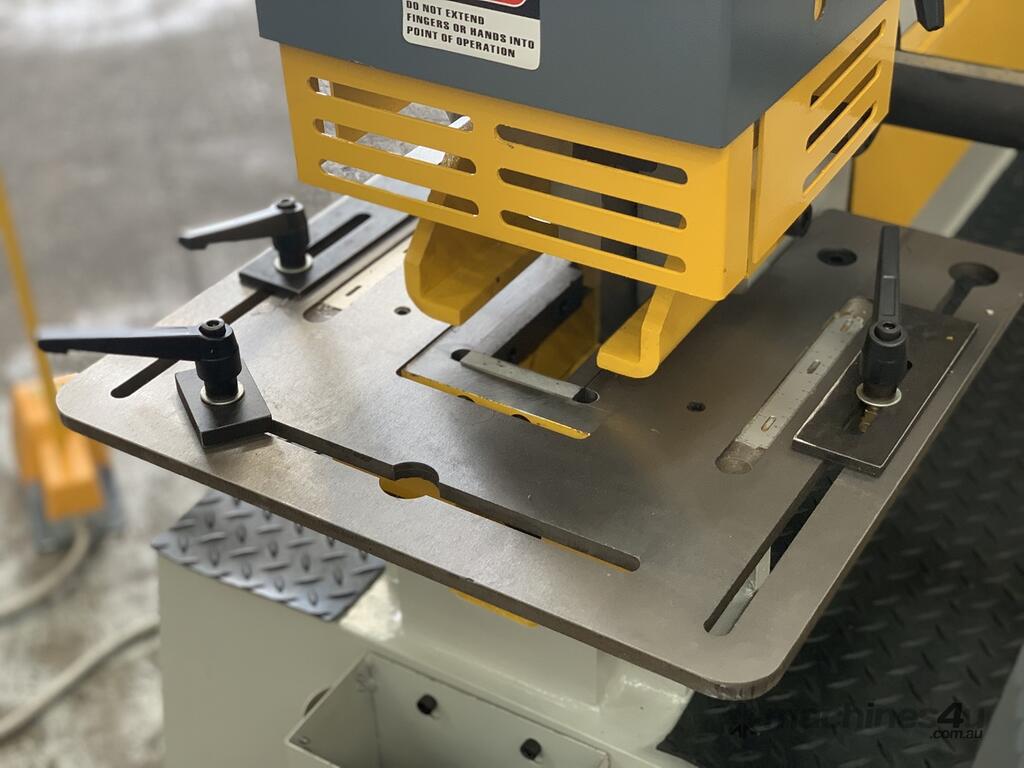

hydraulic clamp assist flat plate shearing station with square & angle guides
angle cropping station
round and square solid cropping station
rear notching station

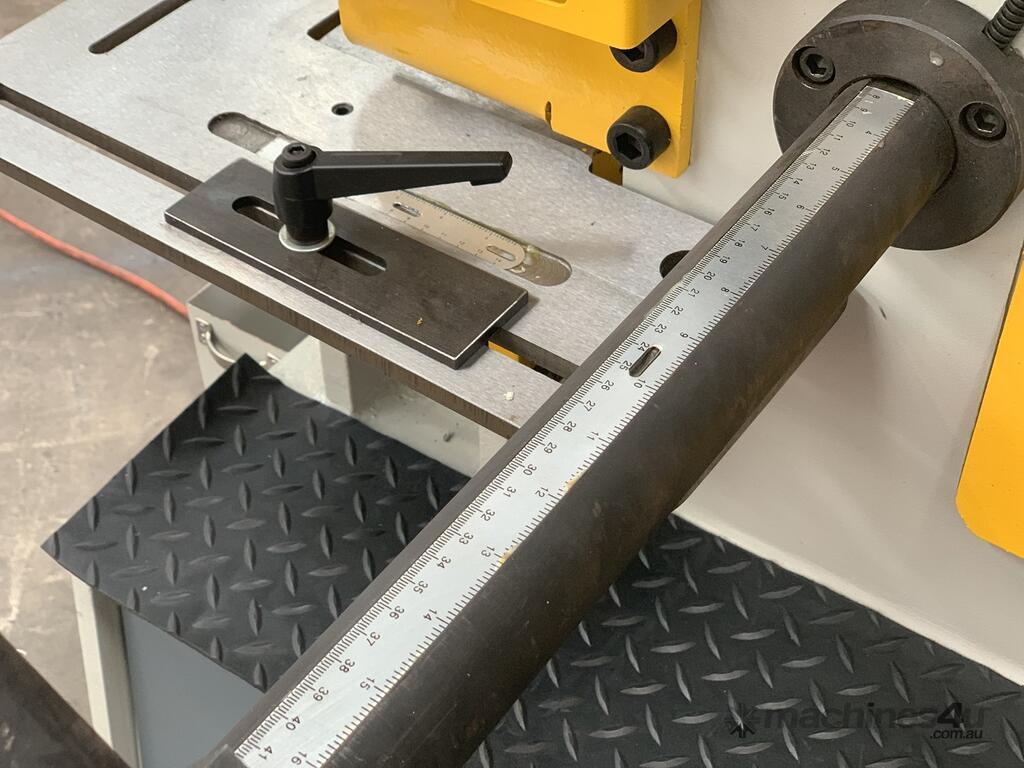

1000mm electric touch and cut feature

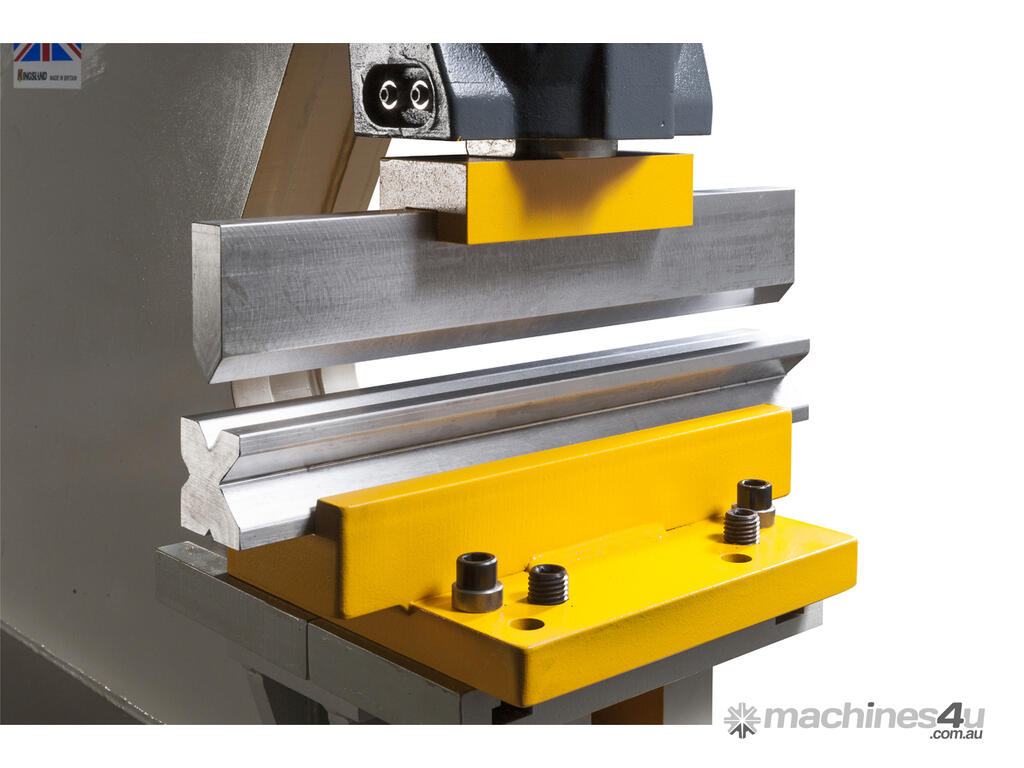

pressbrake bending attachment supplied
10 sets of standard Kingsland type punch and die tooling included
low power inching and adjustable stroke at punch station
overload relief on the hydraulic system

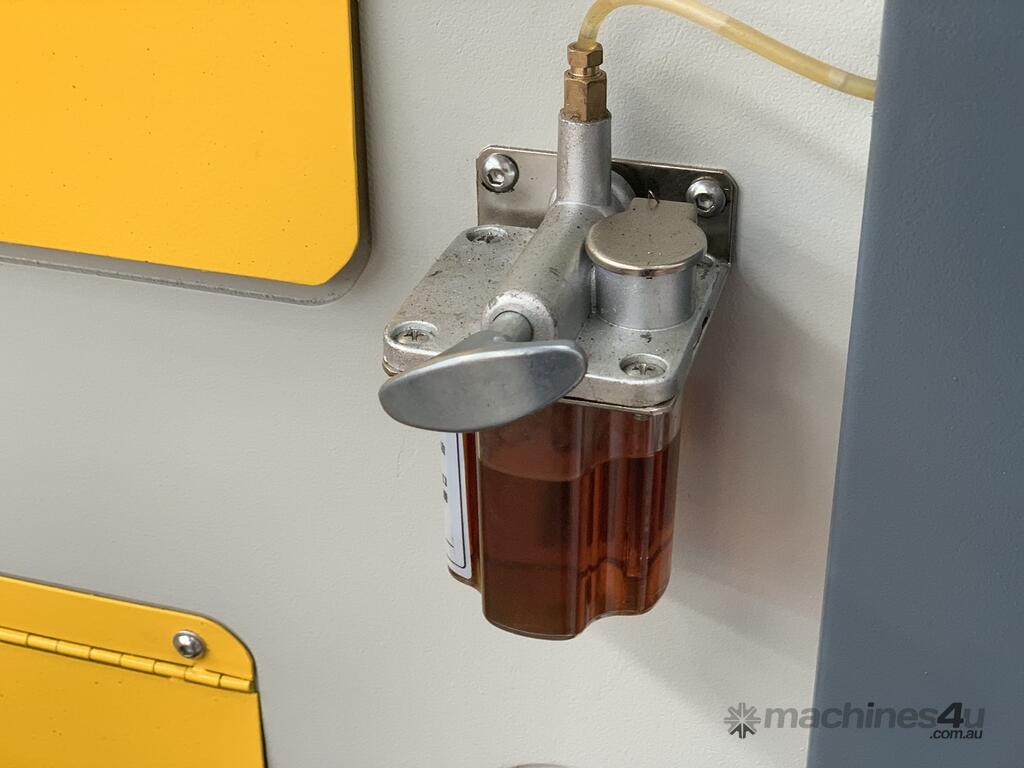

centralised pressure lubrication system
roving foot pedal operation
emergency stops
machine manual
service toolkit
hydraulic oil supplied
CE compliant

Technical Data Snap-Shot

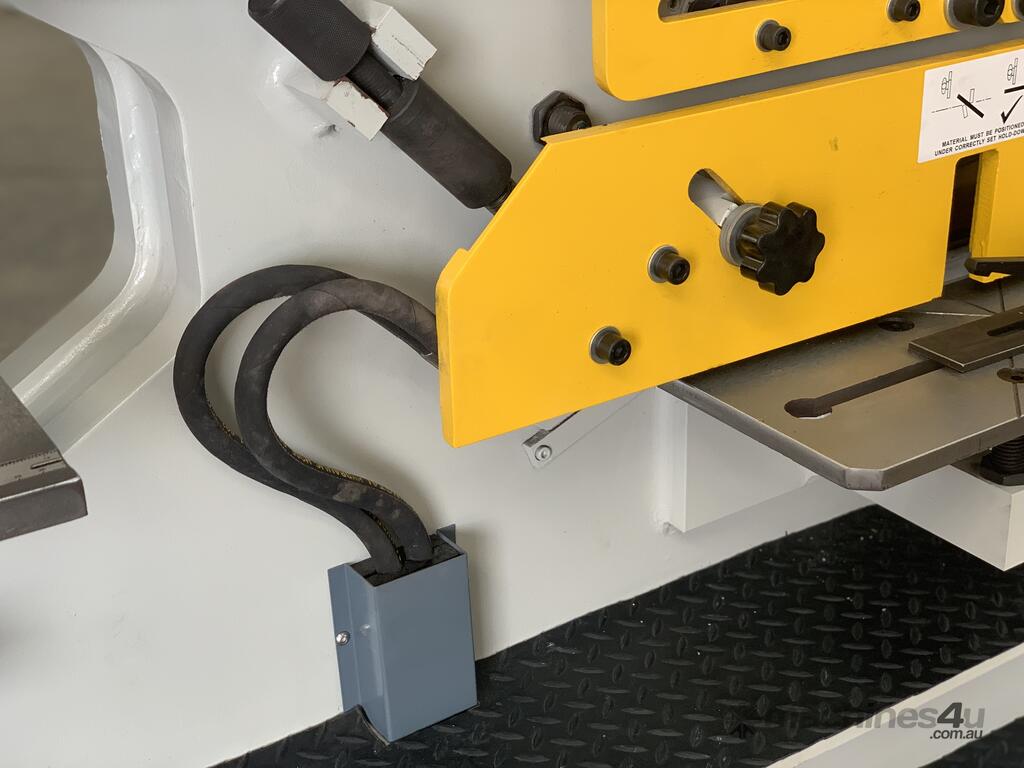

New hydraulic clamping on shearing station
26mm hole in 20mm plate (optional 57mm x 9mm)
55mm stroke length
1100mm working height
450mm deep punch throat depth – this is a must for all base plate work!
375mm x 15mm flat plate shear / also 300mm x 20mm
130mm x 130mm x 13mm angle crop also 70mm x 10mm at 45 degrees.
45mm round & square cropping
90mm x 45mm x 12mm rear notch

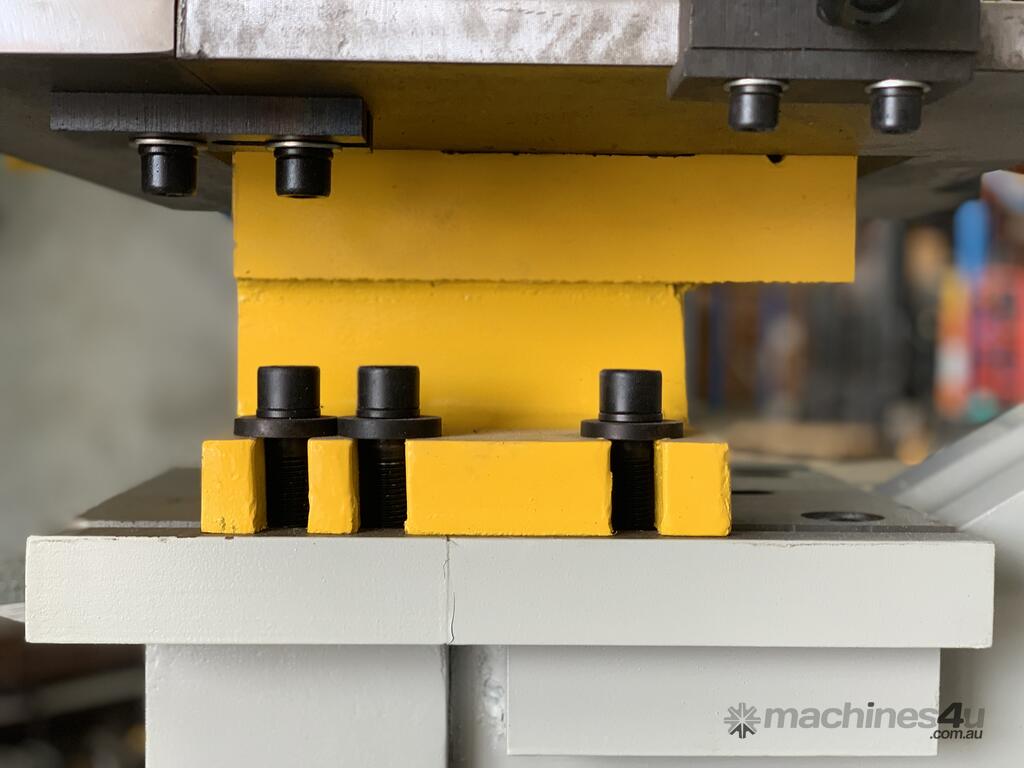

500mm x pressbrake bending kit supplied
130mm x 65mm section channel available – optional **
shipping dimensions - 1640mm x 710mm x 1830mm
weight - 1850Kg
power - V 5.5Kw

Accessories Included

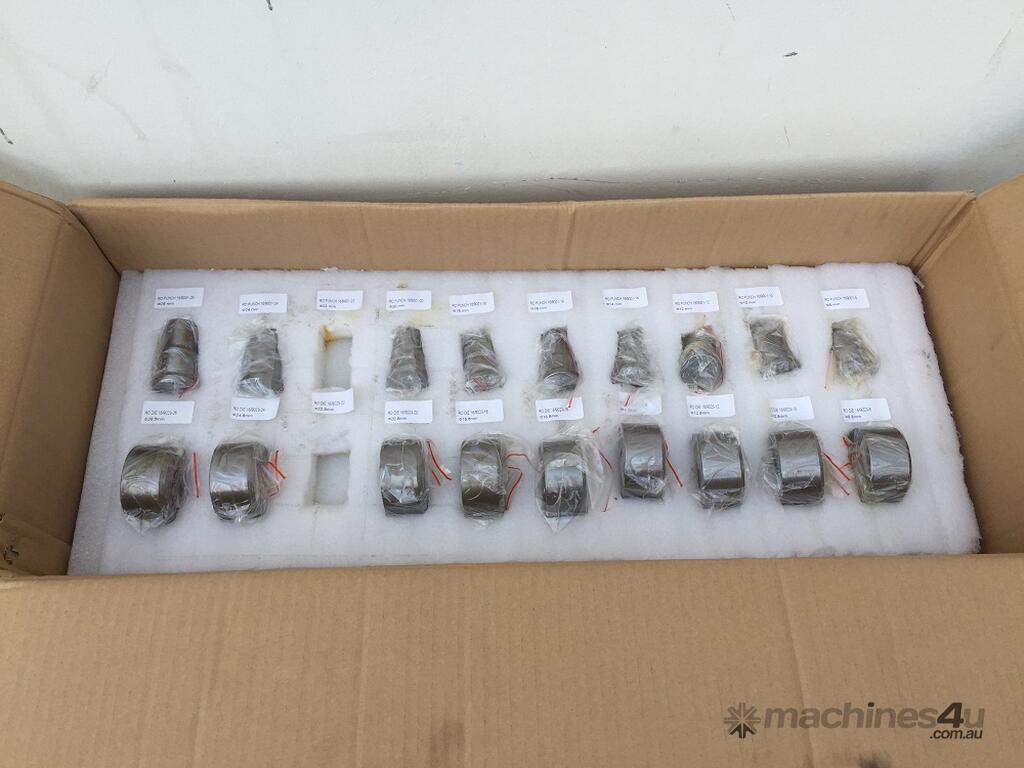

10 sets round punch & dies / short series punches (9001)
electric touch & cut feature
pressbrake attachment for bending
toolbox & manual


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
