New merlo Multi Tool Telehandler for sale - MULTIFARMER 40.7CS

Proudly representing Merlo in North East Victoria and Southern NSW

The unique and inimitable telescopic tractor.

Merlo was the first company on the market to translate the concept of a telescopic boom tractor into reality and to patent it: the Multifarmer.
It is a real crossover, which combines the characteristics of a traditional agricultural telescopic handler with those of a tractor, producing truly exciting results.
The result is a range that offers high-performance vehicles, all equipped with a 3-point rear linkage and mechanical power take-off.

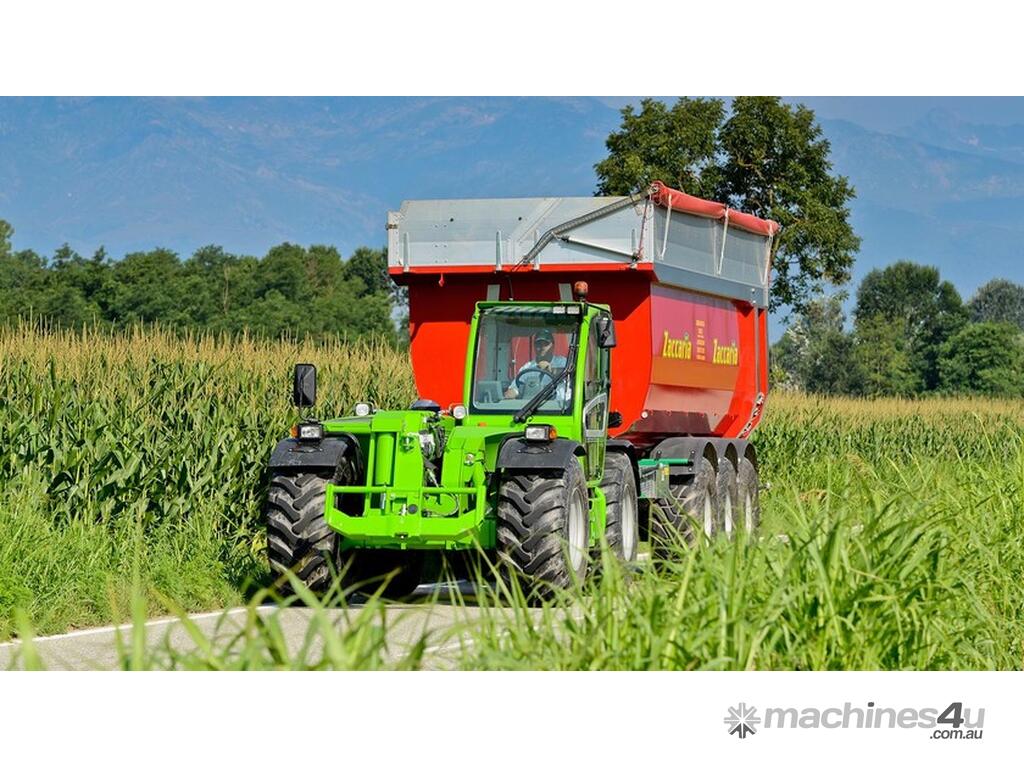

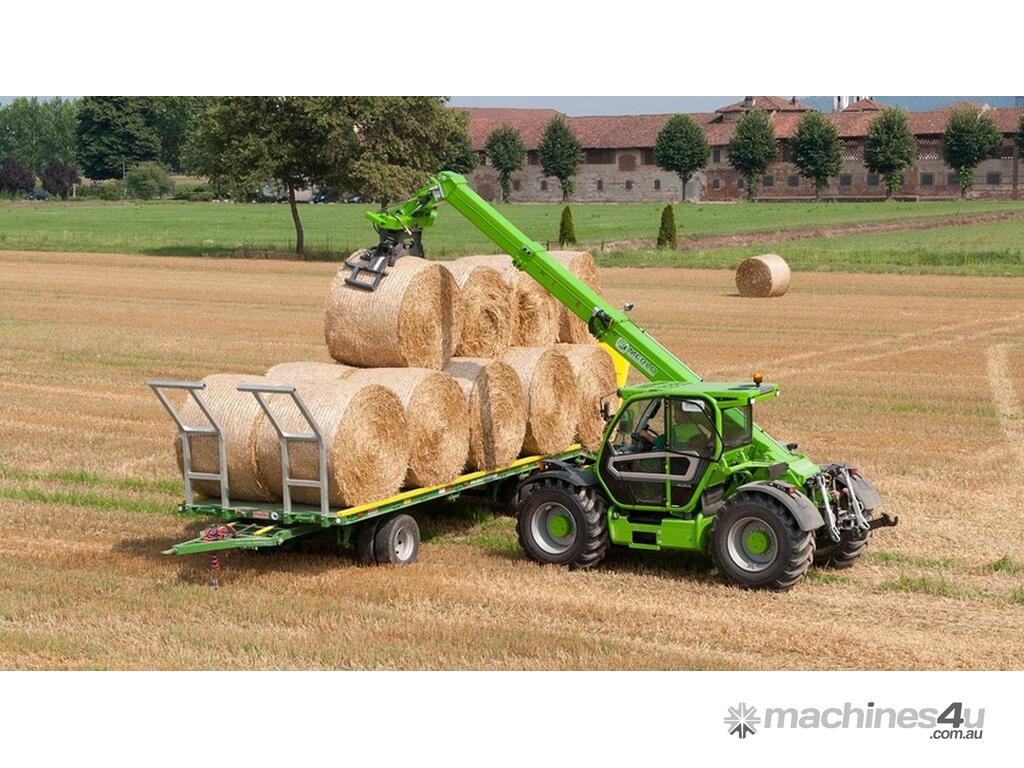

The Multifarmer models represent the revolutionary Merlo solution for performing all farm work, handling, lifting, transporting loads and operating attachments with a high level of performance for operations typically carried out by traditional tractors (towing and tillage).
The Multifarmers are also equipped with the anti-tipping MCDC (Merlo Dynamic Load Control) system and engines managed by the EPD (Eco Power Drive) system, which allows for a reduction in diesel consumption.
The new construction concept allows you to customise the models according to operational needs, consequently offering the widest agricultural range with tailor-made solutions for the customer.

PERFORMANCE
Everything at your fingertips

Exclusive precision:
Guarantees maximum movement precision, thanks to the hydrostatic transmission, which ensures millimetric variations in the machine's movements and load's positioning.

Compact and lightweight:
The Merlo telescopic handlers are compact and lightweight to reduce manoeuvring space and impact on the ground. These features guarantee safety, manoeuvrability, productivity and lower consumption.

Visibility:
Merlo telescopic handlers are designed to offer the best visibility on the market, ensuring faster and safer operations.

MCVTronic
The Merlo CVTronic intelligent continuous transmission combines the Merlo experience, acquired on hydrostatic transmissions, with new technical solutions that allow to reach the same performances, consumption and yields of a traditional CVT transmission.

Chassis levelling:
The tilt correction system, integrated into the chassis, is available as standard on this model. It allows the operator to offset the ground slopes to work in total safety. On sloping terrain the operator can correct the lateral inclination by 8%; this allows the telescopic boom to be moved out perpendicularly to work in conditions of maximum safety.

Multifarmer power take-off:
The Multifarmers are equipped with a mechanical power take-off as standard that, in combination with the 3-point rear linkage, allows mounted and trailed attachments to be connected.

3-point rear linkage: cat. III
This model is equipped as standard with a category III 3-point rear linkage with a 7,000 kg lifting capacity.


COMFORT
The best workplace.

Quick accessories changeover:
The Tac-Lock system for hydraulic clamping of the attachments further improves operating comfort.

Protection of the handled load:
The boom suspension system (BSS) is available as an option, which protects the load during transfer and maintains a high level of driving comfort on rough terrain.

Exclusive comfort / The most comfortable cab:
This model is equipped with the exclusive patented and dampened Merlo CS cab with active hydropneumatic suspension that can be switched off by the operator. The low frequency system allows the drastic reduction of vibrations inside the passenger compartment and facilitates the absorption of the stress and vibrations transmitted during the transfer and work phases, even on uneven ground.

SAFETY
Not just feelings.

Record-breaking safety:
The Merlo integrated safety system controls the operating parameters in real time, allowing the operator to work in peace.

Certified cabs / Certified protection:
The Merlo cab is FOPS - Level II - and ROPS certified, to guarantee a high level of safety for the operator.

Exclusive safety:
The exclusive new generation Merlo Dynamic Load Control (CDC) system automatically detects the type of attachment used, the machine's geometric configuration, the "boom extension and angle" and the handled load.
All information is displayed on the LCD screen, allowing the operator to use the telescopic handler simply and safely.





EFFICIENCY
Simpler and smarter

Simple and precise operations:
The entire range is equipped with hydrostatic transmission, which makes the work phases simpler and more precise. Moreover, the dry disc brakes limit the absorption of energy, thereby reducing the machine’s fuel consumption.

Customised mapping:
The exclusive Eco Power Drive EPD technology automatically controls and adjusts the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of up to 18%. The TOP version Eco Power Drive can be used in the following modes: "Heavy Load", "Eco" and "Speed Control" that allow the performance to be adapted to the various operational requirements. It also includes the engine speed management function from the joystick.


THE WIDEST CAB OF THE CATEGORY

The cab is designed to guarantee a record level of comfort for our customers. At 1010 m, it is the widest in the category, but careful attention has also been given to acoustic and thermal comfort. Furthermore, the low-frequency hydropneumatic shock absorber system allows for the drastic reduction of vibrations inside the passenger compartment and in the driver's seat.

Air conditioning:
The air conditioning system is completely new and has been developed according to automotive standards, halving the warm-up and cool down times to guarantee the optimal temperature in all conditions. The Merlo cab can reach an optimal internal temperature, even in extreme weather conditions. The inlet vent is placed on the side of the cab, away from potential sources of dust and dirt to maximise the service life of the filters. Inside there are 8 vents, three of which are dedicated to defrosting the windscreen, for optimal climate comfort.

ROPS/FOPS:
The Merlo cab is FOPS - Level II - and ROPS certified. This ensures a high level of safety for the operator.

Pressurisation:
The latest generation Merlo cab incorporates a pressurisation system compliant with ISO 10263-3.

Visibility:
Merlo telescopic handlers are known worldwide for their extraordinary visibility, thanks to the large 4.3 m2 glass surface and the exclusive roof design.

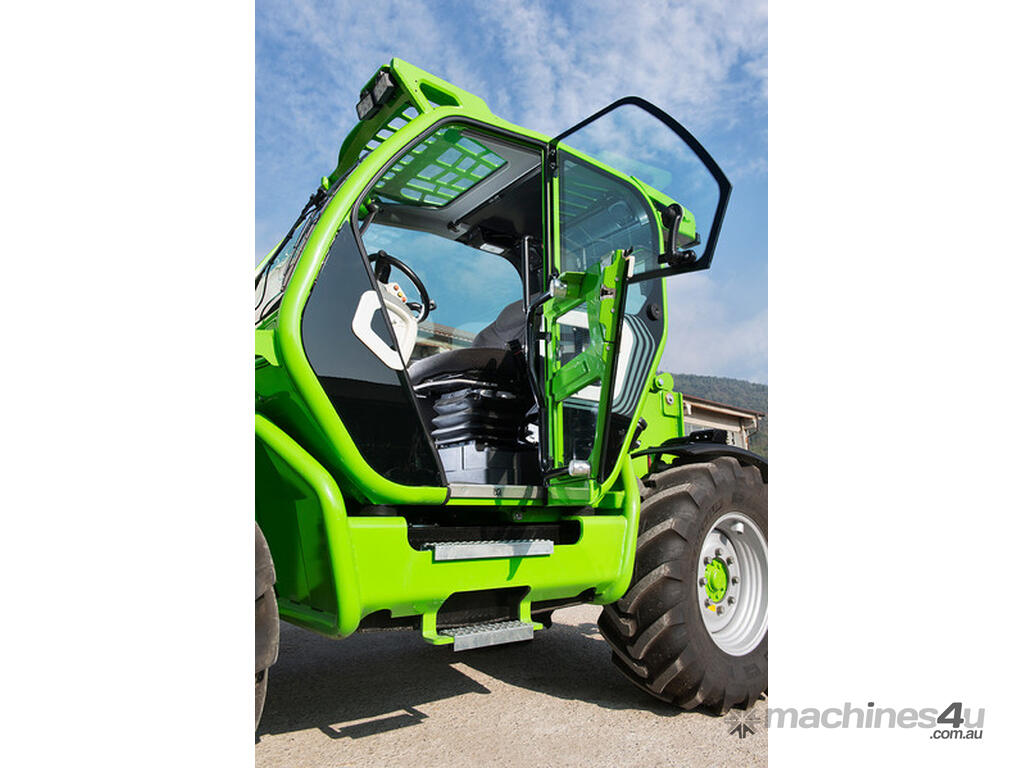

Door that can be opened at 180°:
Exclusive door that can be opened at 180° for easy access and featuring an independent upper window: air circulation, visibility and direct contact with those working outside are assured without compromise.


POWERTRAIN

The Merlo designers have adopted technologically advanced diesel engines, advanced hydrostatic transmissions and axles equipped with dry disc brakes, which contribute to reducing power absorption. Diesel engine/transmission management is electronic to optimise performance and minimise energy consumption.

Deutz 107 HP tier III Engines:
This model is equipped with a 107 HP (80 kW) four-cylinder Deutz Stage Tier IIIB engine. The engine complies with anti-pollution regulations with the DOC (Diesel Oxidation Catalyst). This guarantees simplified maintenance and less worries for the operator.

40 km/h Speed:
This model offers a maximum speed of 40 km/h.

Load sensing flow sharing:
The Load Sensing Flow Sharing pump allows numerous simultaneous movements regardless of the load handled, the operating pressure, the engine revolutions or the pump flow rate. This allows for the optimisation of operations, reducing work times and improving system efficiency.
The transmission system is managed in a way that guarantees a high static starting torque, smooth progression and an optimisation of cycle times and consumption.



AXLES

Merlo designs and produces its own axles internally, which are thus made and tailored to each application, enhancing performance and safety for each model.

Epicyclic reducers:
The axles fitted to the machine are equipped with epicyclic reducers that are synonymous with great reliability. Their exclusive design offers a lower centre of gravity for excellent traction.

Three steering modes:
Merlo telescopic handlers offer three steering modes: only the front wheels, pivot steering and crab steering.
This exclusive solution adopted on the axles guarantees the maximum steering angle to perform manoeuvres in tight spaces.

Four-wheel drive:
The driving wheels, which are always engaged, are synonymous with maximum traction in all operating conditions.

Braking:
The integral servo-assisted braking system acts on the four wheels for maximum safety in every working context. Parking brake: activates automatically when the engine is switched off or can be engaged manually from the cab.

BOOM
The Merlo designers have devised a sturdy, compact and lightweight telescopic boom, today a benchmark for design, load capacity and speed when carrying out work. The chosen steel is of the structural type with welds along the neutral bending axis, offering a rectilinear boom in any extension or loading condition.

Boom 6,8 m:
The boom consists of two sections: the maximum lift height is 6.8 metres for unrivalled versatility.
The components - including the boom extension cylinder, the hydraulic pipes and the electric cables - are housed within a cartridge structure inserted in the boom. This exclusive solution considerably increases the longevity of the components and makes the external shape clean and snag free, allowing for rapid maintenance operations.

ZM2:
The ZM2-type tool carrier carriage allows for all Merlo attachments to be connected. The hydraulic locking of the tools is carried out from the cab, while the hydraulic and electrical connections feature quick couplings.

Tac-Lock:
The attachments are easily replaceable, thanks to the exclusive Tac-Lock system for the hydraulic locking of the attachments, thereby improving operating comfort.

Hydraulic and electrical connections:
Hydraulic and electrical connections are available at the end of the boom, allowing for the movements of the various usable attachments to be operated from the cab.




Maximum Capacity (kg)
4000

Lifting Height (m)
6,8

Operating weight (kg)
8700

Standard Tires
500 / 70-R24

Width (mm)
2350

Height (mm)
2510

Lenght (mm)
5310


Frame levelling (%)
+/- 8

Engine
FPT NEF45

Displacement/Cylinders
4500 / 4

Engine Power (kW/HP)
125 / 170

Emission standard
Stage IV, SCR+DOC

EPD
Top

Max Speed (km/h)
40


Hydraulic pump
LS + FS

Flow / pressure (l/min - bar)
150 - 210


Cab Suspension
YES

PTO
YES

Number of speed
CVT

3-Point linkage
YES
