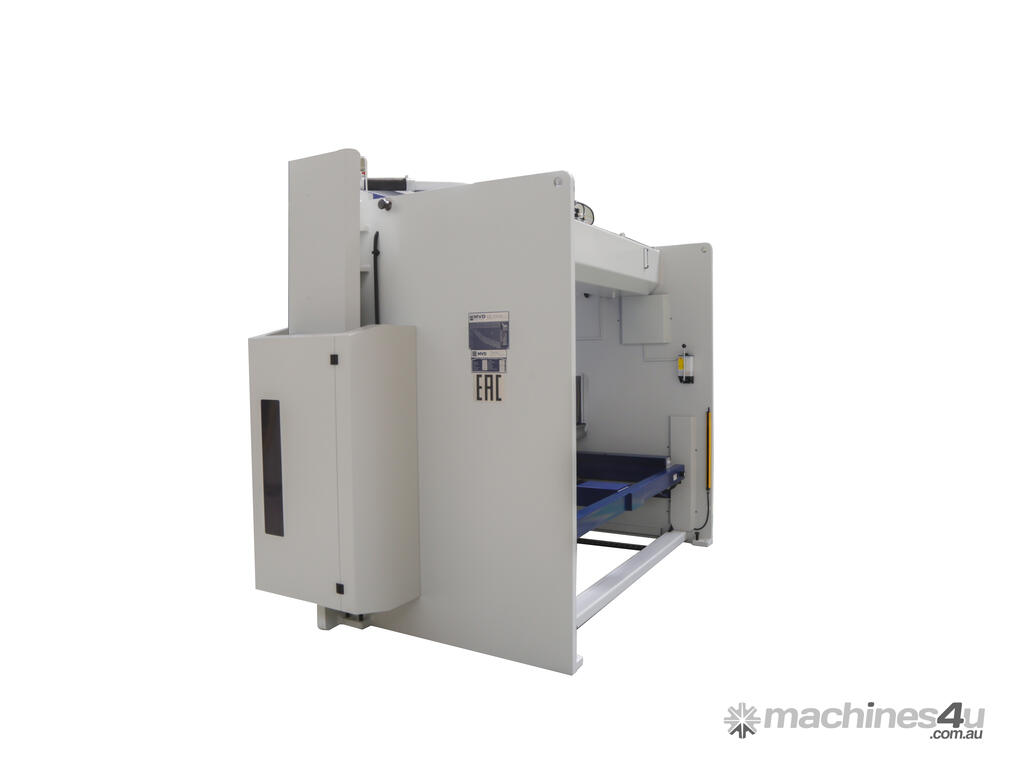

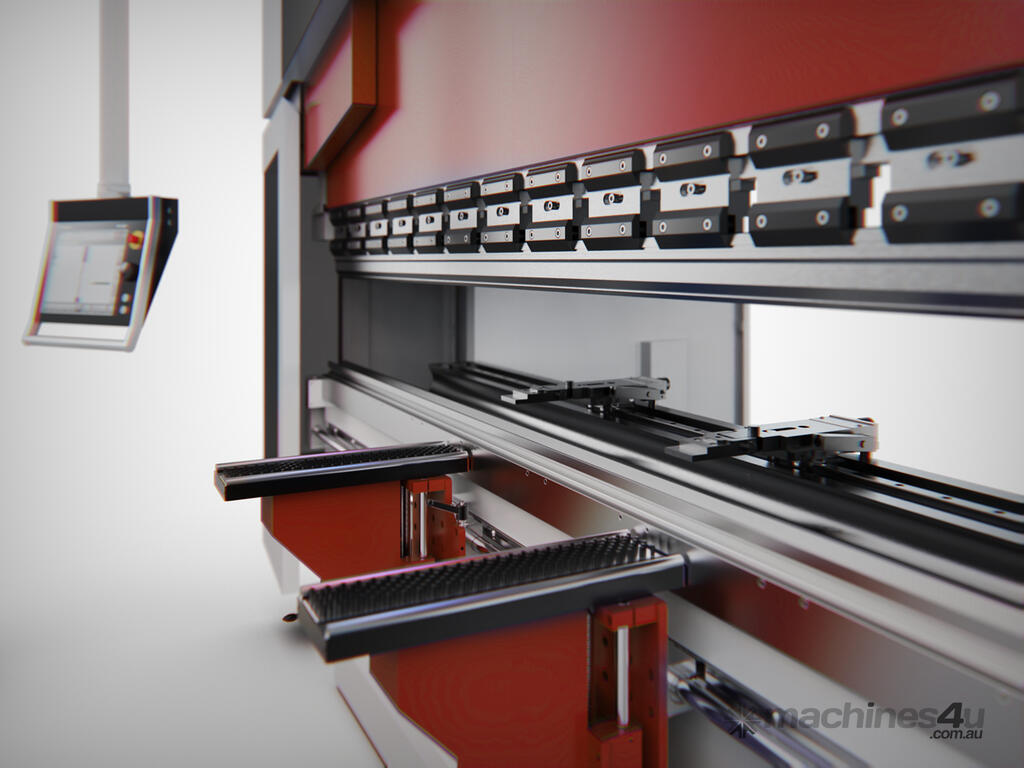

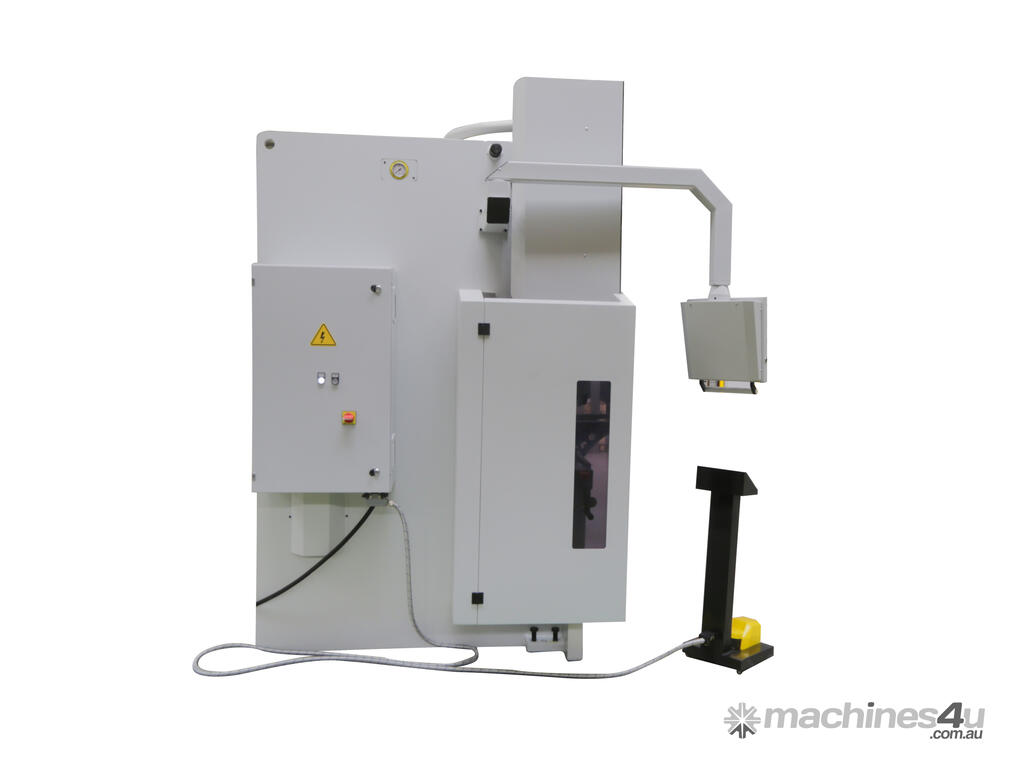

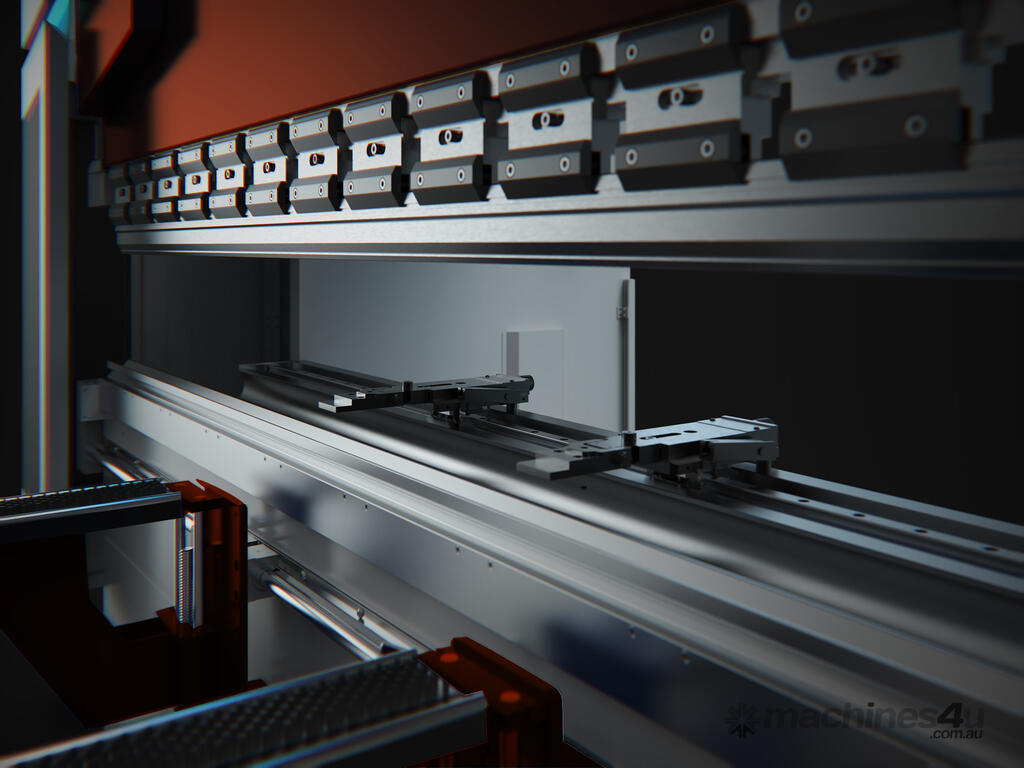

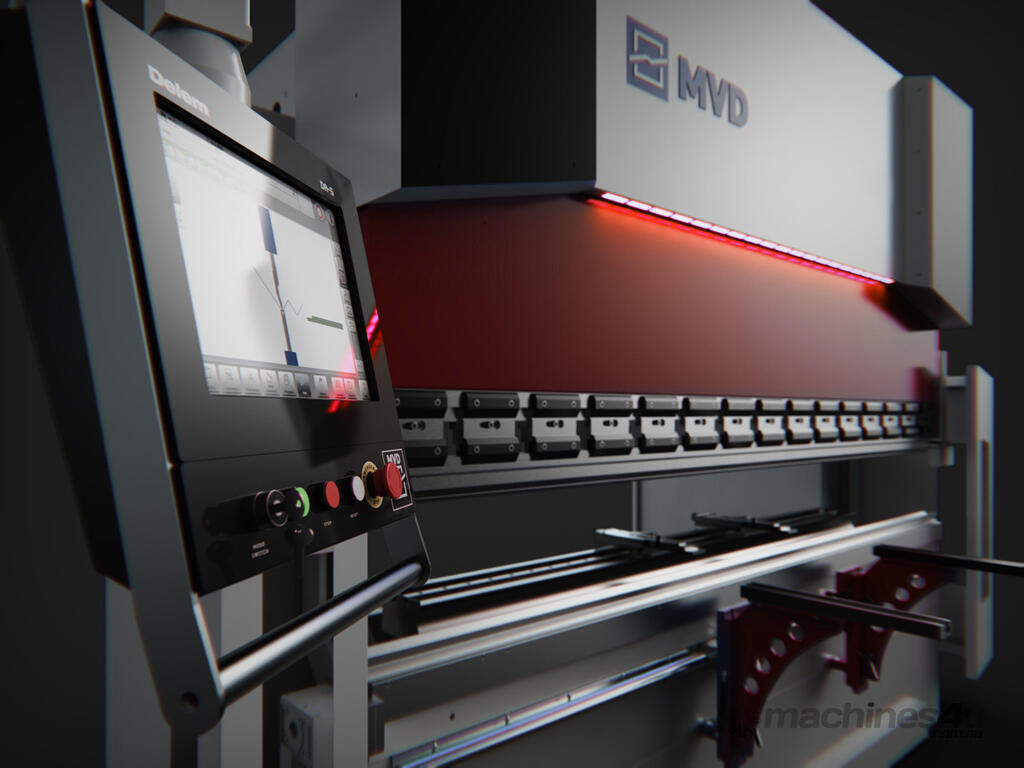

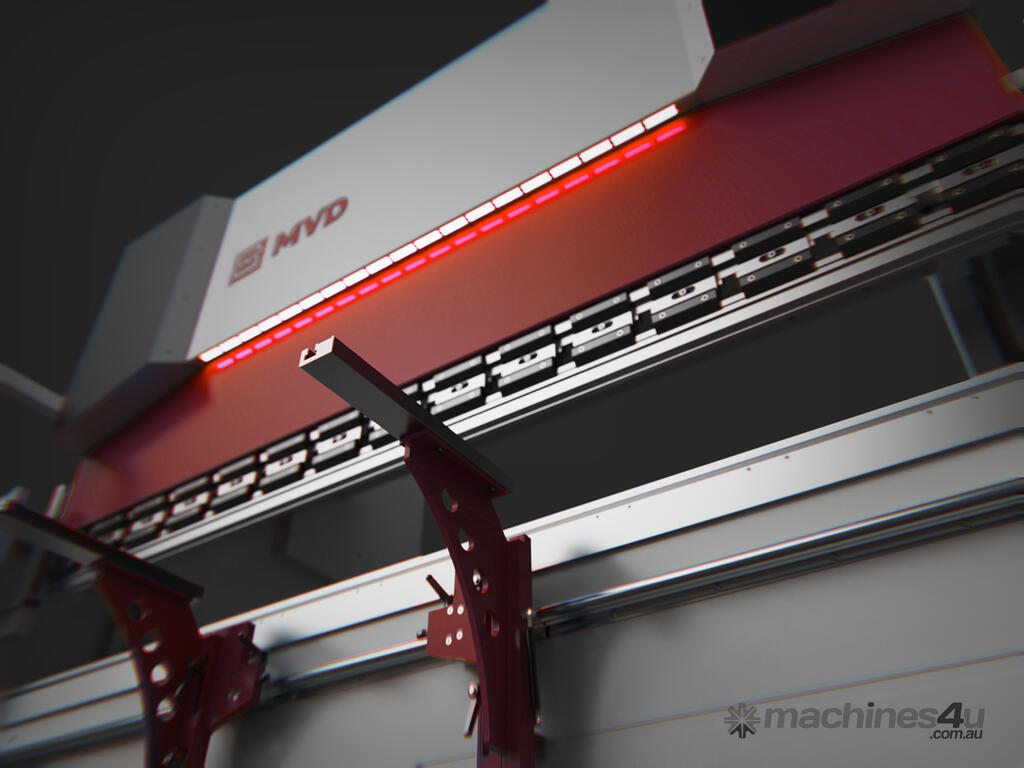

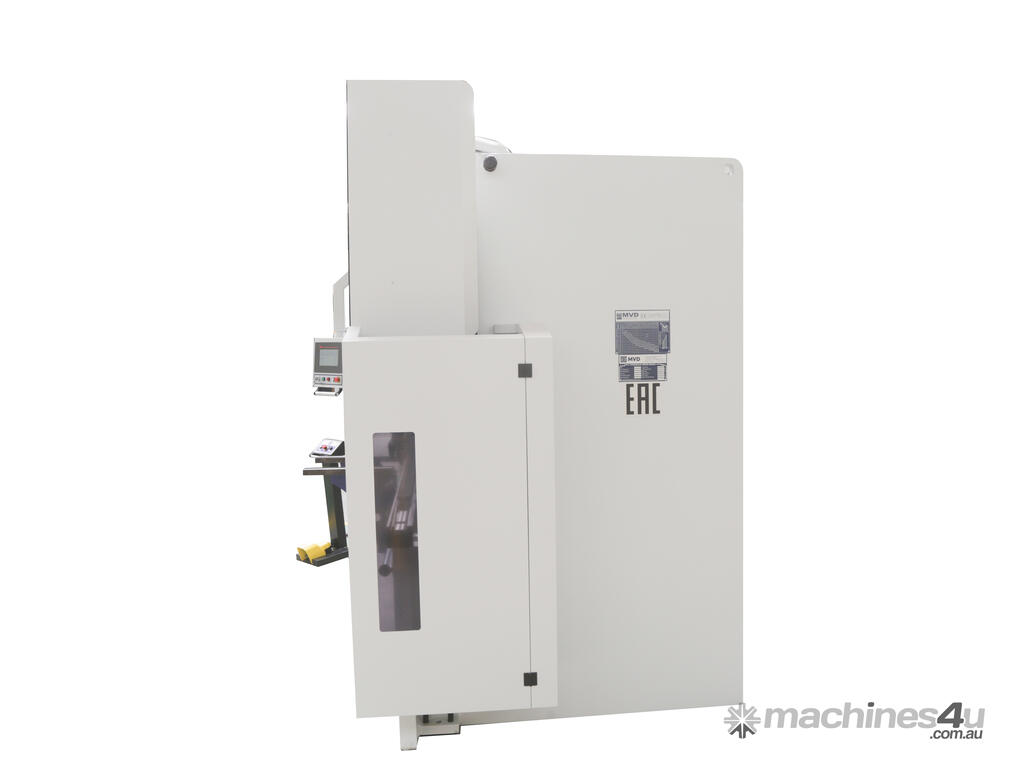

MVD Press Brake (D-Series) [RELIABILITY, DURABILITY, PRECISION]

Meet the new MVD PRESS BRAKE D-SERIES. This highly intuitive machine sets the standard for what press brakes are capable of, pushing reliability, durability, and precision as far as it can go. The future is now!

These machines are designed with 3D computer programs, “stress relieved”, and equipped with world-class components, before undergoing a thorough and comprehensive quality-control process prior to customer presentation.

* * *

MACHINE FEATURES:

- Y1, Y2, X, R CNC 4 axes

- 410mm stroke, 510mm throat depth

- ESA S650 CNC control unit

- ±0.03mm accuracy SERVO motorized back-gauge. X= 750mm, R= 250mm

- Quick-clamp PROMECAM punch tool holder

- Sliding front-sheet support arms with hand wheel

- Motorized anti-deflection crowning with original WILA wedges

- European-designed MVD special narrow bottom table

- GIVI optic linear scales

- Standard punch tools: H: 67, 85°, R: 08

- Standard die tools: 60 x 60mm, 4 Vee V= -50mm, 85°, H: 60

- LED illumination on RAM

* * *

OPTIONAL FEATURES:

- X + R to axis back-gauge options

- ROLLERI ROL 200 hydraulic-punch clamping

- WILA hydraulic clamping

- Wide bottom table for multi-vee dies.

- 1.000mm X axis travel

- AKAS or DSP front-laser safety systems

- Rear safety

- Additional back-gauge fingers

- Plus more

* * *

Phone our sales team to book a consultation or a demonstration in our Victorian showroom, and see how a new MVD Press Brake D-Series can improve your productivity and bottom line. With speed, sophistication, and trailblazing performance right at your fingertips, the sky is no longer the limit!
