MX-30i 3-Axis Digital Readout 7" LCD Display Multi Function suits Lathes & Mills

MEASUMAX MX-30i 3-Axis Digital Readout 7" LCD Display Multi Function suits Lathes & Mills
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q8500

The Measumax MX-30i Digital Readout offers a high performance 7" LCD graphical display that can be programmed with 1, 2 or 3 axis inputs for all universal milling and lathe functions.

MX series scales (sold separately) available ranging from 120mm to 3000mm with compact models available specially designed to suit X-Axis travels on Lathes.

FEATURES

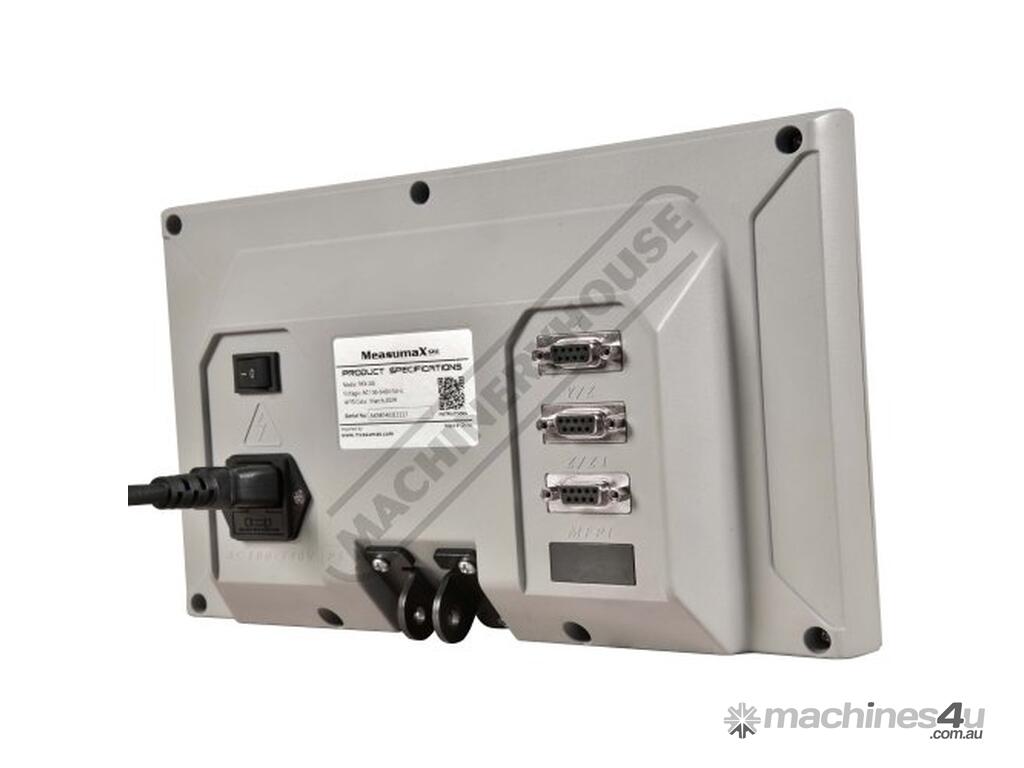

- 3 axis model allow up to 3 linear scales to be connected

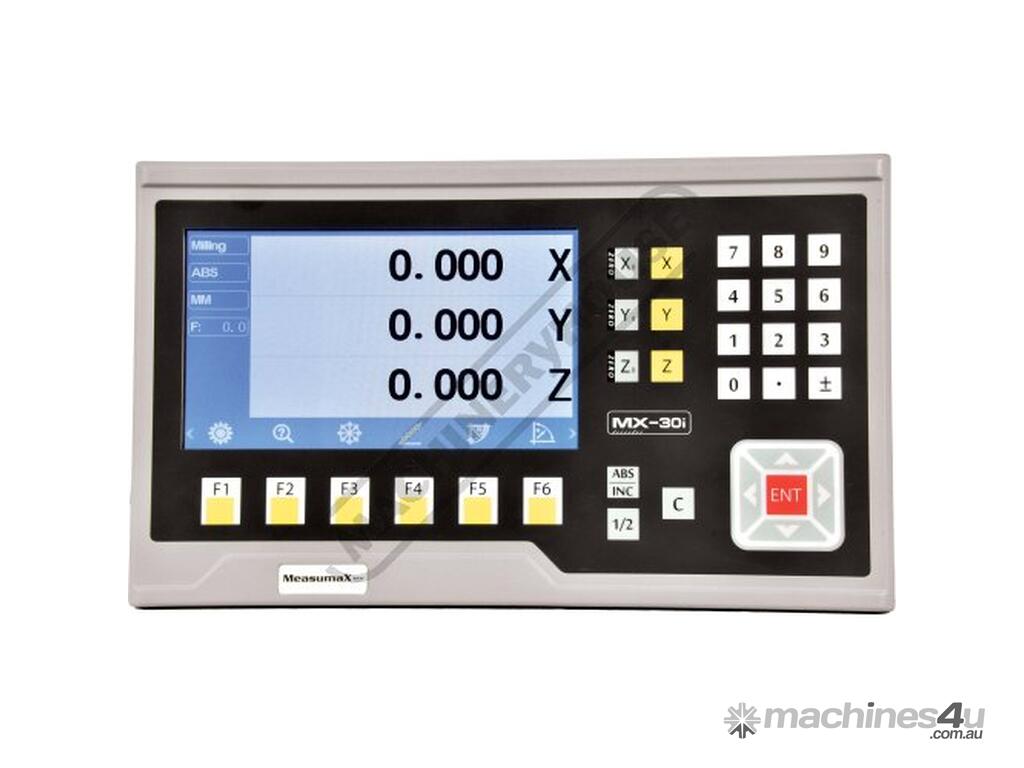

- 7" colour LCD screen provides a clear and easy to read display with graphics

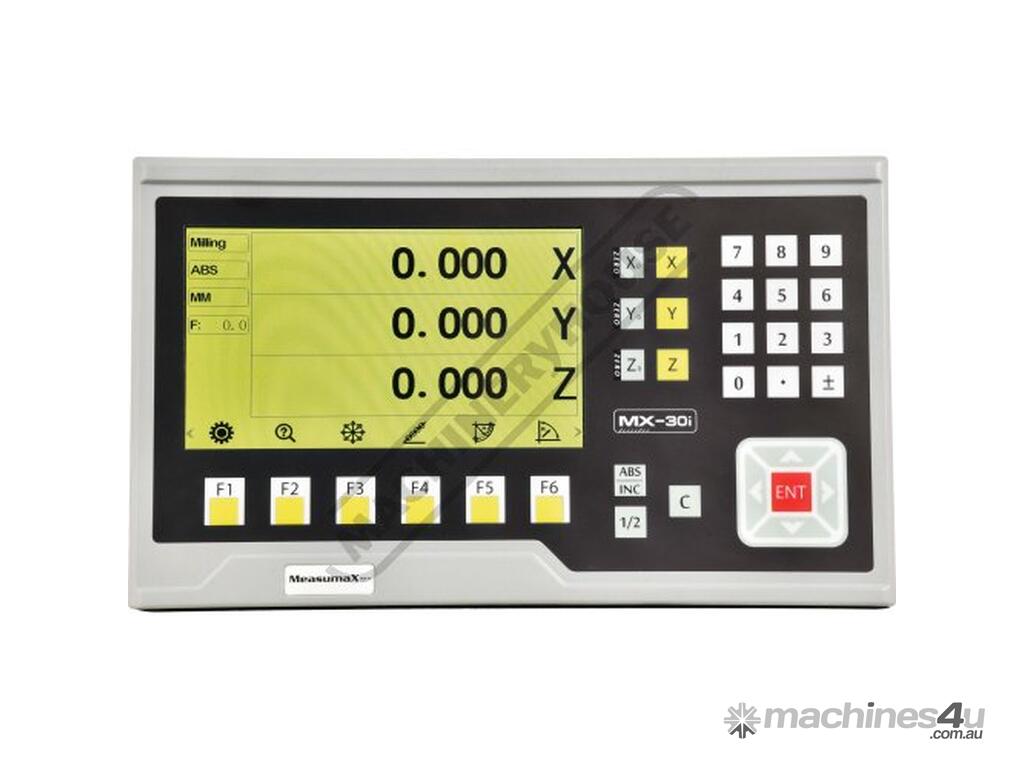

- Multiple pre-set display colours to choose from
- Easy to use step by step graphical guidance for DRO functions when entering required parameters
- On screen drawing of actual programmed result prior to processing PCD, Line of holes or Arc contour
- One touch axis zero keys
- Durable and wipe clean front panel graphic overlay with die-cast casting

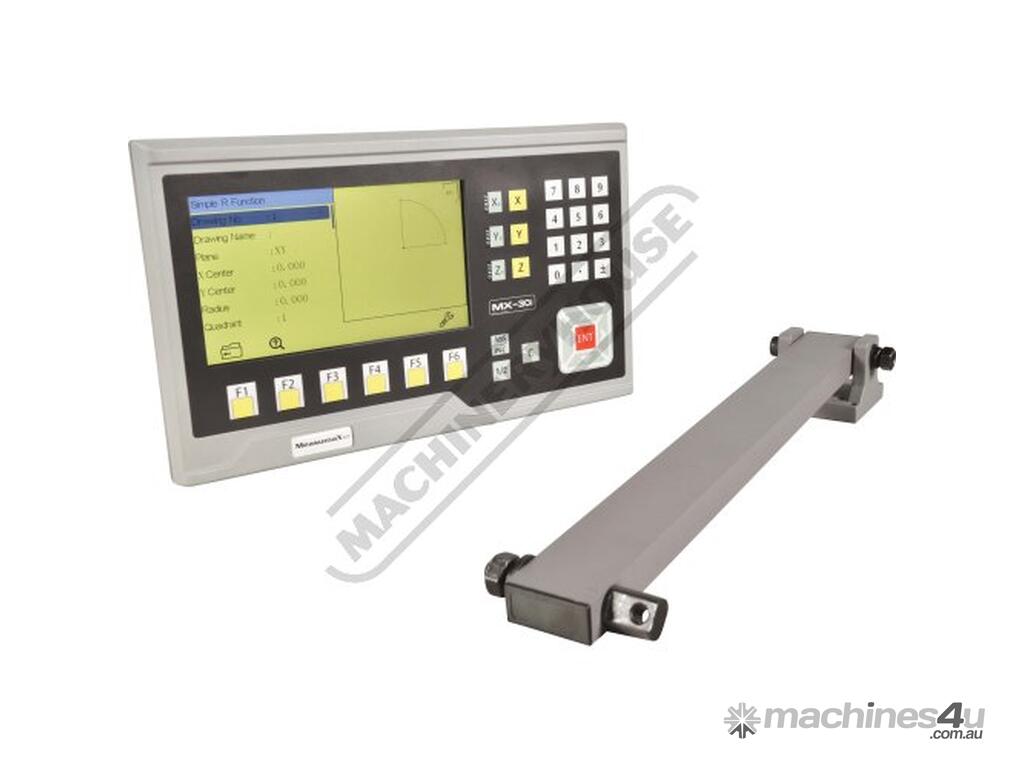

- The display unit is supplied with a mounting arm
- 2-year warranty

MX-30i SERIES DIGITAL READOUT
? Several pre-set colour displays
? Zeroing, Data Recovery
? Preset value
? Metric and Imperial switch
? Power-off memory
? Encoder selection (Linear or Rotary)
? Linear Compensation & Non-linear compensation
? Counting Direction Setting
? ABS/INC Coordinate
? 200 sets of SDM Coordinates
? REF function
? Centring / 1/2

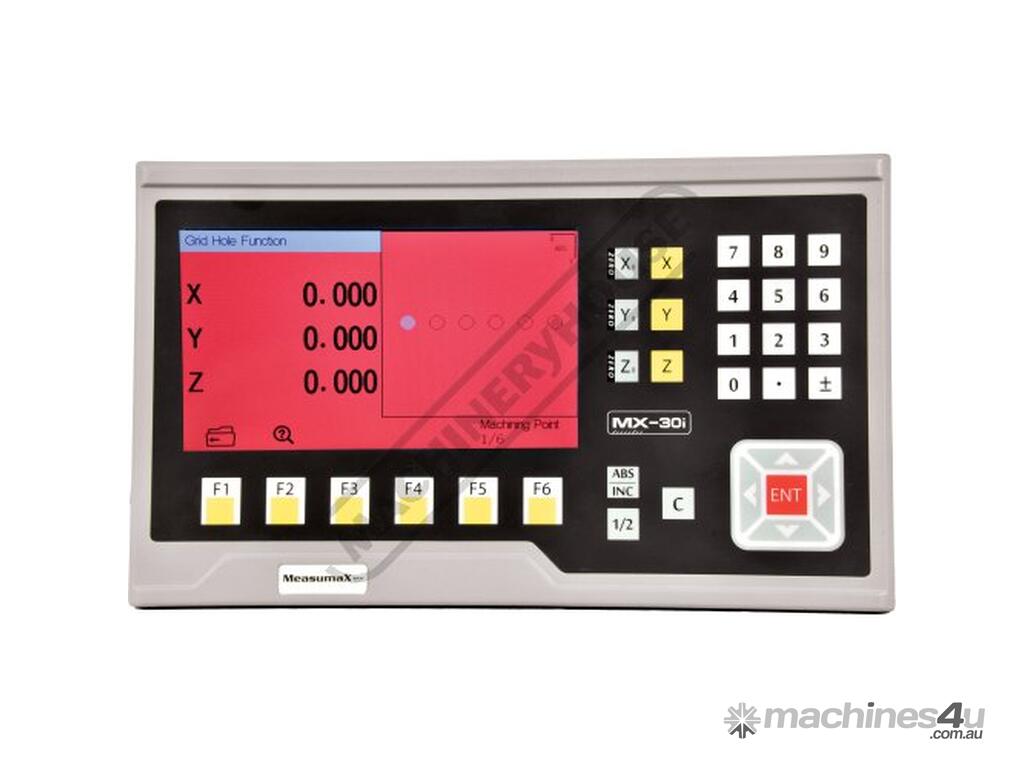

? Grid Hole

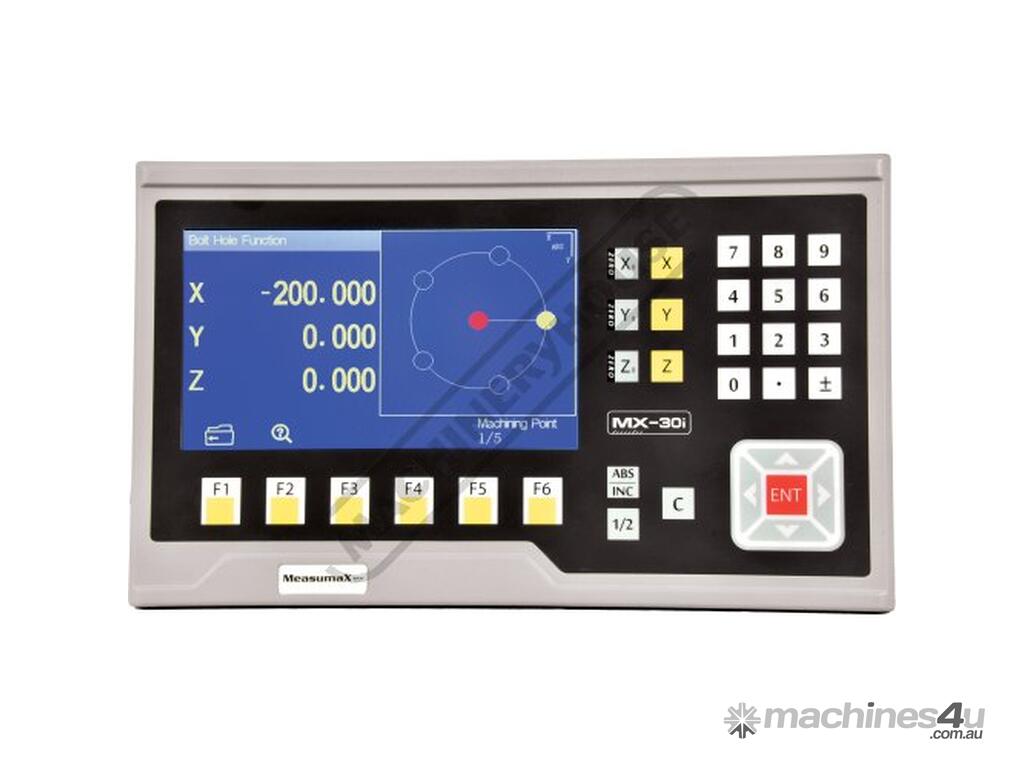

? PCD (Pitch Circle Diameter)

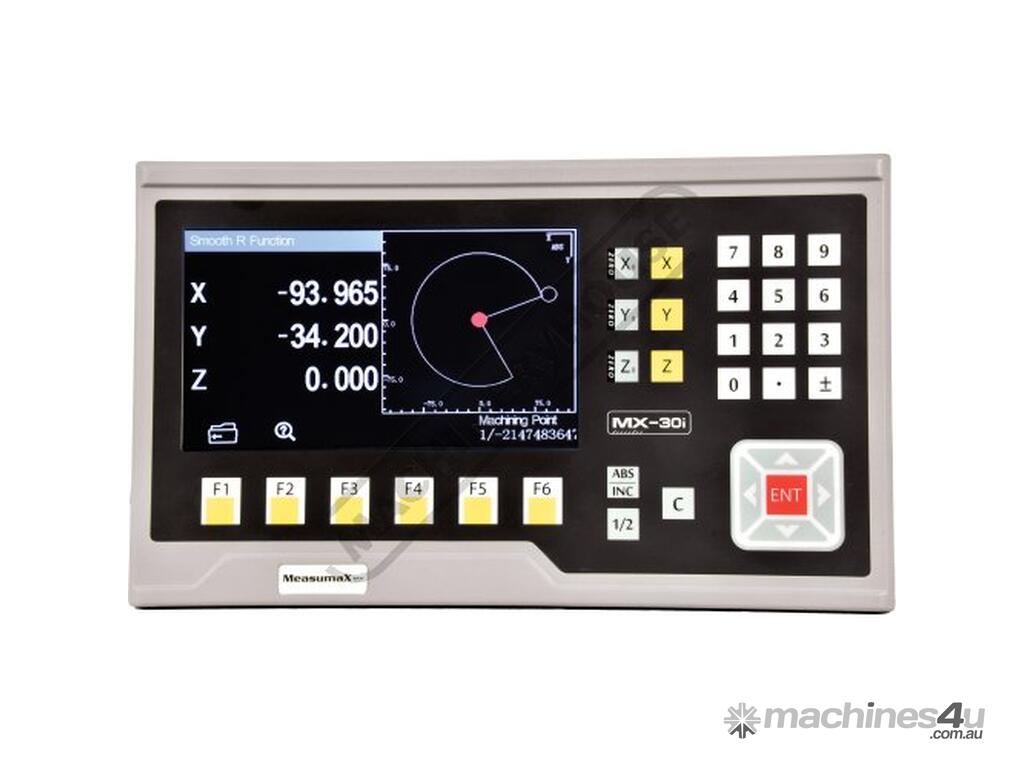

? Smooth R

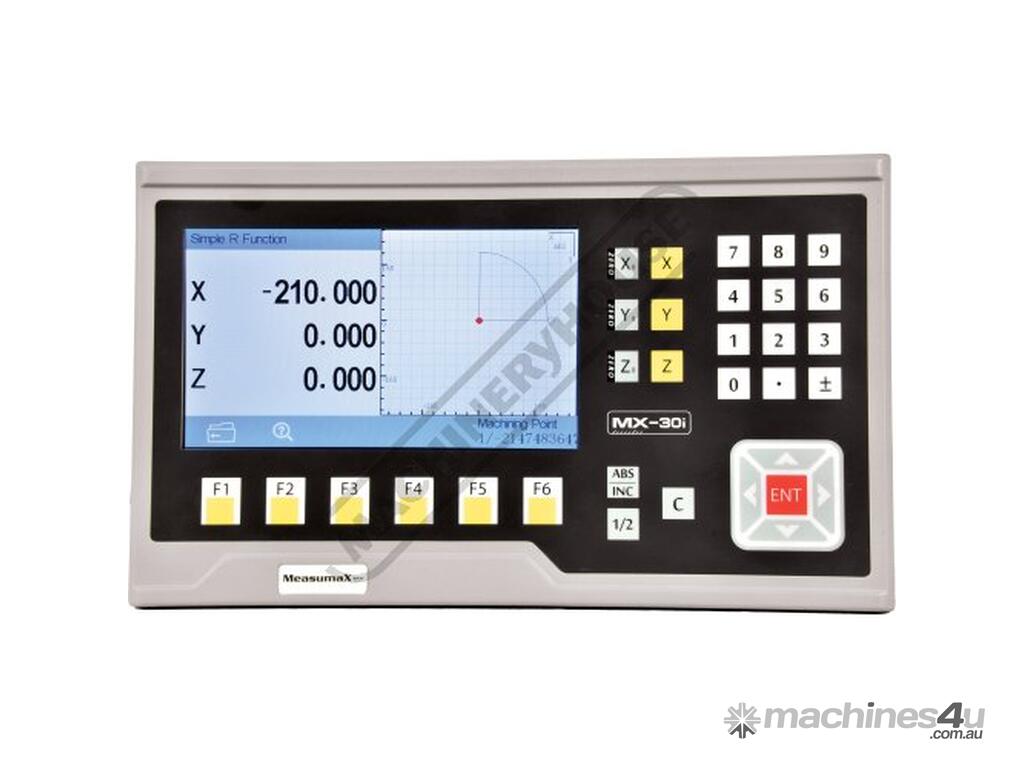

? Simple R
? Radius and Diameter Conversion
? Axis Summing
? Taper Measuring
? 48 Sets of Tool Offset
? Feed Rate
? Distance to Go
? Oscilloscope Function
? Measuring Function (Circle, Projected Length, Intersection Angle)

Specifications:
ORDER CODE: Q8500
MODEL: MX-30i
Axis Type (No.): 3-Axis
Accuracy (µm): 5
Voltage (V): 240
Suits: Lathe or Milling Machines
Suits: ~
