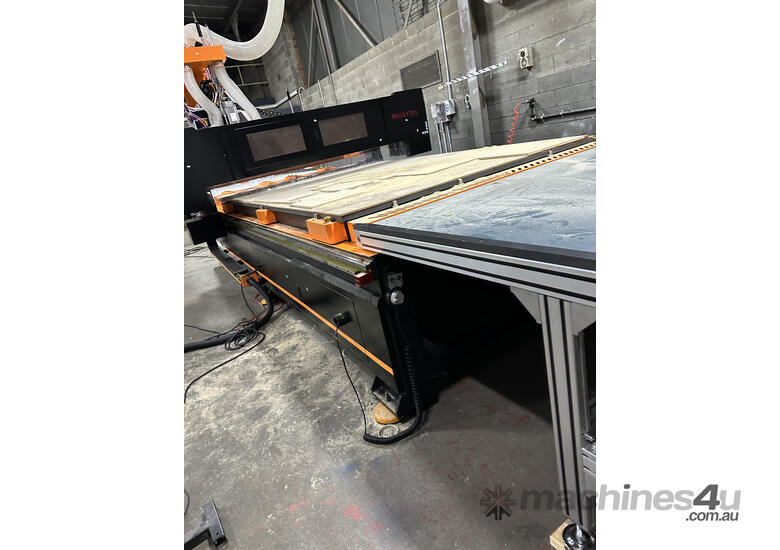

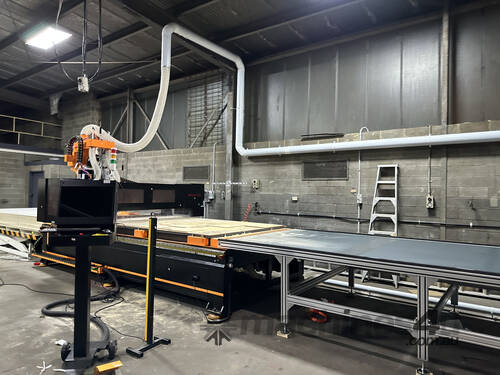

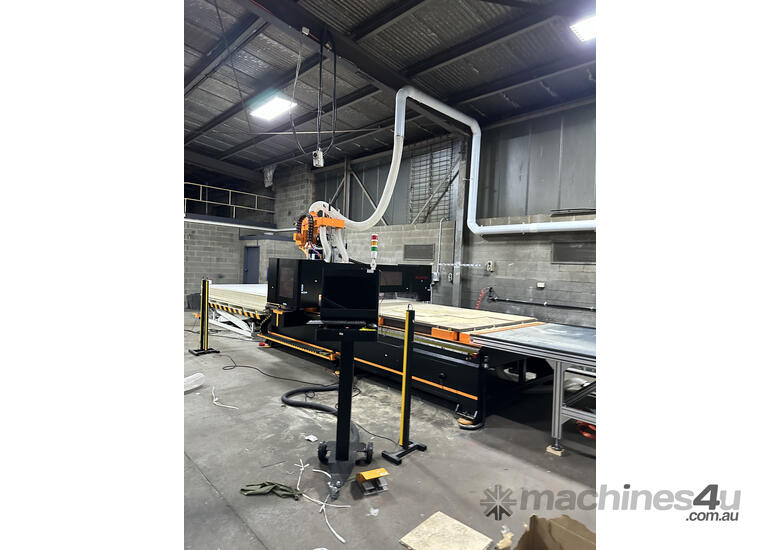

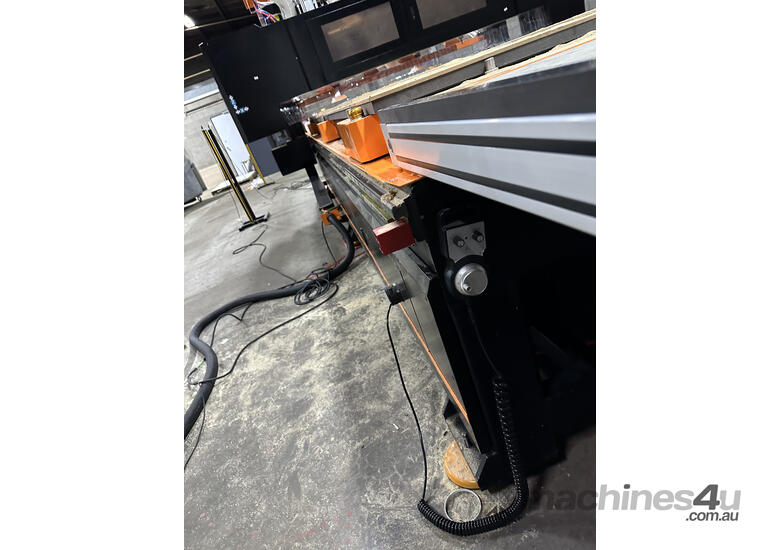

Madbytes CNC Machines: Load, Align, Mark, Cut, Unload – Streamline Your Machining Process

Experience the revolution in machining with Madbytes CNC machines, engineered to optimize every phase of your workflow. From loading materials to unloading finished components, our machines ensure precision and efficiency at every step.

Key Process Phases:
Load & Align: Our CNC machines securely position materials, ensuring accurate alignment to minimize setup time and maximize productivity.
Mark: Advanced marking systems highlight cutting paths, guaranteeing precision throughout the machining process.
Cut: Equipped for high-speed capabilities and heavy cutting power, Madbytes CNC machines excel in delivering precise cuts for both intricate designs and large-scale productions.
Unload: Safely remove finished components for further processing or assembly, enhancing your workflow and operational efficiency.

Technical Specifications:
Working Voltage: Operates on a 380V three-phase power supply at 50/60Hz.
Working Area (X, Y, Z Axis): Dimensions of 1300mm (X) x 2500mm (Y) x 200mm (Z).
Frame: Industrial heavy-duty double-layer nesting frame for exceptional stability and durability.
Transmission: X and Y axes: High-efficiency Taiwan helical rack and gear transmission. Z-axis: Taiwan TBI ball screw, guided by 25mm square guide rails.
Motor and Driver System: Yaskawa 1500W servo motor and driver system for precise control.
Inverter and Reducer: 11kW Fuling inverter. Three sets of Japan Shimpo reducers for optimal performance.
Auto Tool Changer: Carousel-style with a 12-tool capacity, equipped with ISO30 tool holders.
Working Table:Combined vacuum and T-slot working table with control valves and a 7.5kW low-noise vacuum pump.
Dust Collection: 3-bag auto dust collector with double bags and a secondary dust removal device for a clean work environment.
Control System:Syntec control system with a manual control handwheel for easy operation.
Lubrication:Auto-lubrication system for smooth and consistent operation.
Tooling:Includes 12 auto-tool changer holders, cutters, collets, a Qing bottom cutter, and 20 sets of woodworking tools.
Maintenance Tools: Complete set including Allen wrenches, spanners, copper connections, clamps, and more.
Built-in Control Cabinet: For easy access and protection of control components.
Safety Features: Equipped with a safety curtain to protect operators from moving parts.

Transform your machining operations with Madbytes CNC machines. Experience seamless workflow and optimal performance, revolutionizing your manufacturing process. Contact us today to learn more about how we can enhance your productivity!
