Made in Taiwan - Quality 500mm, Blade Welder

Quality Taiwanese Build - Built To Last
Description
Versatile bandsaws in three capacities allow intricate cutting of aluminum or brass to tool steel. Each bandsaw features a blade welding station which includes a cutter, welder, annealer and a grinder. Ideal for making inside cuts and quick repairs.
Variable speed drive, tilting table, pneumatic swarf blower - wow.

Features
?torsion proof steel frame construction

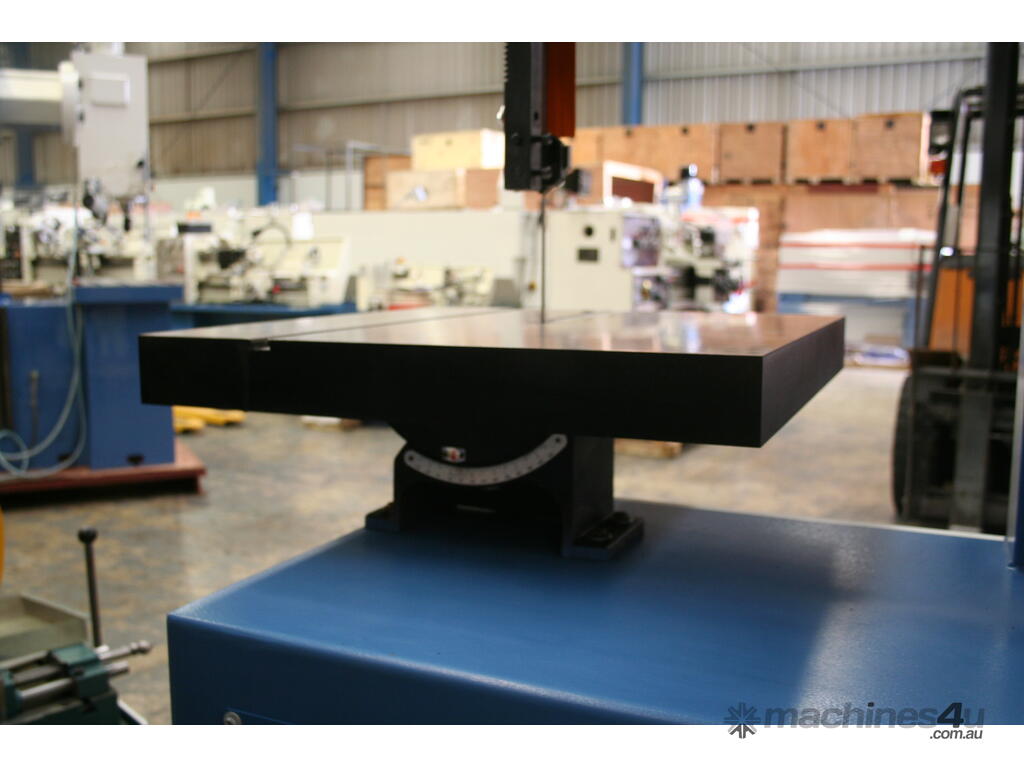

?heavy duty cast-iron tilting table

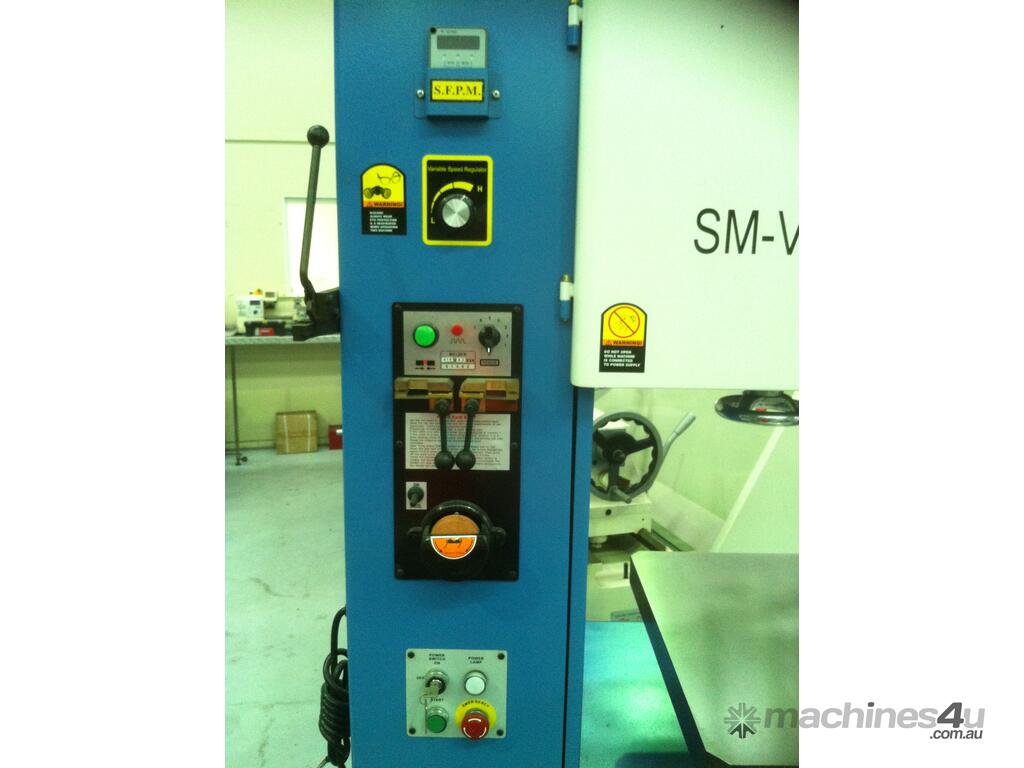

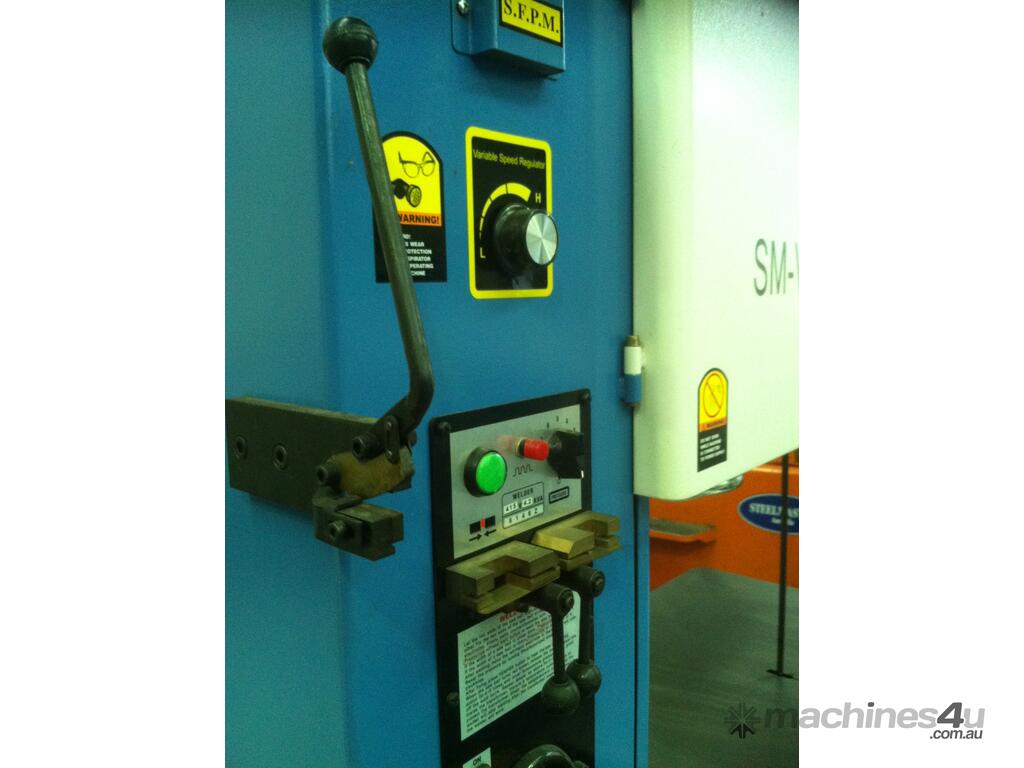

?infinitely variable speed operation
?speed levels are shifted through an oil bath lubricated gear drive
?deep throat capacity up to 500 mm

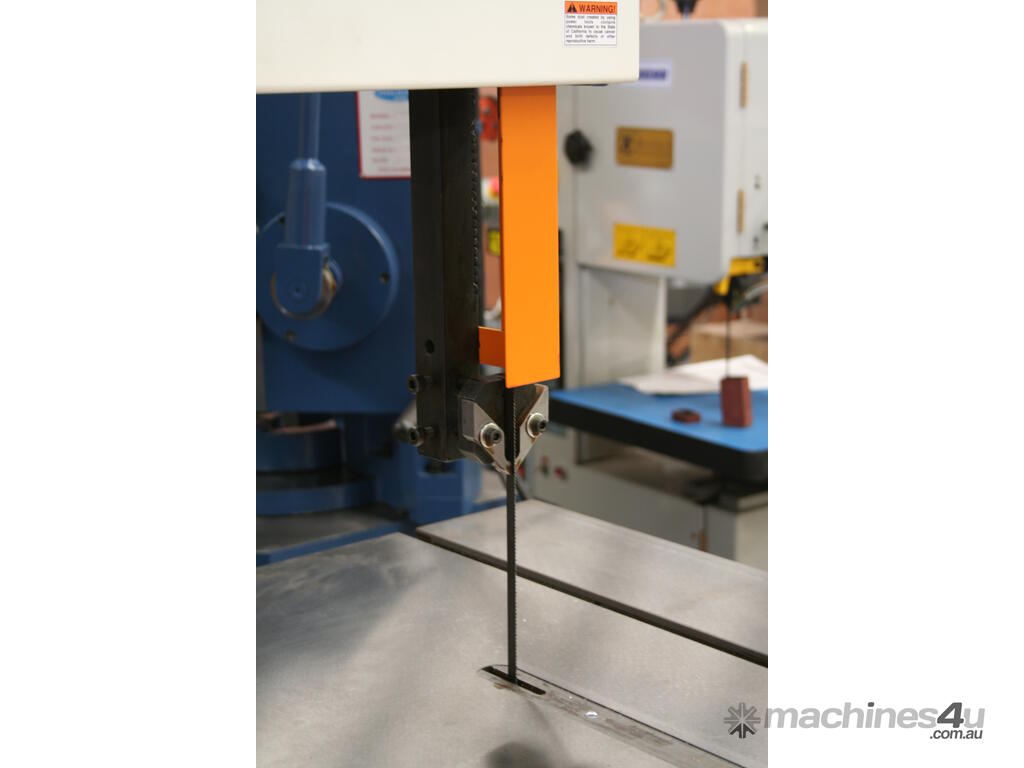

?top and bottom precision blade guides, tungsten carbide tipped
?top blade guide adjustment via hand wheel
?blade tensioning and blade travel alignment via hand wheel

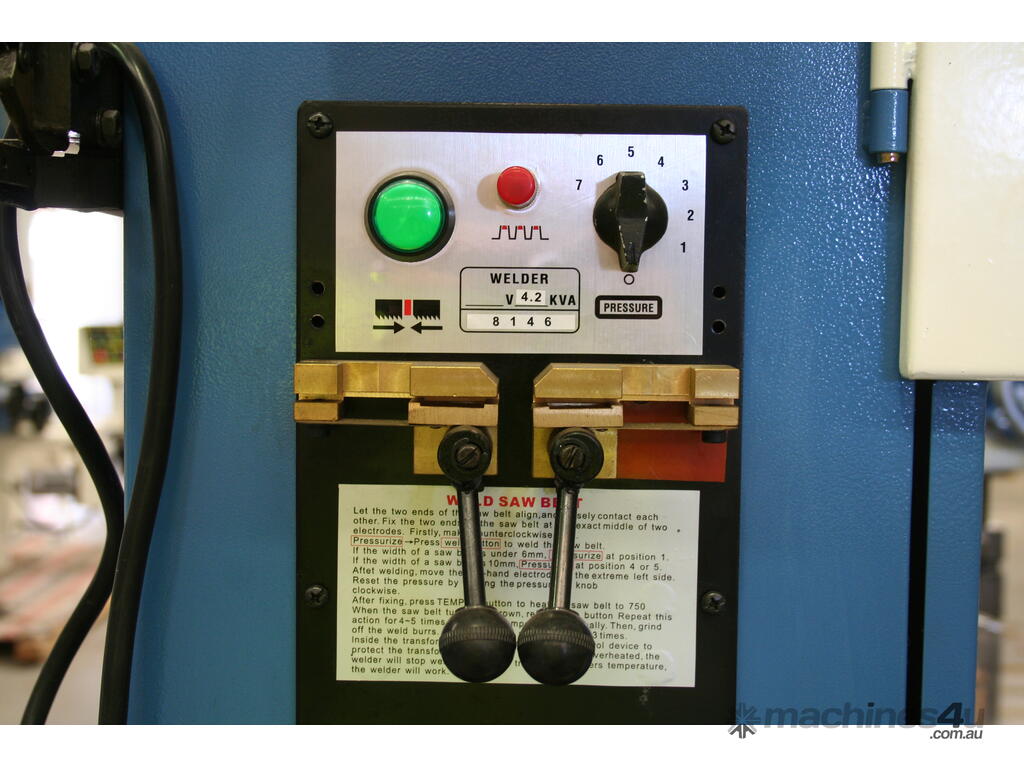

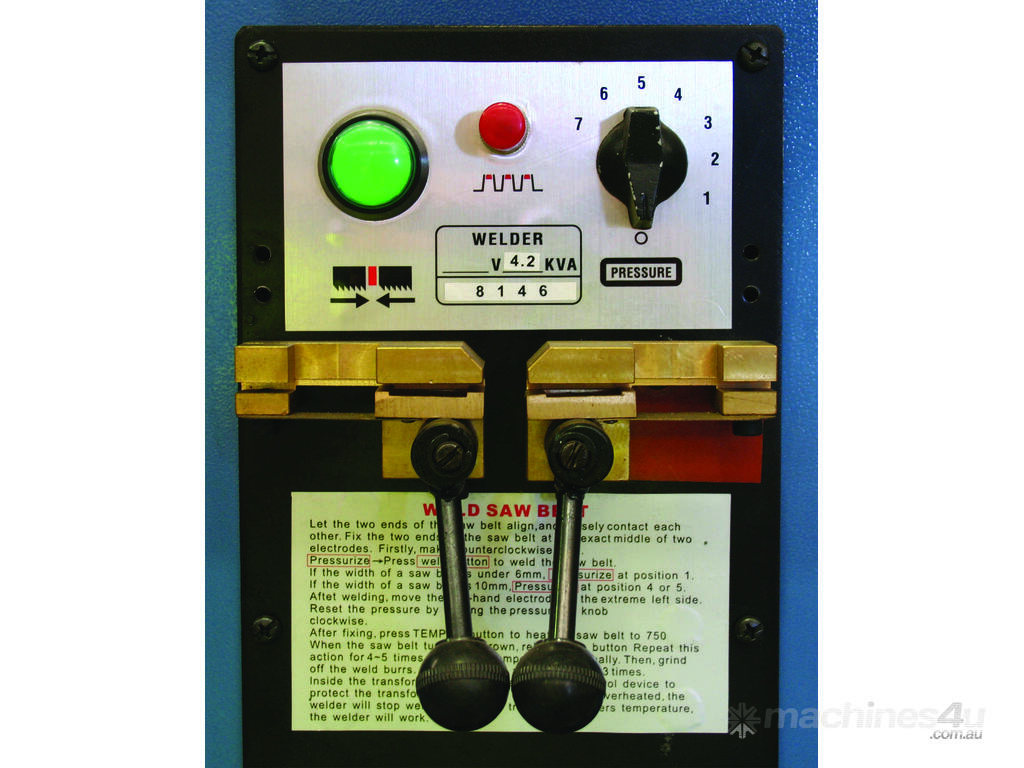

?butt welder with annealing device

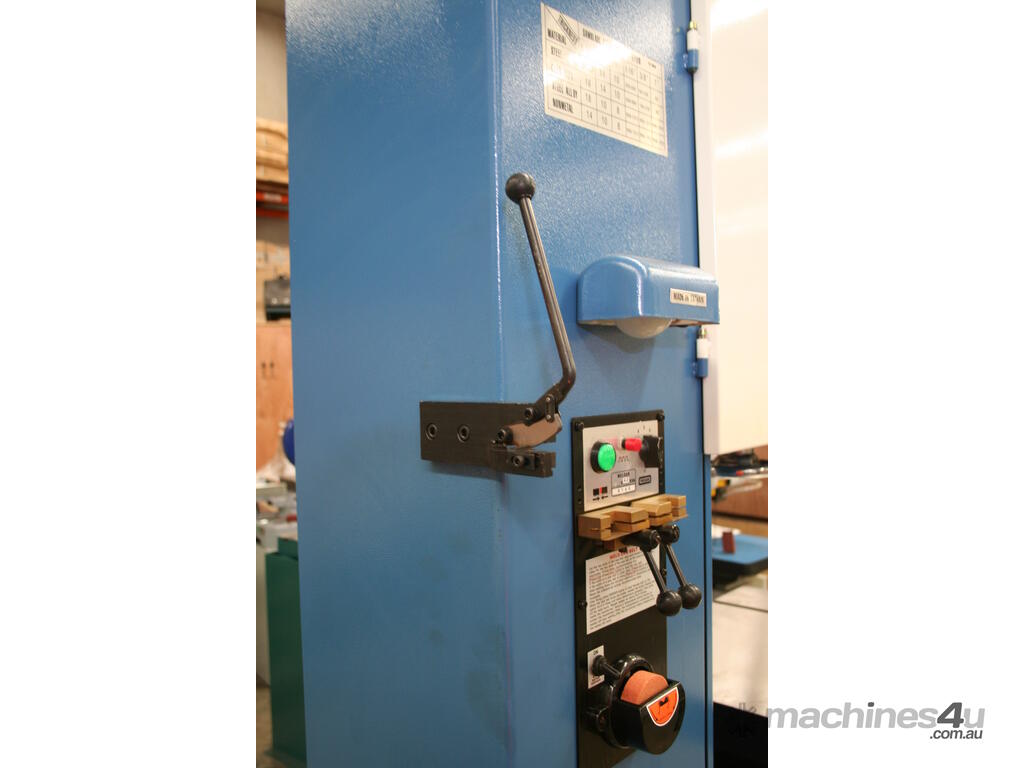

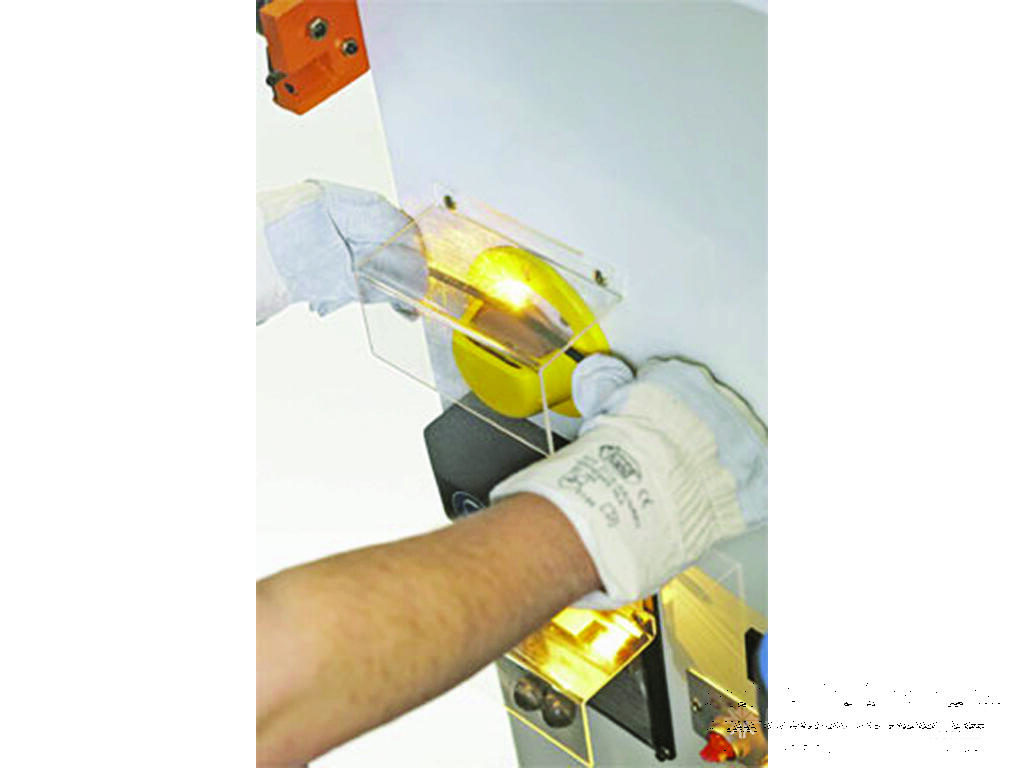

?manual blade shear and grinding wheel
?pneumatic swarf blower
?tool box and operation manual
?CE compliant

Specifications:
Voltage Volt 3 Phase
Notes & Accessories:
Equipment & Accessories Supplied:
Blade fitted, tool box and operation manual.

Dimensions:
Length: 1200 (mm)
Width: 800 (mm)
Height: 2010 (mm)
Weight: 500 (kg)

Technical Data
Cutting height (max) 400mm
Throat depth 500mm
Blade size (l x w x t) 3840mm x 10mm x 0.65mm
Speed range (m/min) 16 ~ 96
Table size (l x w) 615mm x 615mm
Table tilt (deg) 45
Table working height 1010mm
Blade welder (kva) 4.2
Grinder motor power 0.09kw
Motor power 1.5/ kw/V

Optional Accessories - RÖNTGEN BI-METAL BANDSAW Blades

#######################################
Machines Can Be Demonstrated Under Power at 8 Capital Drive Dandenong, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################

********************************************
Need more details? Can't find what you are looking for?
********************************************

We have many more items available than listed here.

Asset Plant Offer a wide range of coldsaws, bandsaws to cover all applications, including a wide range of blades, consumables and spare parts – Call Now!!!

Steelmaster Industrial's line of metal cutting Band Saws offers customers many choices to best fit their needs. With two styles to choose from horizontal band saw and vertical bandsaws, customers will always find the right saw at the right price. Our bandsaws are built using only the highest quality design and components that allows for some of the tightest cut tolerances and fastest cut times in the industry. The tight tolerances, and fast cut rates make these a real profit maker for any manufacturing setting. Steelmaster offer our bandsaws from the smaller hydraulic down feed horizontal models, through to the heavy industrial, twin column machines for the heavy industrial metalworker.

Steelmaster's line of Horizontal band saws includes saws that range from 180mm x 245mm maximum rectangle cutting capacity through to our heavy duty column range that will handle jobs up to 2000mm in diameter. We offer our range in manual, semi-automatic, and fully automatic operation. With over 20 models to choose from, finding the right Steelmaster horizontal bandsaw is easy. Looking to cut more intricate shapes and round radii? Try a vertical band saw range. Based on Capacity and throat depth Steelmaster Industrial's vertical bandsaws, are a must have in any metal fabrication shop.

Along with the perfect band saw, Steelmaster also offers metal cutting band saw blades for any application. It does not matter if you own a Steelmaster bandsaw, you can still own the same high quality band saw blades that we use on our own saws.


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
