Madison 1250 KN x 3.2 metre NC Press Brake

MADISON model NC Hydraulic Press Brake.


Specification

Bending force……………………………………………………………1250 KN
Working Length 3200 mm
Distance between columns 2600 mm
Slide Stroke 130 mm
Backgauge travel 500 mm
Y axis Approach speed 60 mm/sec
Y axis Working speed 8 mm/sec
Y axis Return speed 80 mm/sec
Maximum opening height 390 mm
Throat depth 320 mm
Motor .11 Kw ( 15 HP )
Machine length 3900 mm
Machine width 1800 mm
Machine height 2500 mm
Machine gross weight Approx 7800

Features

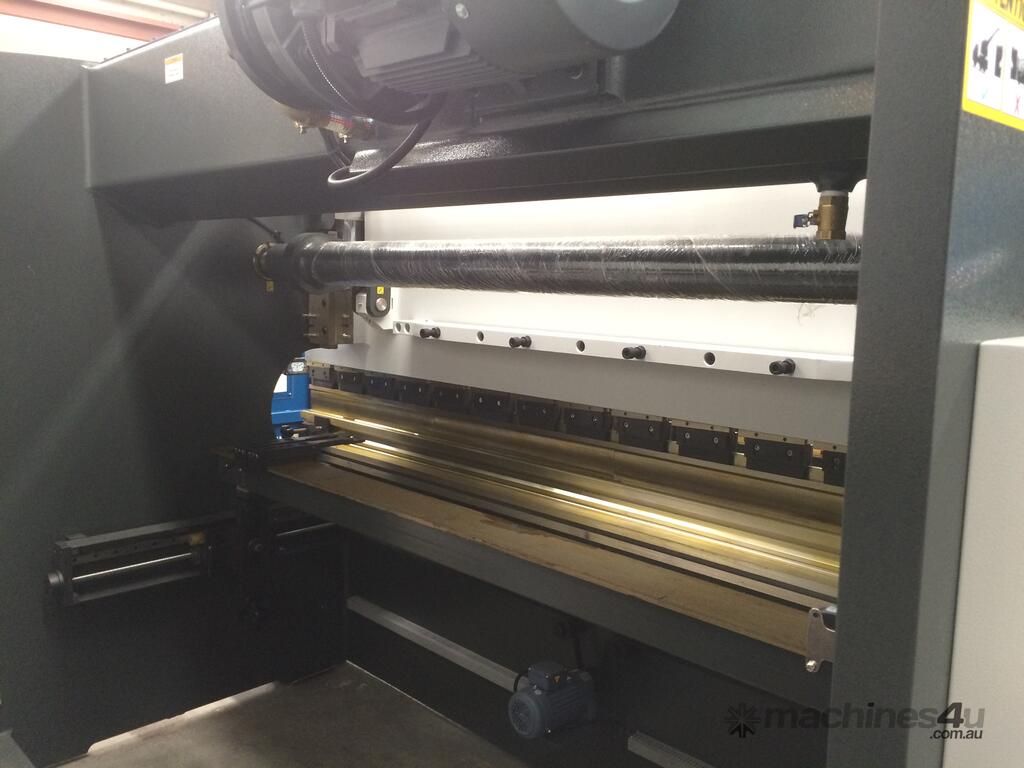

* Hydraulic downstroking press brake with control of the parallelism between beams by solid torsion bar.
* Bending depth adjustment NC controller.
* Wide table for the fitting of the tooling, with dovetail slots on both sides allowing for an easy and quick setting of a great variety of accessories (front gauges, front squaring arms, rear gauges, etc.).
* Hydraulic cylinders honed and hard chromed for maximum durability.

Standard Equipment

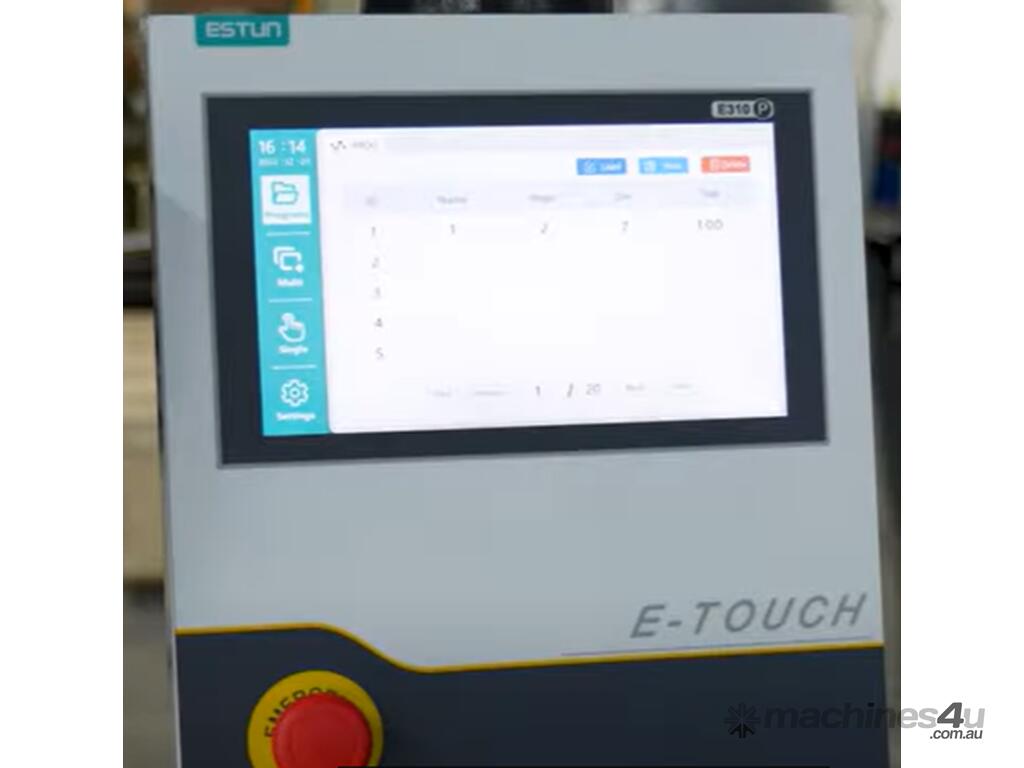

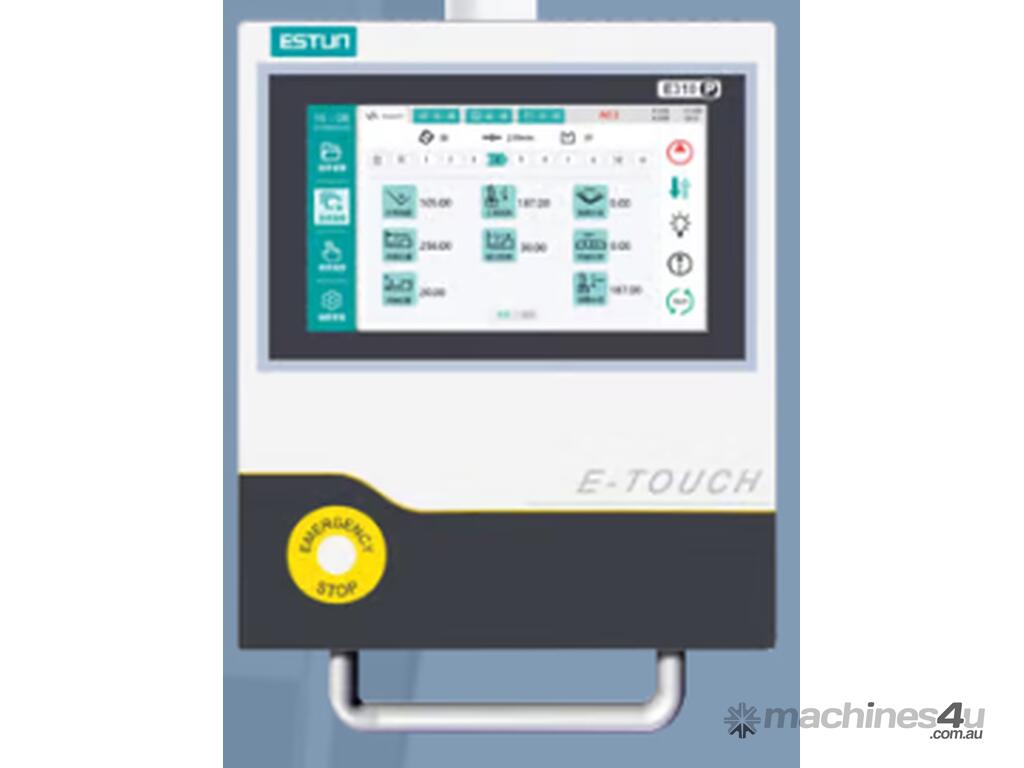

* Esten E310 NC graphical control for both depth control and backguage on pendant control.

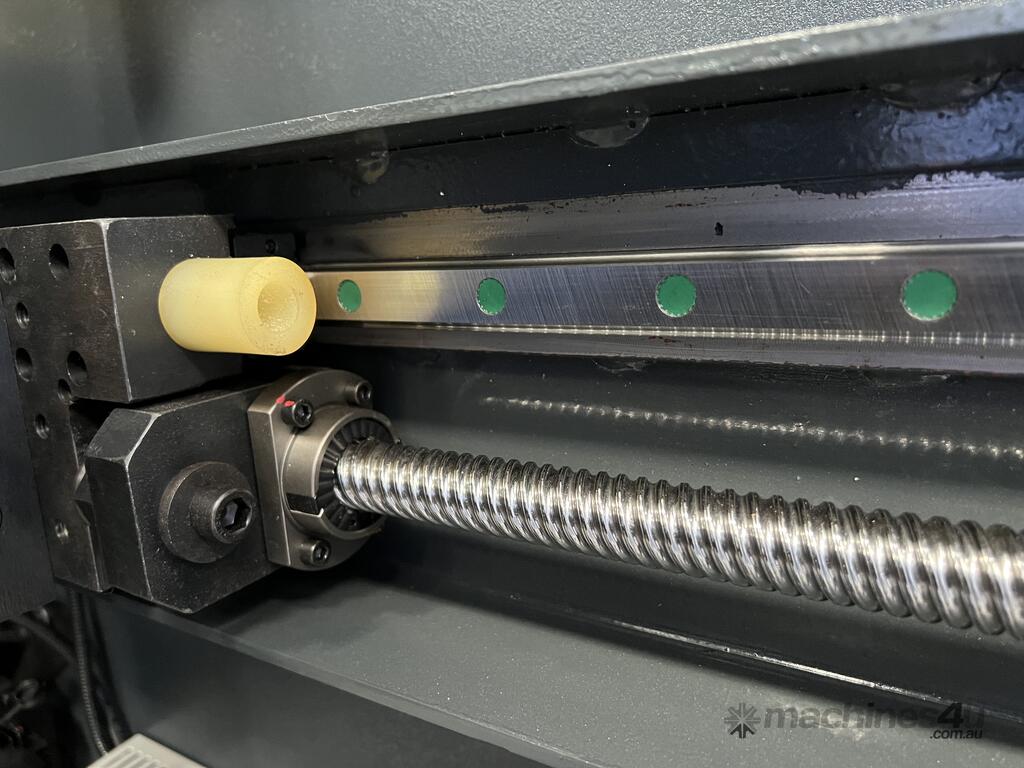

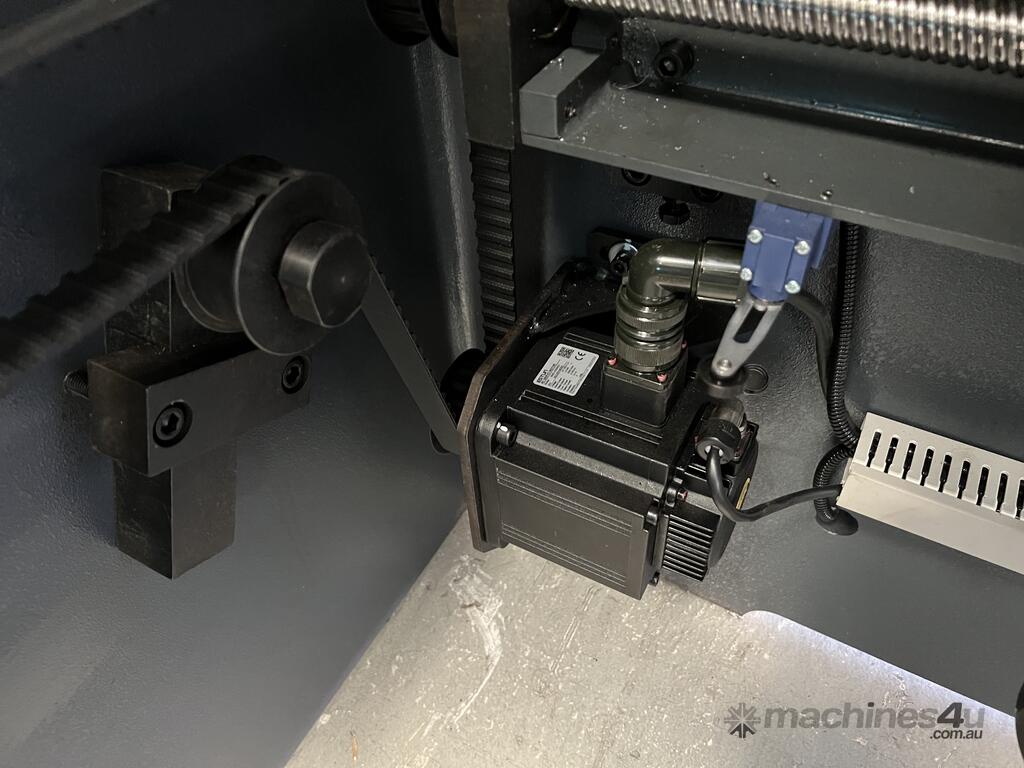

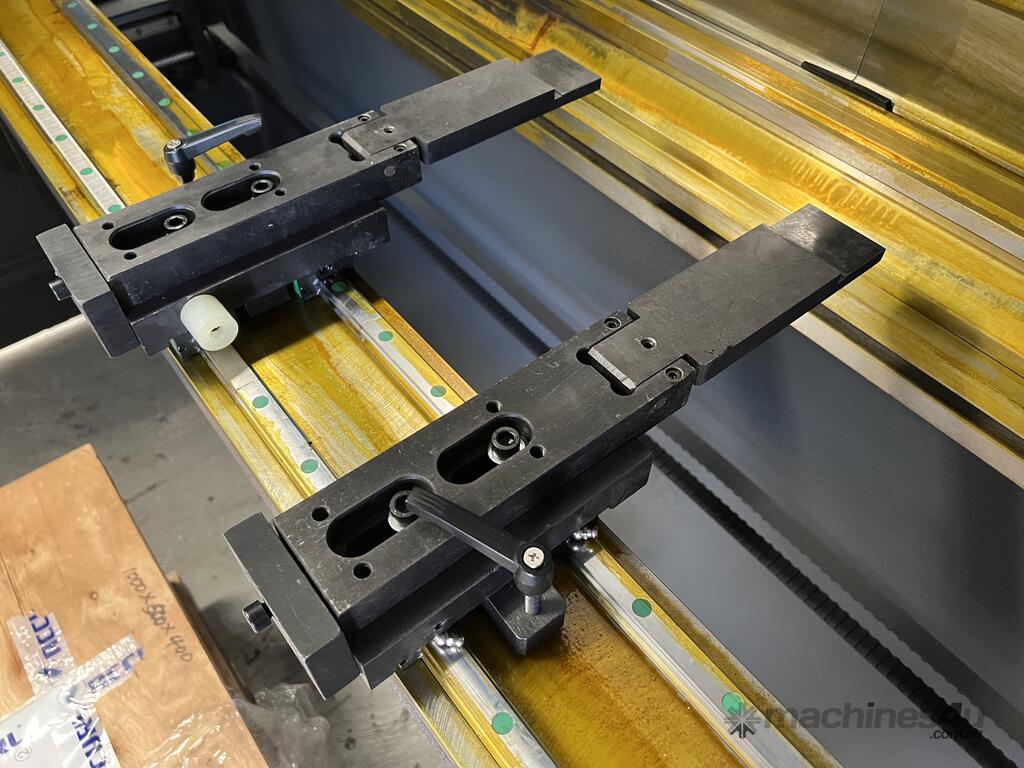

* Servo drive ballscrew backgauge with linear guides for flip type fingers.

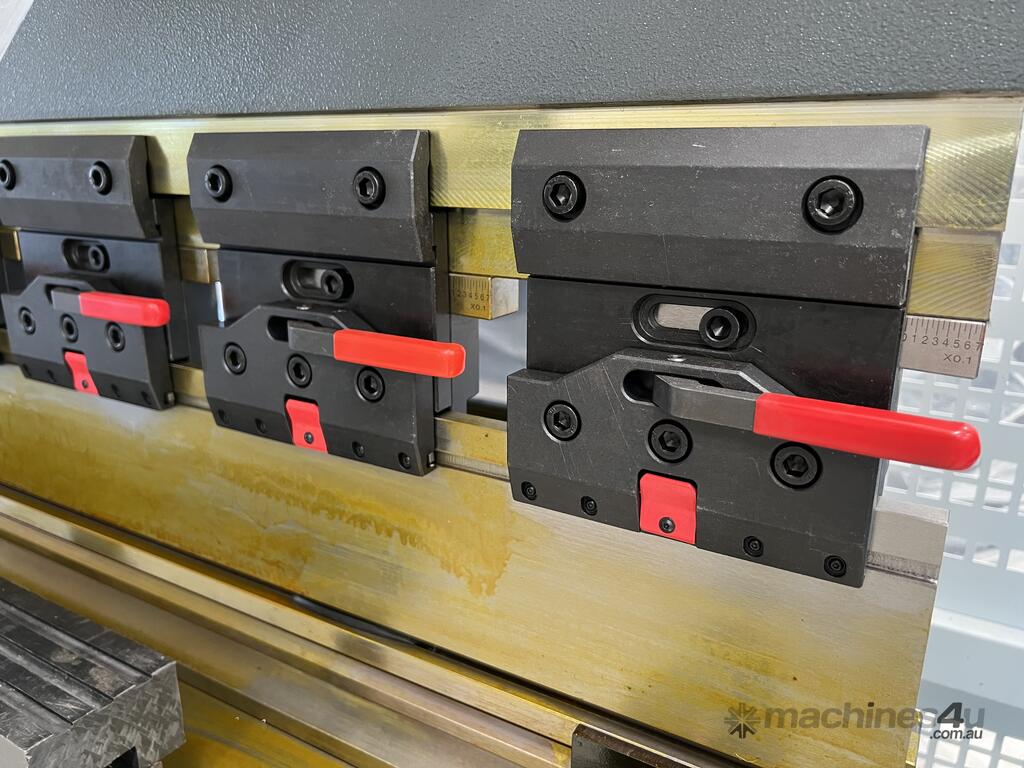

* One set of European type top tooling including: sectioned punch-holders, a sectionalised goose neck punch, a four-way multi-vee die with 65mm "V'
* One set of supports for the four-way multi-vee die positioning.
* One set of hooks to turn the four-way multi-vee die.

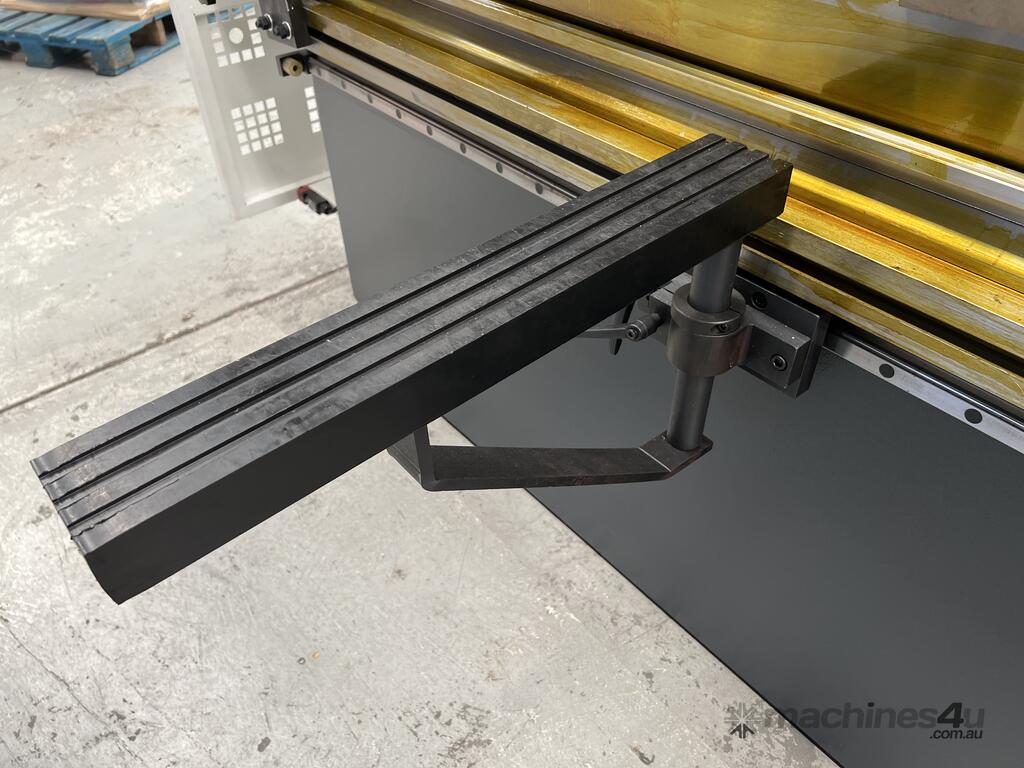

* Front sheet supports that are length and height adjustable

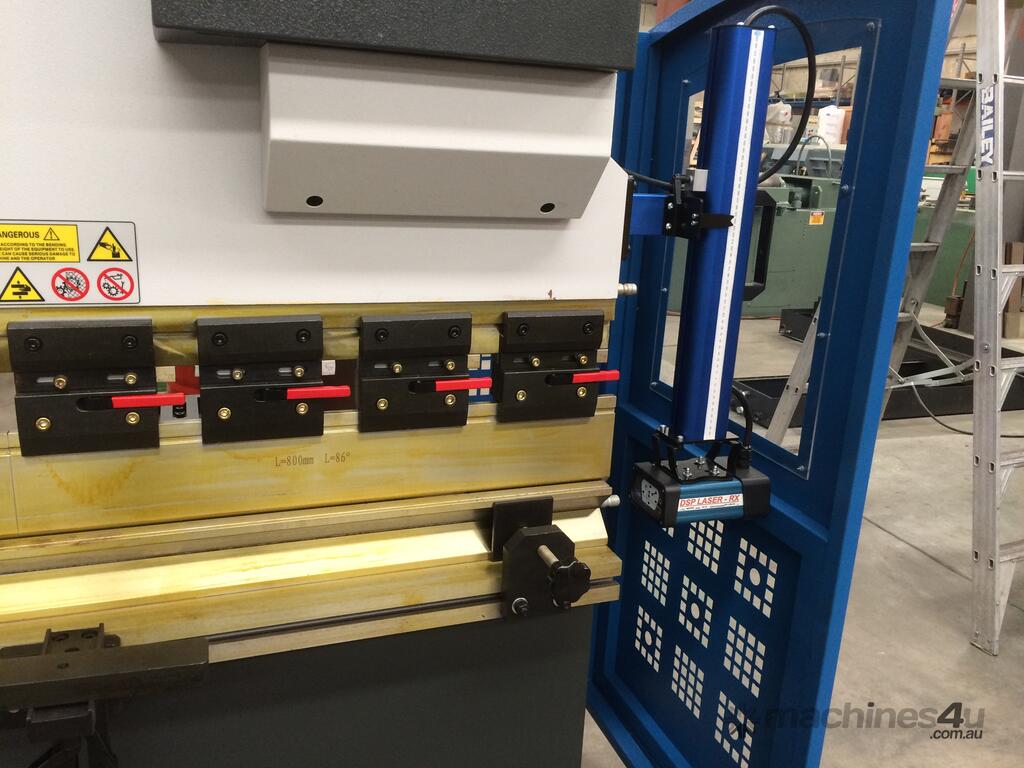

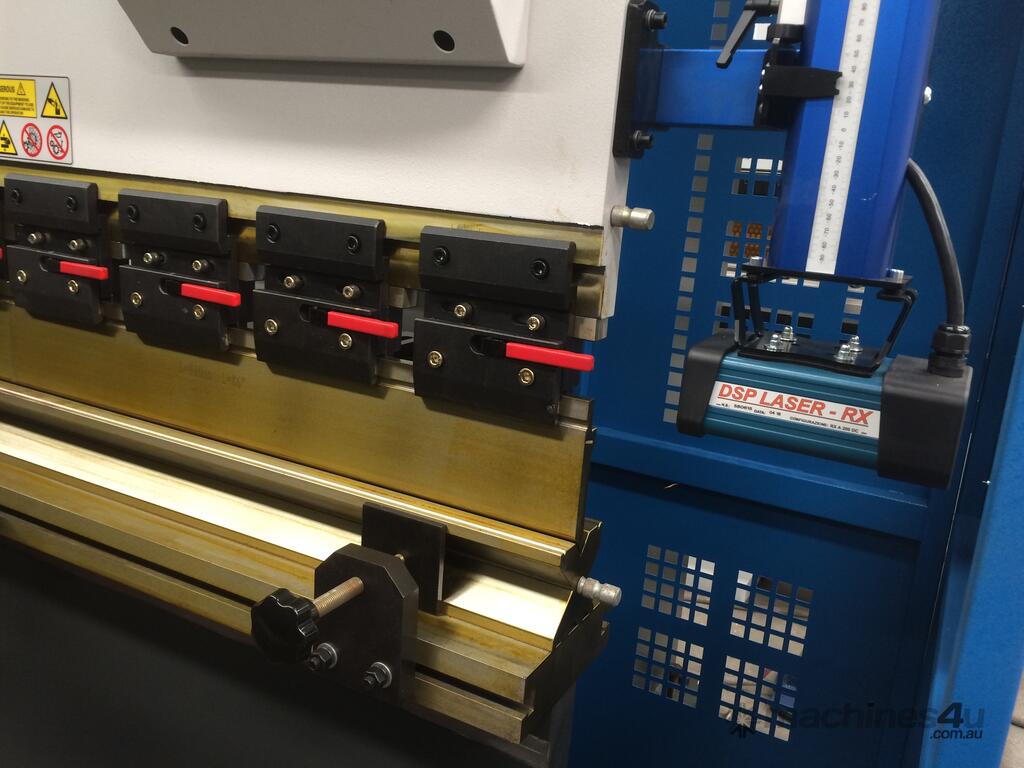

* DSP Laser light guards.( Italian )
* Electric foot pedal on a trailing lead.
* Hydraulic pressure dial indicator.
* Hydraulic oil.
* Instruction manuals.
