Madison 2500 x 4mm Guillotine near new

This machine has had very little use.

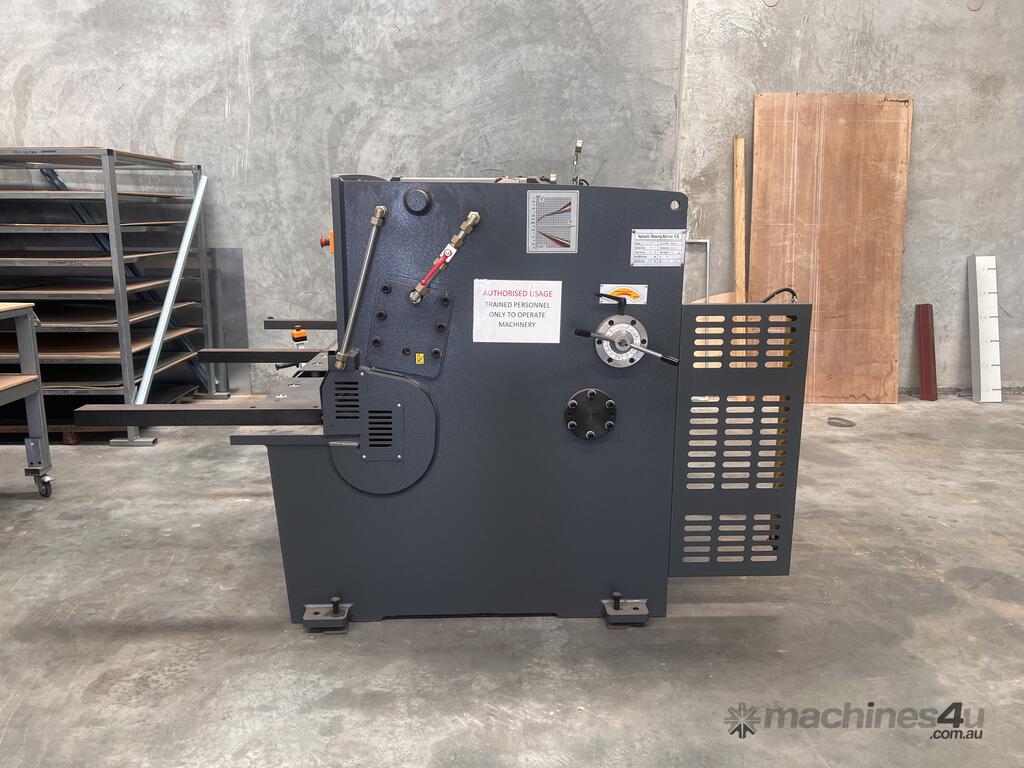

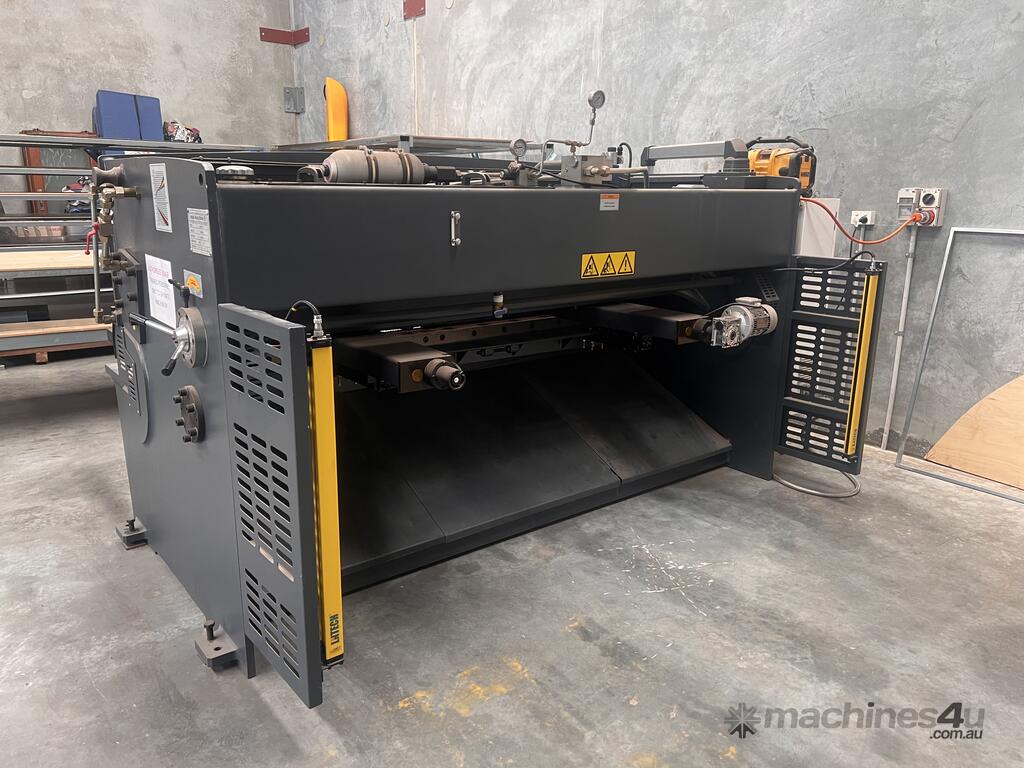

Madison model 4 x 2500 Hydraulic Guillotine.


Specification
Shearing capacity 4 mm mild steel
Shearing capacity 2 mm stainless steel
Cutting length 2500 mm
Back gauge travel 600 mm
Cutting angle 1° 30
Cuts per minute full length 22 min.
Motor power 5.5 kw
Floor space 3300 x 1600 x 1700 mm
Weight 4,650 kg


Features
* Hydraulic shear swing beam design.
* Individual hydraulic holdown cylinders.
* Front guard.
• Blade clearance adjustment.
* Inching control.
* Electric overload protection.

Standard Equipment

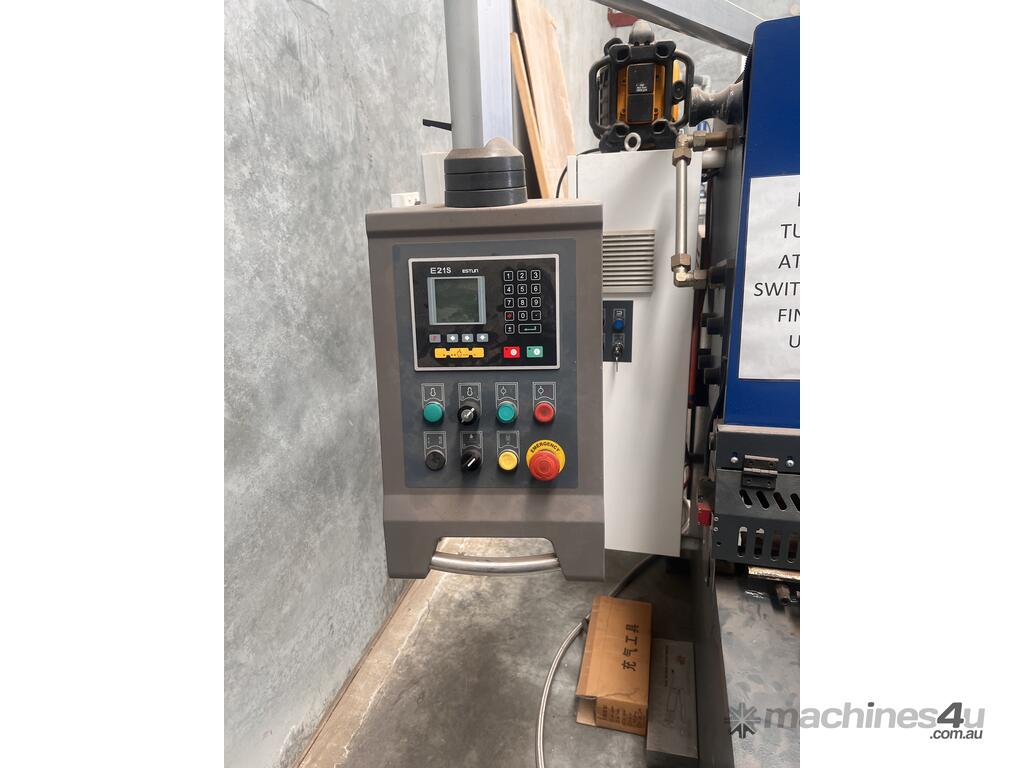

* Estun E21S NC controlled powered backgauge.
* Blade area illumination.
* Side squaring arm.
* Roving foot petal.
