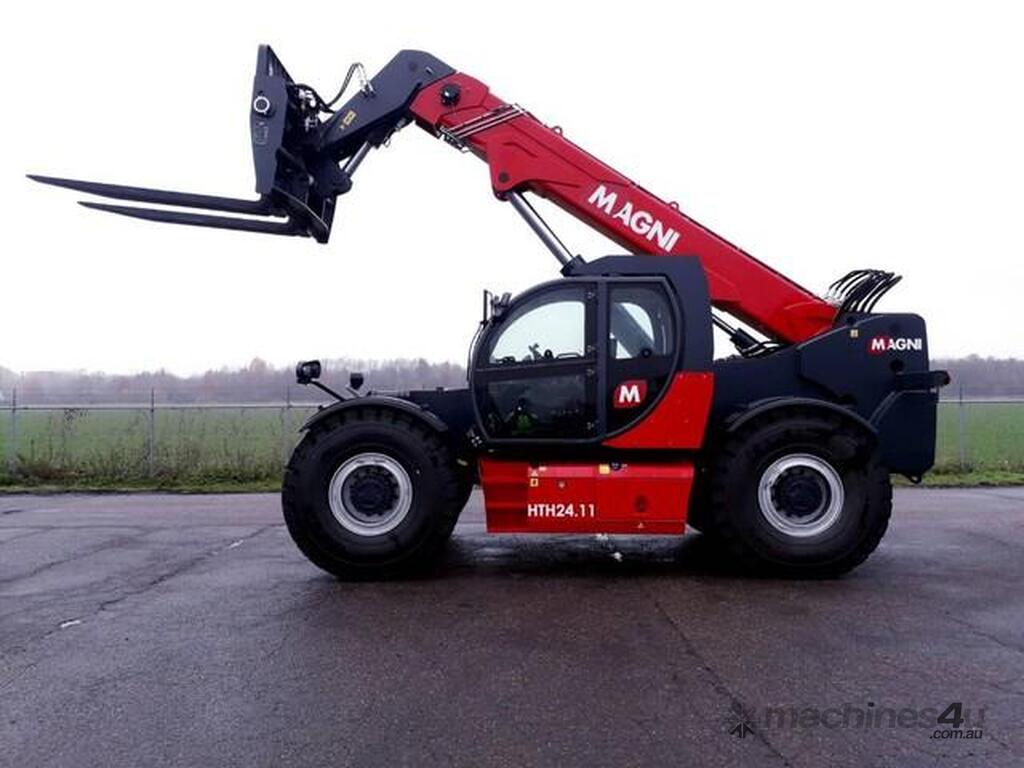

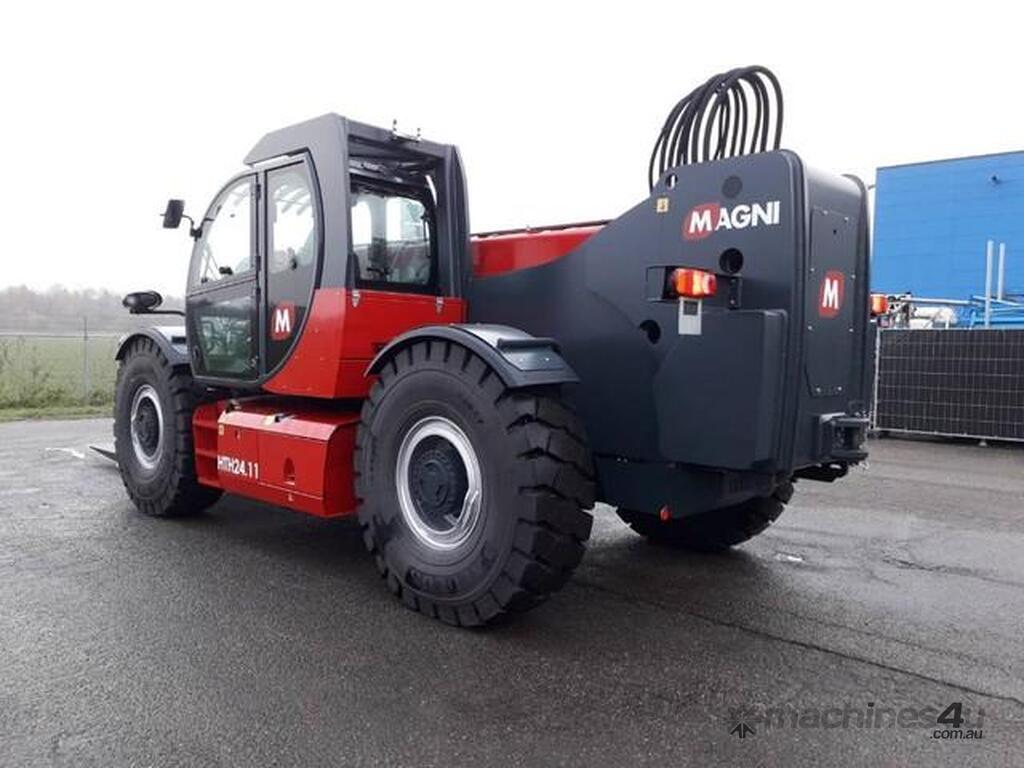

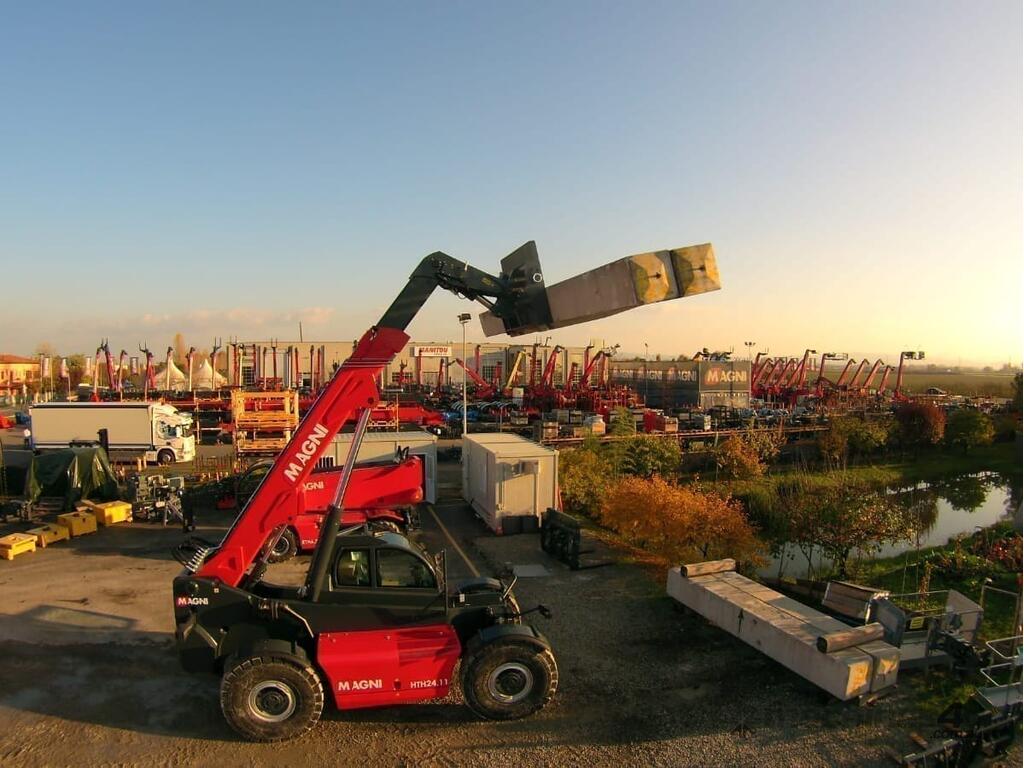

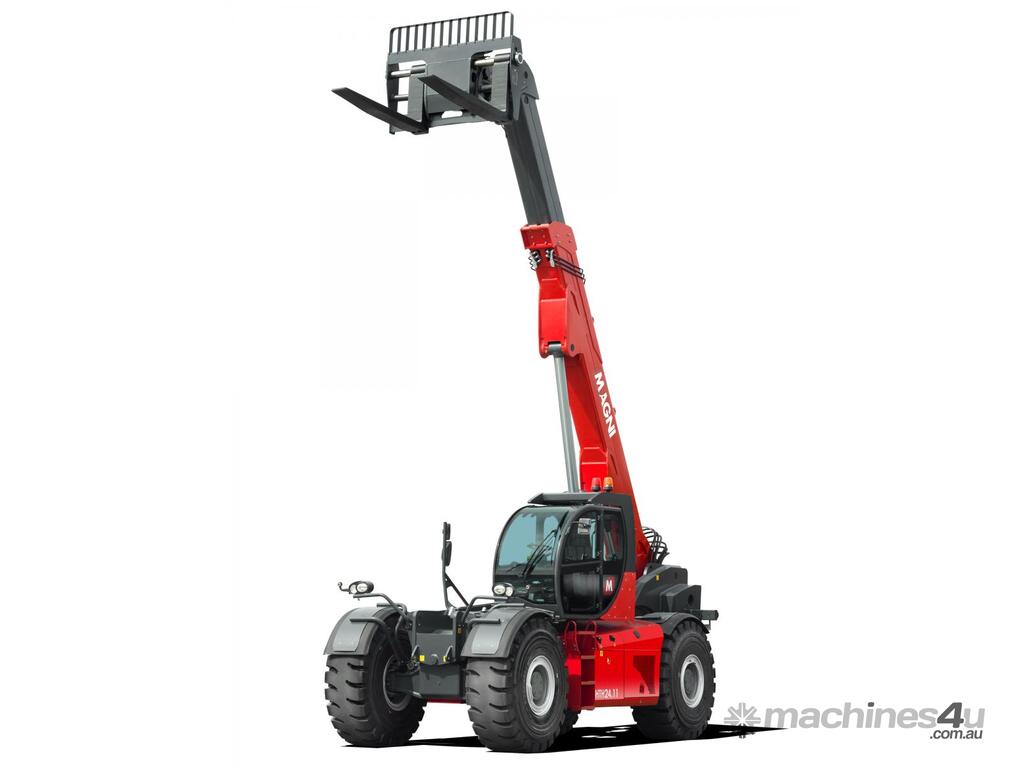

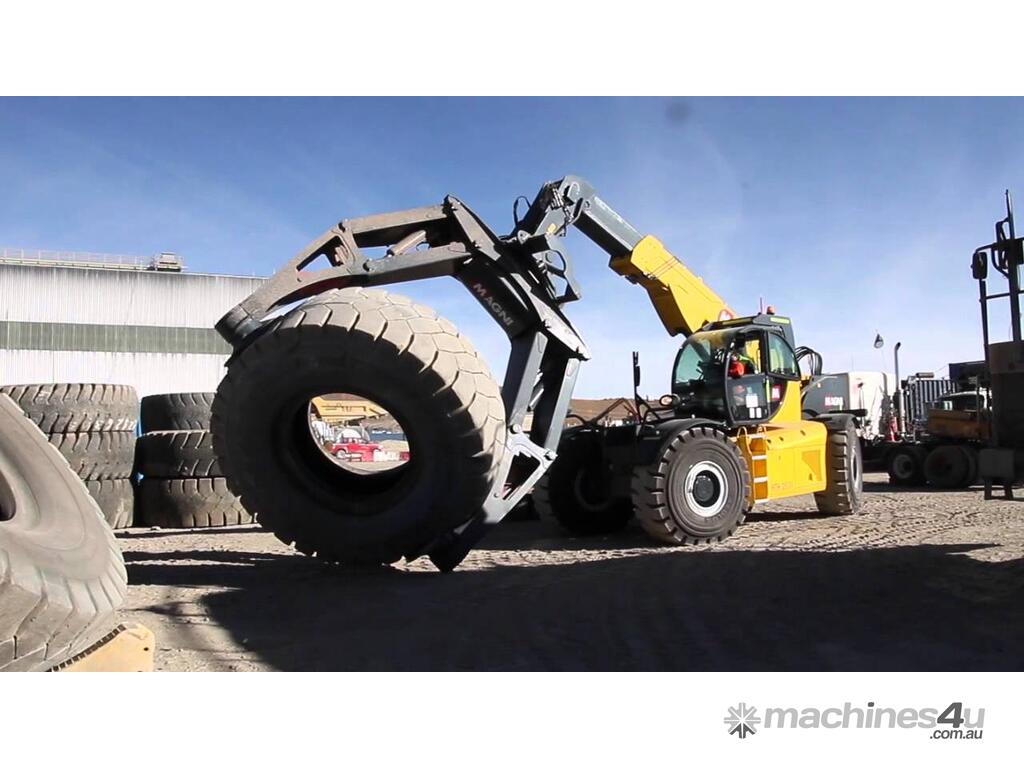

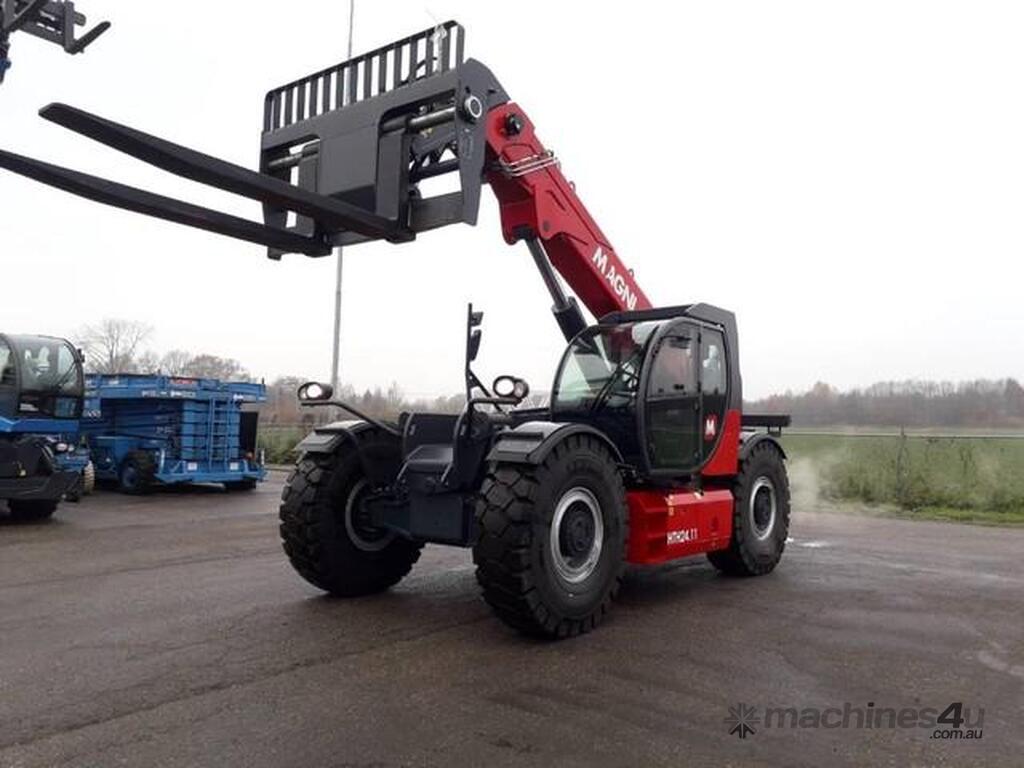

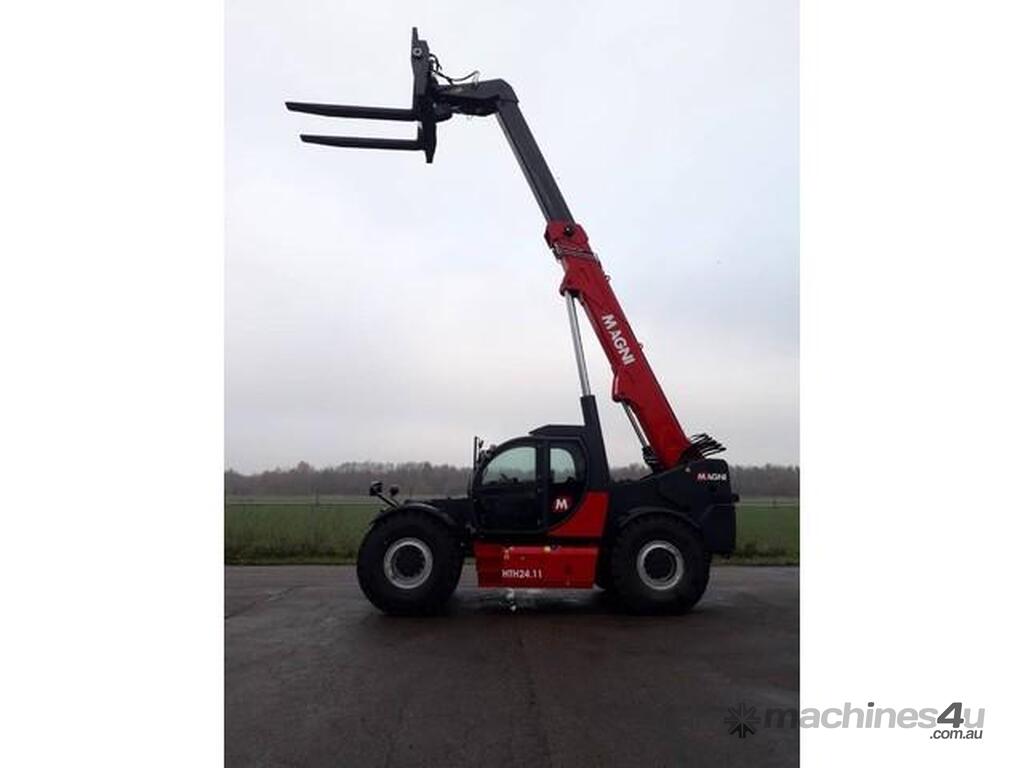

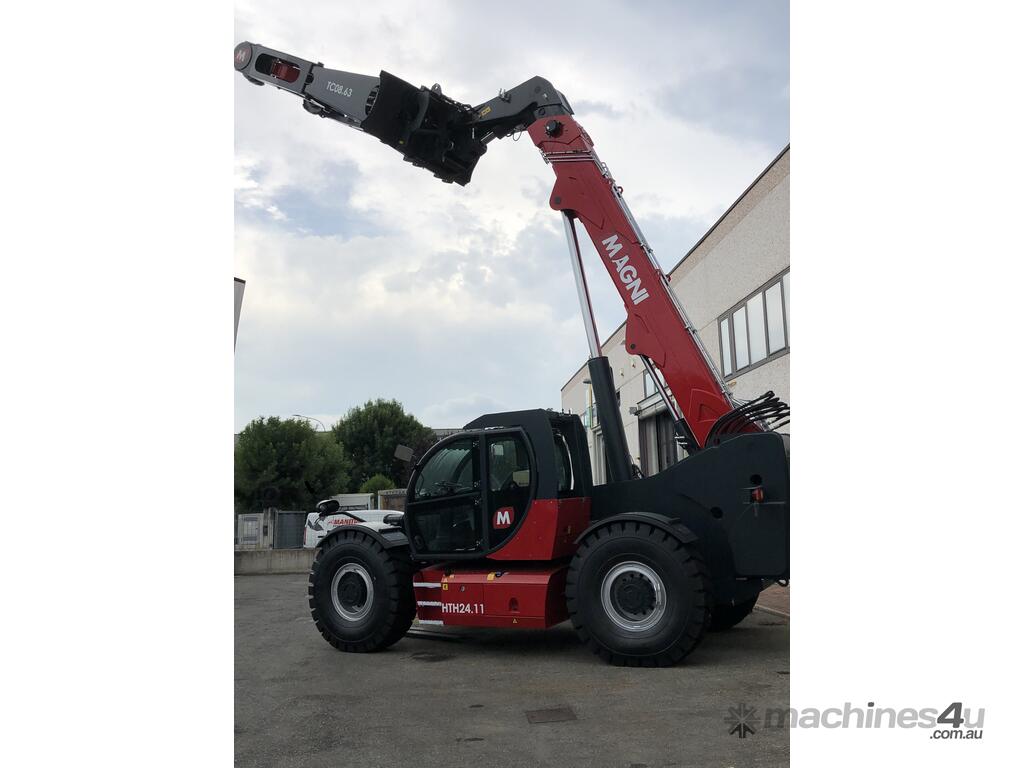

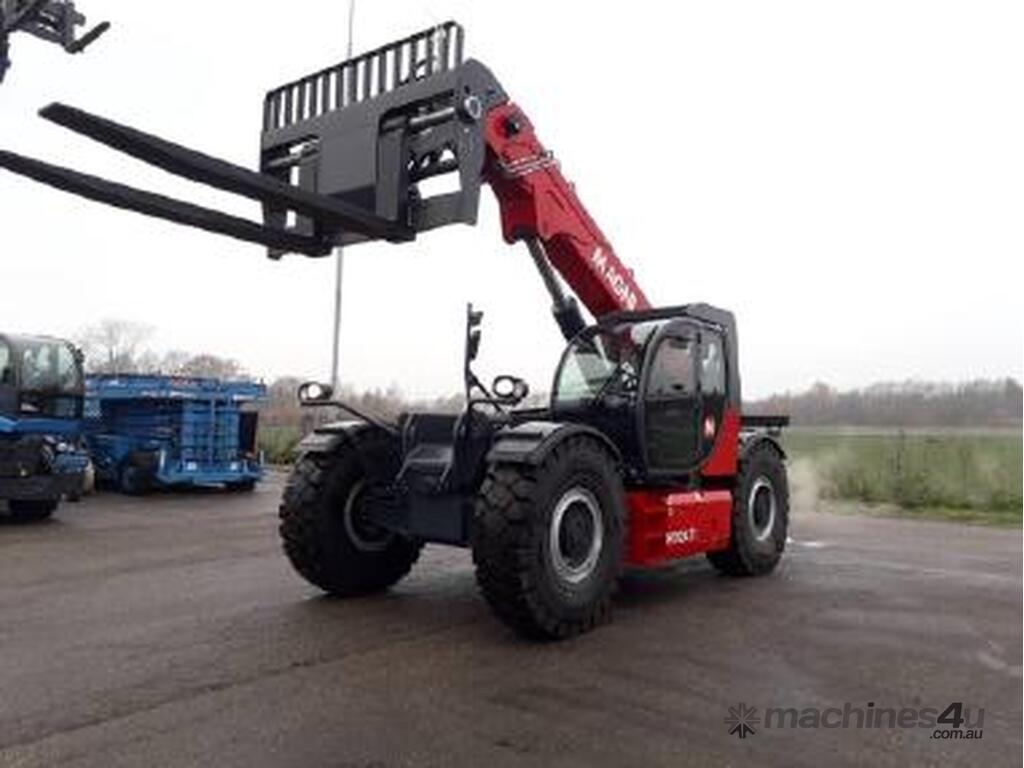

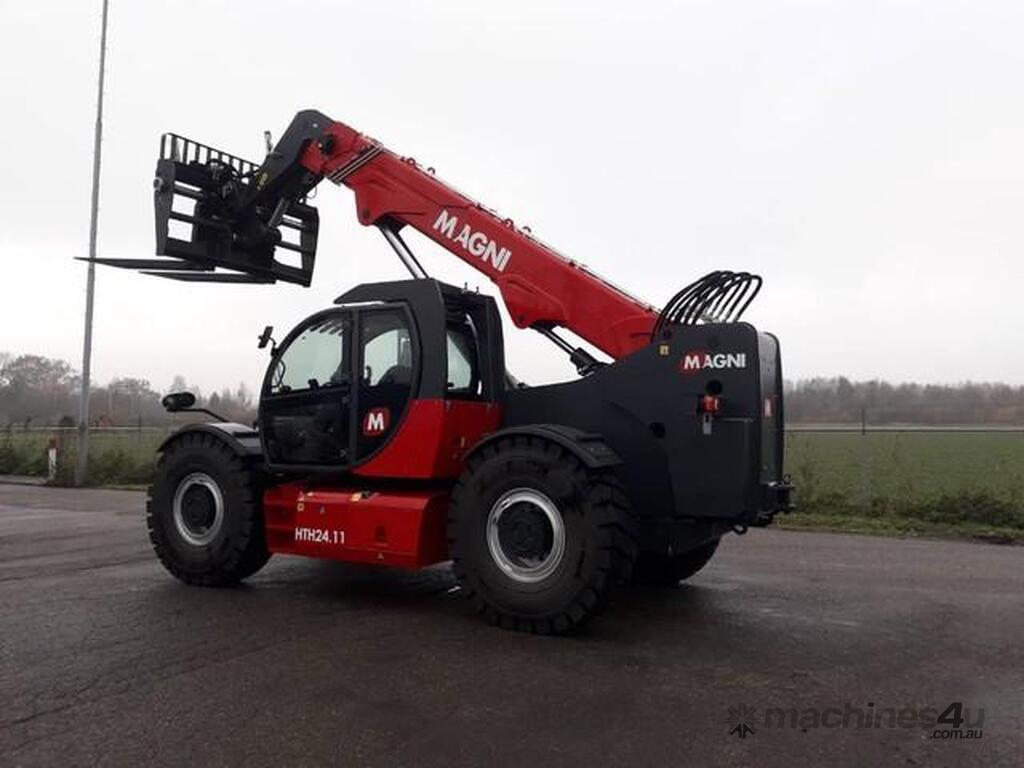

The HTH 24.11 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 24 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains. The comfort and 360° visibility offered by Magni’s patented cab allow the operator to work under the optimum conditions, and help improve safety during delicate movements.
TECHNICAL FEATURES
Lifting capacity: 24.000 kg
Capacity at maximum height: 14.000 kg
Lifting height: 10,50 m
Reach: 5.65 m
Engine: Volvo TAD 583 VE - Stage V
Rated power: 175 kW - 238 Hp 2,300 rpm
Number of gears: 2/2
Hydraulic system: Load Sensing 350 bar
Length: 6.92 m
Width: 2.96 m
Ground clearance: 430 mm
Unladen weight: 29,700 kg
Travel speed: 25 km/h
Climate control as standard: Yes
Automatic attachment recognition: Yes
