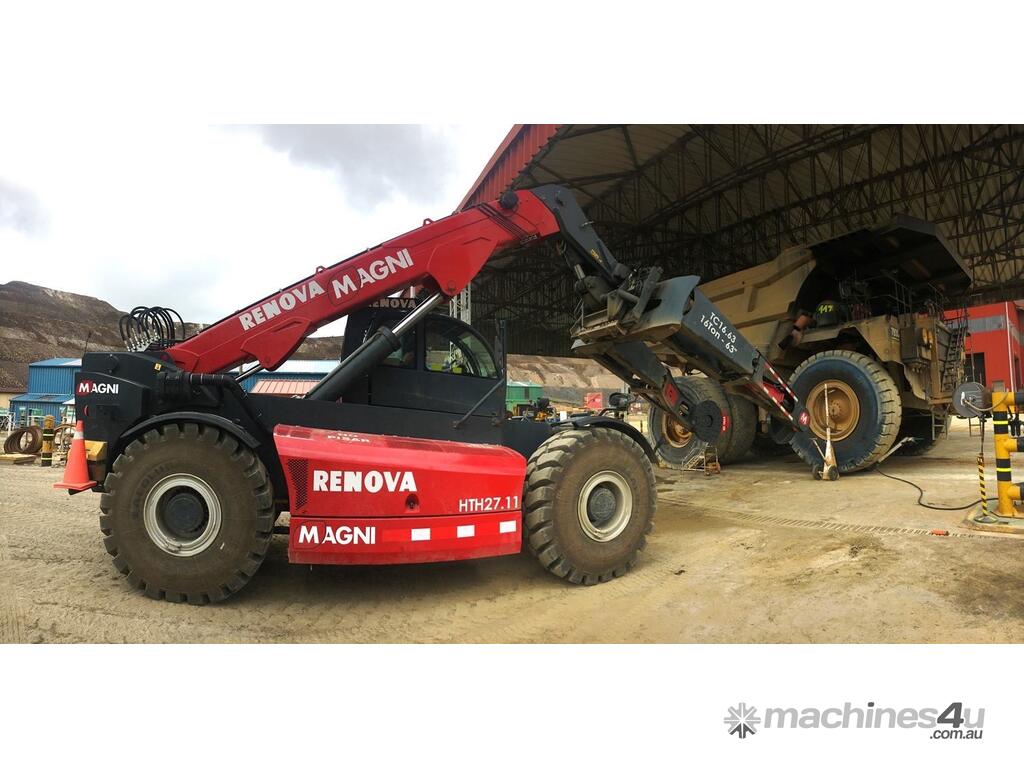

The HTH 27.11 telescopic handler is ideal for moving large, bulky loads in complete safety.
Able to lift up to 27 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.
The comfort and 360° visibility offered by Magni’s patented cab allow the operator to work under the optimum conditions, and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails or other metal structures. It is the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or moving conveyor belts.
TECHNICAL FEATURES
Lifting capacity: 27000 kg
Capacity at maximum height: 14500 kg
Lifting height: 10,85 m
Reach: 6.60 m
Engine: Volvo TAD 583 VE - Stage V
Rated power: 175 kW - 238 Hp 2,300 rpm
Number of gears: 2/2
Hydraulic system: Load Sensing 350 bar
Length: 7.55 m
Width: 2.97 m
Ground clearance: 530 mm
Unladen weight: 35,500 kg
Travel speed: 25 km/h
Climate control as standard: Yes
Automatic attachment recognition: Yes
