Magni HTH50.14 Telehandler

The HTH 50.14 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 50 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrain types.

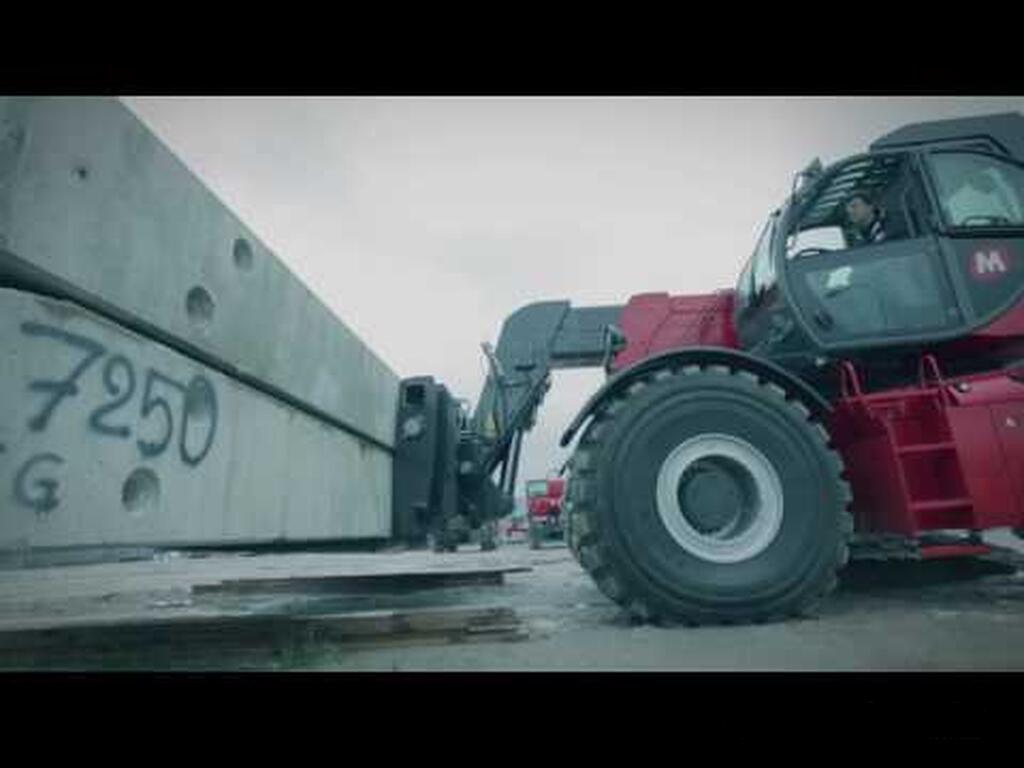

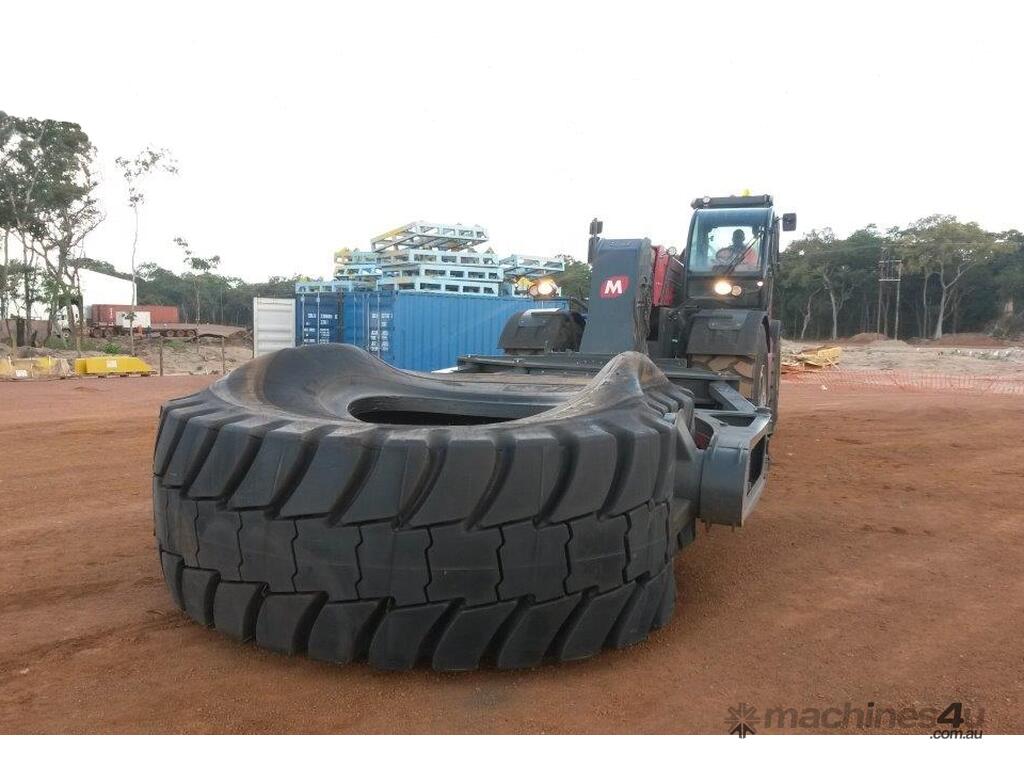

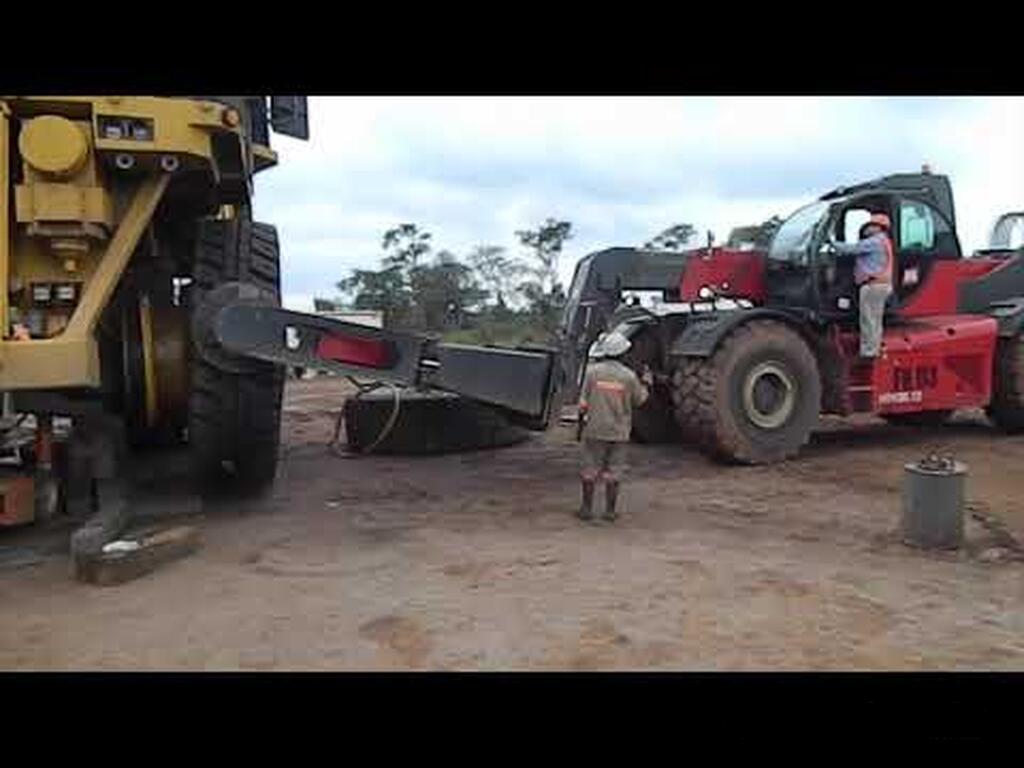

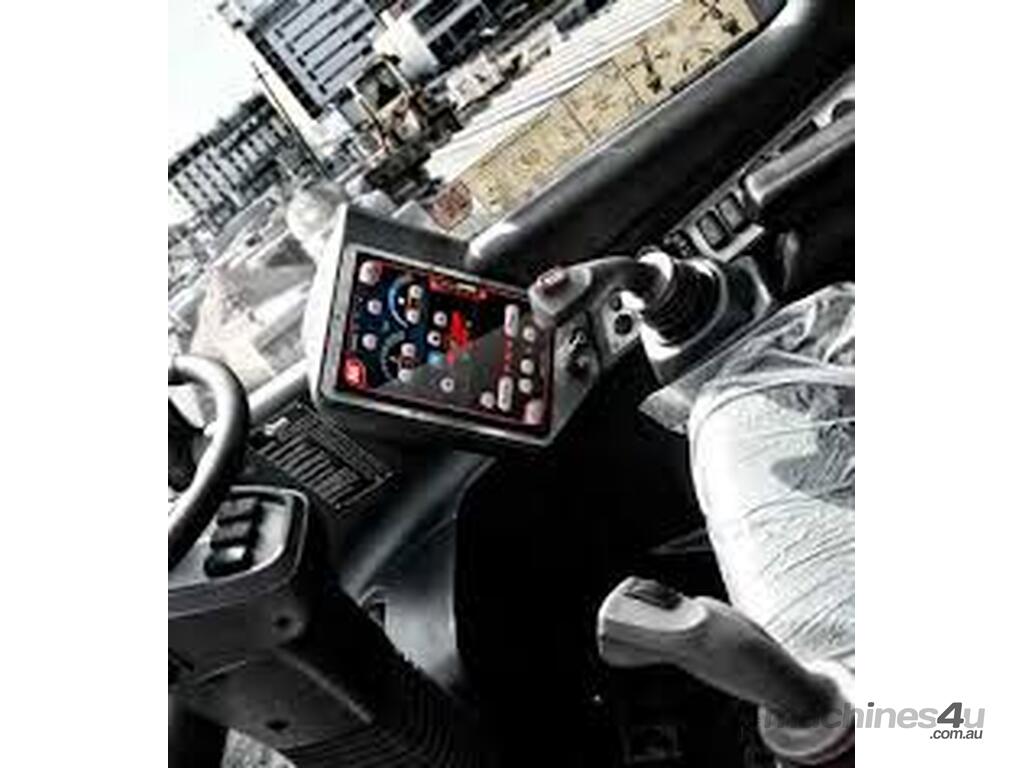

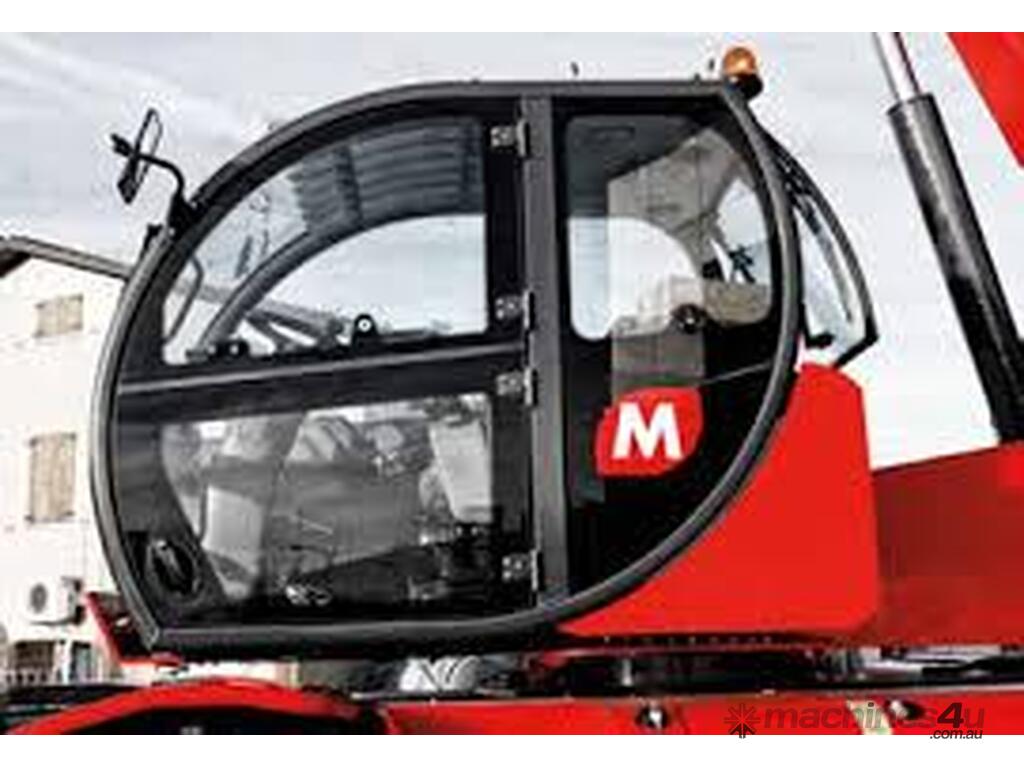

The comfort and 360° view offered by Magni’s patented cab allow the operator to work under the optimum conditions, and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails or other metal structures. It is the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or moving conveyor belts.


TECHNICAL FEATURES

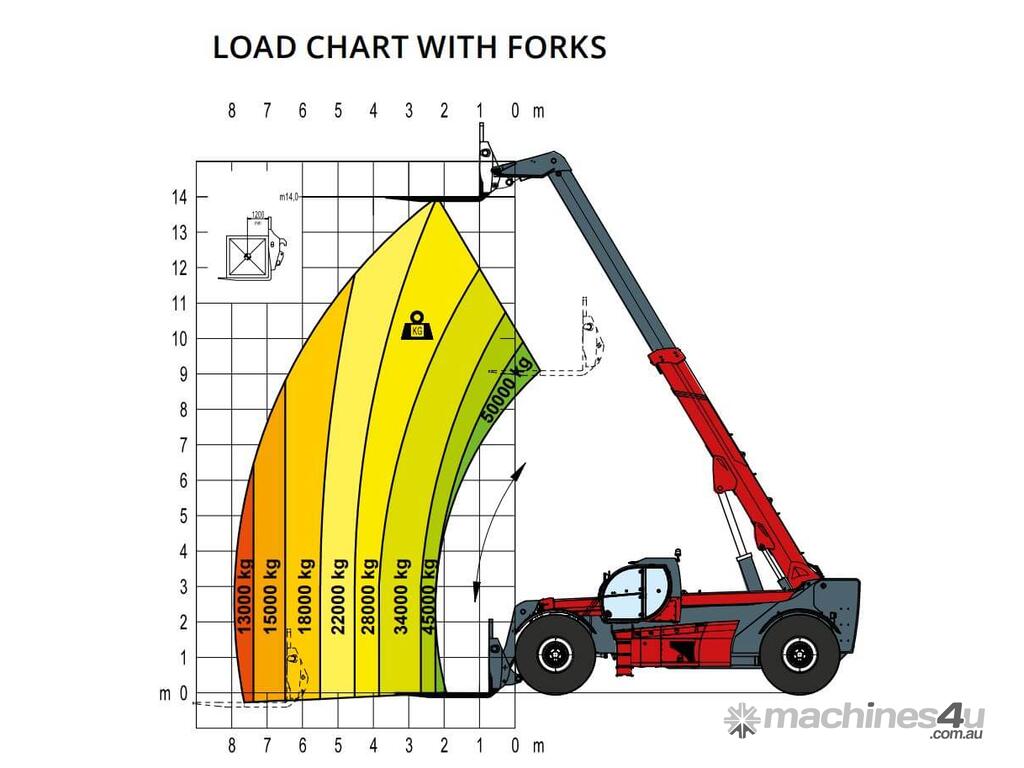

Lifting capacity: 50000 kg

Capacity at maximum height: 28000 kg

Lifting height: 14 m

Reach: 8 m

Engine: Volvo TAD 883 VE - Stage V

Rated power: 235 kW - 320 Hp 2,200 rpm

Number of gears: 3/3

Hydraulic system: Load Sensing 350 bar

Length: 10.70 m

Width: 3.20 m

Ground clearance: 620 mm

Unladen weight: 65,000 kg

Travel speed: 20 km/h

Climate control as standard: Yes

Automatic attachment recognition: Yes
