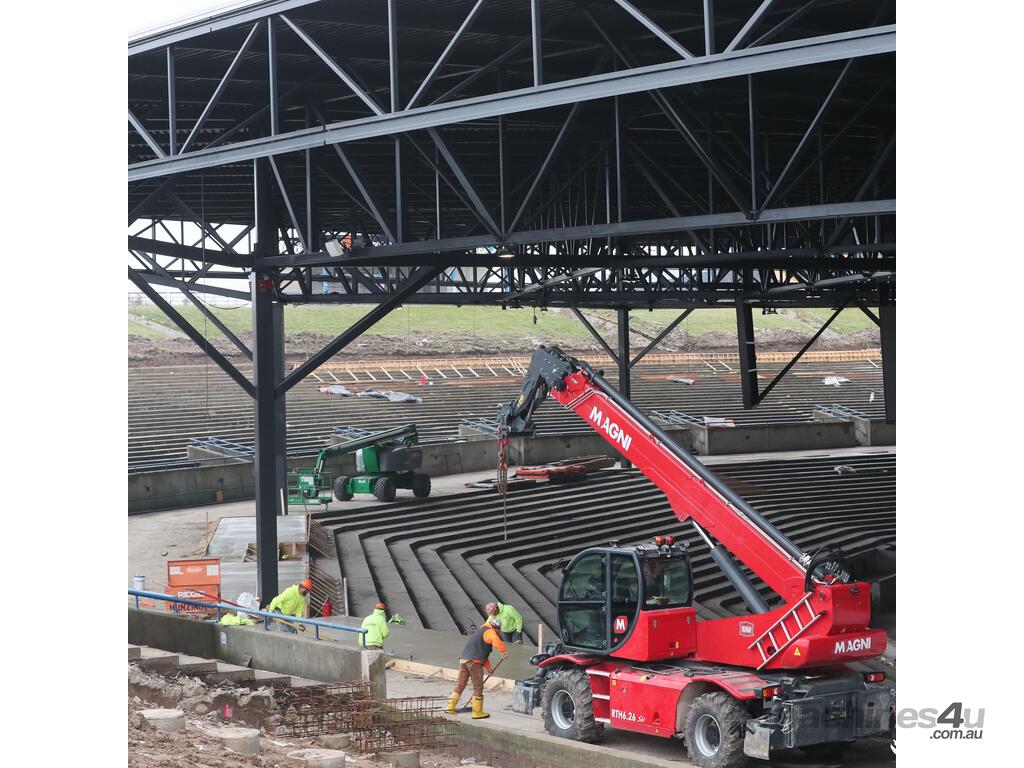

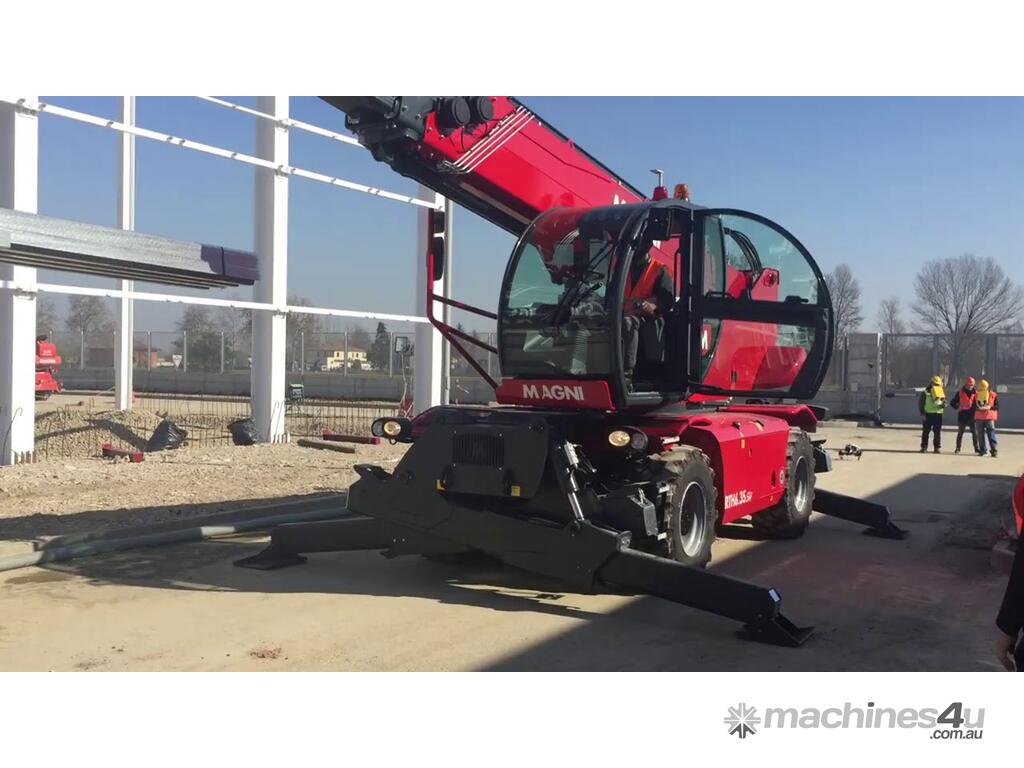

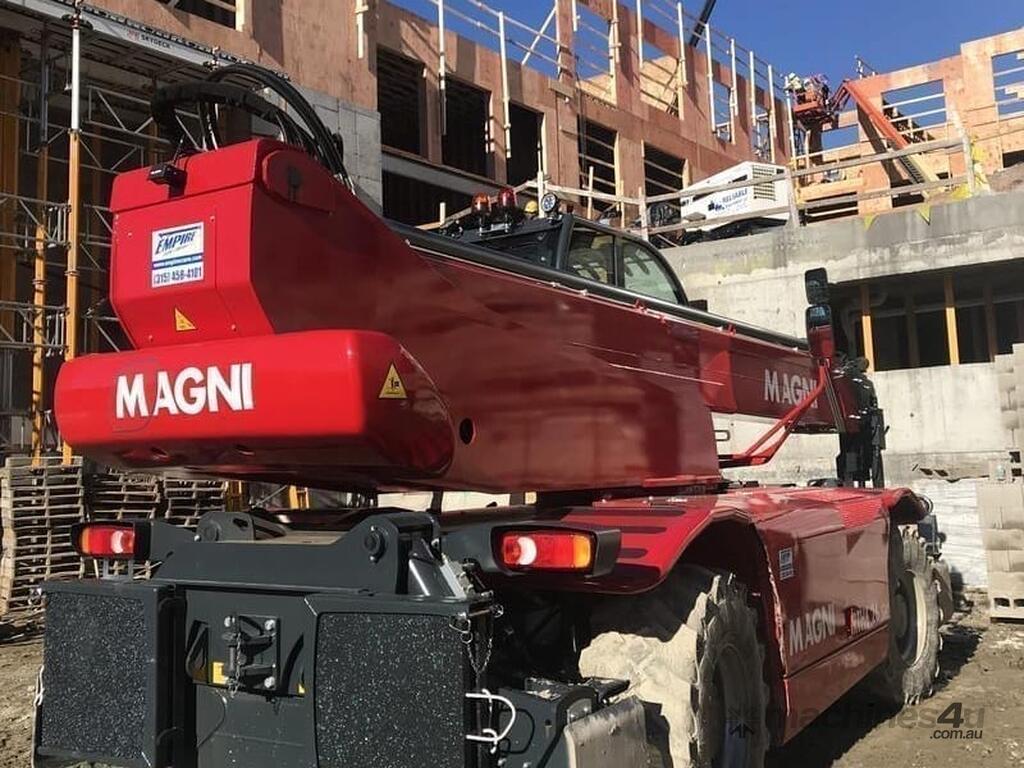

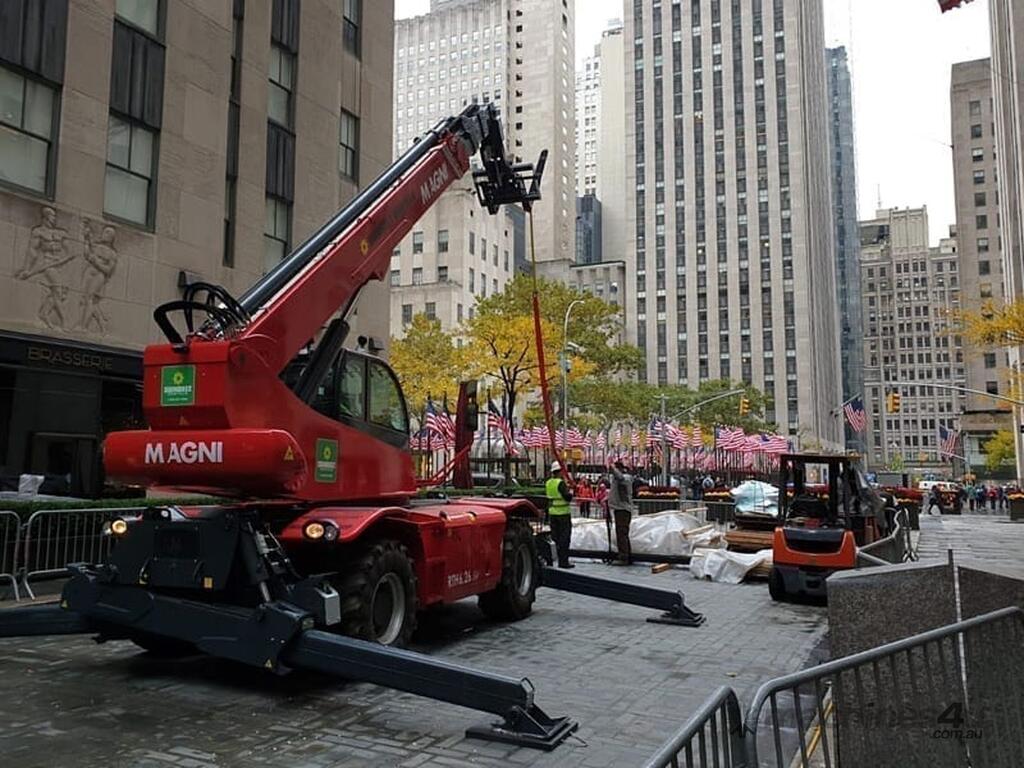

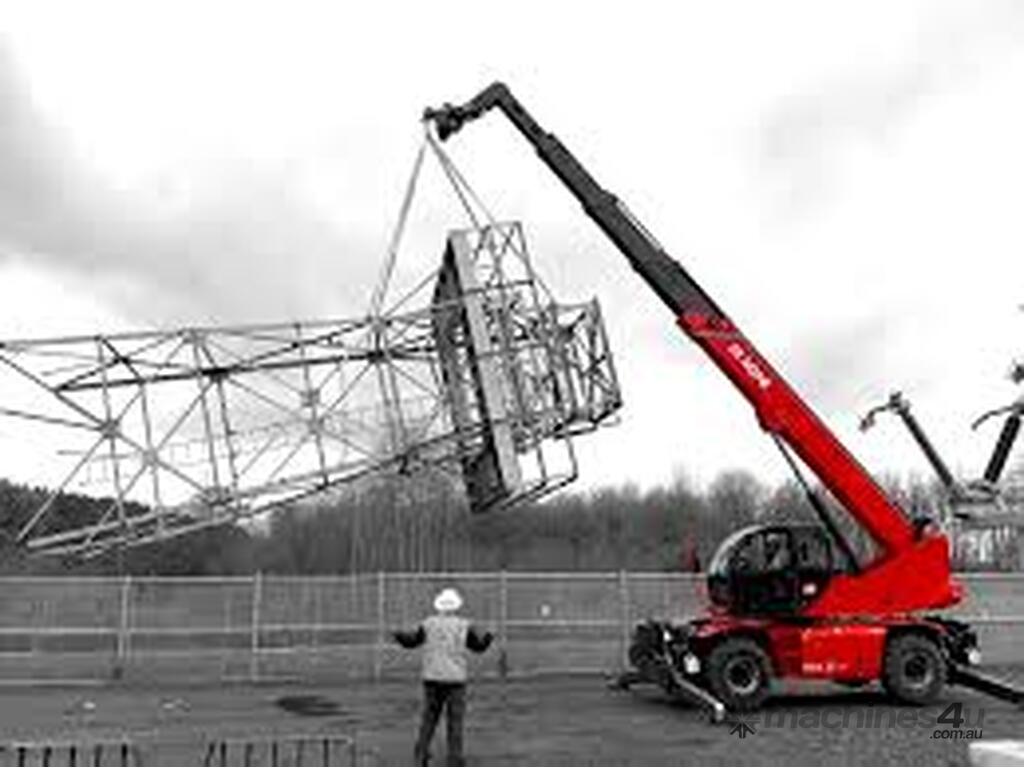

Magni RTH6.23 Rotational Telehandler

The RTH 6.23 is a simple yet high-performance rotating telescopic handler. It can lift loads up to a height of 23 m, and is equipped with scissor stabilisers to ensure greater safety and stability during working manoeuvres. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side.

When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.


TECHNICAL FEATURES
Stabilisers: scissors

Lifting capacity: 6000 kg

Capacity at maximum height: 3000 kg

Lifting height: 23.30 m

Reach: 19,70 m

Engine: Deutz TCD 3.6 L4 - stage V

Rated power: 100 kW (134 Hp) 2.200 rpm

Number of gears: 2/2

Hydraulic system: Load Sensing 350 bar

Length: 7,18 m

Width: 2,53 m

Ground clearance: 320 mm

Unladen weight: 18.000 kg

Travel speed: 40 km/h

Rotation: 360° (continuous)

Climate control as standard: Yes

Automatic attachment recognition: Yes
