TECHNICAL FEATURES
Lifting capacity: 5500 kg
Capacity at maximum height: 3500 kg
Lifting height: 14.80 m
Reach: 10.4 m

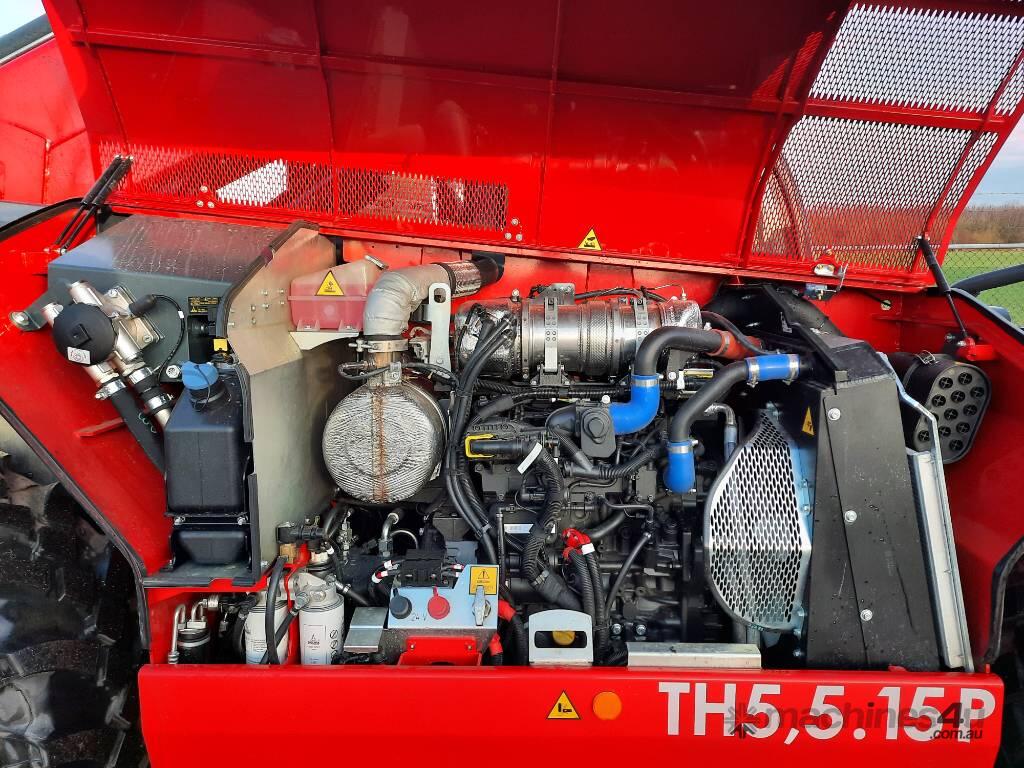

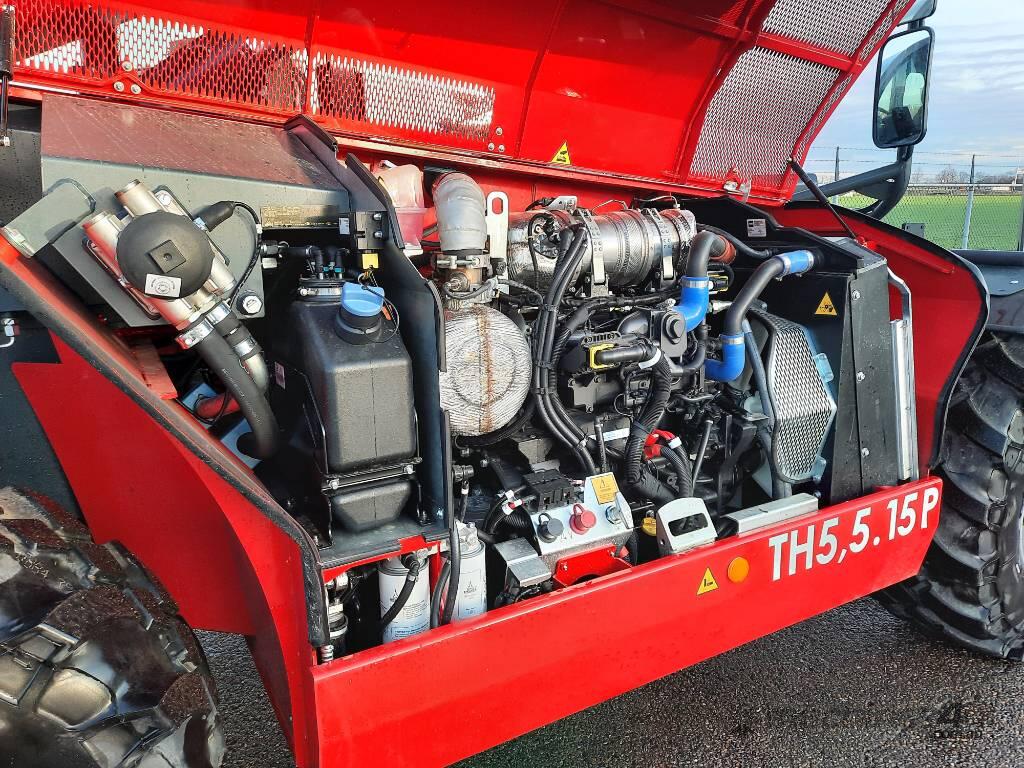

Engine: Deutz TCD 3,6 L4 Stage 3A
Rated power: 55,4 kW (75,3 hp) a 2.200 rpm
Number of gears: 2/2
Hydraulic system: 350 bar Load Sensing
Length: 6390 mm
Width: 2530 mm
Ground clearance: 410 mm
Unladen weight: 13,500 kg
Travel speed: 25km/h
Climate control as standard: Yes
Automatic attachment recognition: Yes

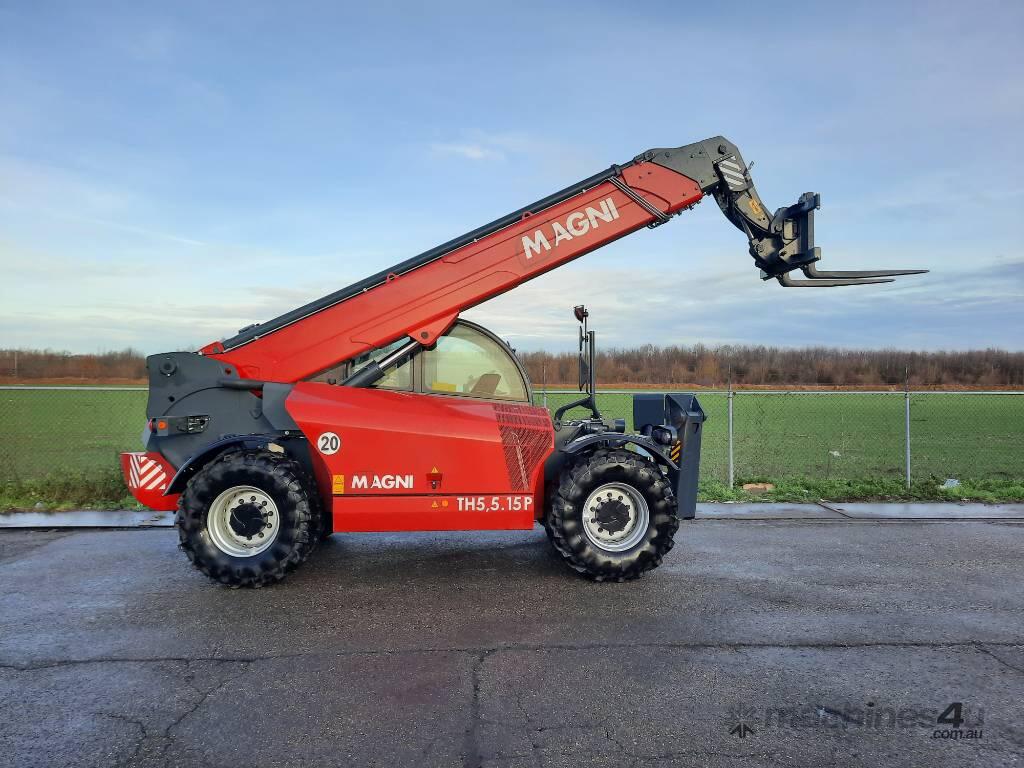

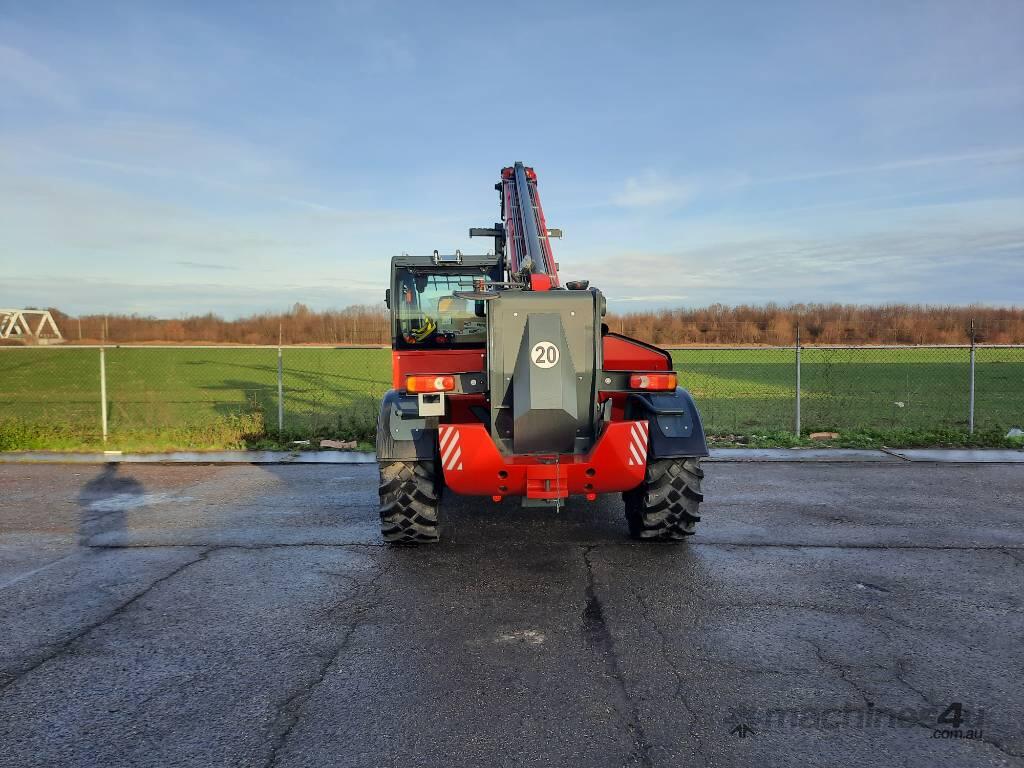

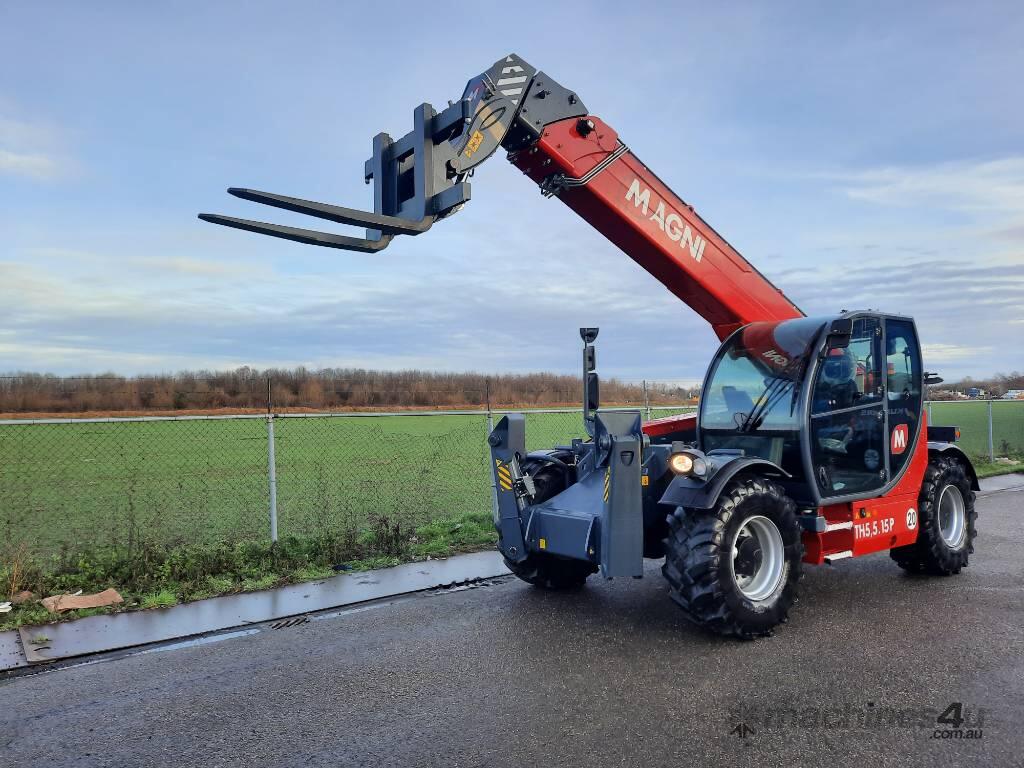

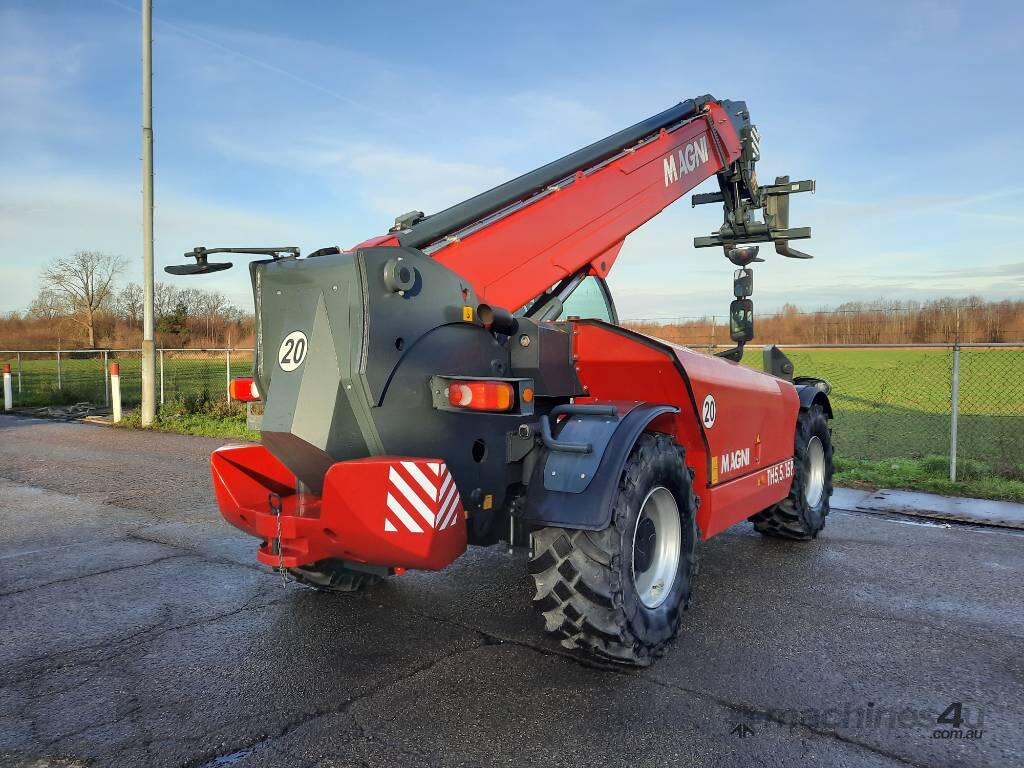

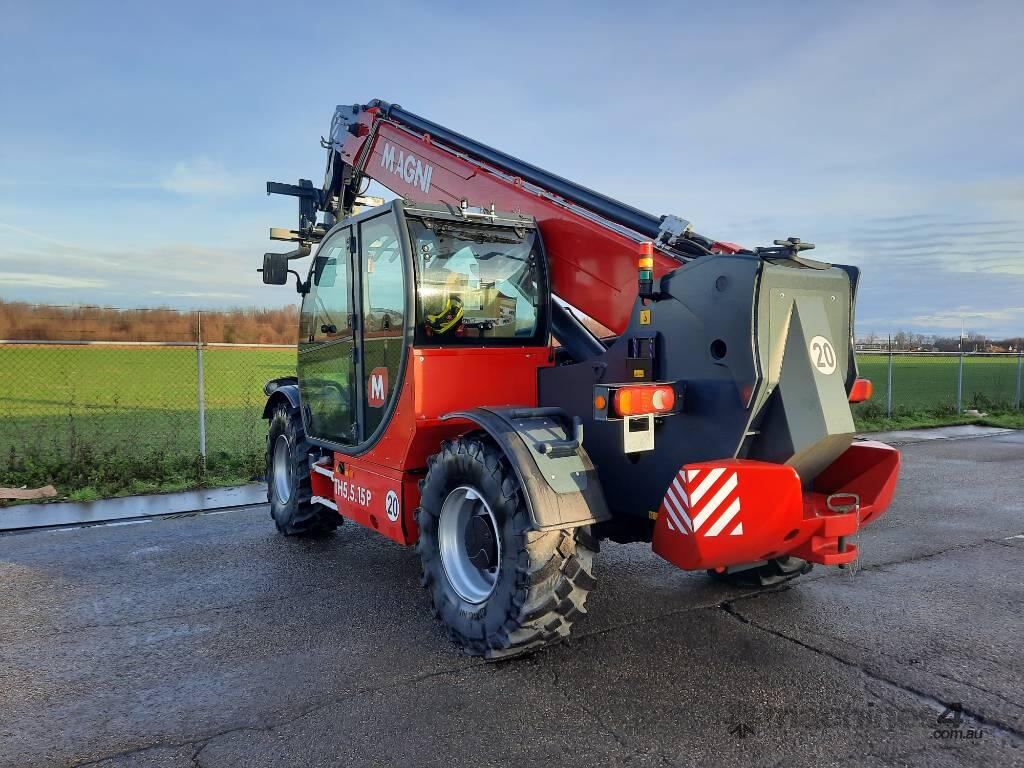

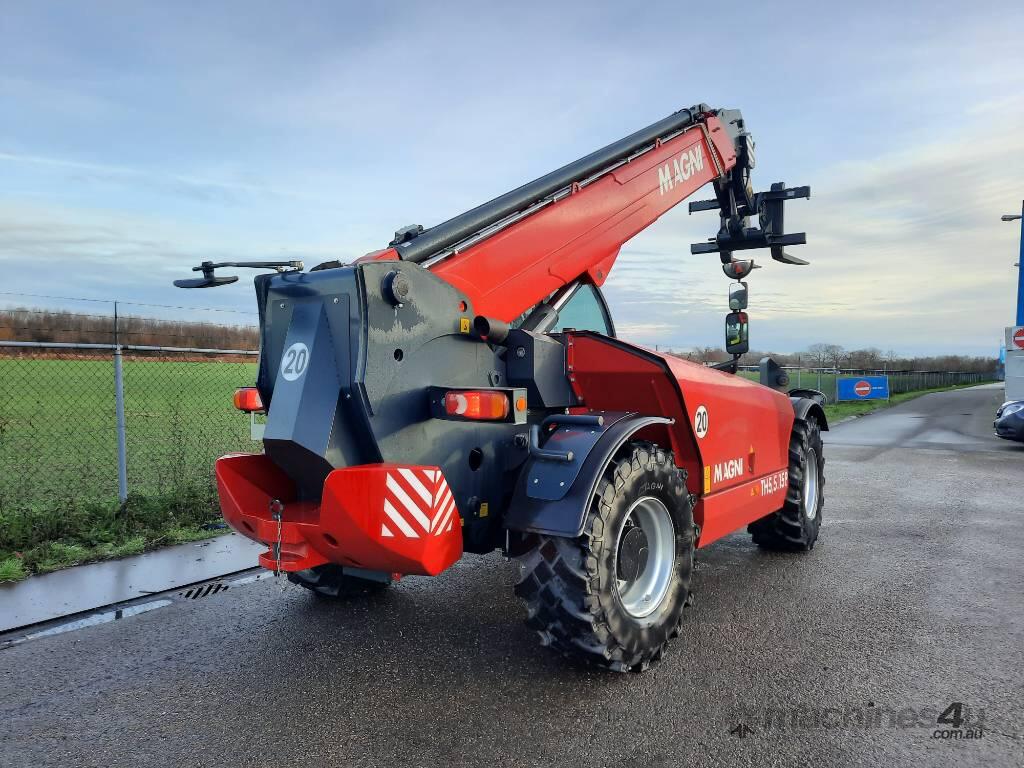

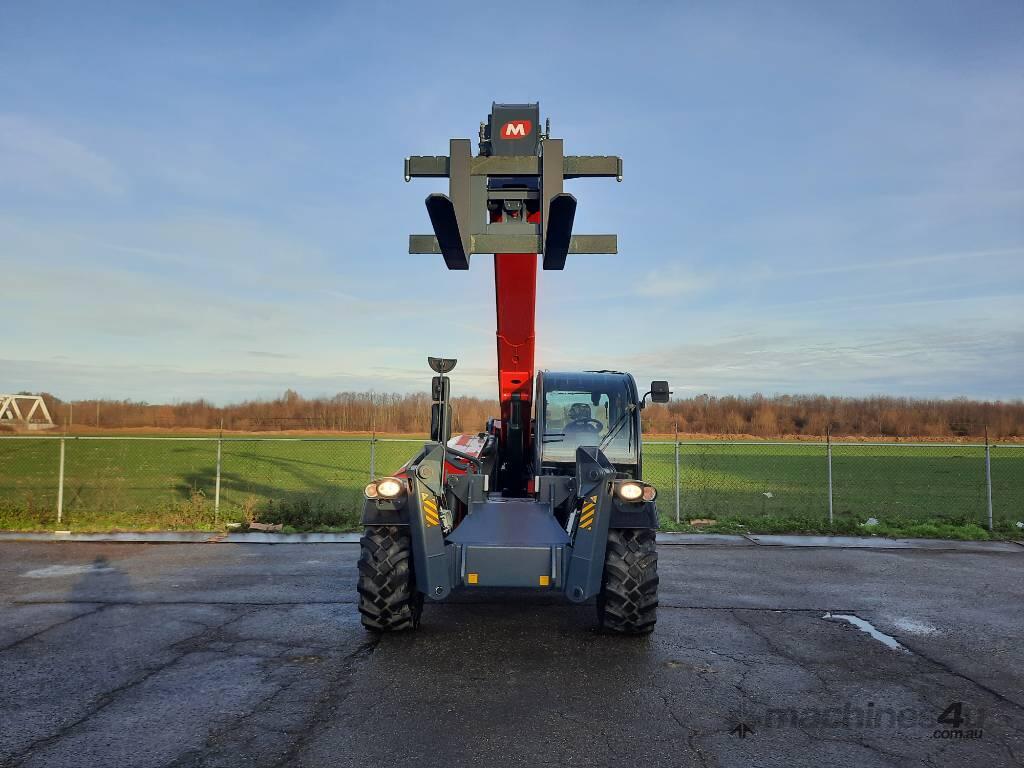

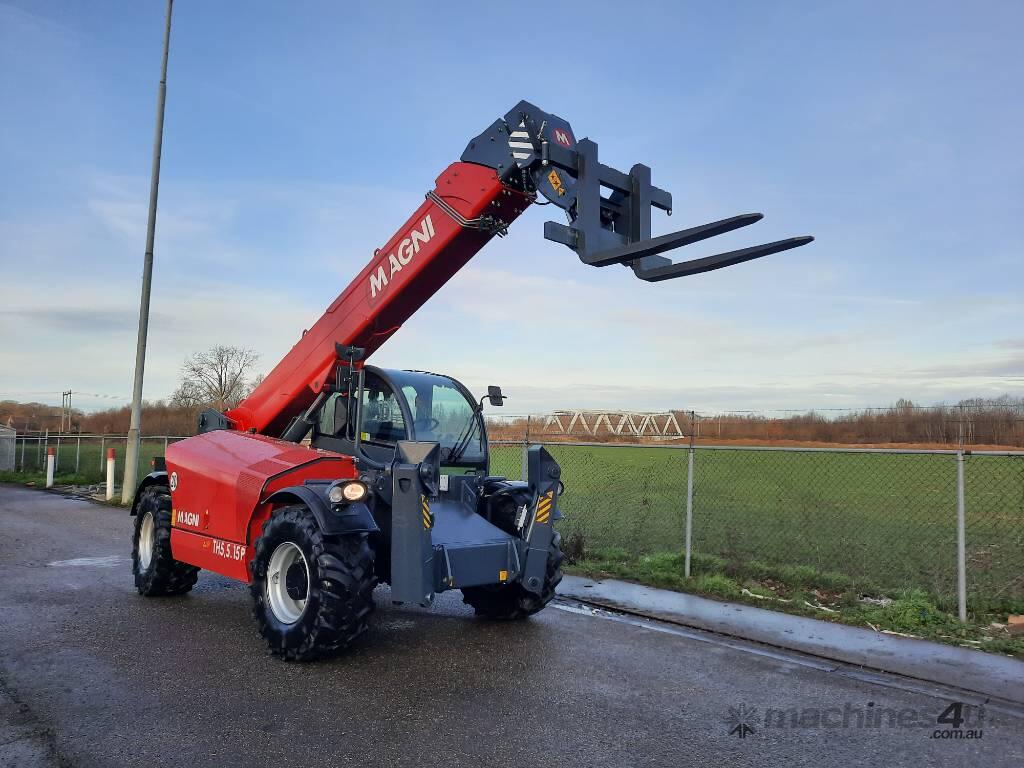

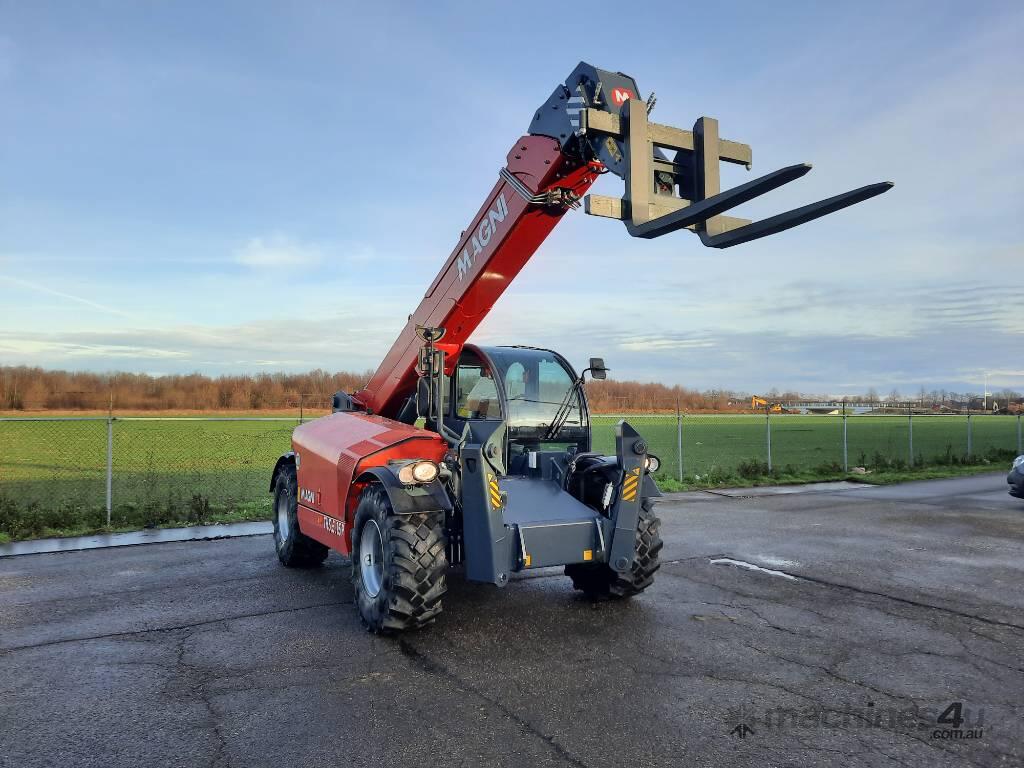

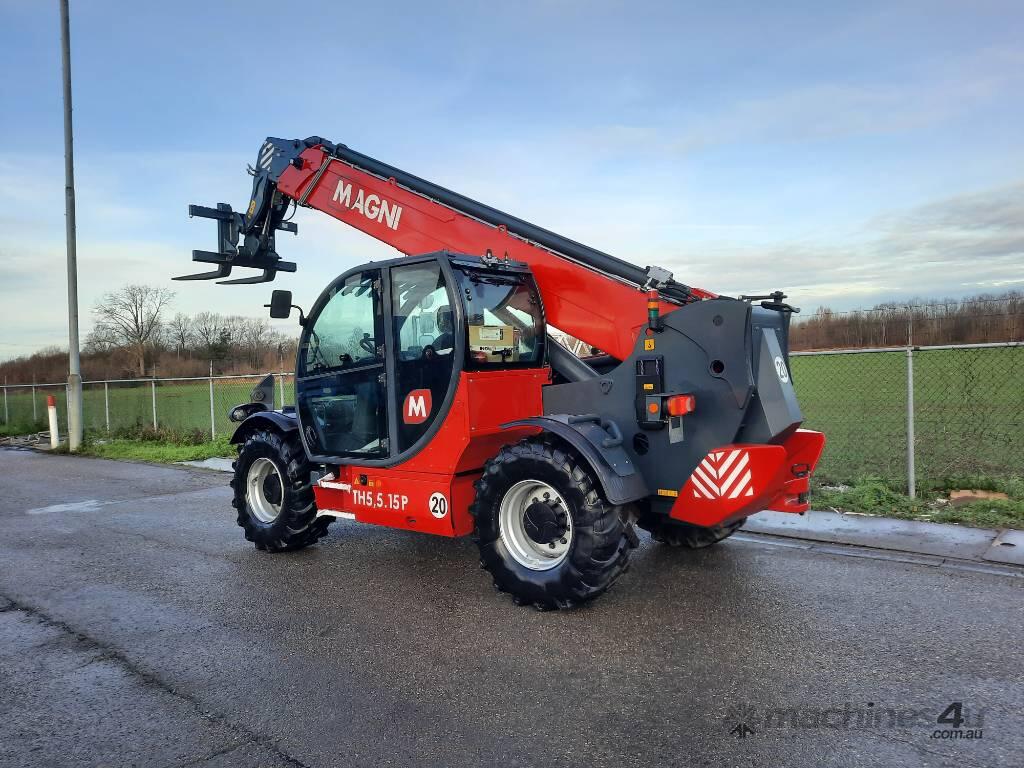

The TH 5.5.15 P is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 75 kW engine, it can safely reach a height of 14.80 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
