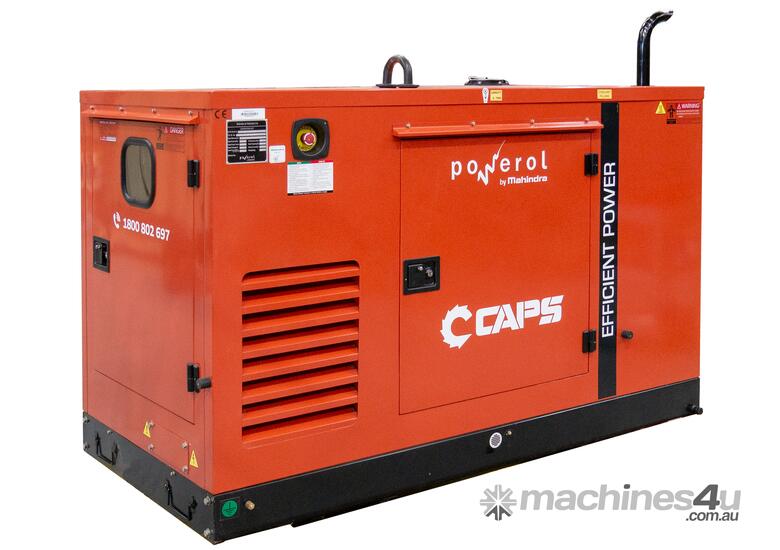

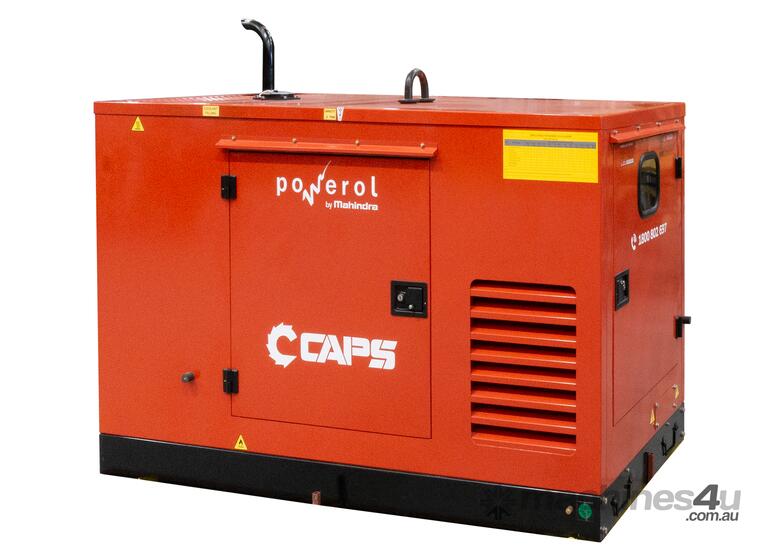

33KVA Diesel Generator, Three Phase- 400V.
The Mahindra Powerol DG gensets are a new addition to the CAPS Generator range.
Features
• Three Phase 400V
• Prime Power 30kVA, 42 Amp
• Standby Power 33kVA, 46 Amp
• Mahindra industrial-grade engine
• Super quiet with strong acoustic outdoor enclosure
• Deepsea controller with remote auto start/stop function
• Leroy Somer alternator with 300% overload capability
• 12 month / 1200hr warranty with service
This unit would be an ideal backup generator for a business, workshop, farm, or industrial application.
When connected to one of our auto transfer switches (ATS), the unit can automatically start up on mains power failure and provide backup power until mains power returns.
It will then shut down and return to standby mode for the next power failure.
ATS sold separately.
For almost 40 years, CAPS has been Australia’s largest independent supplier of compressed air and power generation products. With proven global engineering and export capabilities, our expert team can design, supply, install and commissioning a solution for you and then provide ongoing long term maintenance support.
Please see the attached brochure for the complete technical specifications.
CAPS Australia is proudly 100% Australian owned.
ENGINE
• Operates at 1500 rpm, direct injection 4-stroke diesel. Water-cooled with radiator available.
• Electronic governor to maintain a constant engine speed across all load conditions.
• Steel Skid mounted. Anti-vibration mounts between the frame and engine/alternator.
• Mechanical compliant with ISO3046 Class A1 and ISO8528 pt.5, Class G2 governing
• Efficient air filtration system. Dry type Donaldson Air filter with restriction indicator having filtration efficiency of 99.9%.
• Full flow spin on type oil filter.
• 12V electrical starter & battery charging alternator.
• Designed to perform in hot, humid & dusty conditions.
CANOPY
• Sound Attenuation canopy that keeping noise to 75 dBA 1 metre.
• Robust steel construction suitable for external placement.
• External emergency stop button.
• Fuel and battery access inside the lockable canopy
• Lifting provisions via frame hooks. Central lifting also available.
• Internal cabinet lighting.
ALTERNATOR
• Leroy Somer manufactured: 3-phase, 4-wire, 400V 50 Hz brushless alternator with IP23 protection.
• Self excited, AVR (Automatic voltage regulator) controlled and screen protected. 1.0% rated voltage regulation.
• Isochronous under varying load from no load to 100% full load. Random frequency variation shall not exceed ± 0.4% of its mean value for constant loads – no load to full load.
• Total harmonic distortion less than 5% at full load AC waveform.
• Class H insulation with temperature rise of 125C over ambient of 40C.
• Cooling fan mounted on shaft.
Flexible Finance Options
Having the right equipment and assets is crucial for the growth of any business. Through our trusted partner, we not only provide short and long-term funding for your equipment, but can tailor our finance to suit your specific budget or requirements.
The best equipment does not have to be out of reach - explore CAPS range of finance options to drive your business forward.
Your local team of experts will guide and assist you in choosing the right equipment for the job. Call us today!
Specifications subject to change
