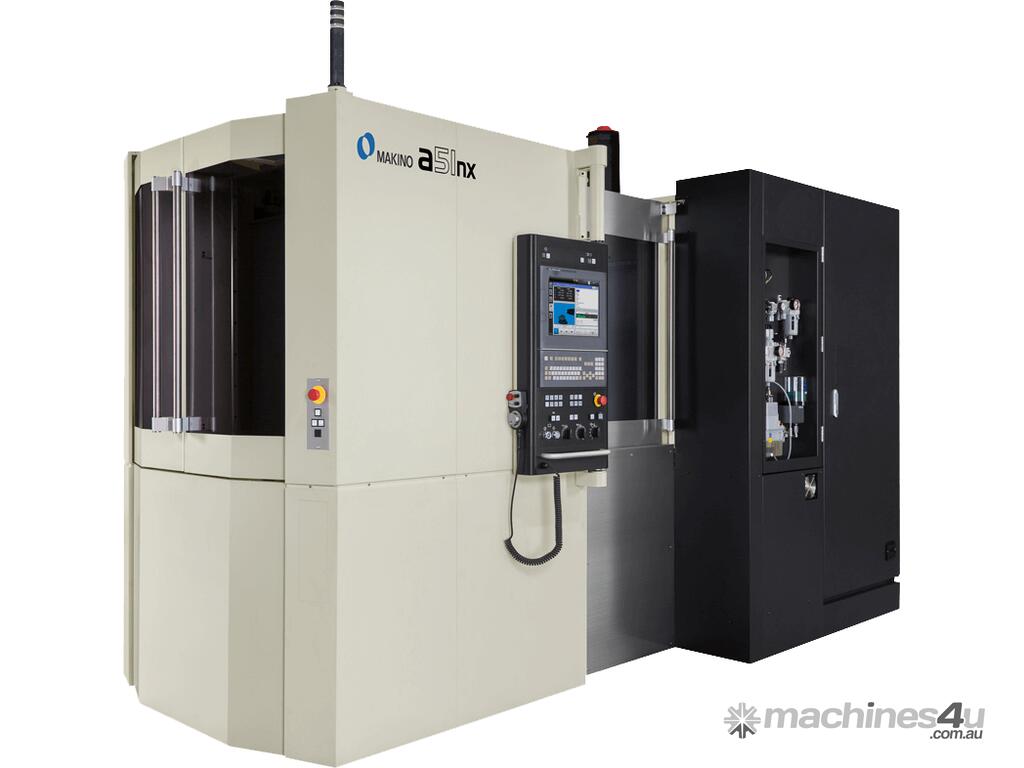

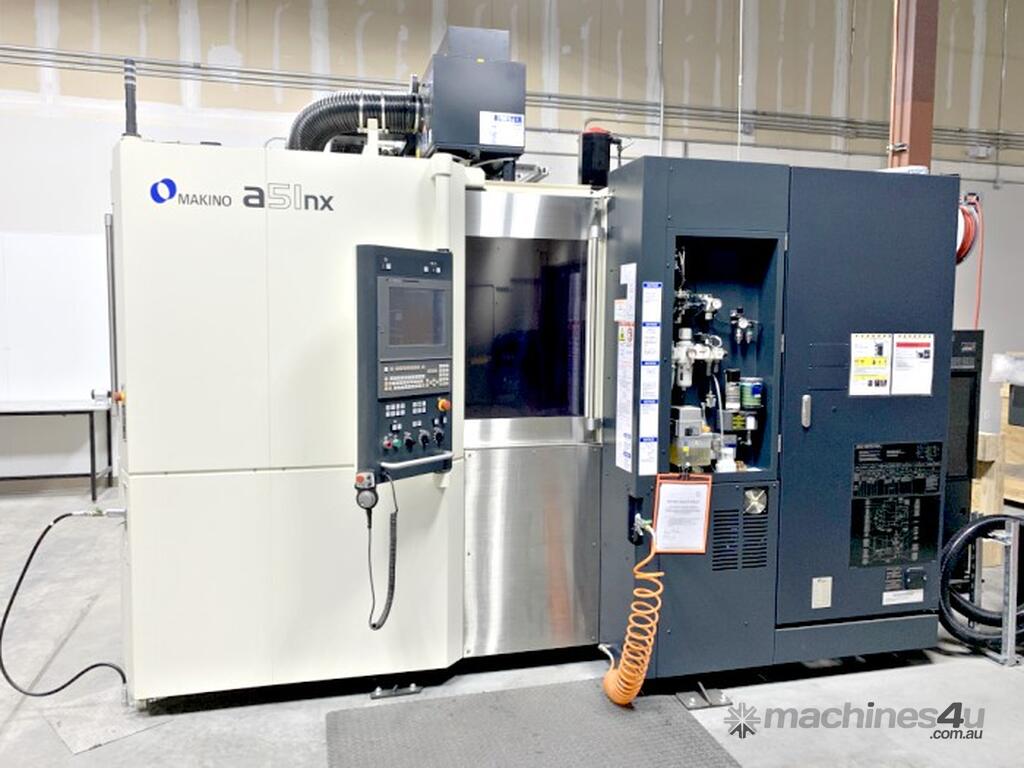

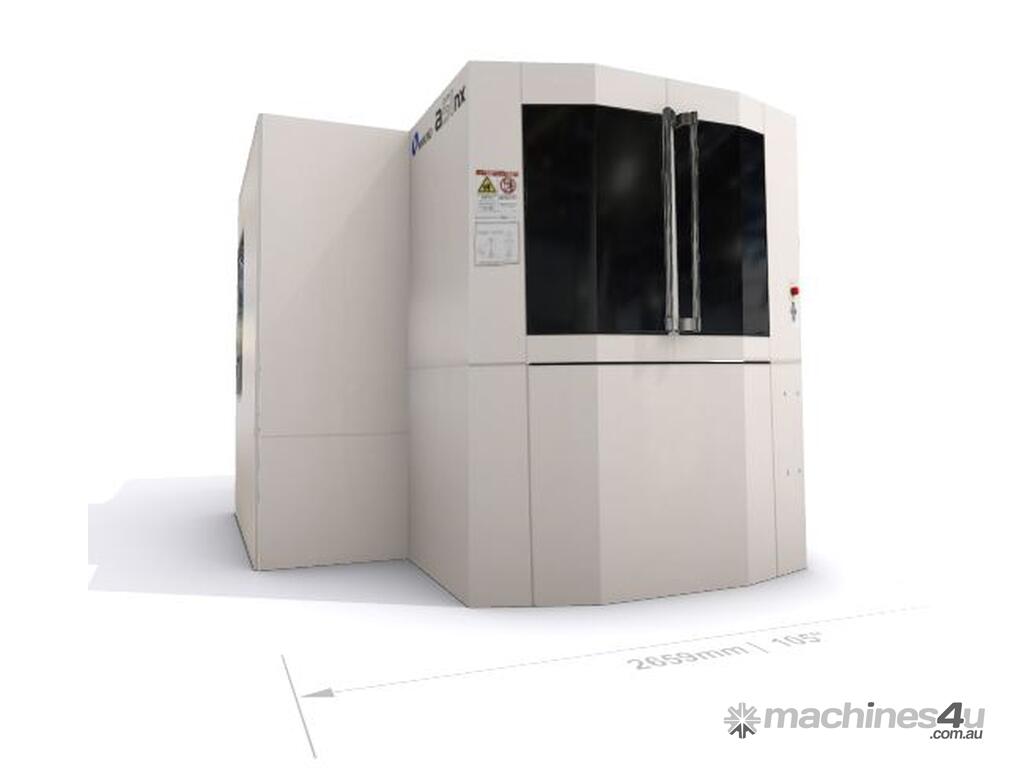

Makino a51nx 4-Axis Horizontal Machining Center - High Performance Machining

Overview:
Makino's a51nx is a 4-axis horizontal machining centre built to handle complex contours and shapes impossible to achieve with fewer axes. The 14,000-rpm high-speed, high-power spindle features 240 Nm of torque, making it well suited for ferrous and non-ferrous part production. High machining speeds are ensured by efficient chip evacuation. Offering high precision and maximum repeatability, the a51nx is used across aerospace, medical, tool & die manufacturing, and electronics.

Specs:
Pallet: 400 x 400 mm
X: 560 mm Y: 640 mm Z: 640 mm
Rapid Traverse: 60,000 mm/min
Cutting Feedrate 50,000 mm/min
Maximum Workpiece: 630 mm x 500 mm

Industries:
Aerospace
Automotive
Medical
Tool and Die Making
Defense
Electronics
Energy
General Manufacturing

Why choose Headland as your machine provider?
With our 54 OEM-certified and factory trained service engineers located nationwide, Headland is committed to you beyond delivery and installation; offering breakdown support, OEM genuine spare parts, preventative maintenance and software support.


Want to learn more?
For full specs please download the attached brochure. Otherwise if you would like to discuss this machine with us in more depth please reach out.
