Manual Bandsaw Ø 240mm Double Mitre

Discover the FMB Orion+G Manual Bandsaw: Precision Meets Power

The FMB Orion+G manual bandsaw, crafted in Italy, seamlessly integrates the cutting efficiency of a circular cold saw with the swift performance of an abrasive saw, while offering the robust capacity of a traditional bandsaw. Known for its exceptional cutting accuracy, squareness, and versatile pivoting saw head, this bandsaw is perfectly suited for a diverse range of materials and applications.

Key Features:

Capacity:
- Round up to Ø 240mm; rectangular section up to 240x270mm

Swivel Saw:

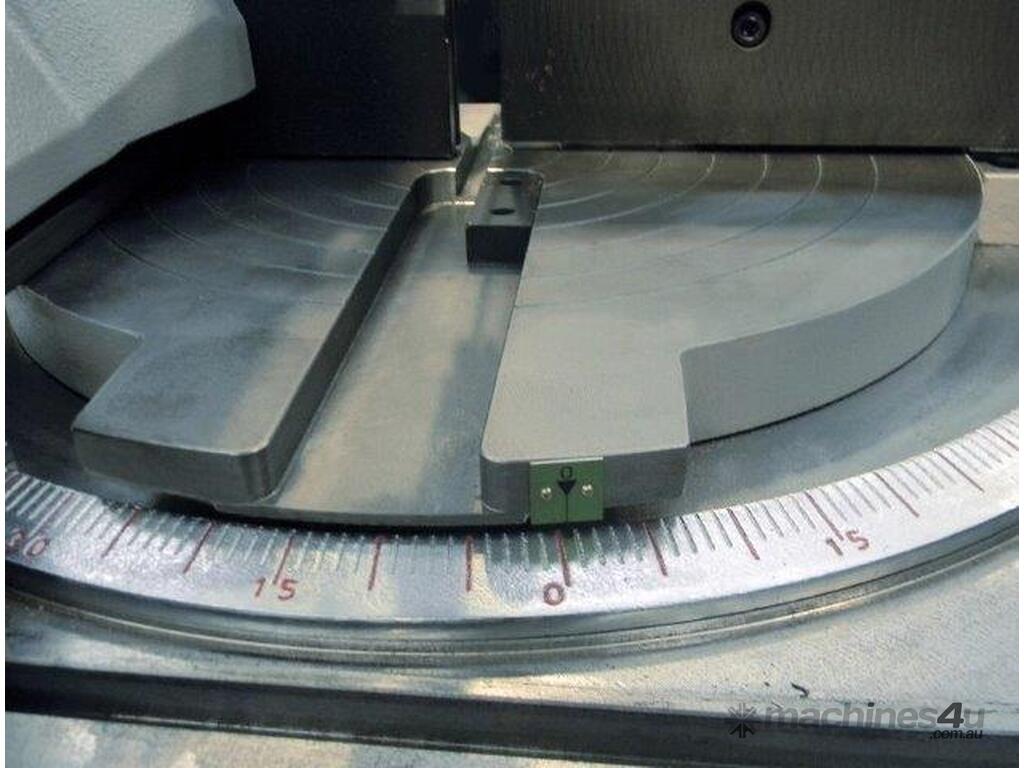

- Equipped with a precision protractor and mechanical stops for angles of +45°, 60°, and -45°

Construction:
- Saw head and bow made from durable aluminium alloy, with a cross beam of structural steel

Drive System:
- Direct drive reduction gearbox featuring case-hardened and ground helical gears

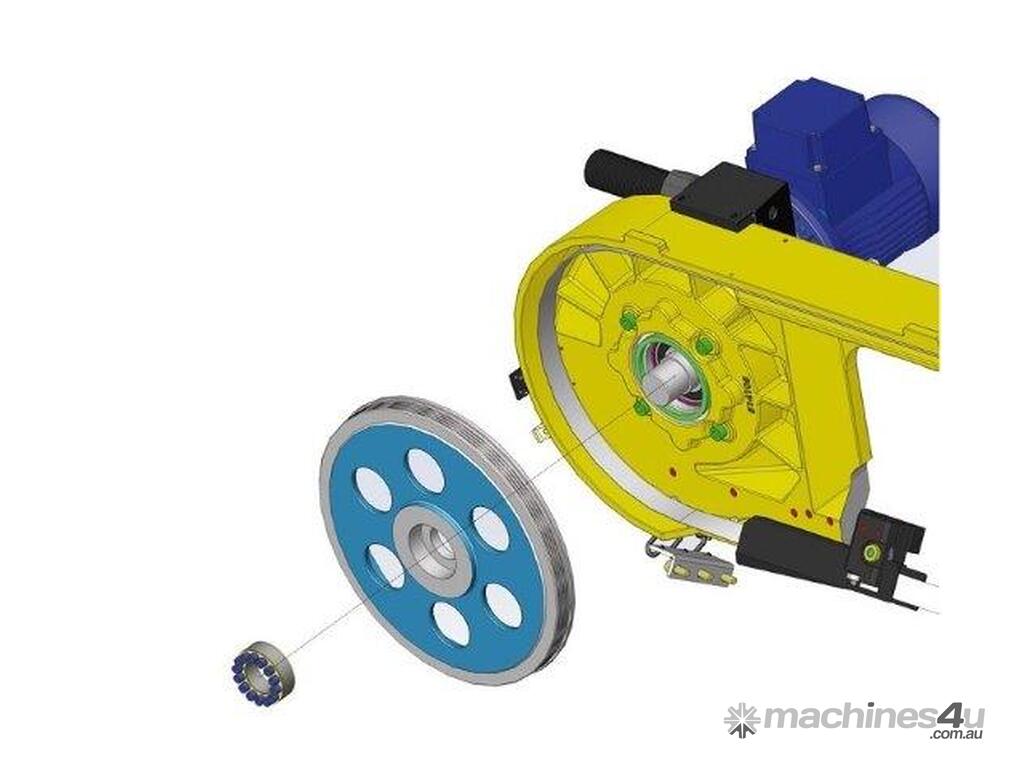

Motor Support:
- Conical bearings to minimize friction from blade tension

Base:
- Heavy-duty welded steel construction

Blade Tensioning:
- Mechanical device for precise blade tension

Down Feed:
- Infinitely variable via hydraulic cylinder and control valve

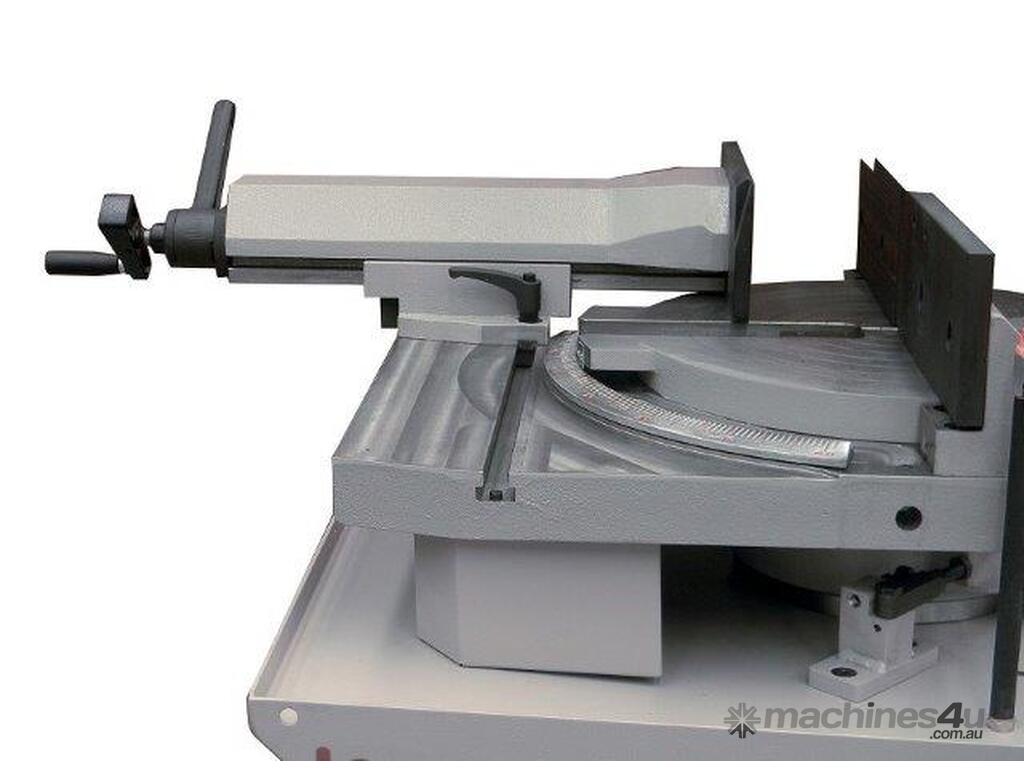

Vice:
- Solid cast iron with quick-action clamping

Safety:
- Broken blade detection system to automatically shut down the machine

Guides:
- Precision carbide blade guides with bearings

Support:
- Roller for easy material loading

Maintenance:
- Integrated blade cleaning brush

Coolant System:
- Recirculating system for optimal blade performance

We invite you to call our sales team today on for more information on our complete range of bandsaws. Delivery and service Australia wide, competitive freight rates available.
