Manual Bandsaw Ø 300mm Single Mitre

Introducing the FMB Mercury+G Manual Bandsaw: Italian Precision and Versatility

The FMB Mercury+G manual bandsaw, crafted in Italy, combines the efficiency of a circular cold saw with the speed of an abrasive saw and the substantial capacity of a traditional band saw. Renowned for its cutting accuracy, precise squareness, and large capacity, this bandsaw’s pivoting saw head makes it ideal for a broad range of materials and applications.

Key Features:

Cutting Capacity:
- Round up to Ø300mm; rectangular section up to 300x370mm

Swivel Saw:
- Equipped with a precision protractor and mechanical stops for angles at 0°, 45°, and 60°

Construction:
- Saw head and bow crafted from robust aluminium alloy; cross beam made of structural steel

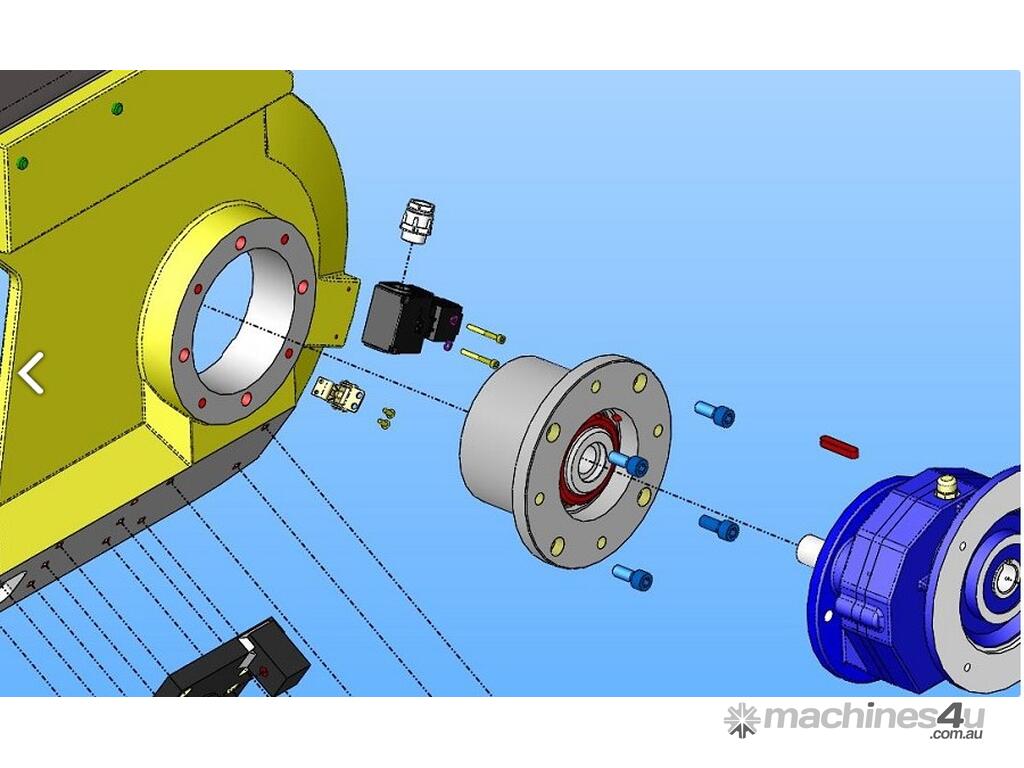

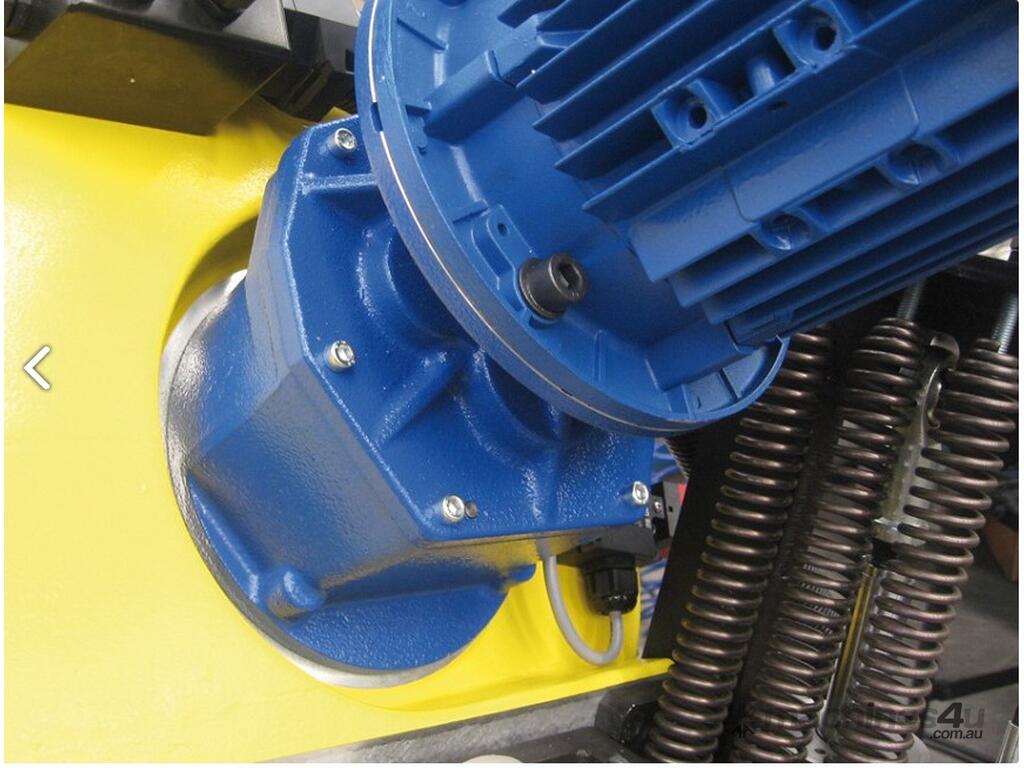

Drive System:
- Direct drive reduction gearbox with case-hardened, ground helical gears

Motor Support:
- Conical bearings to minimize friction from blade tension

Base:
- Heavy-duty welded steel construction

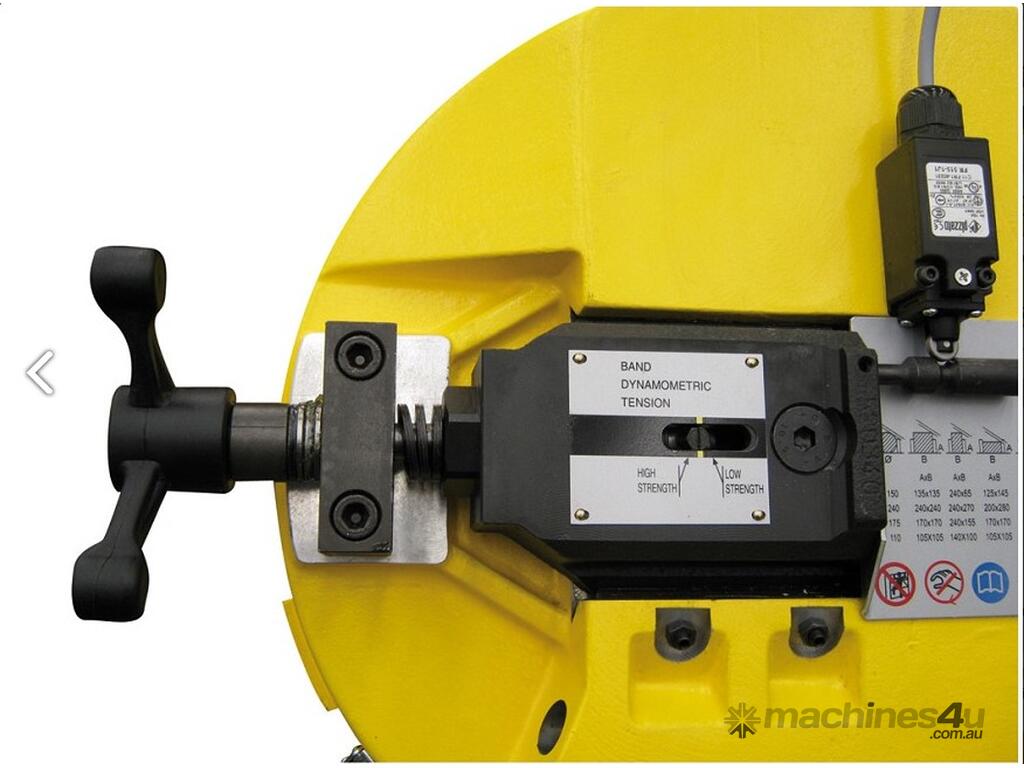

Blade Tensioning:
- Mechanical device for accurate blade tension adjustment

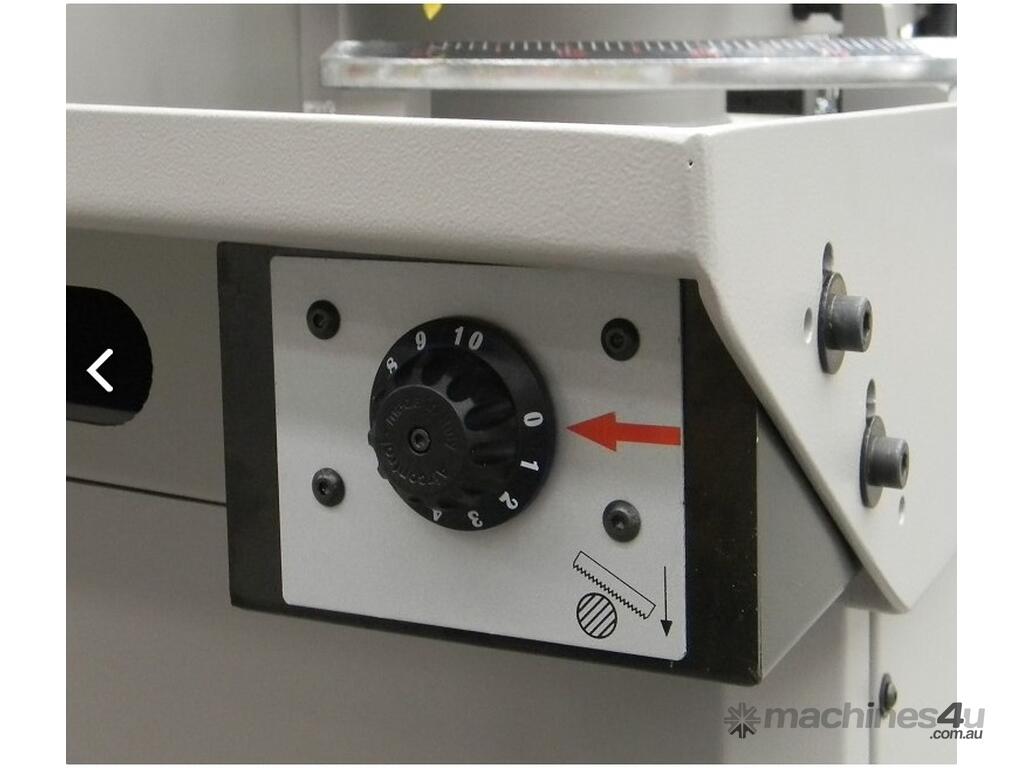

Down Feed:
- Infinitely variable via hydraulic cylinder and control valve

Vice:
- Solid cast iron with quick-action clamping for efficient material handling

Safety Feature:
- Broken blade detection system automatically shuts down the machine

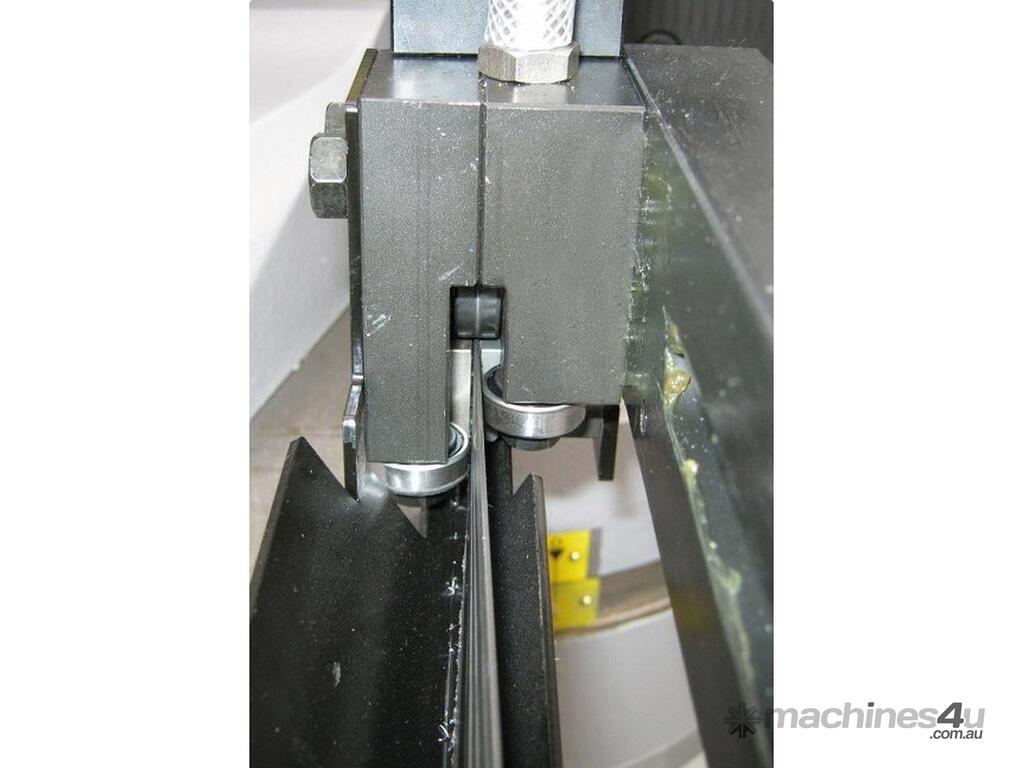

Blade Guides:
- Precision carbide guides with bearings for enhanced accuracy

Support Roller:
- Facilitates easy material loading

Maintenance:
- Integrated blade cleaning brush

Coolant System:
- Recirculating system for optimal blade performance

We invite you to call our sales team today on for more information on our complete range of bandsaws. Delivery and service Australia wide, competitive freight rates available.
