Manual Pan Brake: 2500 x 2mm - *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

EPIC'S Manual Pan Brake is a simple to use and affordable machine. The pan brakes are designed and manufactured in the company's NSW workshop. EPIC has been manufacturing sheet metal processing equipment for more than 40 years. EPIC's high quality Australian-made machines are built for precision and reliability, and are made to last.

EPIC has technical services Australia-wide. Plus, we offer personal customisation and modification of all our machines.

The segmented clamping fingers are made from flame-hardened high-carbon steel for long life.

The 2500MPB is 100% Australian-manufactured and designed at EPIC's NSW workshop.

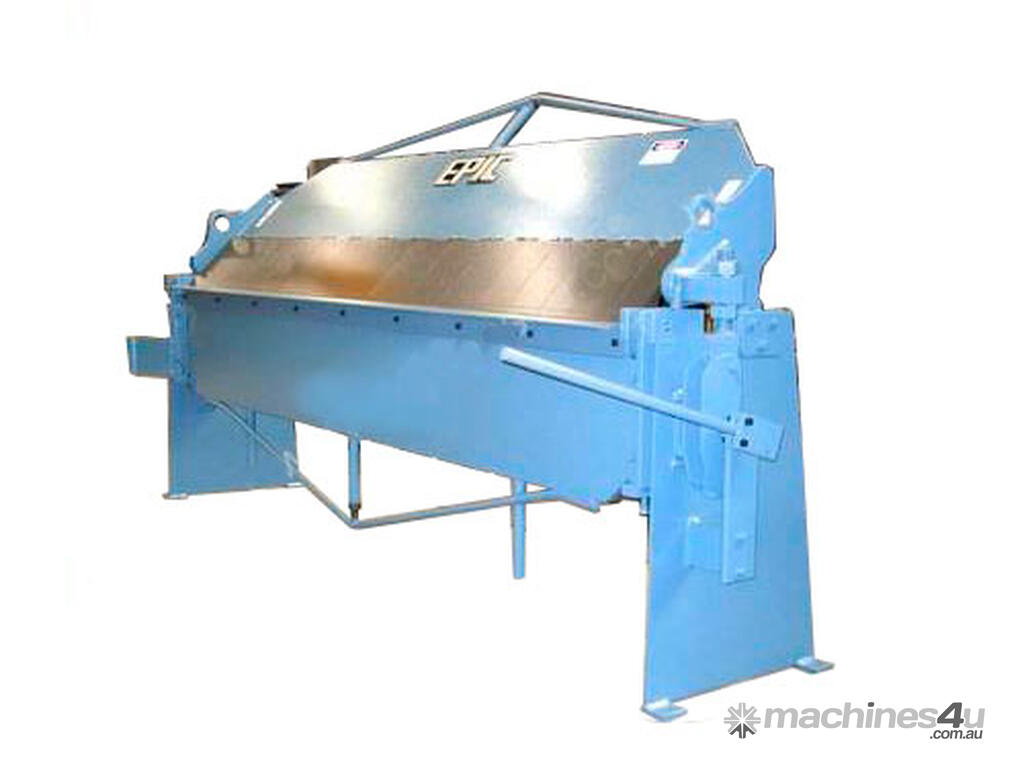

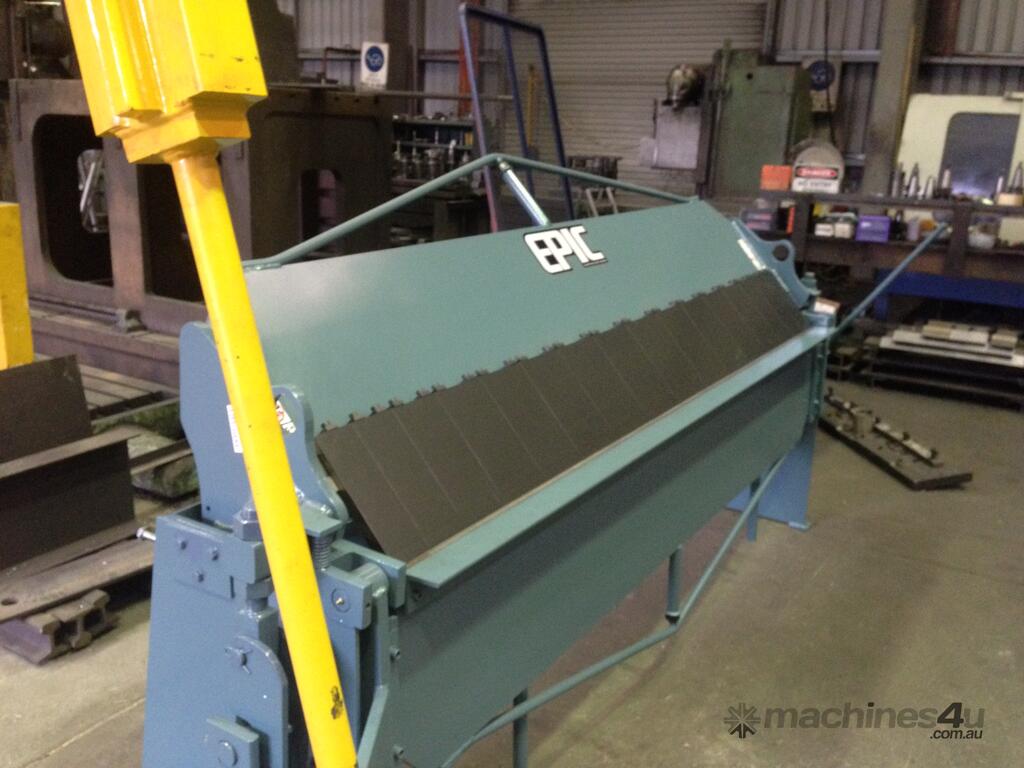

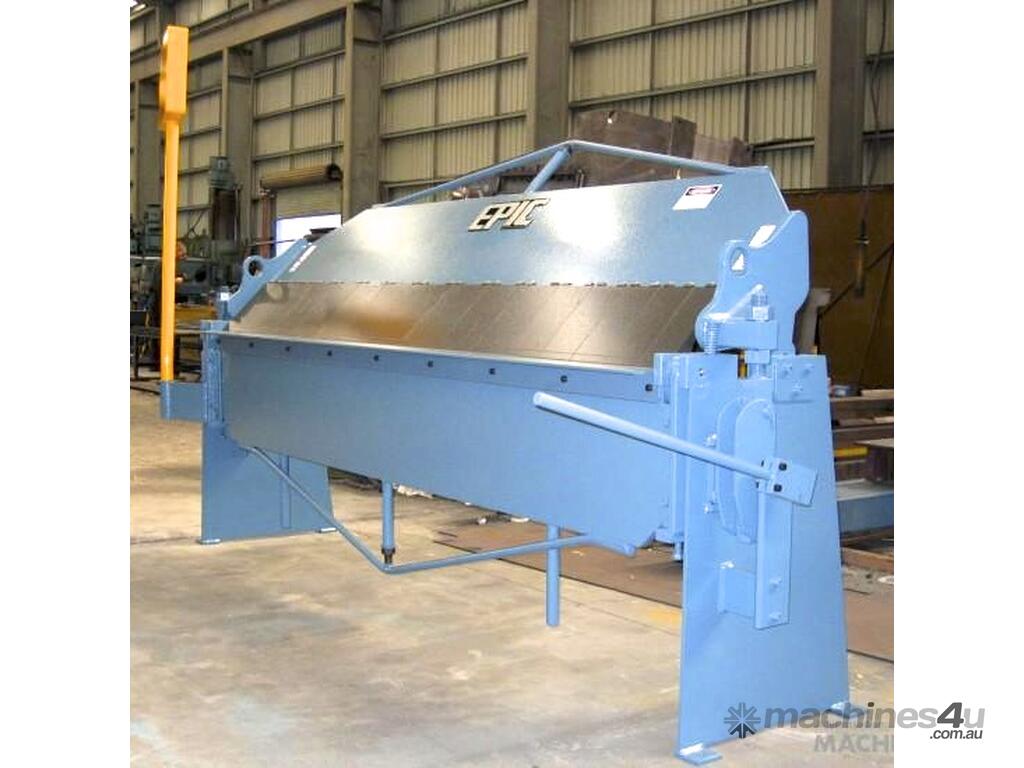

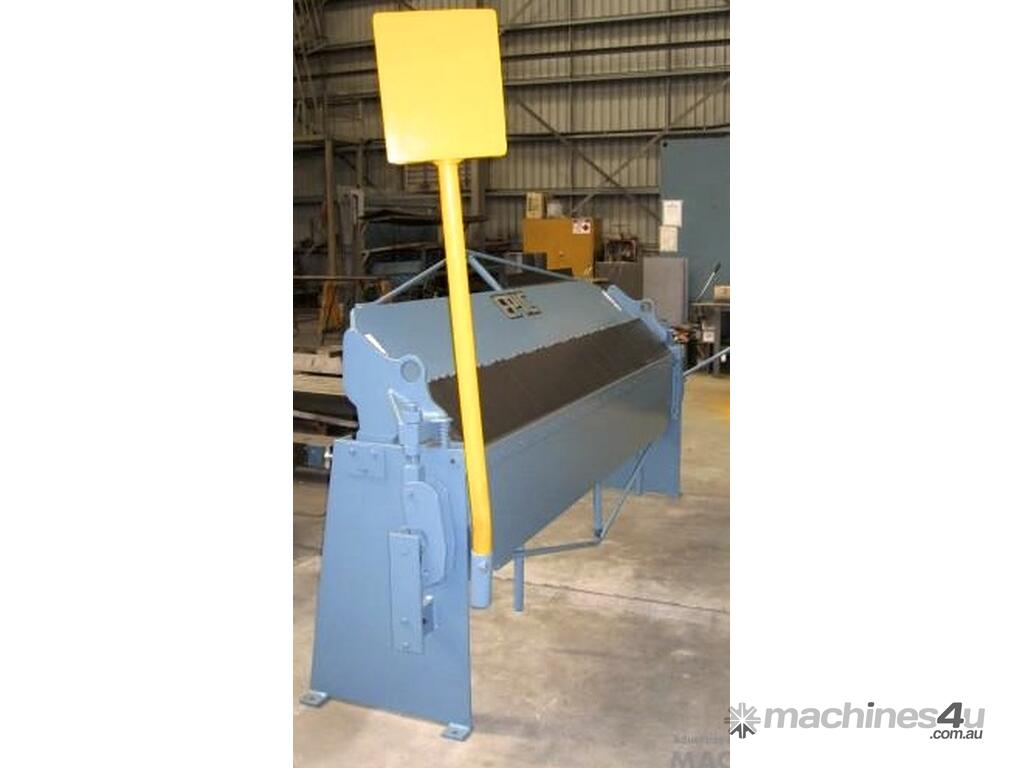

EPIC 2500 x 2.0mm Manual Pan Brake
Model No. MPB2500

Machine Capacity:
- 2.0mm mild steel bending capacity
- 2500mm bending length

Standard Features:
- High-carbon steel flame-hardened segment clamping fingers - variety of widths
- Bronze bearings in all wear points with grease fittings for lubrication
- 38mm main shaft for clamping pressure
- High-tensile steel apron blade
- Adjustable apron
- Head adjustable for clamping and radius

Optional Features:
- Machine paint colour
- One-piece inserted blade - commonly used for polished stainless steel and aluminium applications
- Extra safety options - suitable for government departments

Contact EPIC to discuss freight and financing, plus any personal customisation and modifications you require.

EPIC Manual Pan Brake range:
- 1250mm x 2.0mm mild steel capacity
- 1860mm x 2.0mm mild steel capacity
- 2500mm x 2.0mm mild steel capacity
- 3085mm x 1.6mm mild steel capacity
- 3675mm x 1.2mm mild steel capacity
- 4020mm x 1.2mm mild steel capacity

Get in touch, for more information about our manual pan brake or any of our sheet metal machinery range.

About EPIC Industries:

Australian Made Machinery
EPIC is a 100% Australian-owned and run company with more than 40 years’ experience in metal manufacturing. Based in Sydney with two business divisions: Epic Machinery and Epic Engineering, we manufacture sheet and plate working equipment including guillotines, press brakes, pan brakes, and folding and bending equipment. Epic also reconditions machinery and provides parts and servicing. The company has a reputation for providing high quality, reliable, locally manufactured machines.

Specialties include:
Guillotines
Press brakes
Pan brakes
Sheet metal fabrication machinery
Conventional machining
CNC machining

Reliable Engineering Services
EPIC provides general engineering services, working with clients to realise their concepts or deliver clients fully formed ideas. Our Picton NSW workshop is equipped with the latest technology and highly skilled personnel. We can fulfil your general requirements from components to complete assemblies. We work closely with you to understand your project needs and to provide a quality solution that we can deliver on time and on budget.

Specialties include:
Heavy fabrication
Metal fabrication
Shot blasting
Industrial painting
Machinery reconditioning
