Manual Panbrake 1250 x 2mm

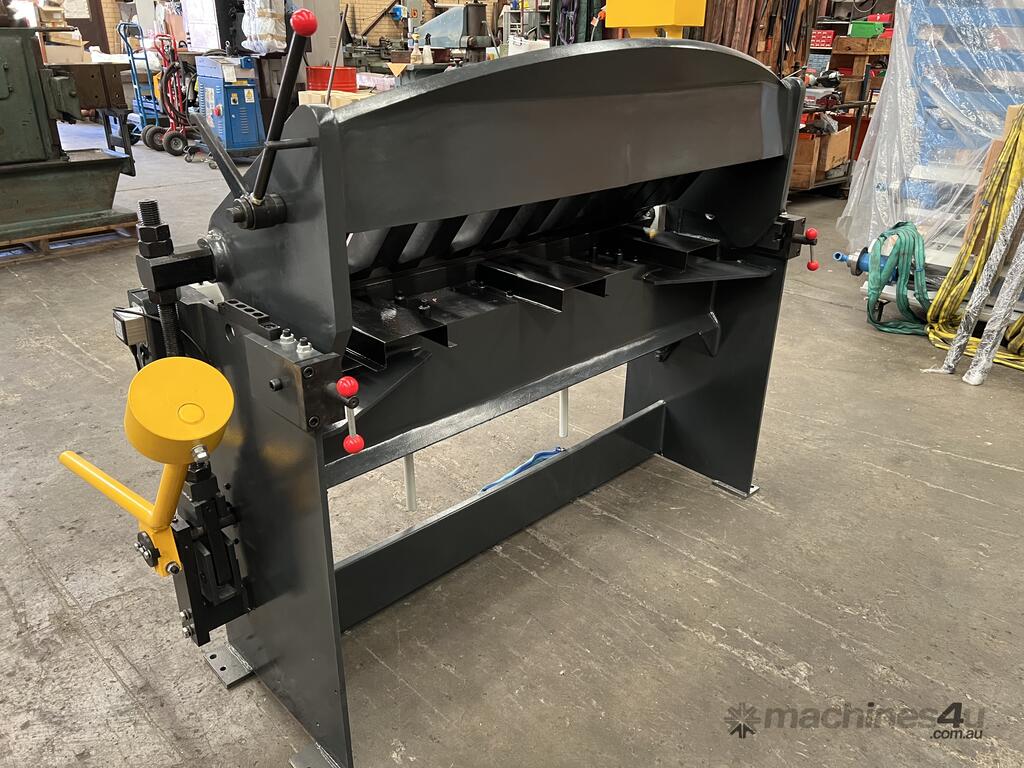

MADISON 4’ model Pan Brake.


Specification
Working Length 1250 mm
Thickness Material 2 mm mild steel
Bending Angle 0-120°
Depth of Box Bent 190 mm
Lift of Clamping Beam 200 mm
Length 1650 mm
Width 1100 mm
Height 1200 mm


Features
* Manually operated bending and clamping beam for efficient heavy duty operation.
* High structural rigidity from heavy plate steel box construction with continuous welded seams.

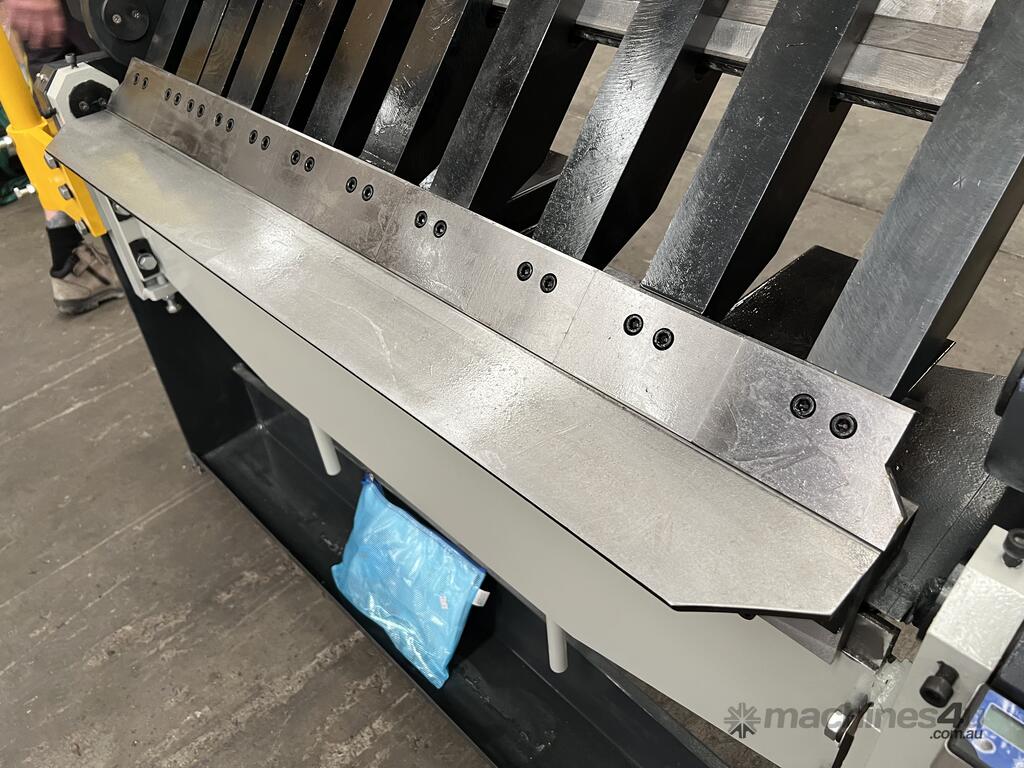

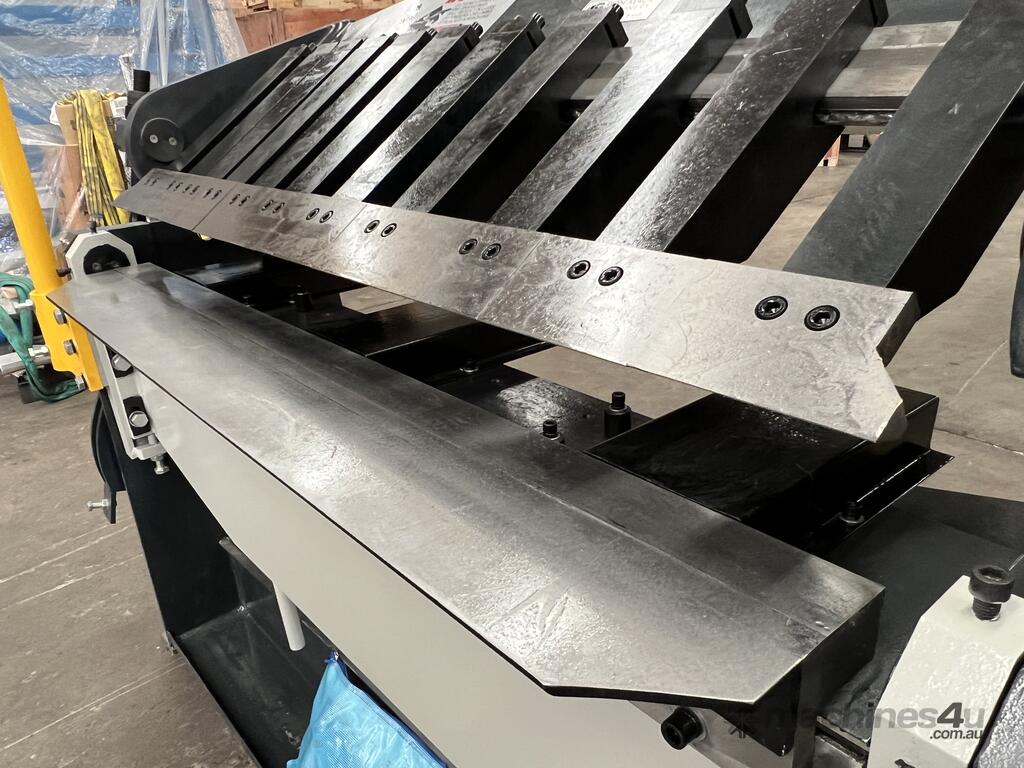

• Bending fingers made from a hard material for long life.
• Special provision for re-setting and aligning the machine throughout it’s lifetime.
• Replaceable bronze bushes at all points of wear.
• Grease nipples at all points of wear.
• Variable combination width of bending fingers.
