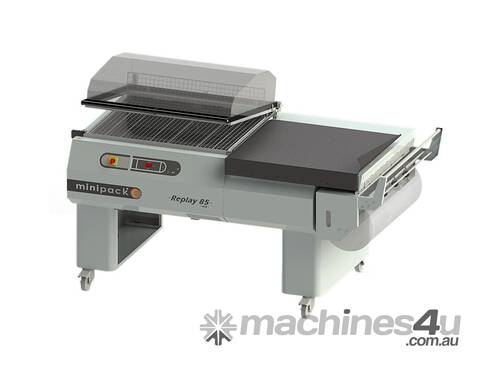

Seals and Shrinks In One Operation
Sealing Bar Dimensions: 840mm X 590mm
The video is of the small Replay unit but the concept is the exact same just on a bigger scale
MACHINE SPECIFICATIONS
Power Supply 415 v
Phase 3ph
Power Max 5.1kw
Max Output 0-300 p/h (pph)
Max Product Dimensions 800x500x200mm
Max Film Roll Dimensions (Diameter) 300mm
Max Film Roll Dimensions (Width) 800mm
Working Plate Height 940mm
Machine Dimensions with Open Hood 1950x1000x1480mm
Machine Dimensions with Closed Hood 1950x1000x1180mm
Packed Machine Dimensions 2180x1040x1430mm
Machine Weight (Net/Gross) 215kg
