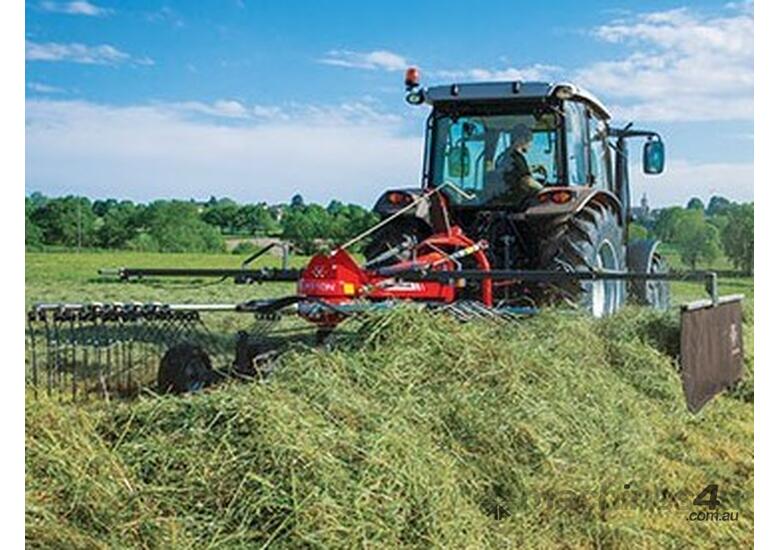

Excellent raking quality, easy handling and a durable design – these qualities give you good reason to buy a Massey Ferguson single-rotor rake.

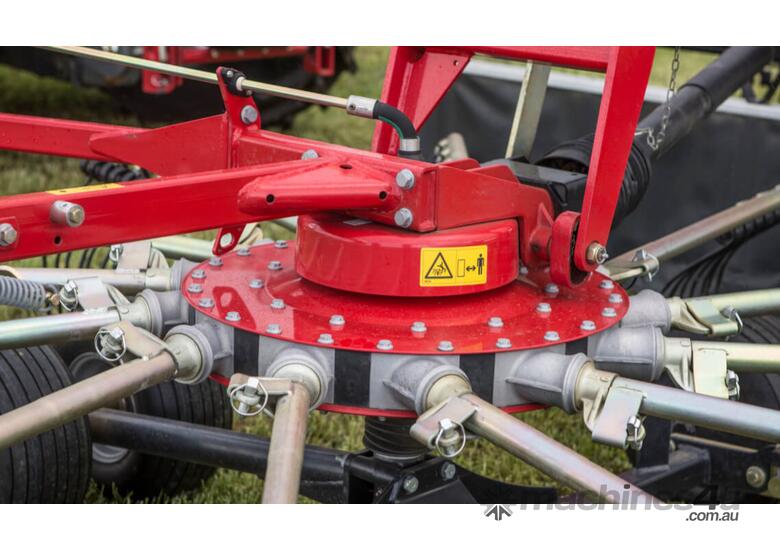

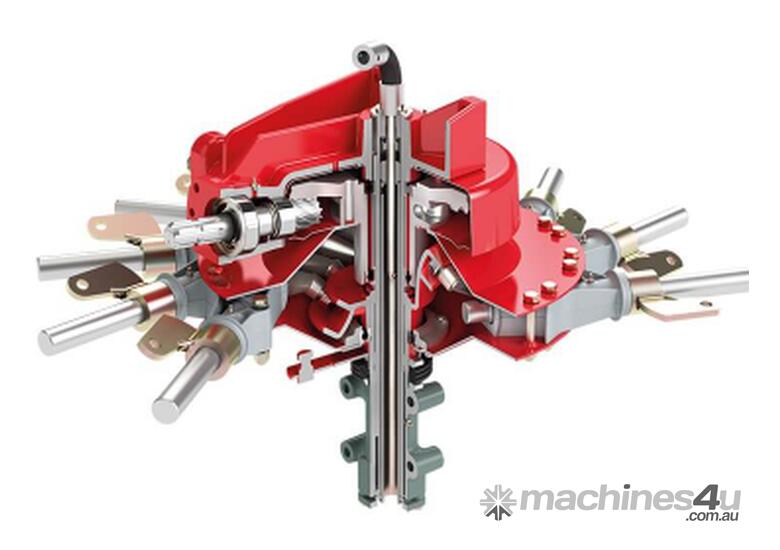

RAKE HEAD
The enclosed rake head from Massey Ferguson protects all of the important components against dirt and dust. This design is a guarantee of a long service life.
CAM TRACK
The optimized shape of the cam track, which is made of spheroidal graphite cast iron, provides maximum smooth running and quick, precise lifting of the tines.
MODERN AND PROVEN DESIGN
The large-dimensioned drive unit and the precision-manufactured tine arm housing made of aluminum alloy, are both good examples of a modern and proven design.
SWATH DEPOSIT TO THE RIGHT
All Massey Ferguson single-rotor rakes place the swath to the right. This way, you always have your perfect swath in view as the tractor operating controls are on the right.
SPECIAL BOLT-ON CONNECTION
The rake head is bolted together using a conical ring to form a sturdy unit. This has the advantage that the bolts are not subjected to any shearing effect, but rather only to compressive and tensile forces.
TINE SUPPORT
All MF tine supports are made of sturdy tube material and are manufactured from one piece of metal. The connection point to the tine arm is machined for a perfect fit, which makes it possible to insert the tine arms easily, and reduces wear to a minimum.
TINE FIXTURE
The tines are not pushed over the tine tube, instead each tine is screwed in from the bottom. The advantage of this is that the side of the arm facing the forage is absolutely smooth and therefore does not allow forage to stick to it.
PERFECT WORKING HEIGHT
The linear height adjustment, which is fitted as standard, can very easily and conveniently adapt to the working height and your ground conditions.
TANGENTIALLY ARRANGED TINE ARMS
Best raking quality is achieved with the tangential arrangement of the tine arms, creating an ideal swath. It makes significantly higher working speeds possible – the best pre-requisites if the harvesting weather is not in your favour.
