Masterwood Aus: Fravol FAST600-23 -with pre-milling and Cnr round

FAST F600 e F600-23 -with pre-milling unit
FAST series offer a complete working in a minimum intrusion. Perfect both for industry and craftmanship, this family is very flexible and versatile. Modern and fresh design. A world of possibilities

HIGHLIGHTS
CN System
Wide range of gluing unit

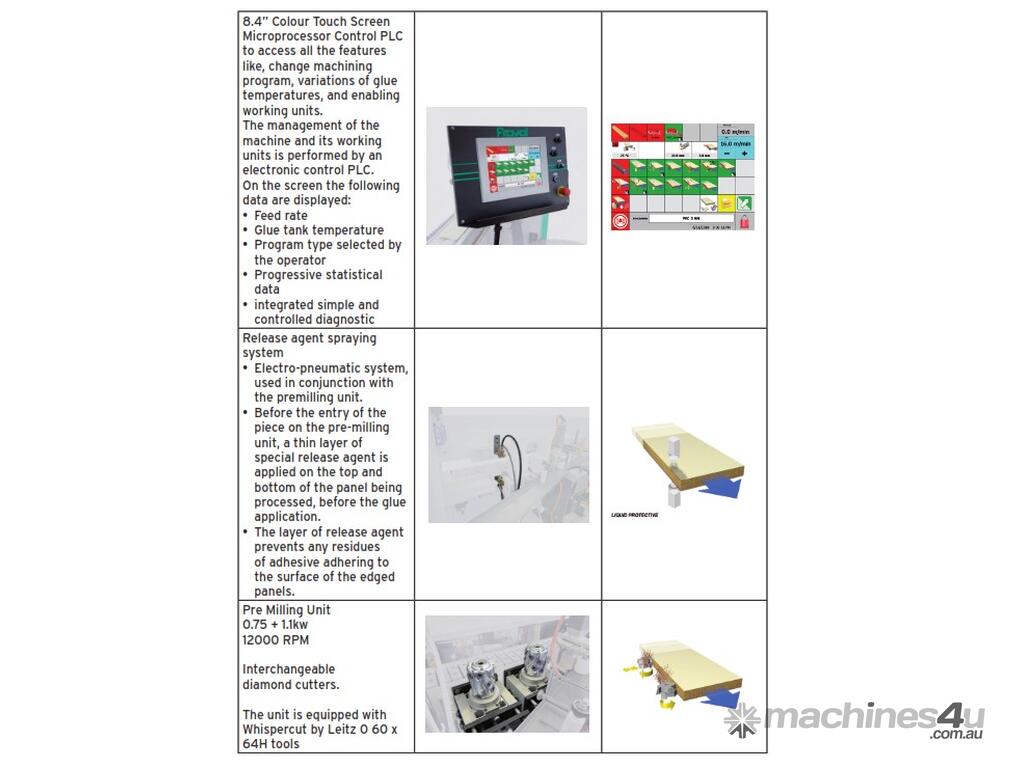

Color touch screen 8,4?
Flexibility and minimum intrusion

Edge-Banding Machine
• Single automatic edging machine for application of PVC, ABS,
melamine, veneer and solid wood edges in strips or rolls.
• Compact sturdy machine.
• Ideal for industrial or artisan use.
• Adjustable 10 mt/minutes.
• Quick heating, start-up 6 ÷ 8 minutes.

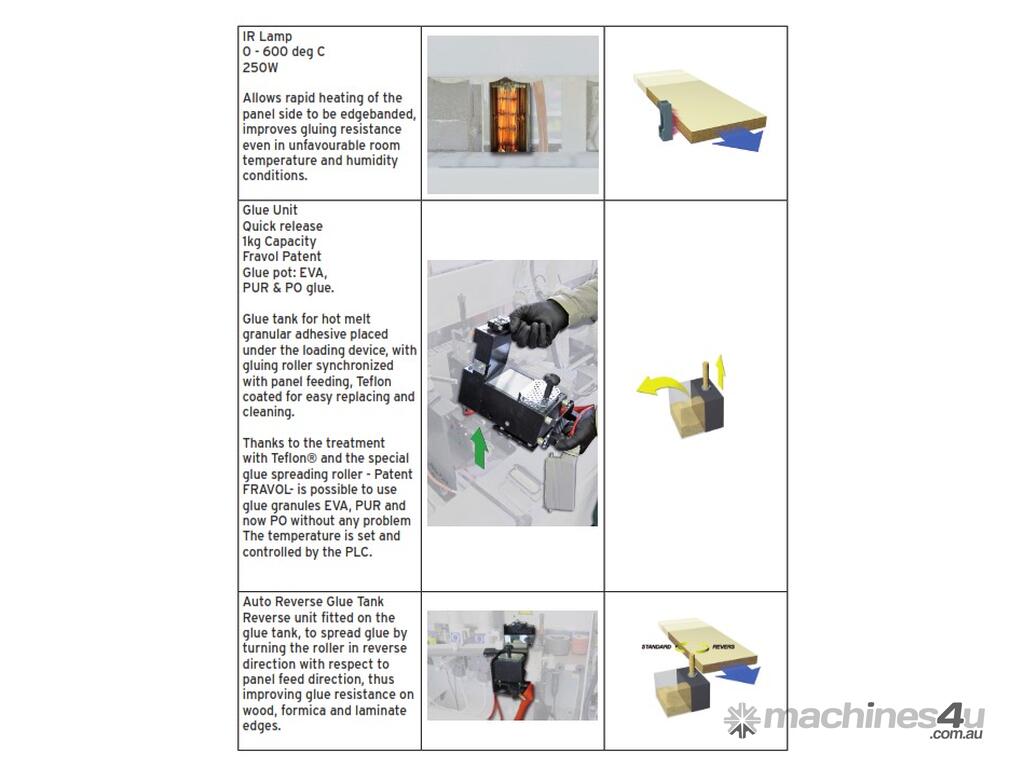

• Glue pot capacity: Kg. 1.
• The units are adjusted automatically with pressure bar provided
with a double row of wheels.
• One motor trimming unit, with two blade and automatic tilting
to 0°÷1°; Powered from inverter at high frequency 200 Hz

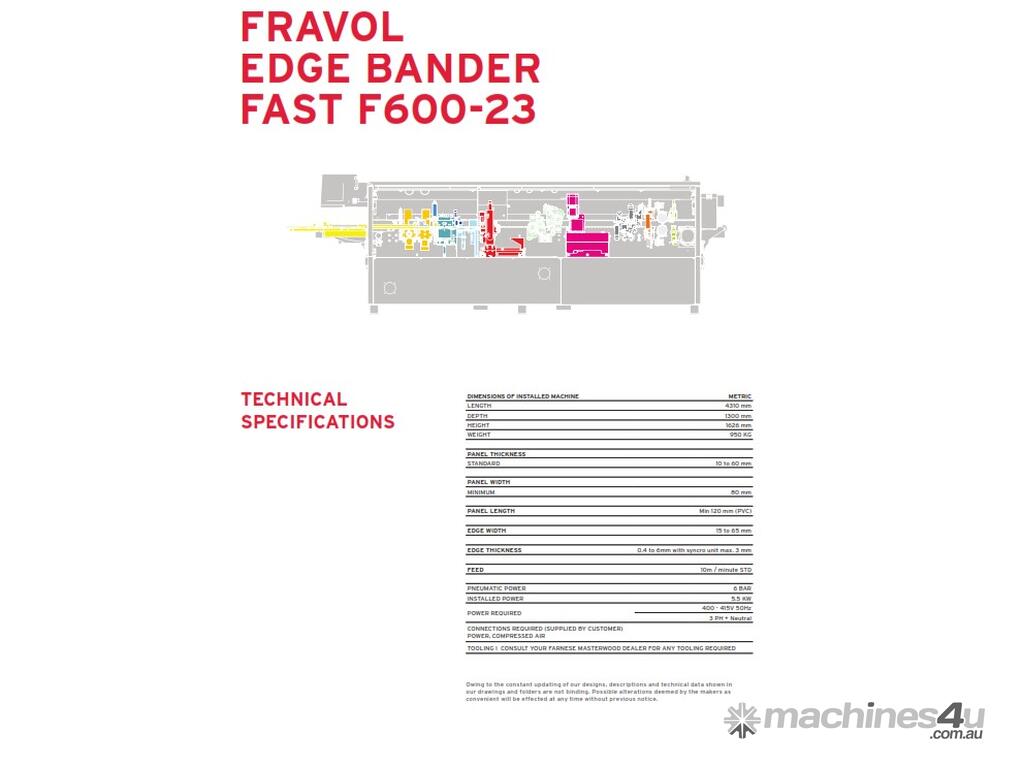

Details:
Panel thickness 10 – 60 mm
Working speed 10 m/min
Edge height 15 – 65 mm
Edge thickness 0.4 – 6 mm.
Min. panel length 140 mm (PVC )
Panel width min. 80 mm.
Pneumatic power 6 bar
Weight 950 Kg.
Machine length 4320 mm.
