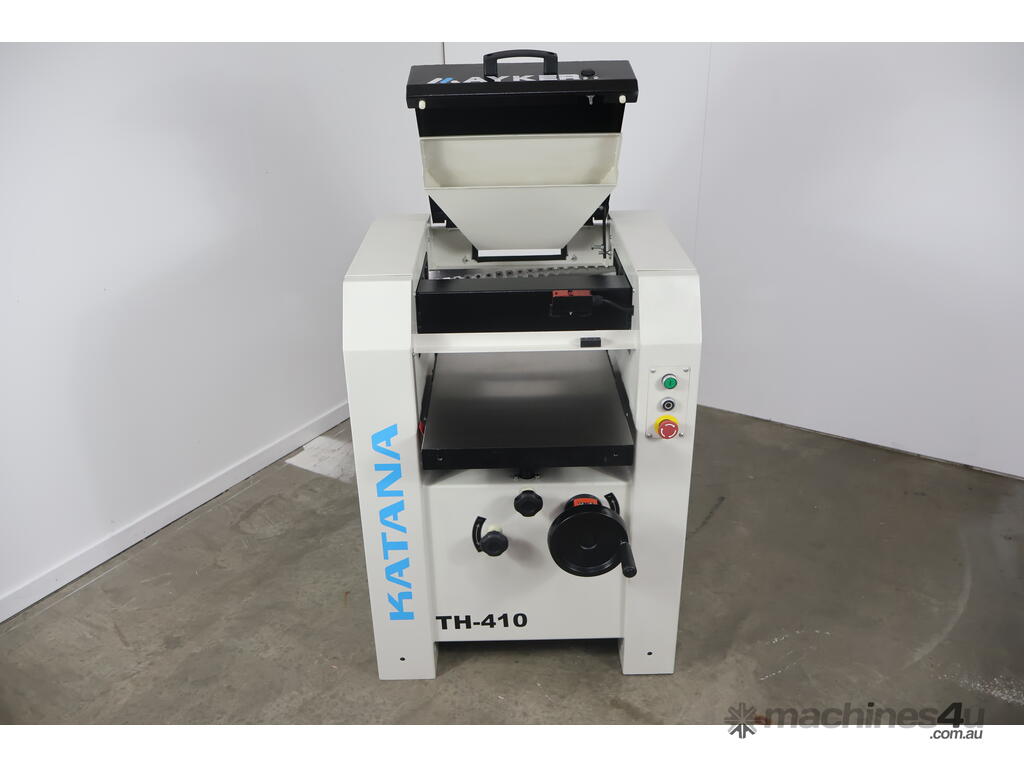

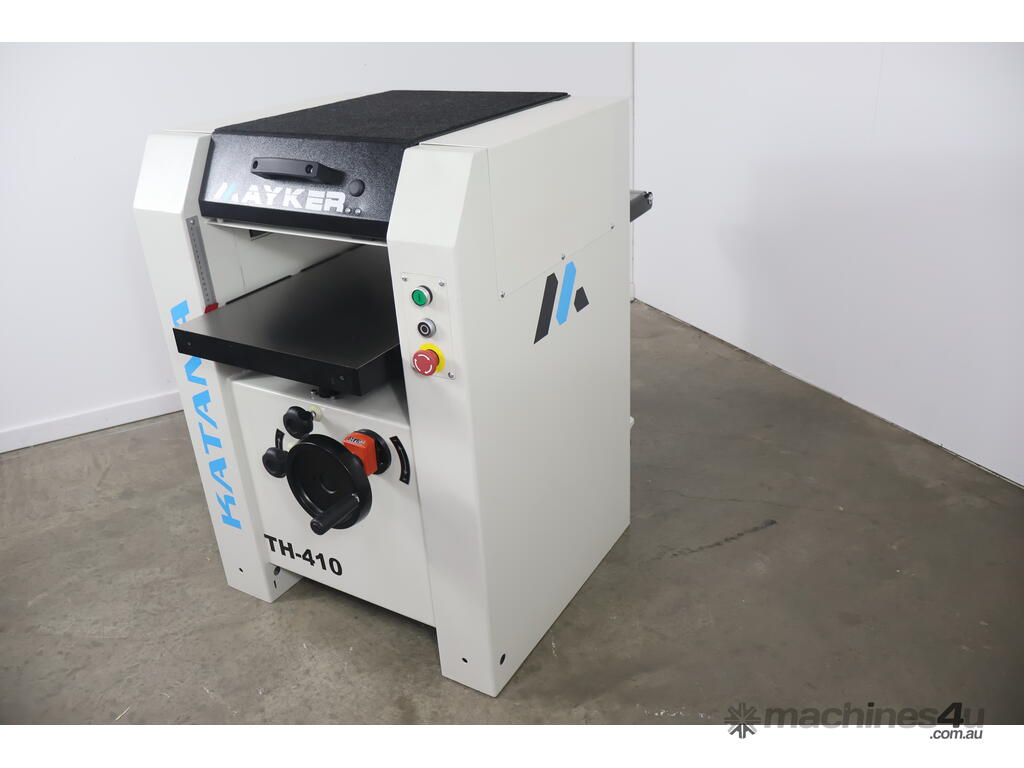

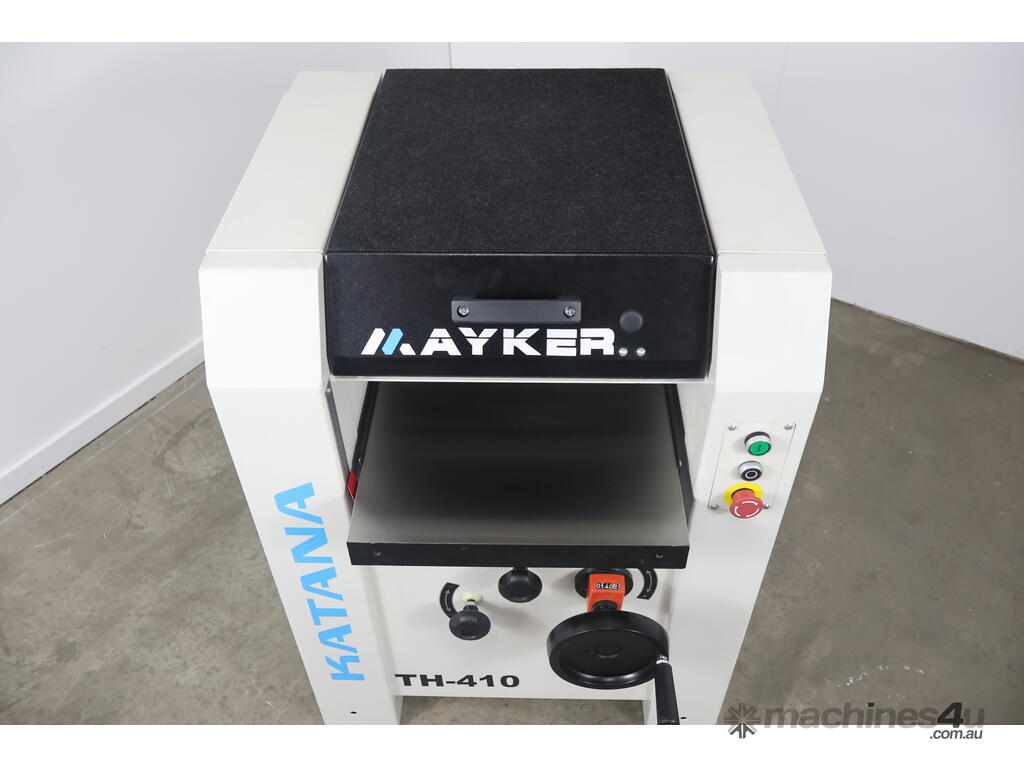

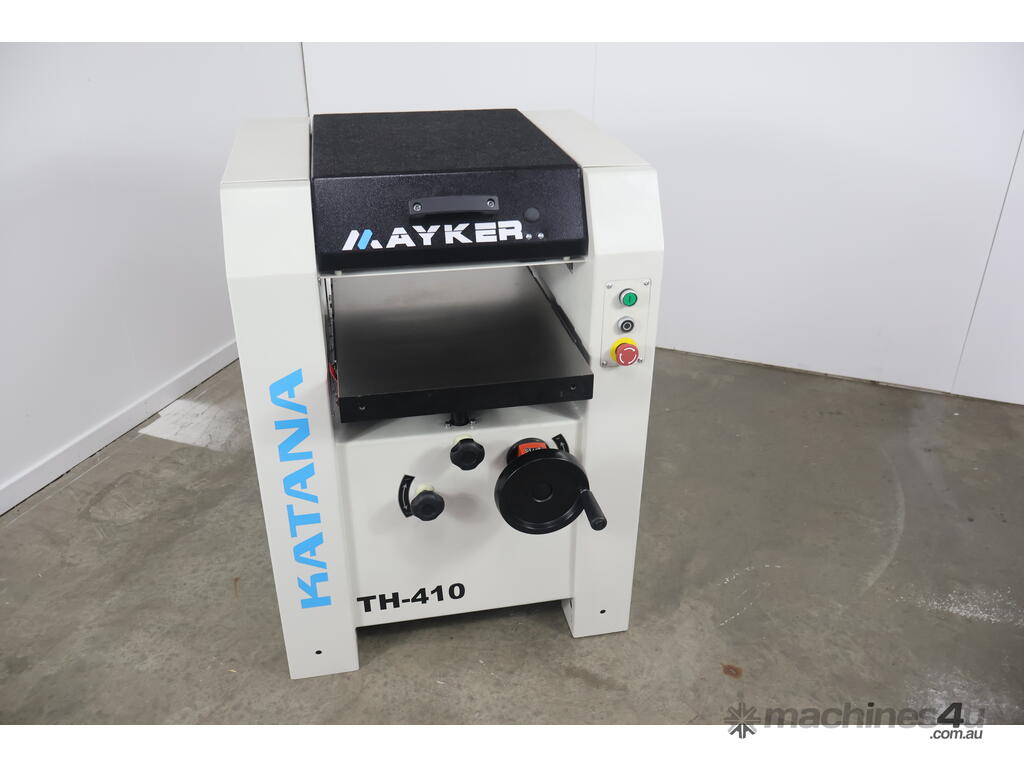

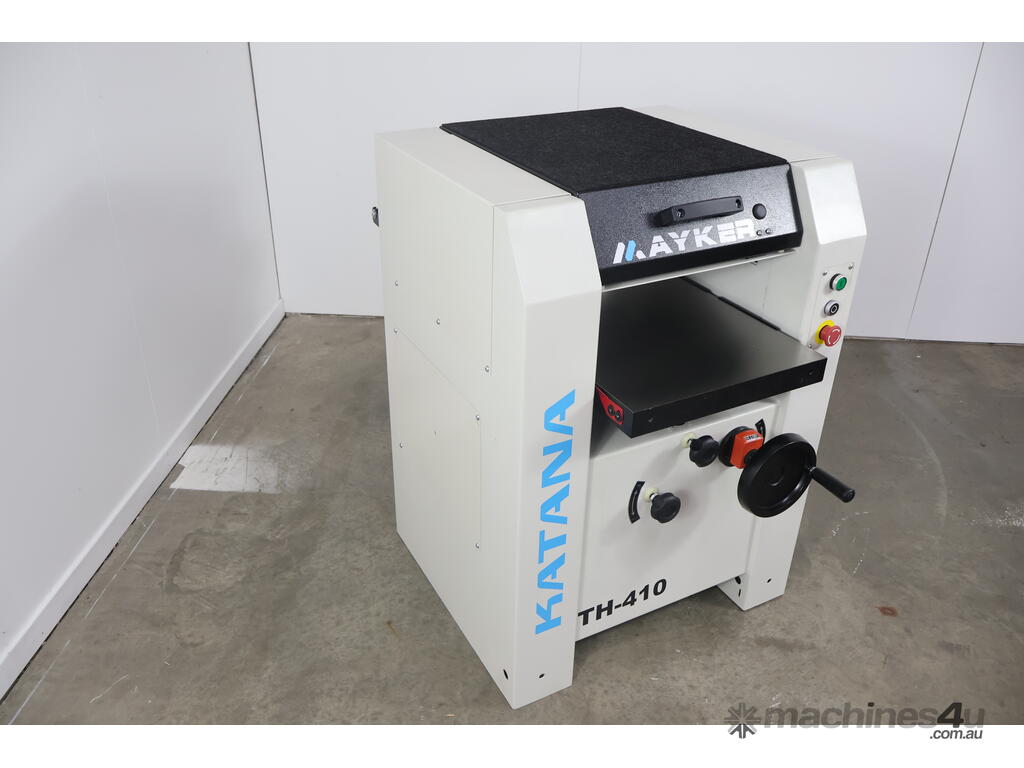

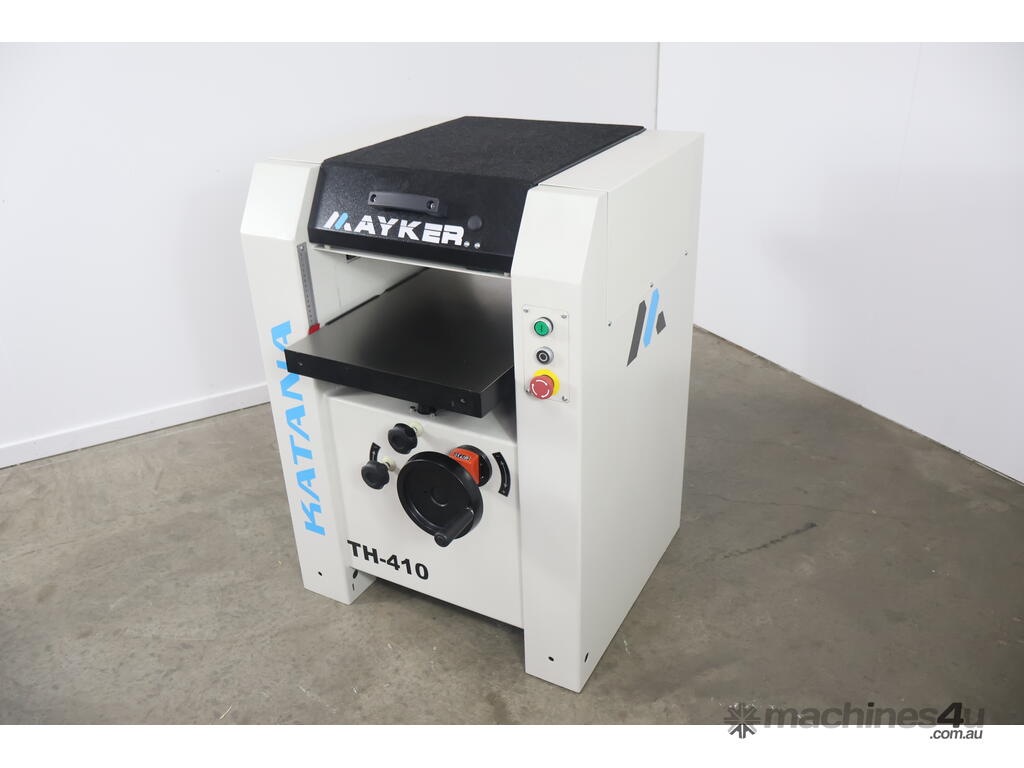

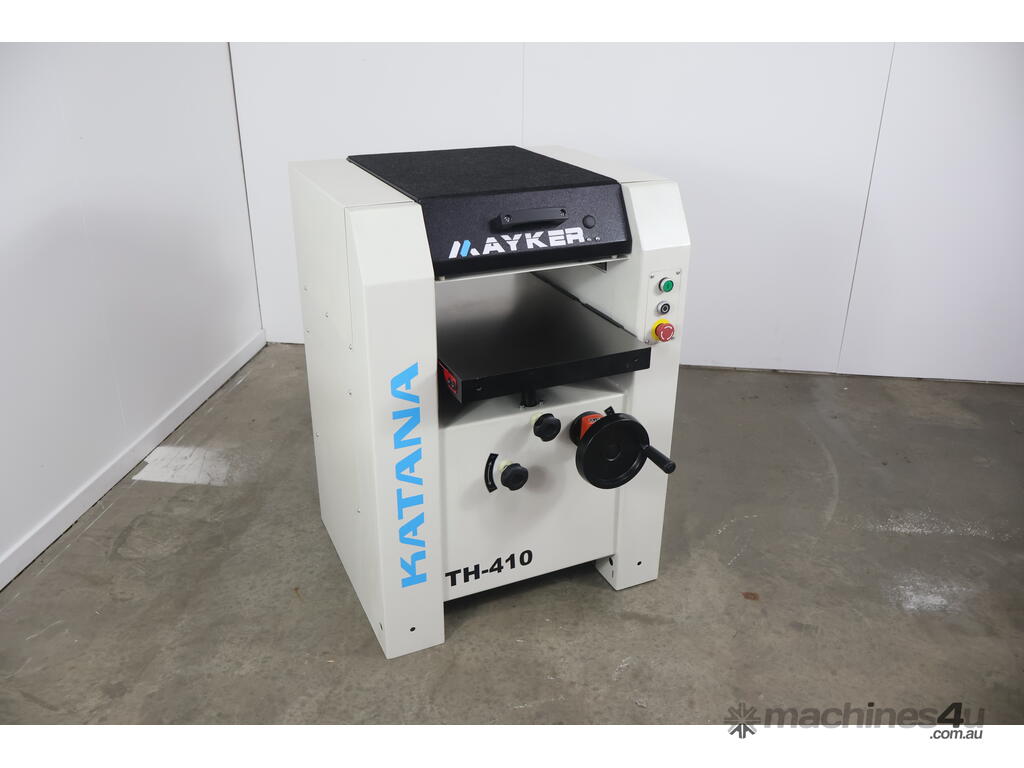

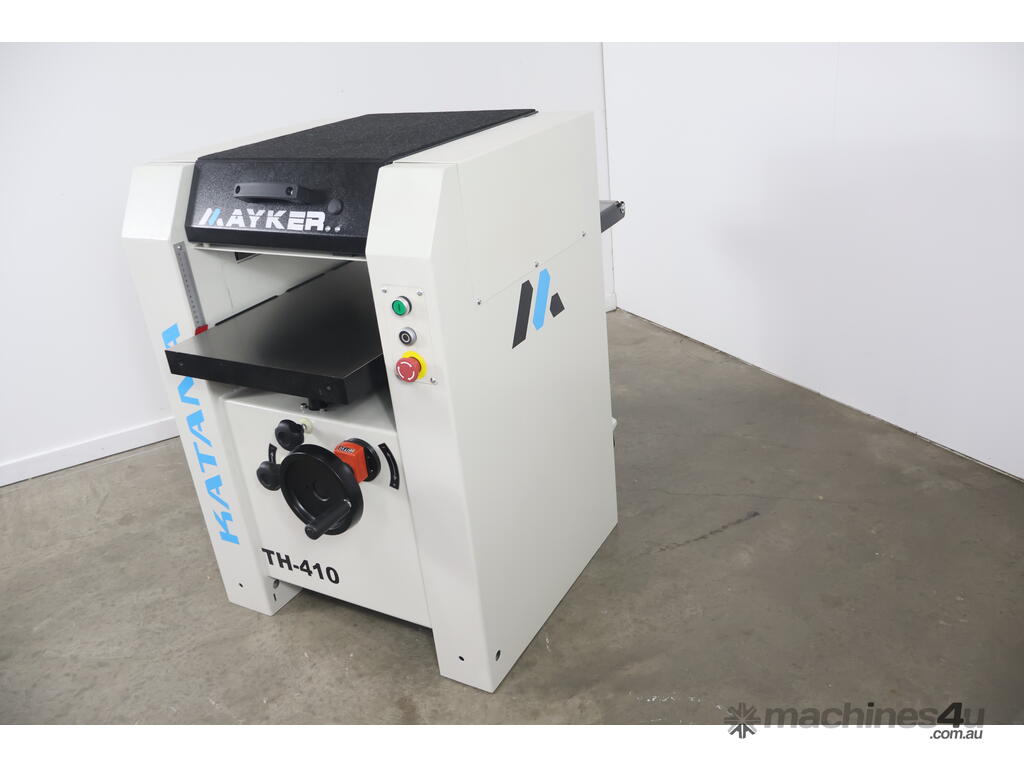

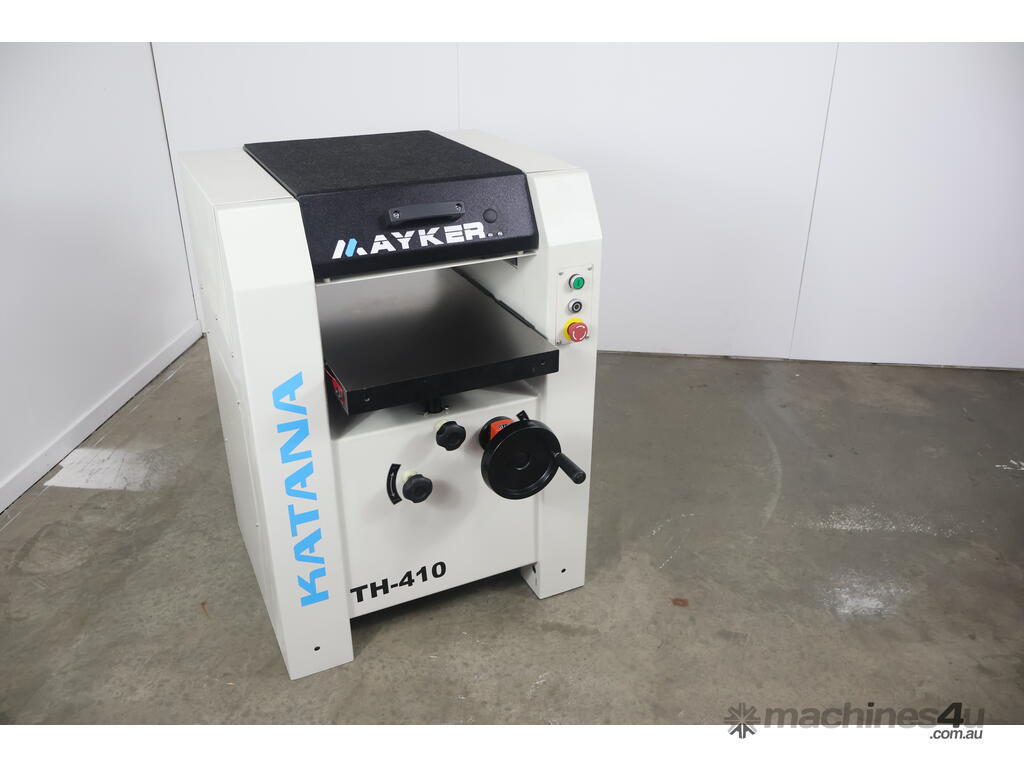

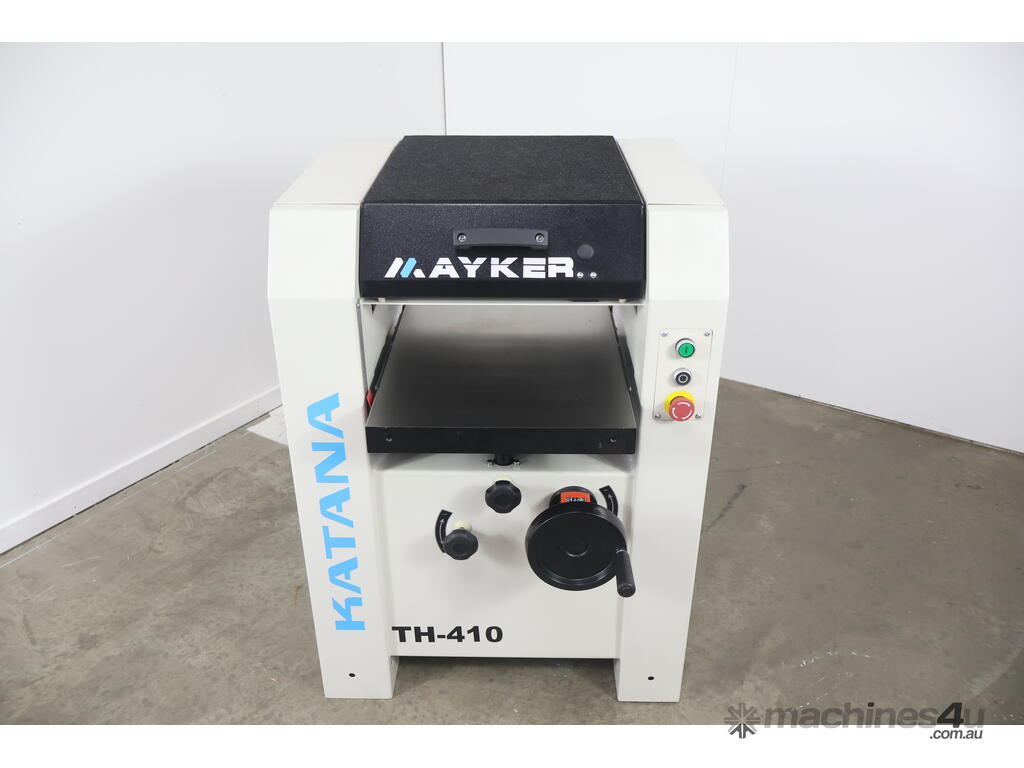

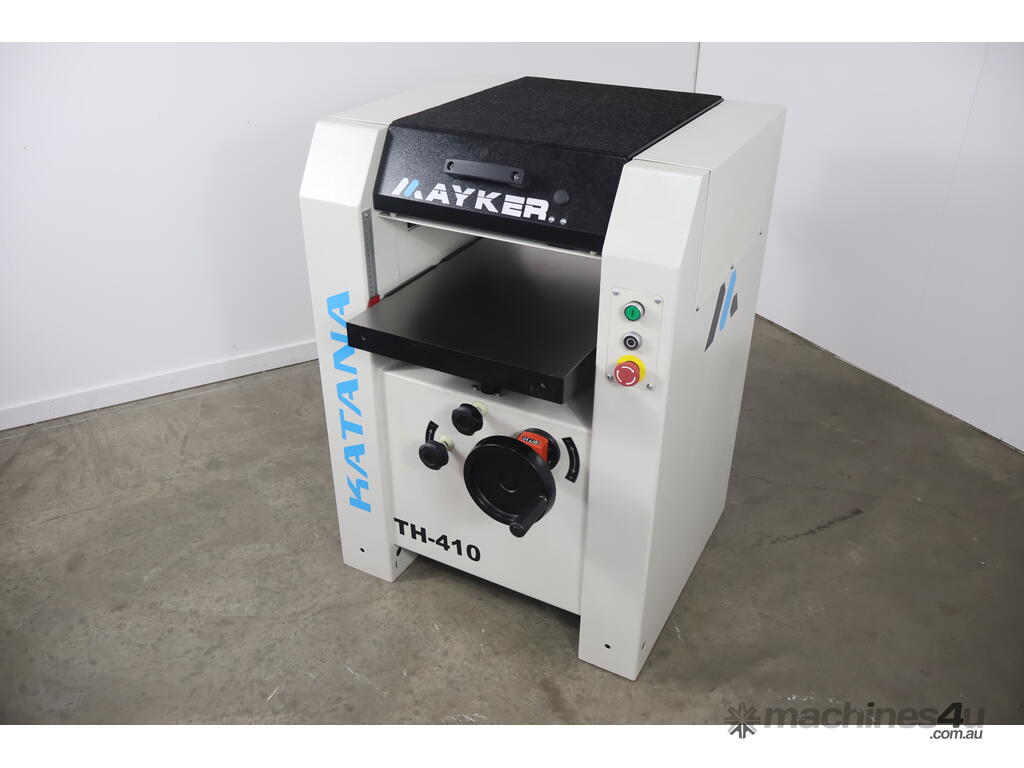

Mayker Katana TH-410 Thicknesser
Heavy-Duty and Compact Solution
The TH-410 Thicknesser is designed to handle larger pieces of stock with precision and ease. With a 410mm width capacity, this versatile machine gives you the ability to join boards and then thickness them accurately for your projects. The TH-410 can make a 4mm pass even on the most challenging timbers, making it suitable for small workshops at home, industrial, or club environments.
Cutting Width: 410mm
Cutting Height: 220mm
Power Output: 240V, 50Hz, 4HP

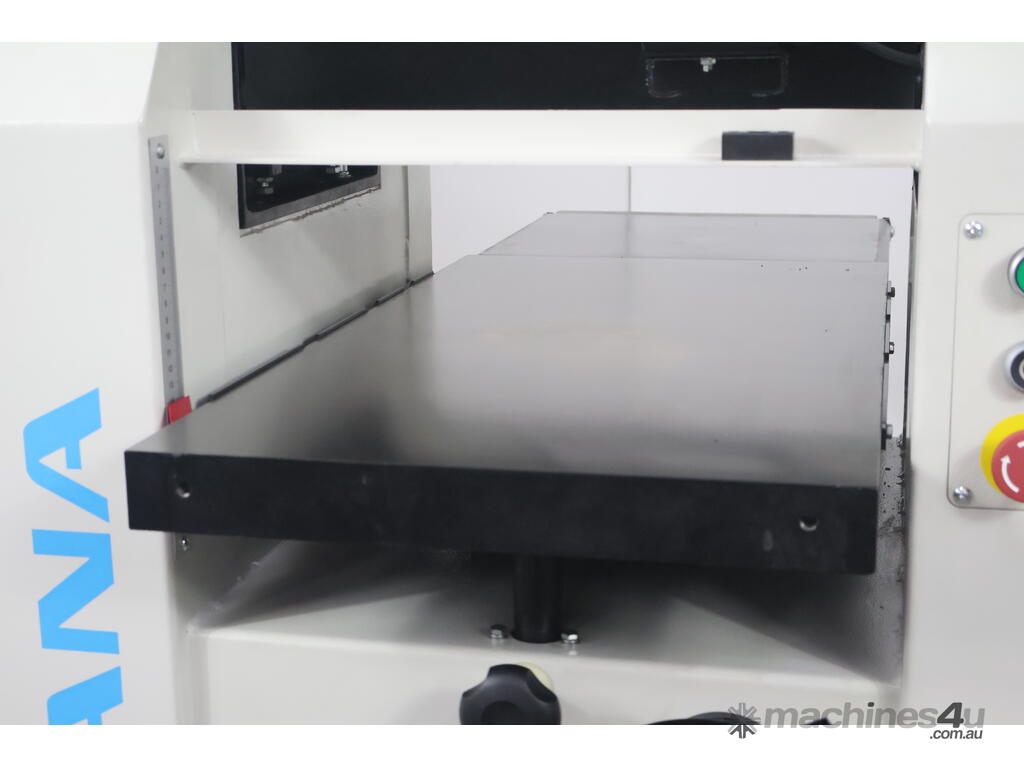

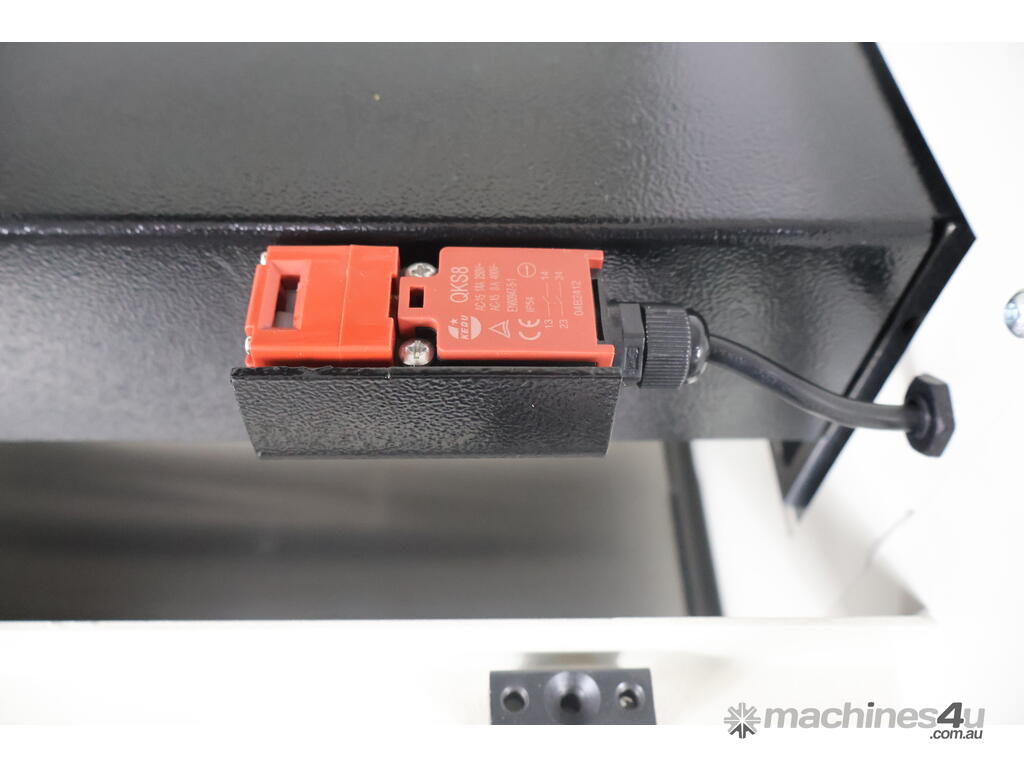

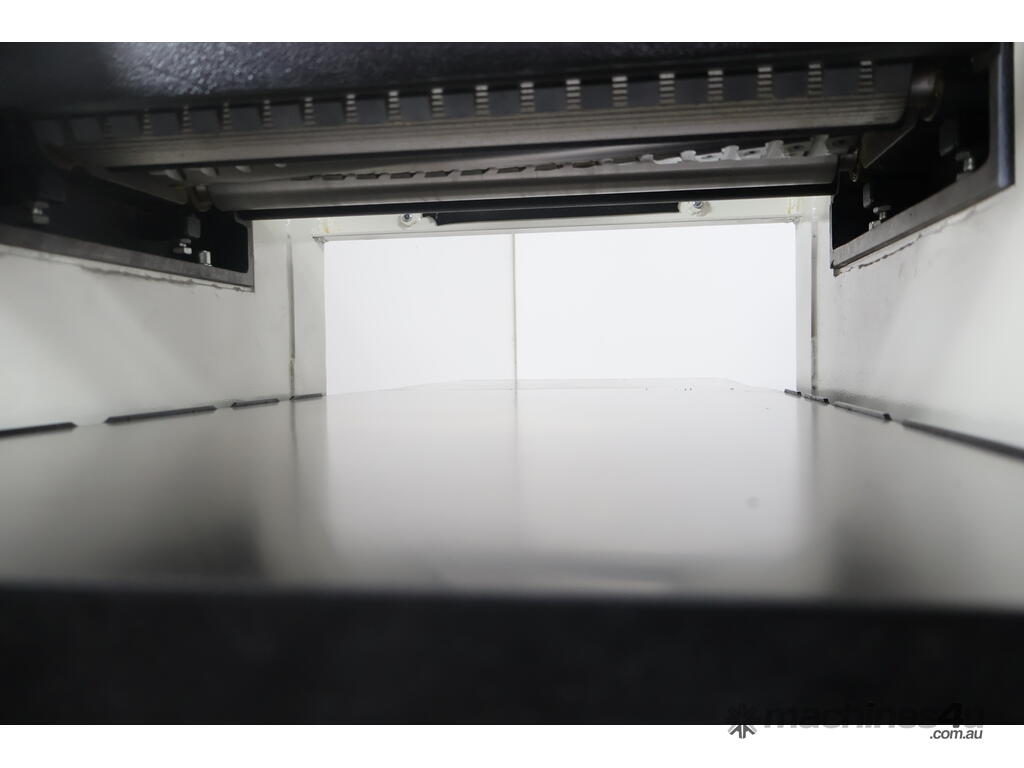

Equipped with a 97mm cutterblock for heavy loading, it supports straight knives as well as optional spiral cutterheads for enhanced efficiency and durability. Its column-supported cast table ensures stability, while the integrated guard and dust hood enable convenient knife changes and efficient dust extraction.
Specifications:
Feed Speed: 6.5m/min
Cutterblock Speed: 4200 RPM
Cutterblock Diameter: 95mm
Maximum Thickness Height: 4–220mm
Maximum Thickness Width: 410mm
Minimum Workpiece Length: 156mm
Maximum Depth of Cut: 5mm

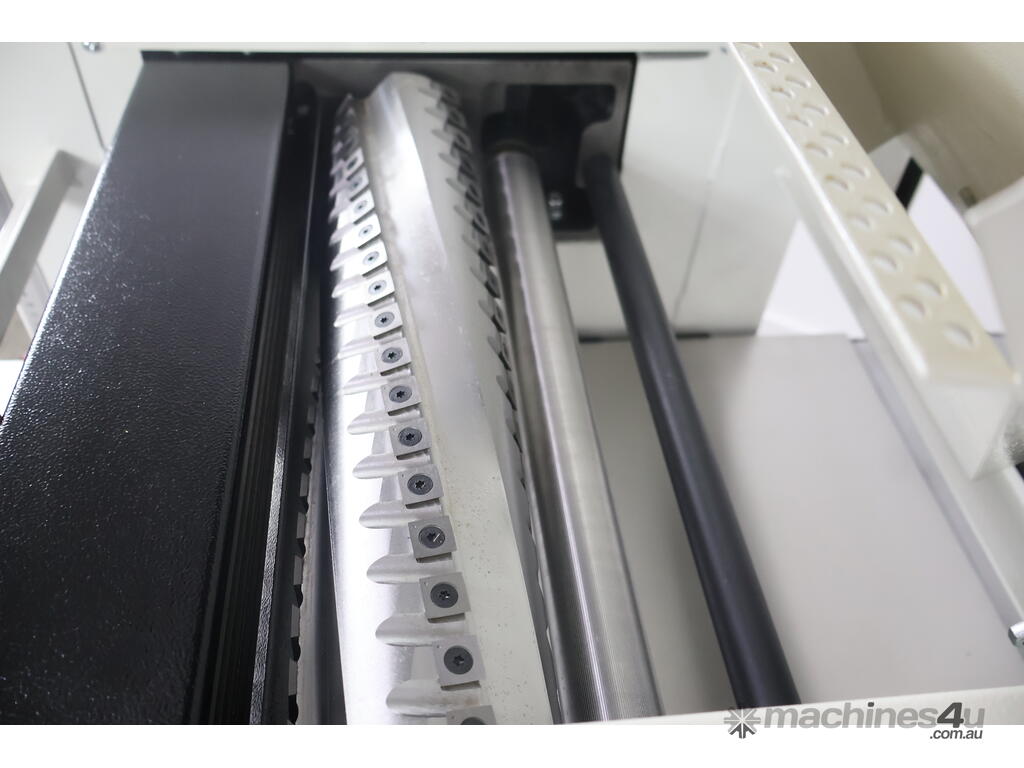

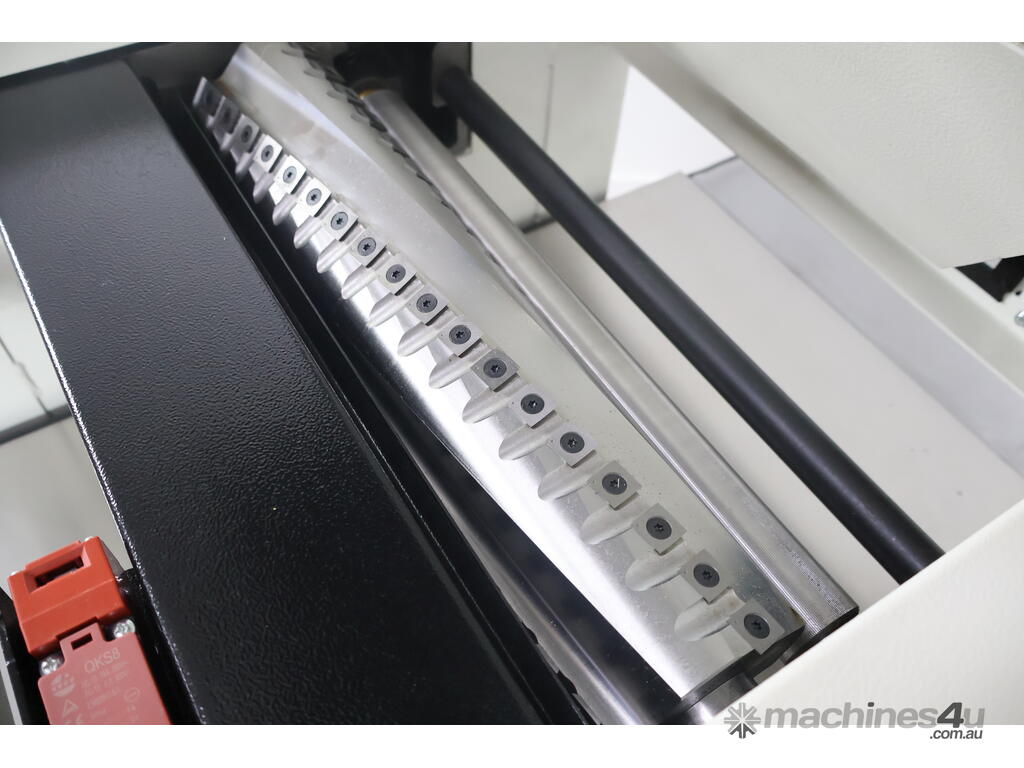

Cutterhead: 4-Slot Spiral Cutterhead with 72 knives (15x15x2.5mm)

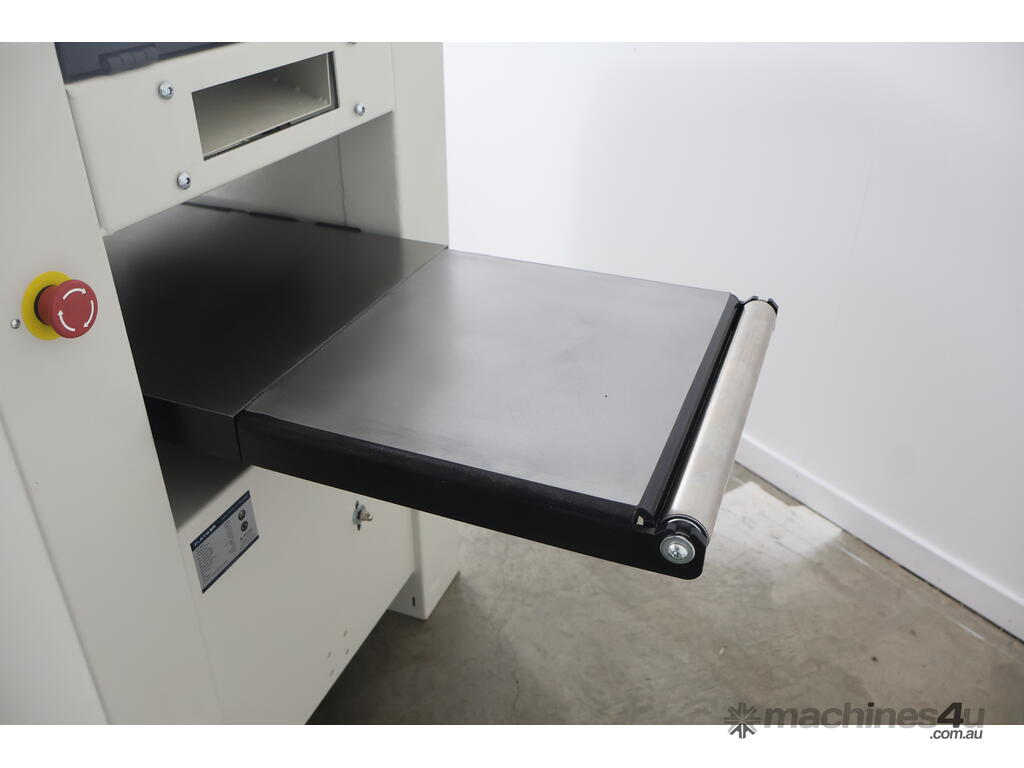

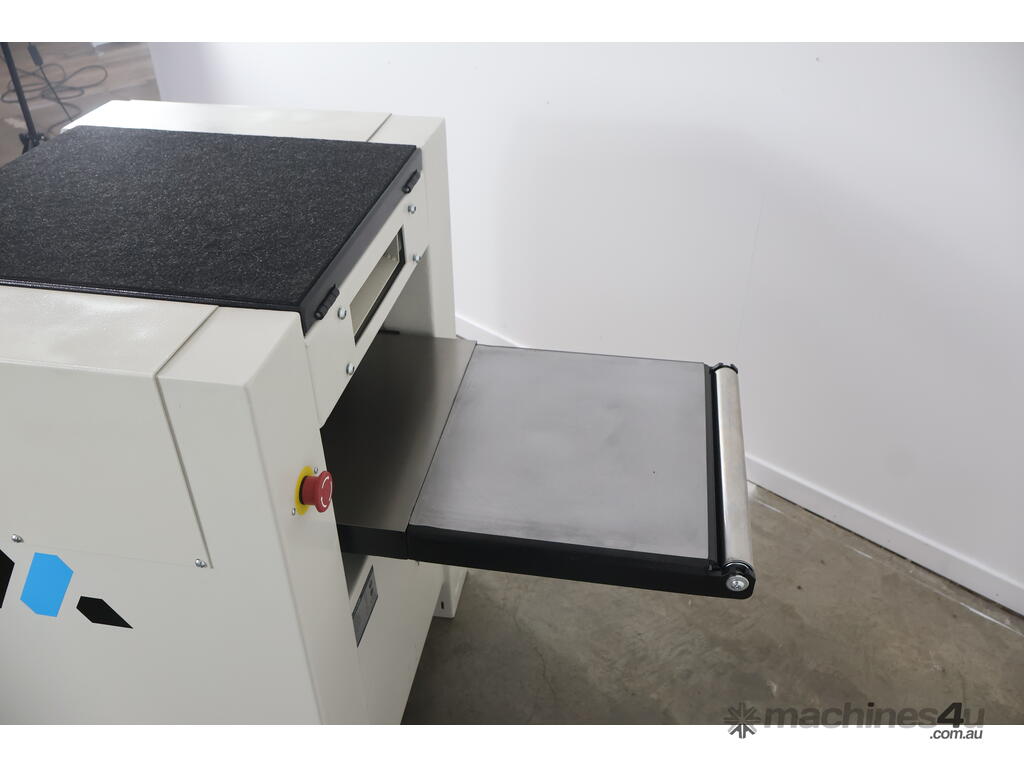

Thickness Table Size: 750 x 408mm
Extractor Port Diameter: 120mm
Motor Power Output:
Single-phase: 3kW S6
Three-phase: 4kW S6
Net / Gross Weight: 306kg / 367kg
Package Dimensions: 740 x 710 x 1117mm
