Mayker Magnum Panel Saw 3200 (3PH)
Professional Quality for Medium-Sized Businesses
The Magnum Panel Saw 3200 (3PH) is a heavy-duty, professional-grade machine, designed for medium-sized businesses. Its precision and power make it the perfect solution for cutting panels up to 3200mm long with ease and accuracy. Everything about this machine reflects its professional build quality and reliability, ensuring flawless performance in demanding woodworking environments.
Main Blade Diameter: 315mm
Main Blade Speed: 3000/4000/5000 RPM

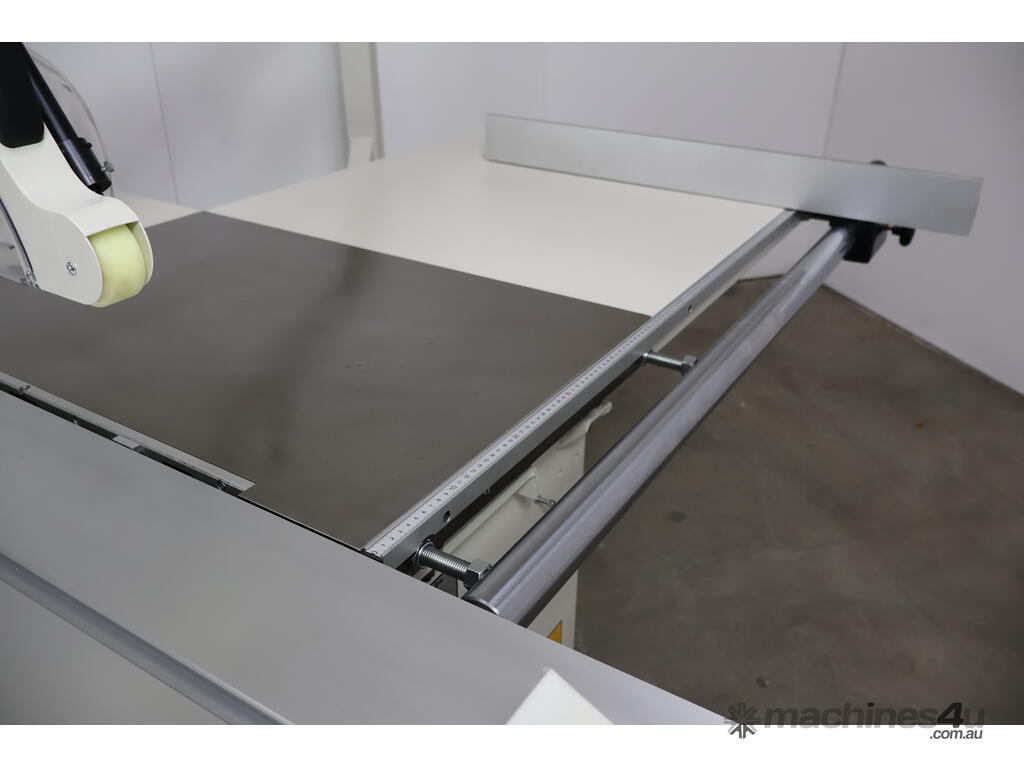

Max Rip Capacity: 1250mm

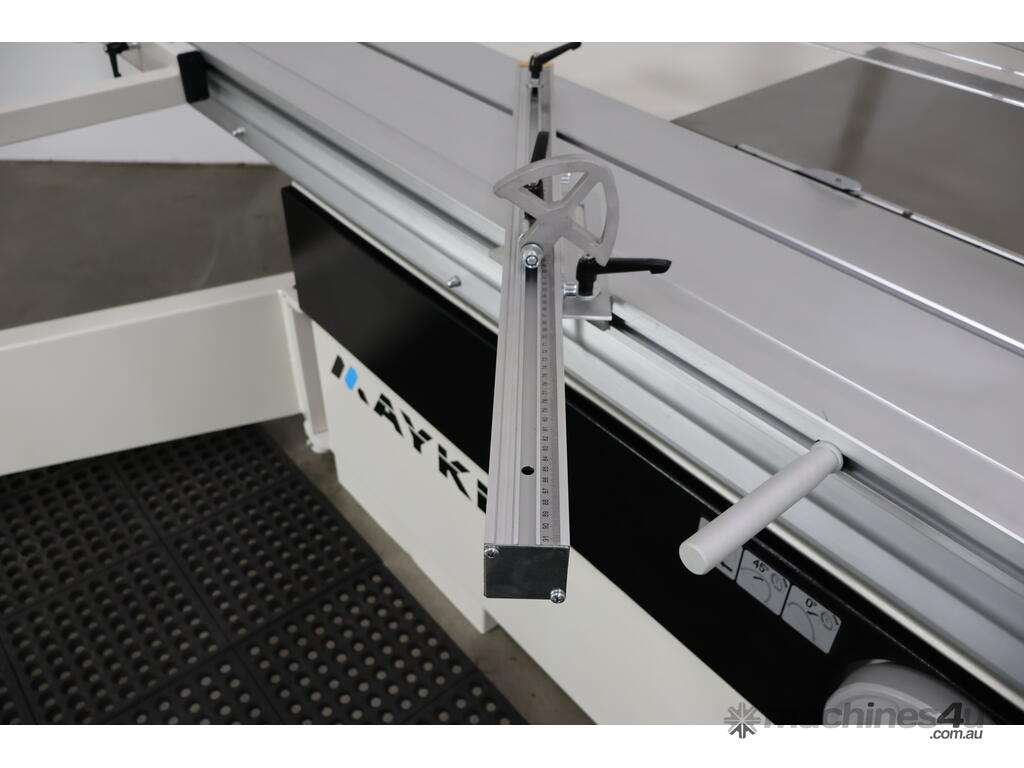

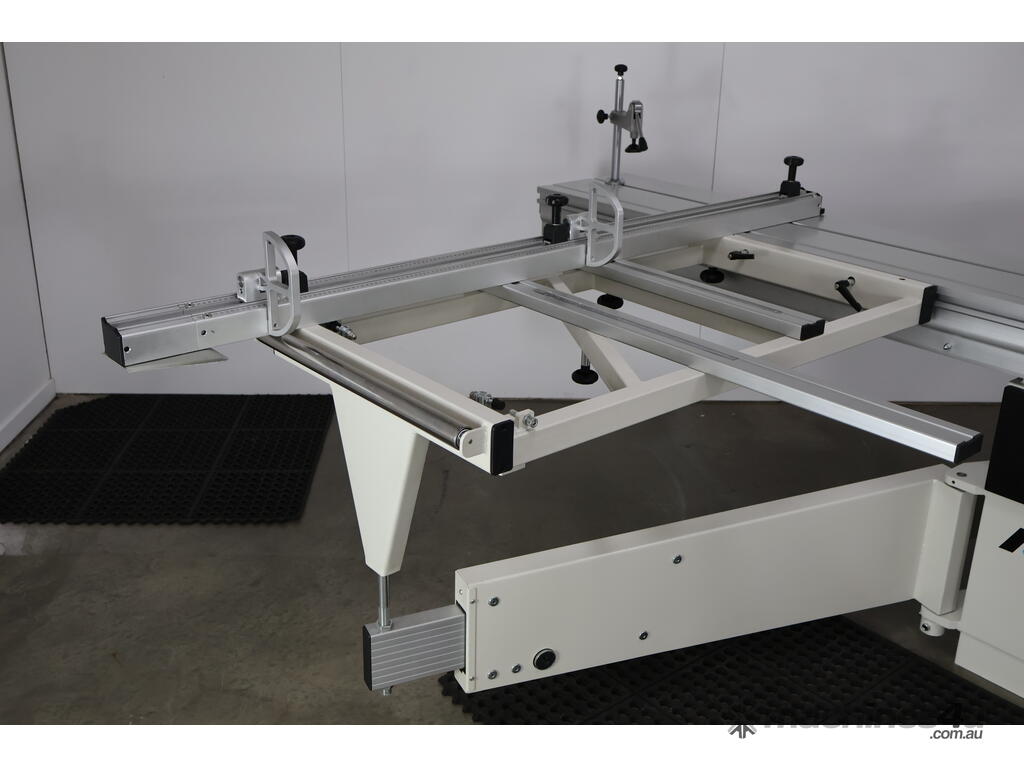

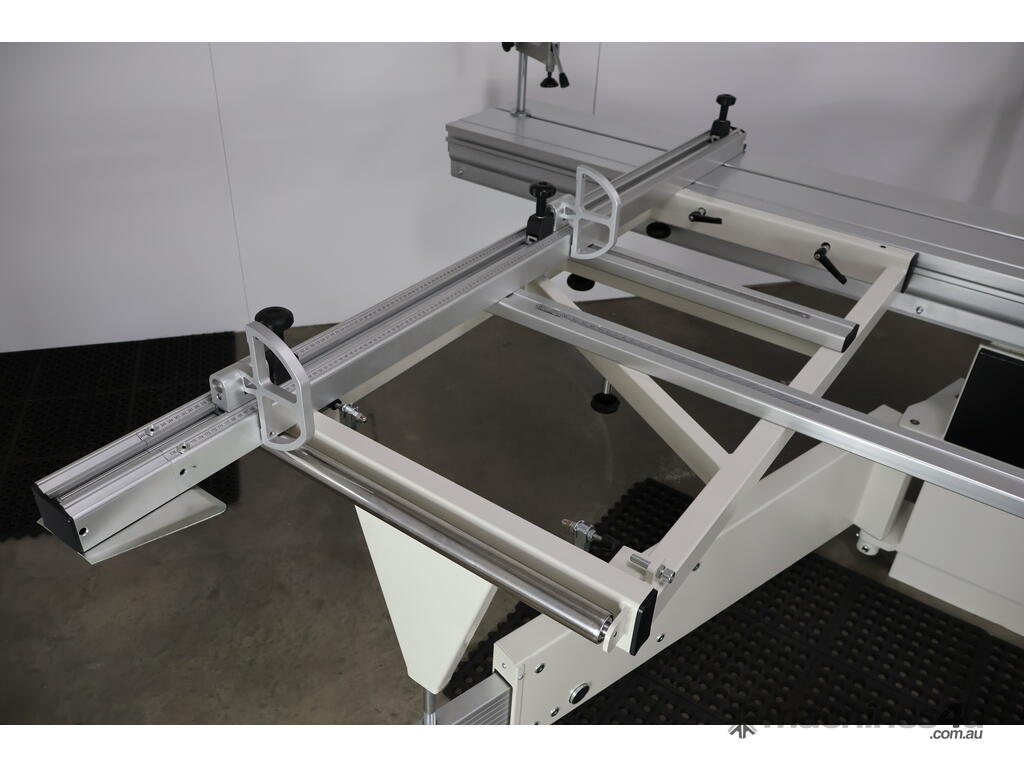

Equipped with a dual-shaft sliding saw unit for enhanced stability and reduced vibration, the Mayker Magnum Panel Saw also features a large-section crosscutting fence with reversible stops and a quick speed-change system for effortless adjustments. This panel saw is built to deliver consistent, high-quality results for any woodworking project.
Specifications – 3200 (3PH)
Feature Specification
Main Blade Diameter 315mm
Main Blade Speed 3000/4000/5000 RPM
Scoring Blade Diameter 120mm
Scoring Blade Speed 8000 RPM

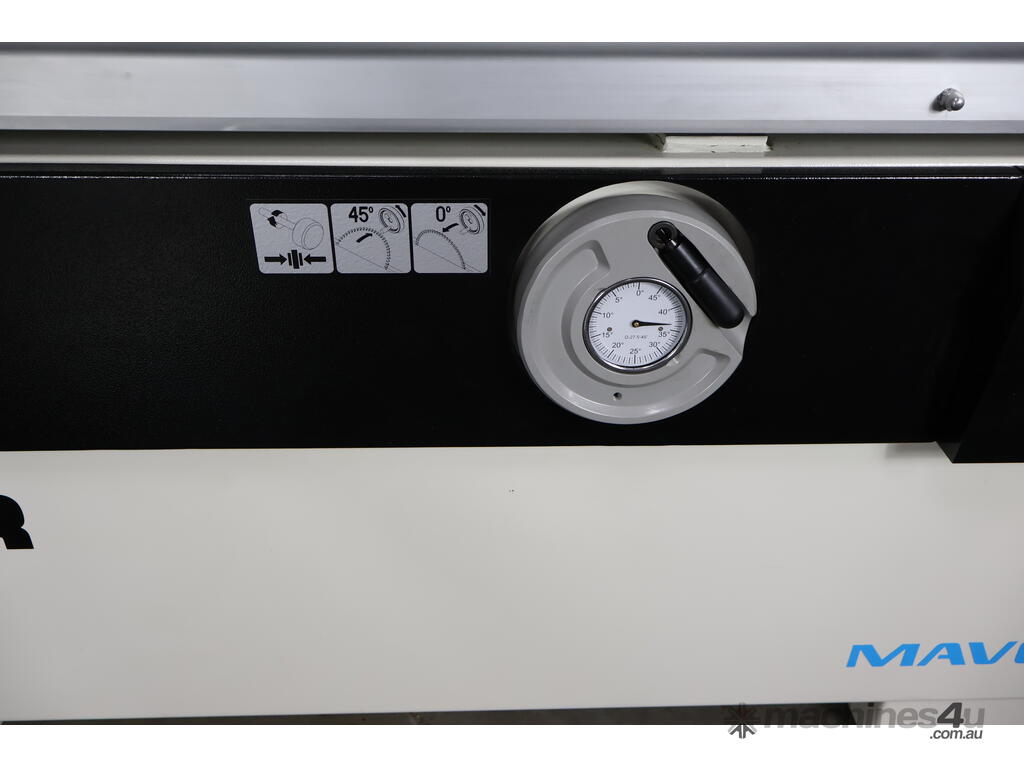

Blade Tilt 0–45°
Max Depth of Cut 45° 67mm
Max Depth of Cut 90° 95mm
Max Rip Capacity 1250mm

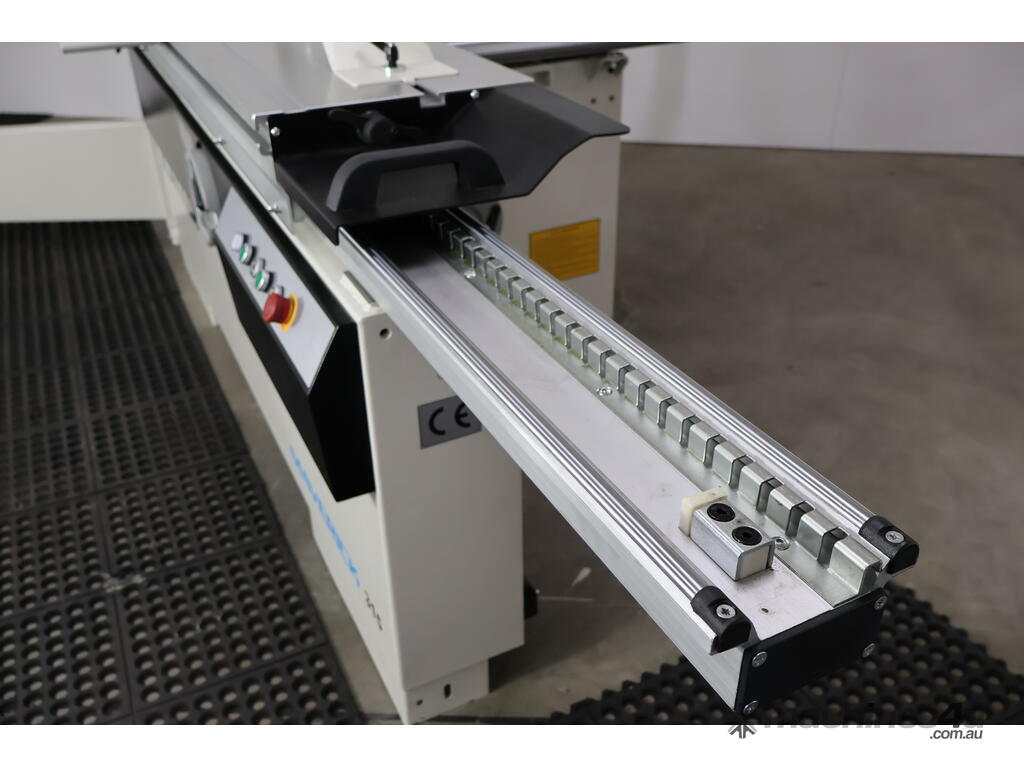

Sliding Table Standard: 3200mm
Blade Rising Manual
Blade Tilting Manual
Table Size 800 x 530mm
Dust Extraction Outlet 100mm
Main Motor Output 3*400V, 5.5kW S1
Scoring Motor Output 0.75kW S1
Net/Gross Weight 680kg
