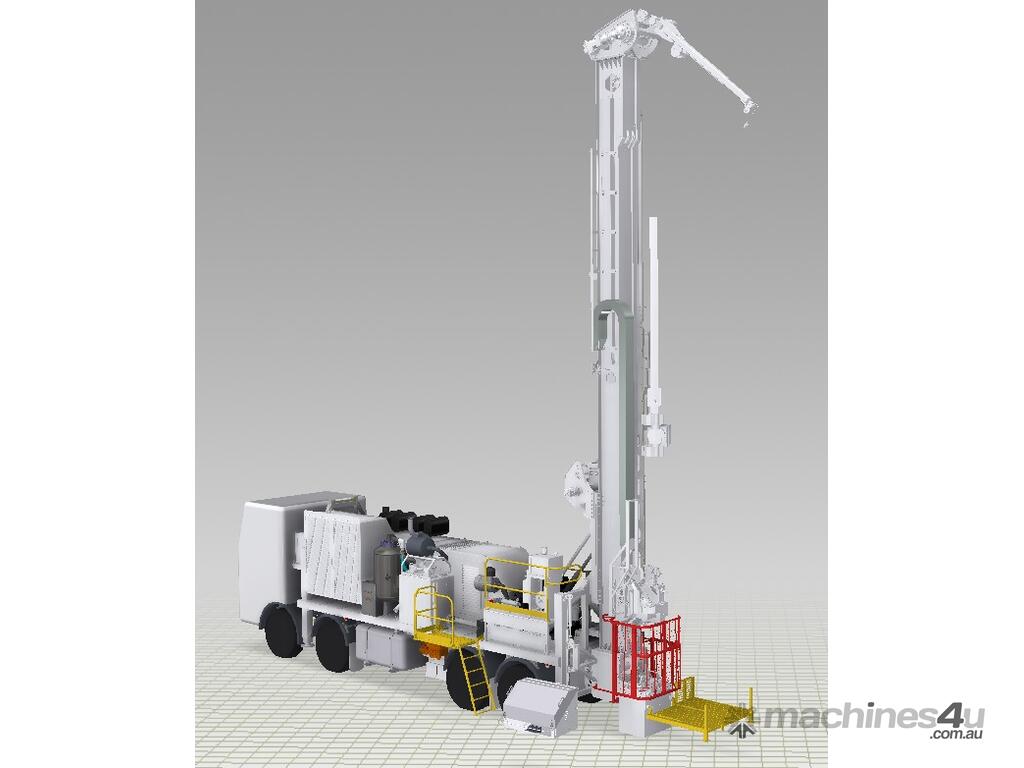

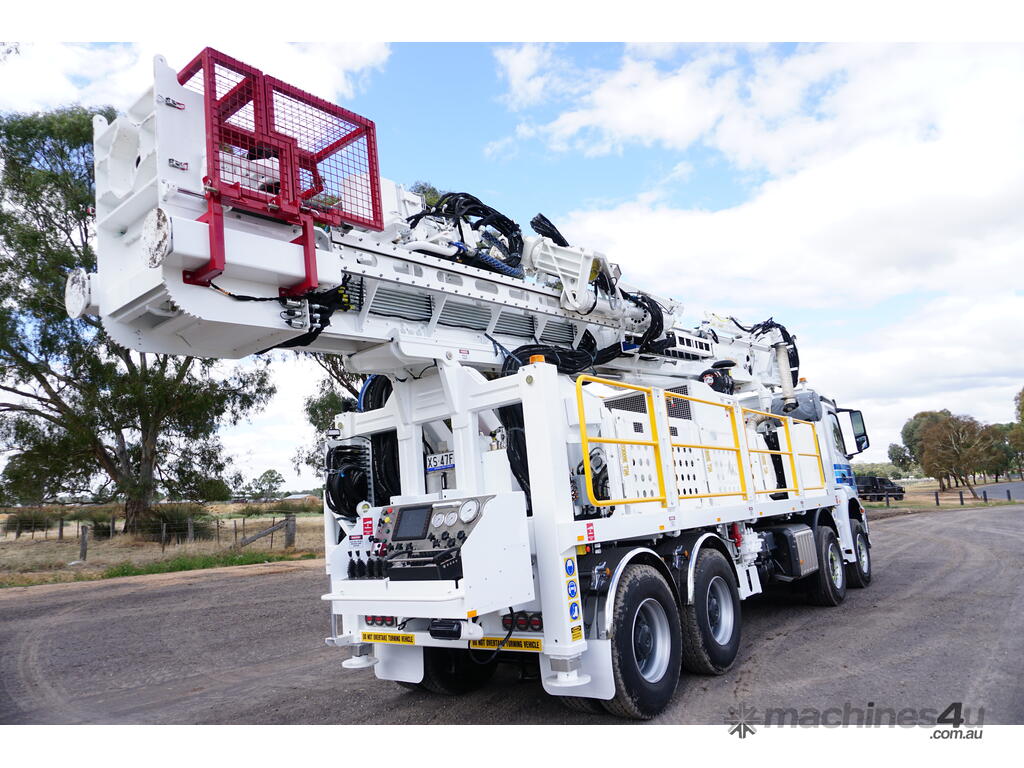

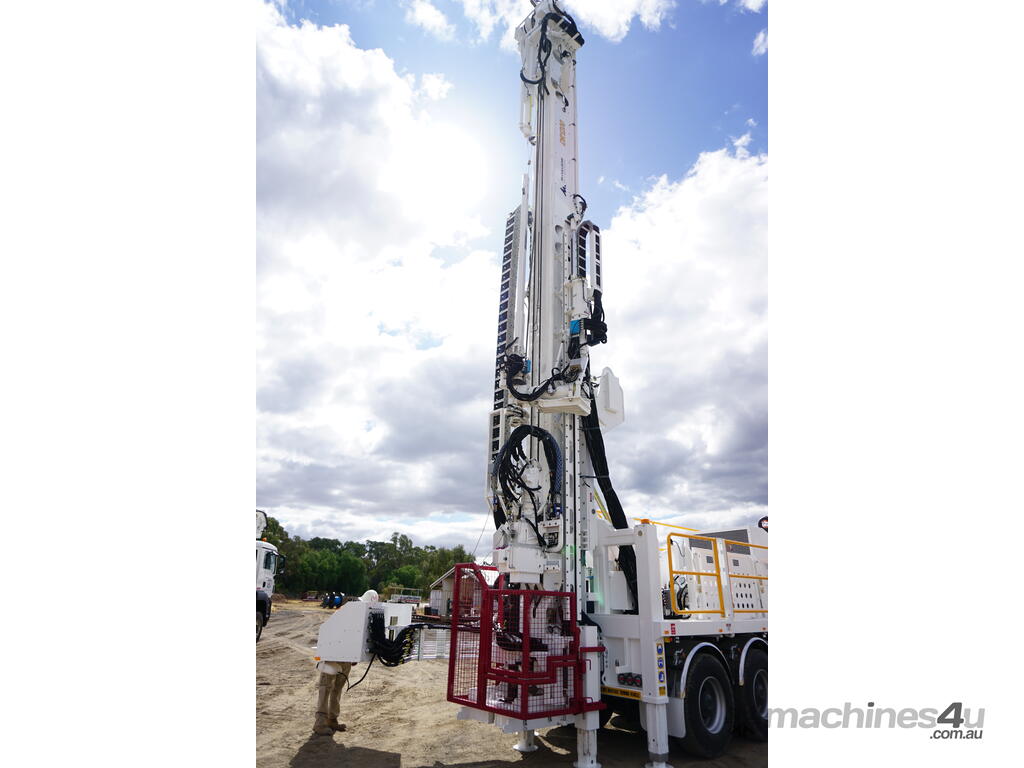

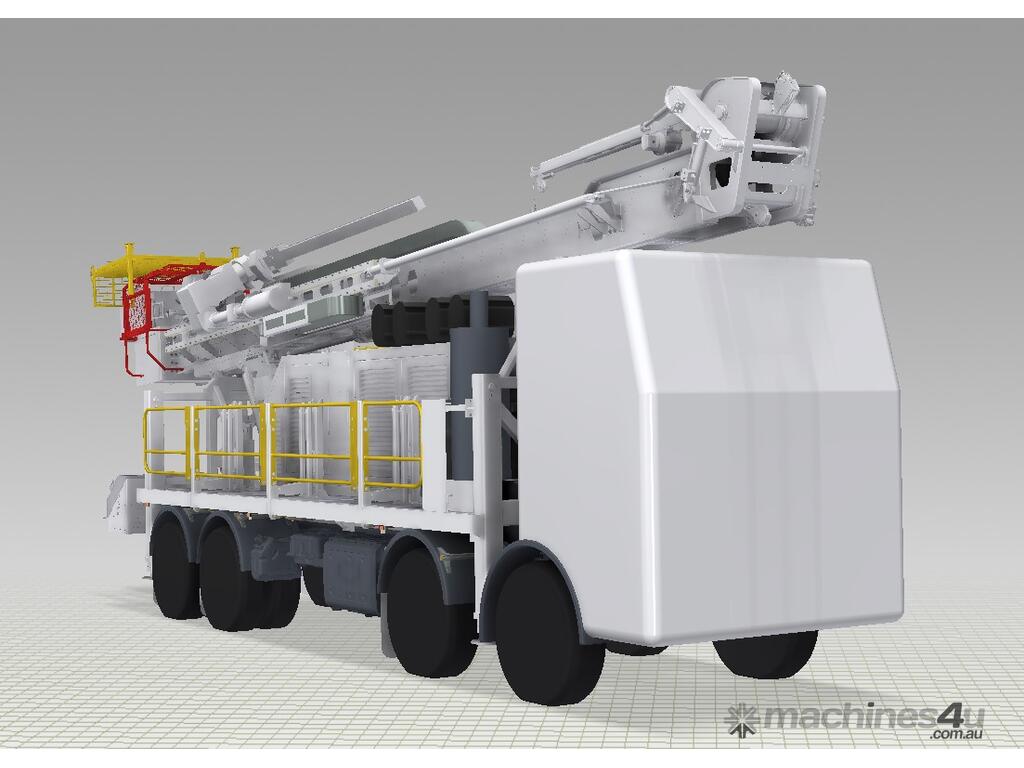

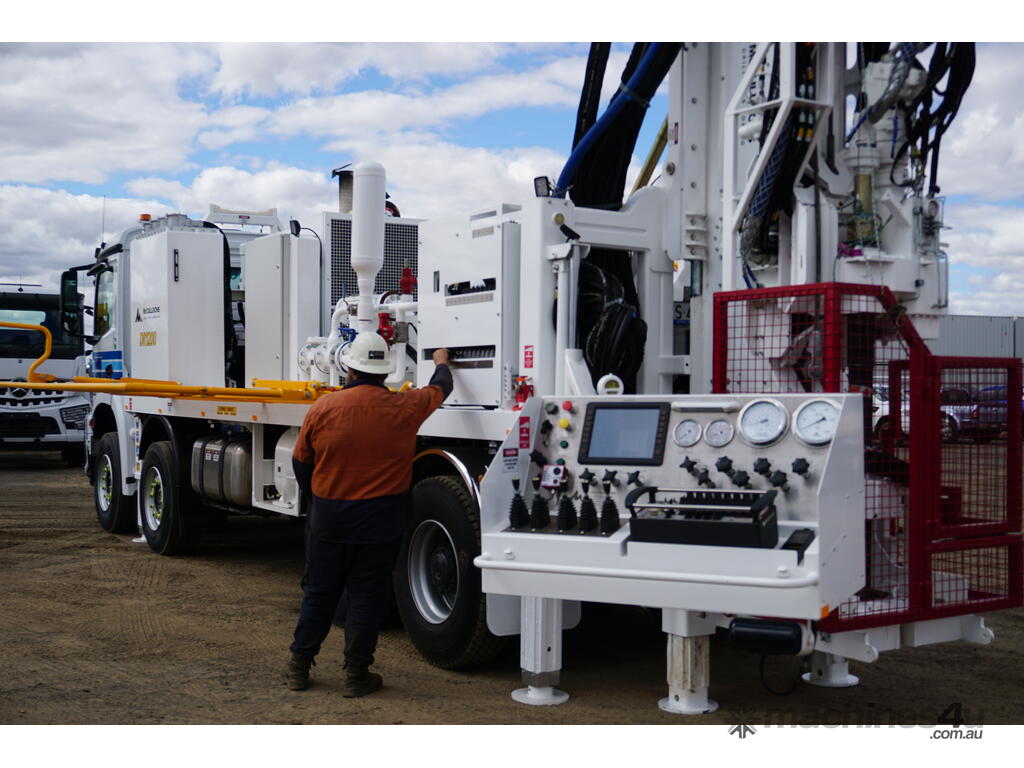

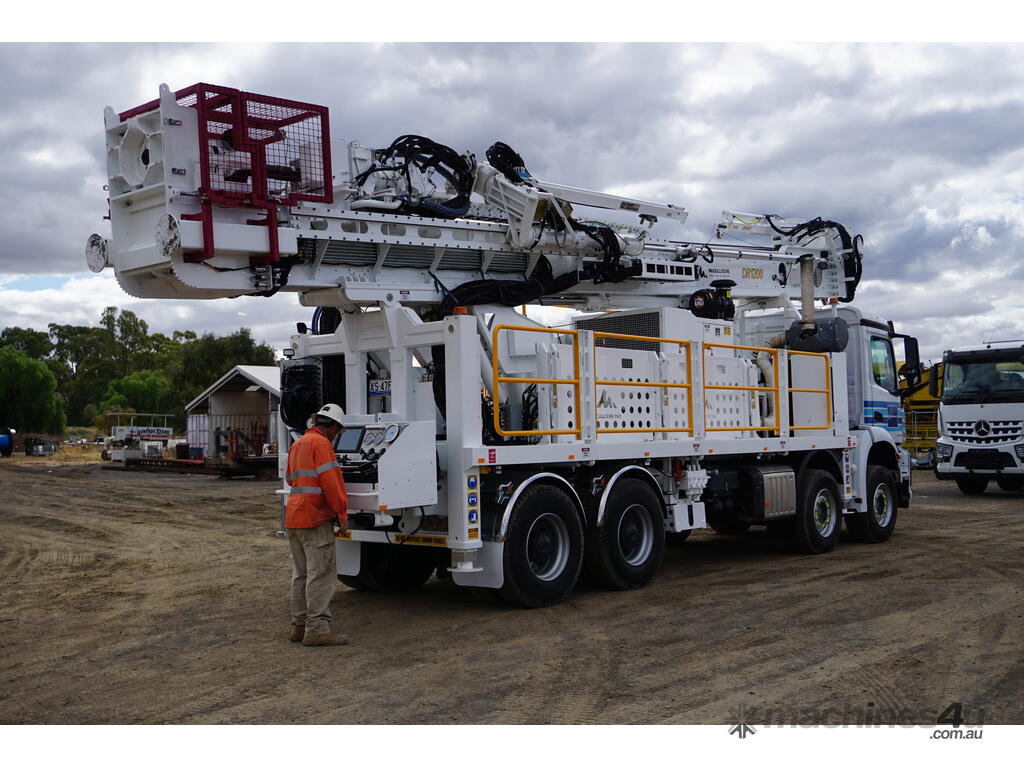

McCulloch DR1200
Our biggest rig yet! We custom build our rigs to suit our customers requirements. Below are some specifications - there are many other specs that are not listed and can be included.
* 24T Pull Back
* 11.5T Push Down
* Drill angles from Vertical to 45 Degrees
* 7.4M Traverse Stroke
* Engine - Cummins QSL9
* 325HP 2100RPM - 243kW
* McCulloch design two speed top head drive
* Floating Spindle design

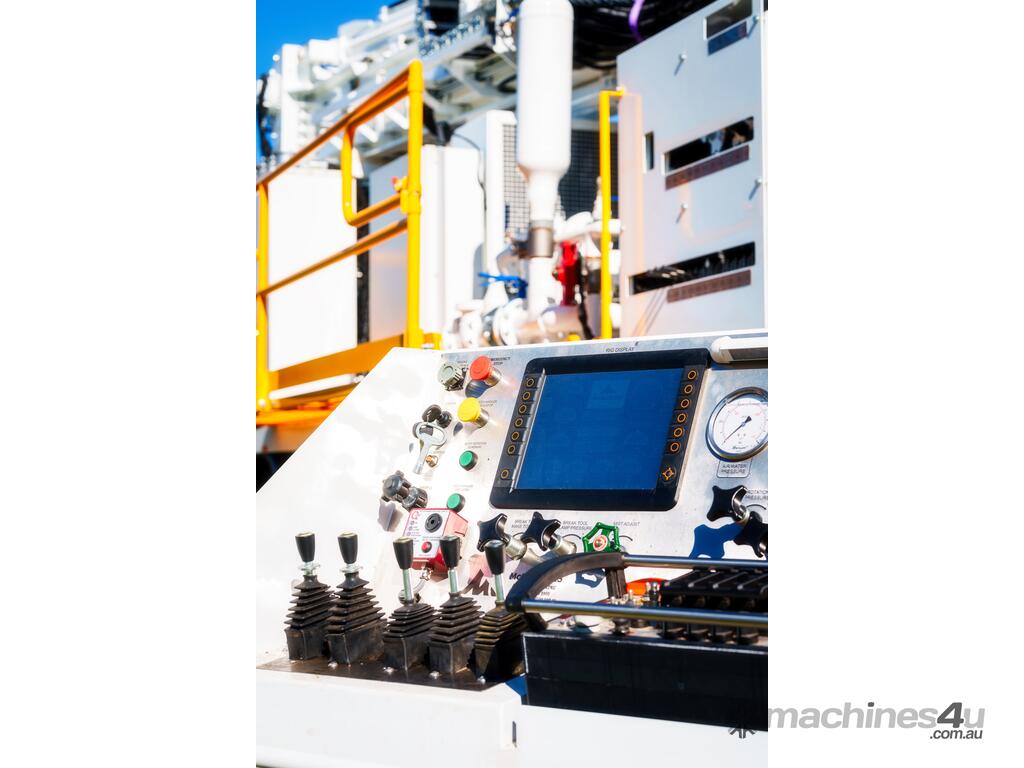

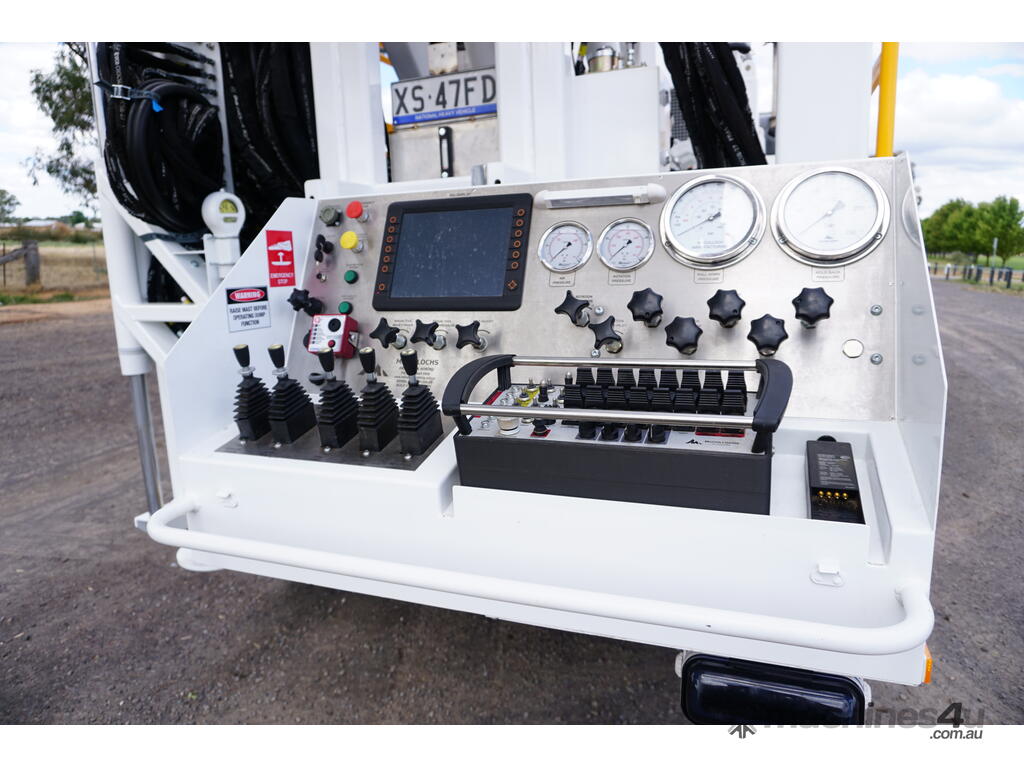

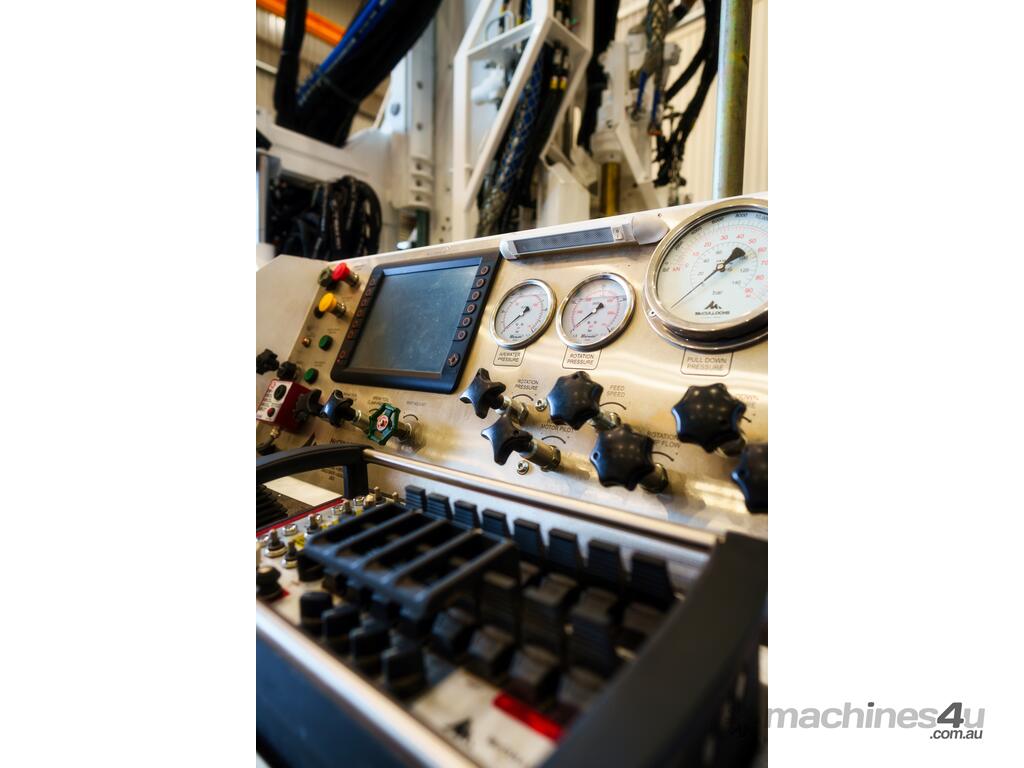

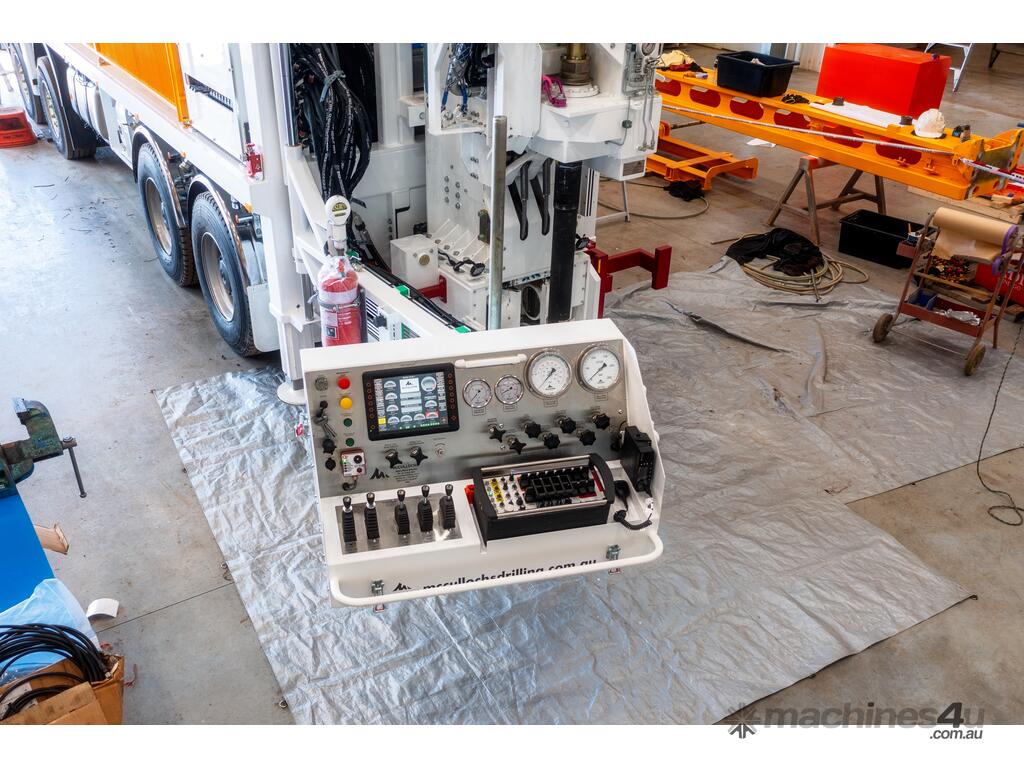

* Separated main control levers with dead man safety interlocks
* FMC Bean W1122BCD
* Cameron Gauge
* Hydraulically operated, self energising rod clamp
* Easy removable jaws
* Common jaws
* Suits drop in slips table
* 224mm Rod Clamp Opening
* 2 x open loop hydraulic circuits for auxiliary and accessory functions
* Rod Spin Guard
Optional Extras:
* Hydraulic Rod Rack

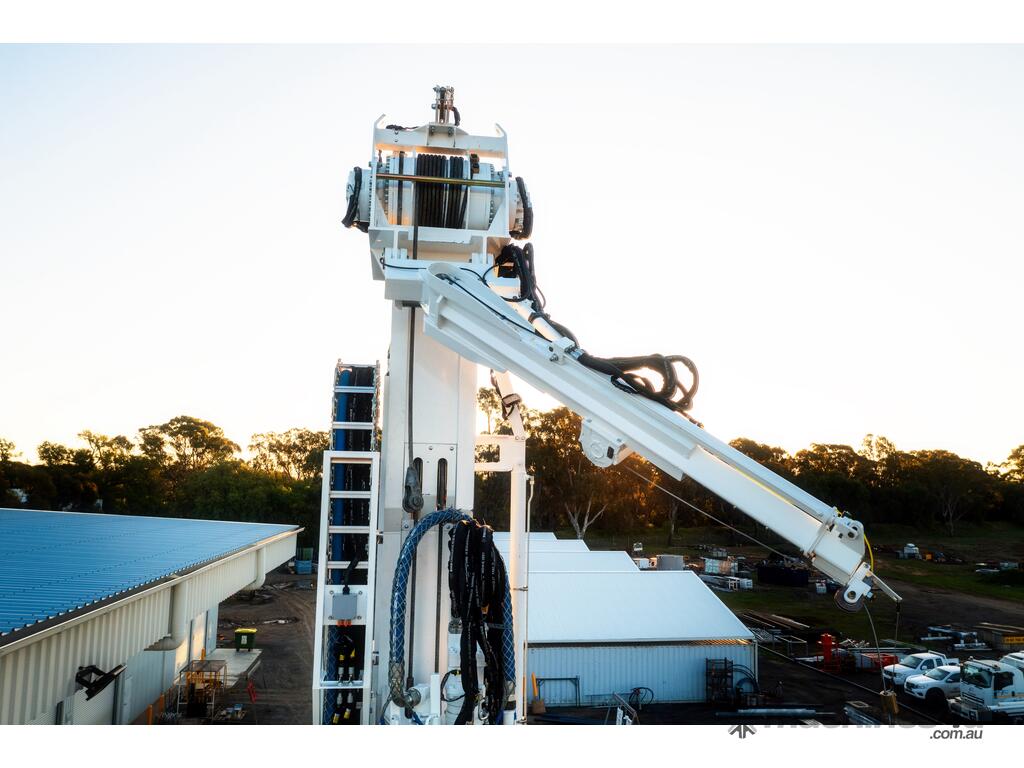

* Rod Handler
* Safe-T-Spin Rod Spinner
* Superfoot make/break
* On board compressor
* G&D 5x6 Mud Pump
* Wireless remote for operator drilling functions
* Sound Suppression
* Slips table with hydraulic spanner
* and much more!
For further information please don't hesitate to contact us !
