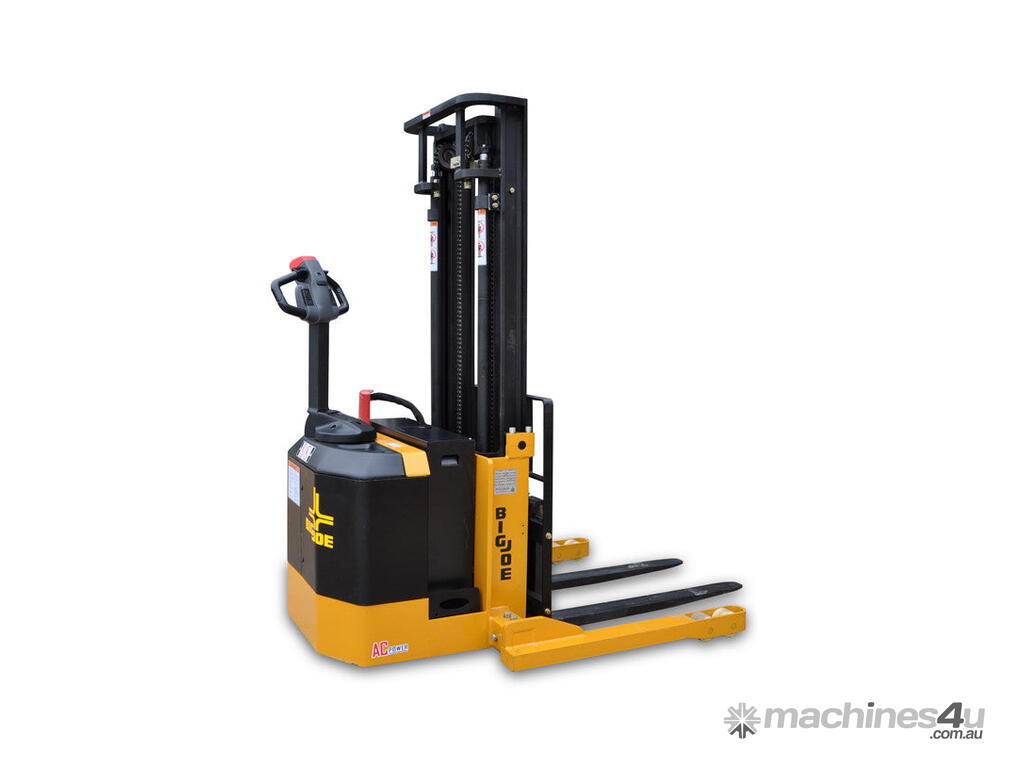

Medium Duty AC Straddle Stacker: PDS30/40

These Warehouse Workhorses Deliver The Most Capability Per Dollar!

1400KG and 1800KG capacity models with lift heights to 4500MM

An easy to use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.

The PDS30/40 Features:
• 24volt ZAPI transistor control
• High torque AC drive motor.
• Double reduction helical ZF GK10 transmission
• Shaft mounted electromechanical brake
• Creep speed operation for tight turning in close quarters
• Ergonomic handle with safety reversing switch and horn
• 210 AH Maintenance free Lithium - Ion battery
• Battery discharge indicator with hour meter
• Key switch to limit access to approved personnel

The PDS30/40 Specifications:
• Vehicle Type: Walkie Straddle Stackers
• Capacity: 1400KG./1800KG. 600mm load centre
• Power: 24 volt AC electric with ZAPI transistor control-inverter
• Max Lift Height: Masts available up to 4500mm``
• Collapsed Height: Masts available as low as 1800mm
• Fork Dimensions: 1070mm L x 100mm W x 40mm Thick
• Vehicle Dimensions: Consult brochure
• Turning Radius: Consult brochure
• Travel Speed: Programmable with optional handset (0-6 kmph empty / 0-5kmph loaded)

210AH Maintenance free Lithium battery
• External Charger: 240v 10 amp plug

ISS Equipment is a leading provider of high-quality material handling and warehouse solutions in Australia. Specializing in a wide range of equipment since 1993, including forklifts, stackers, and pallet trucks, ISS Equipment delivers innovative and cost-effective solutions to meet the demands of diverse industries. With a commitment to exceptional customer service, the company offers comprehensive sales, rental, and maintenance options, ensuring that businesses operate efficiently and safely. Backed by a team of experts with in-depth industry knowledge, ISS Equipment stands as a trusted partner, dedicated to delivering excellence and supporting the growth of its clients.

Go to the ISS Equipment showroom on Machines4u to see the range of machinery available for national delivery, send ISS Equipment a message about the item you are interested in or give ISS Equipment a call, we are more than happy to answer any of your questions.

* Click on the pdf spec sheet for more detailed information *
