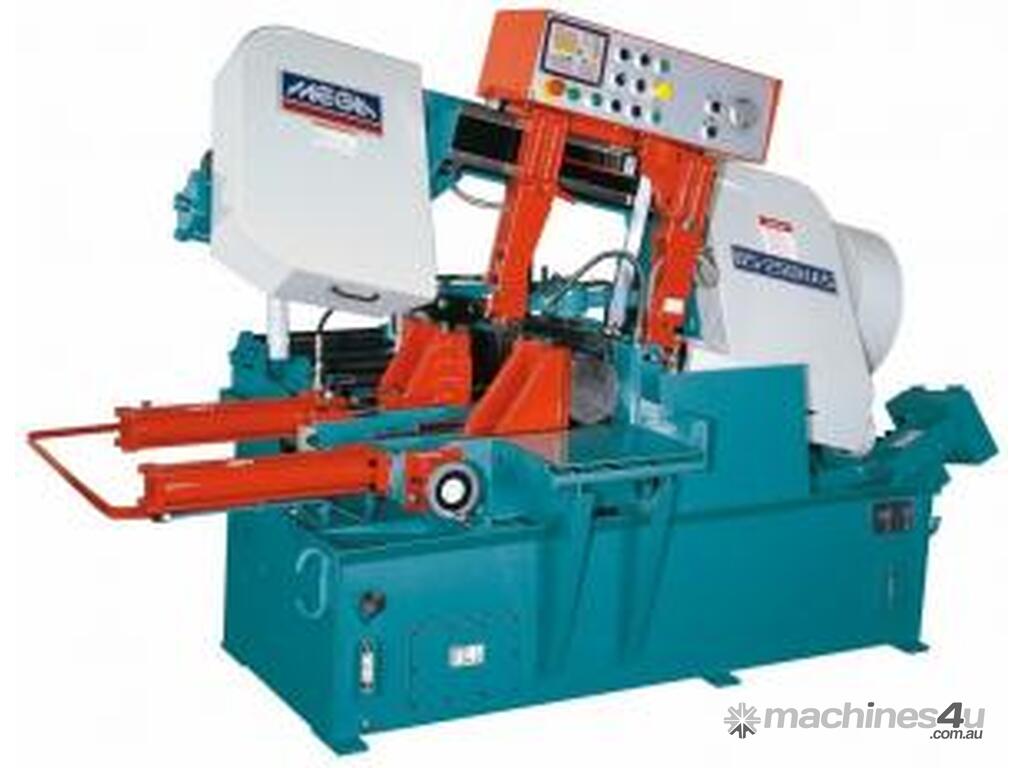

Mega BS-450M band saw

MEGA Mitre Cutting Bandsaw Machine

Skillfull engineering and imperative design give every MEGA Semi Automatic Horizontal Bandsaw superior machining and cutting capacity.

Design
Highest grade tensioning system and guides keep the blade aligned under constant load at all times
Hydraulically controlled cutting feed to maintain consistent cutting rates irrespective of the workpiece cross section
Power driven brush continually flushed by a cutting fluid spout keeps blade and saw guides free of chips for smoother cutting

Each MEGA saw is factory equipped with:

Safety and thermal overload switches
Well guarded blades and wheel covers
Saw blade shuts off automatically when cutting is finished
Low and zero voltage controls

Features:

Centralised control panel
Quick acting mechanical blade tension
Blade guide design
Power driven saw band brush
Hydraulic quick action vise
Floating roller feed mechanism
Automatic head elevation control
Unique feed rate control

Machines series available:

BS-250SA
BS-300SA
BS-360SA
BS-450M
BS-760M

Standard Equipment:
1. Tools with tool box 1 set
2. Band-Cleaning wire brush 1 pc
3. Bandsaw blade 1 pc
4. Instruction manual 1 copy

Machine Specifications
Mitre Cutting At 90° ?320 ? 320 ?320 ?/H Beam 510W x 320H
Mitre Cutting At 60° ?300 ? 300 ?300 ?/H Beam 357W x 320H
Mitre Cutting At 45° ?250 ? 250 ?250 ?/H Beam 213W x 320H
Mitre Cutting At 30 ?83 ? 83 ?83 ?/H Beam 83W x 320H
Blade Size 25,32,42,55,70,80 m/min
Blade Speed 82,105,138,180,230,260 f/min

photos are for marketing purposes only and may not be of actual item
