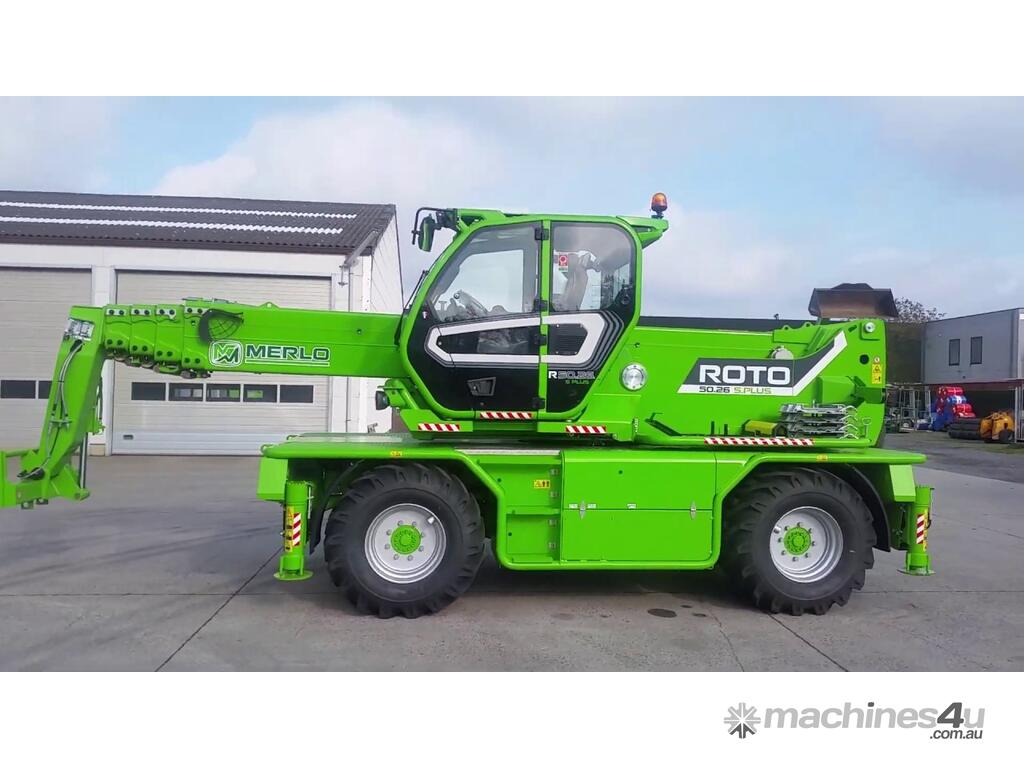

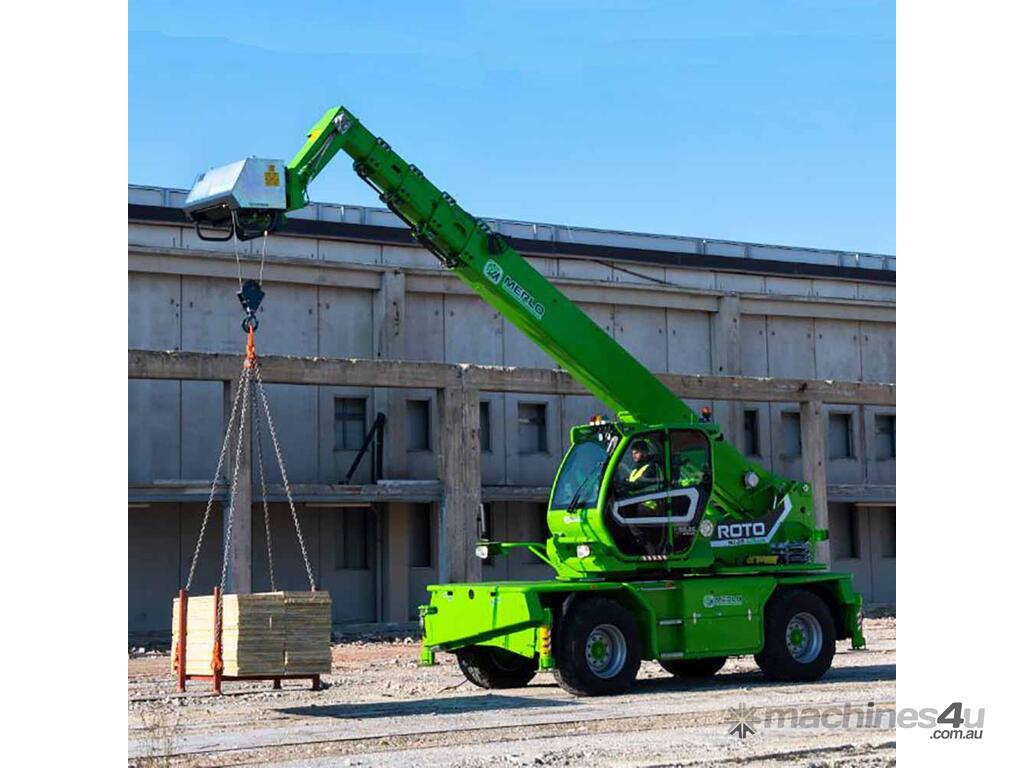

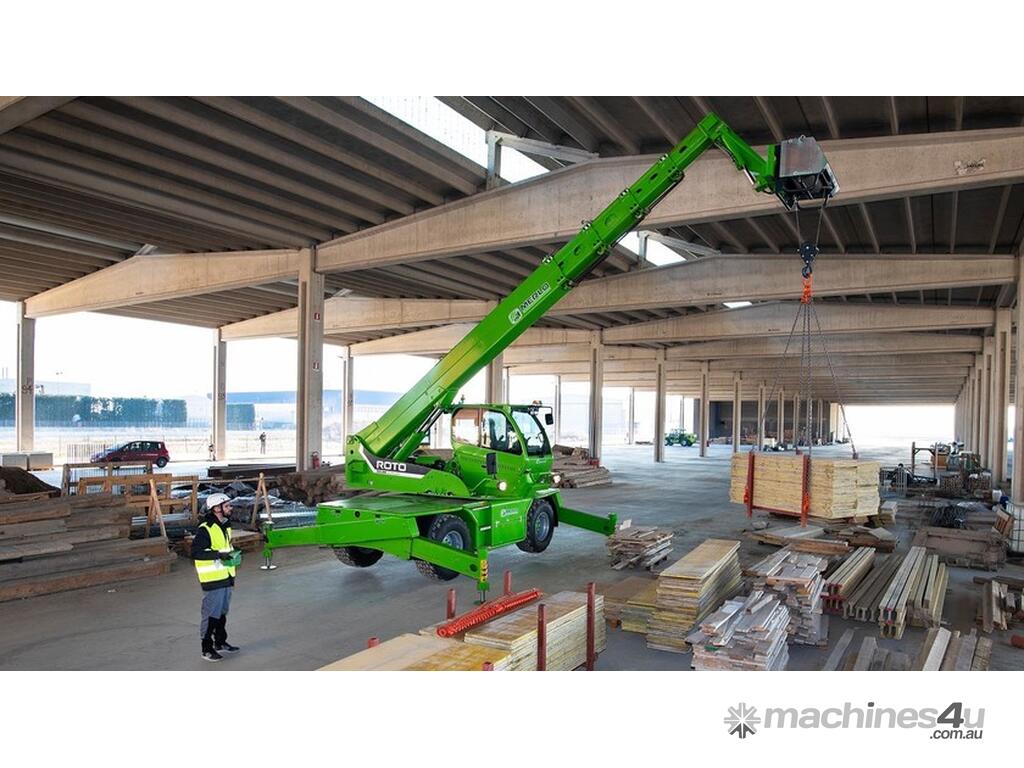

Merlo Rotational Telehandler 50.26S Plus

The Rotating Telescopes allow you to operate at 360 °, thanks to the rotating turret which offers a greater range of action than a fixed telehandler. The new family marks a new era, introducing new standards in the field of telescopic handlers for the construction sector and expanding the product offer with innovative content, suited to the needs of different users.



Model "S Plus":

This model represents the top of the range, a true concentration of technology and performance, destined to maintain its leadership in world markets, also thanks to the prestigious awards already won by the range.



The new ROTO50.26SPlus models can include among their main features: the multi-position stabilizers with automatic control, the advanced safety system, the continuous rotation of the turret, and the new cabin with modular design, equipped with the exclusive tilting system that adapts the inclination up to 20 °.



New From Merlo

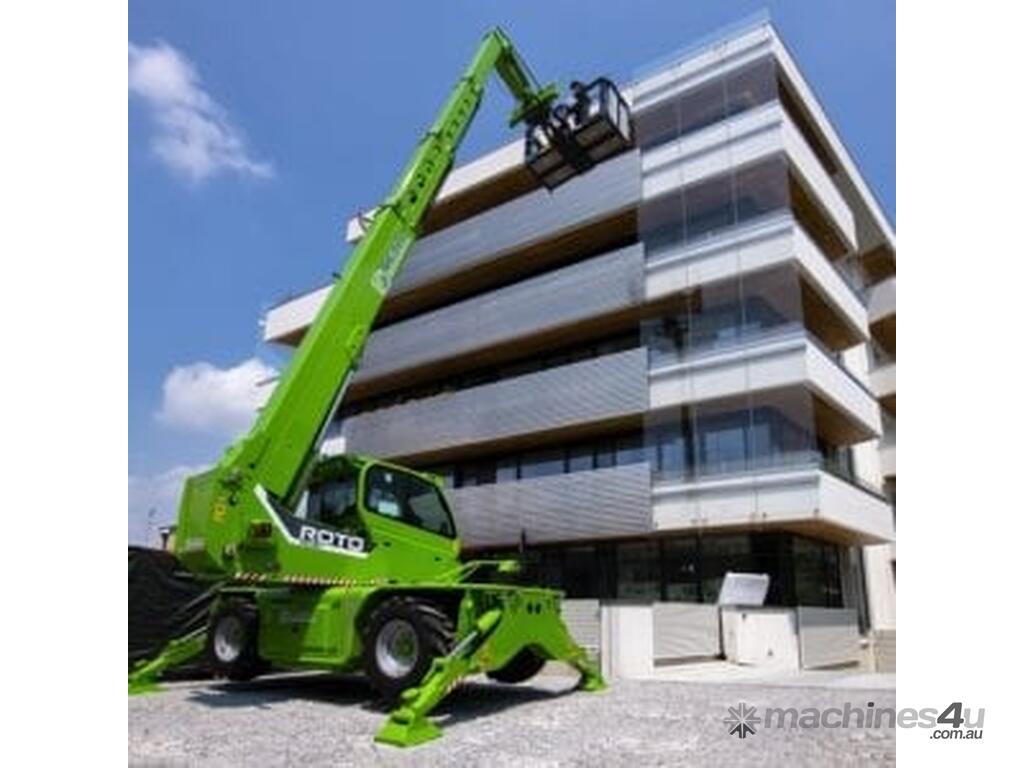

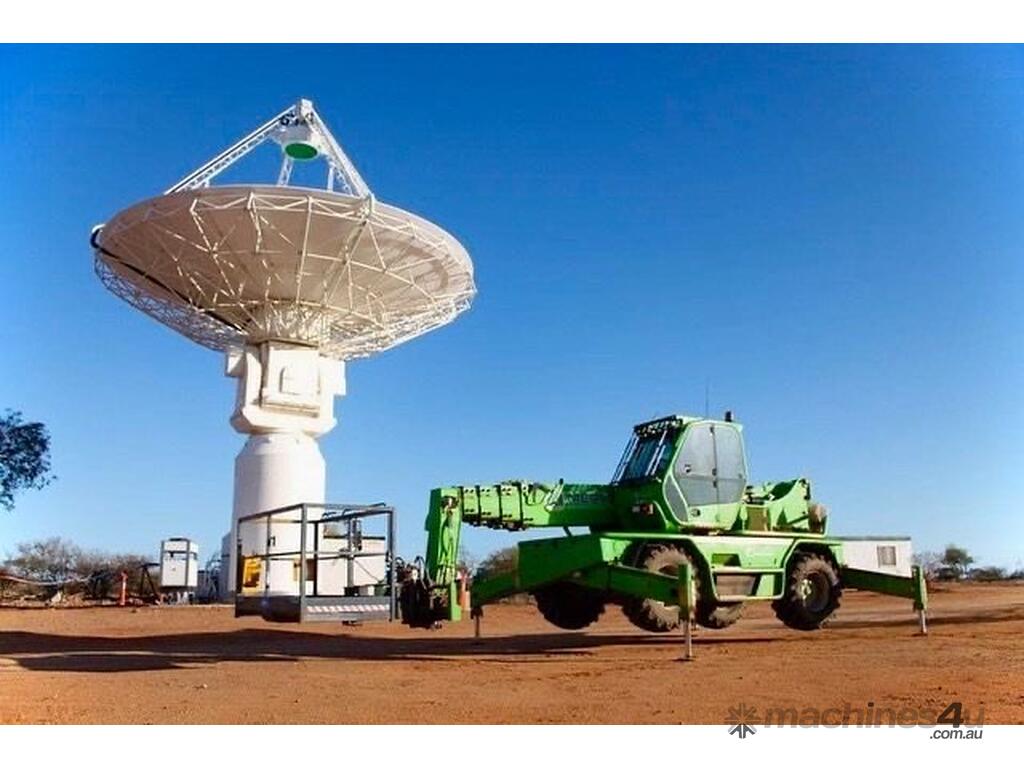

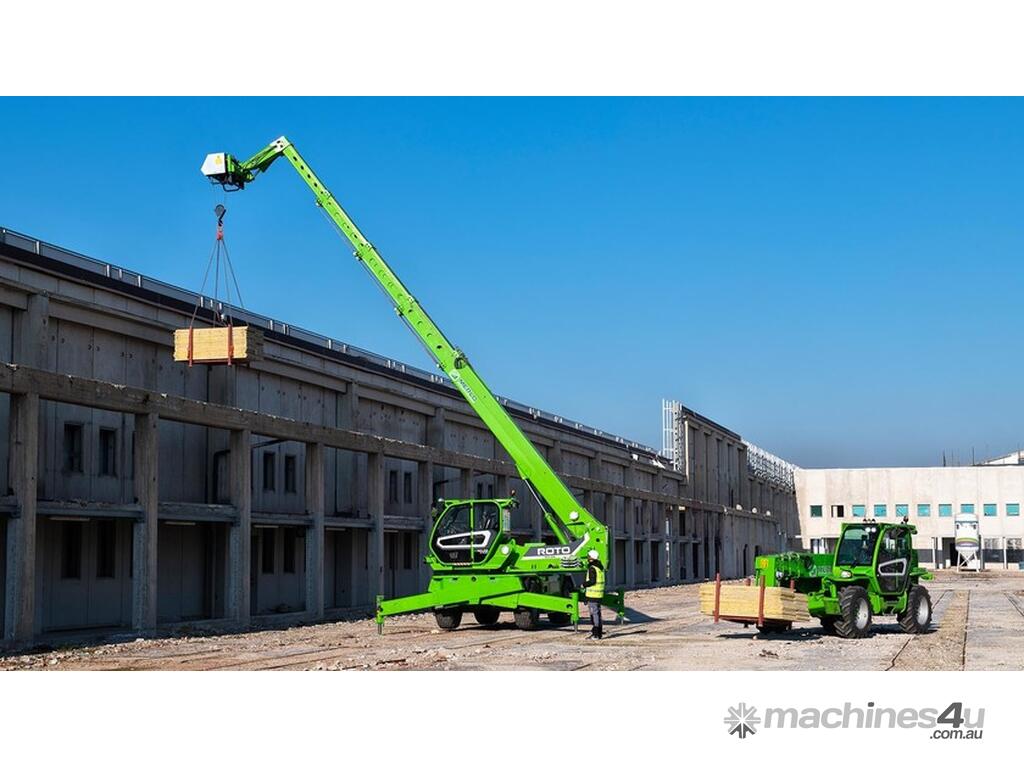

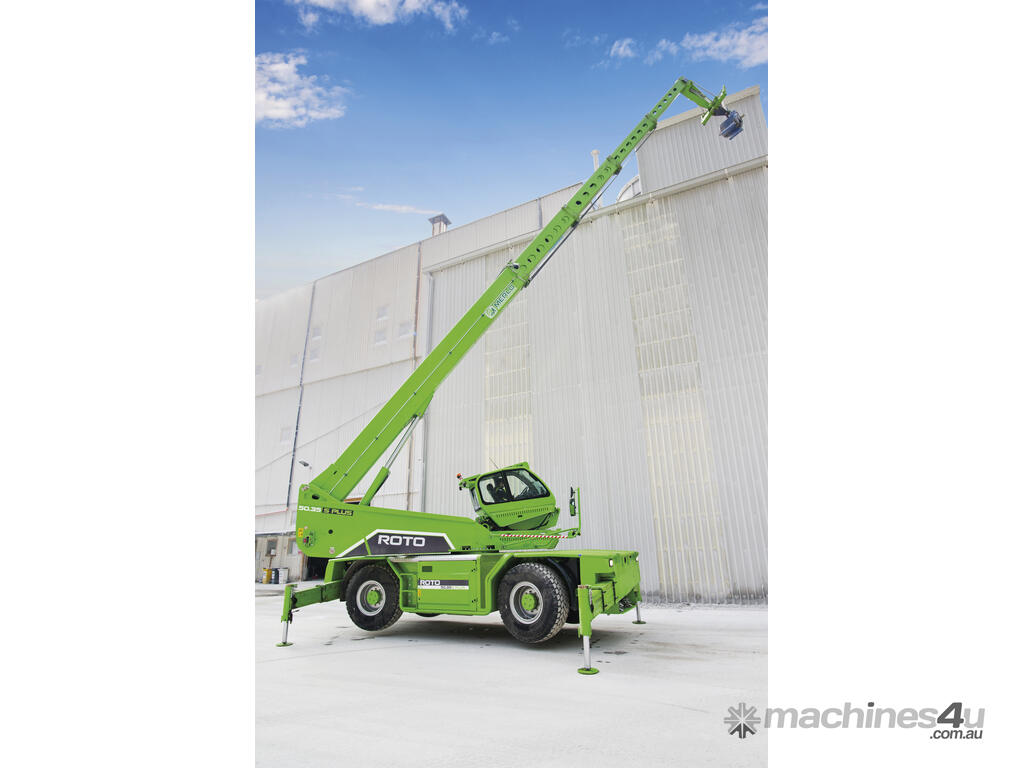

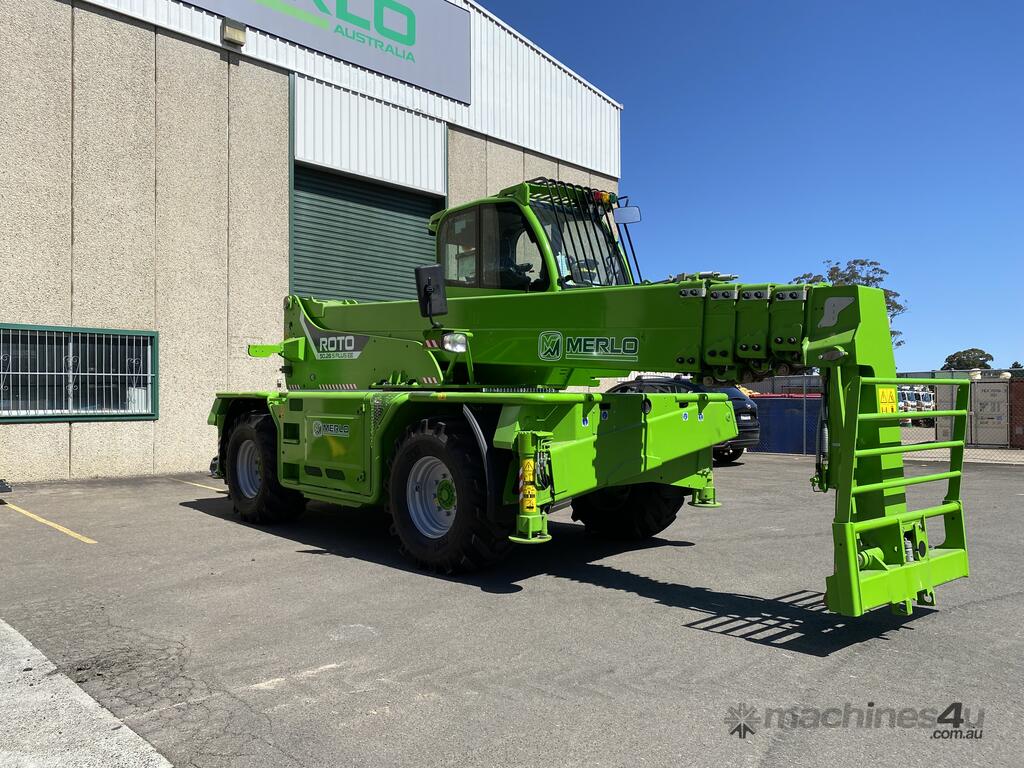

The Roto 50.26S Plus Rotational Telehandler
5-ton Lift and a 26m reach
Continuous Turret Rotation
Tilting cab
Suspension on axles

Performance
Total unladen weight (kg) 17300
Maximum capacity (kg) 4950
Lifting height (m) 25,9
Maximum reach (m) 22,9
Maximum operating height (m) 9,7
Maximum operating reach (m) 7
Capacity at maximum height (kg) 1500
Capacity at maximum reach (kg) 150
Tilting correction (%) 12; 4
Boom sections 5
PowerTrain
Turbo motor FPT NEF45
Displacement/cylinders 4500/4
Engine Power (kW/HP) 125/170
Anti-pollution technology Stage IV
Maximum speed (km/h) 40
Fuel tank (l) 150
AdBlue tank (l) 43
Hydrostatic transmission 2V
EPD Yes
Axles Drop Portal
Reduction hub RR700
Machine brakes Dry Discs
Automatic parking brake yes
HYDRA ULIC
Hydraulic pump 2 - LS + FS
Flow rate/pressure (l/min – bar) 138+100 - 250/230
Hydraulic tank 120
Hydraulic outlet at the top of the boom Yes
Cab
Cab configuration Premium
MCDC Complet
FOPS LIV II cab Yes
ROPS cab Yes
Cab commands Electronic joystick control
Tilting Cab Yes
Reverse shuttle Dual Reverse
Configuration
Suspension on axles Yes
Work headlights on cab Yes
Sun blind Yes
Tac-lock Yes

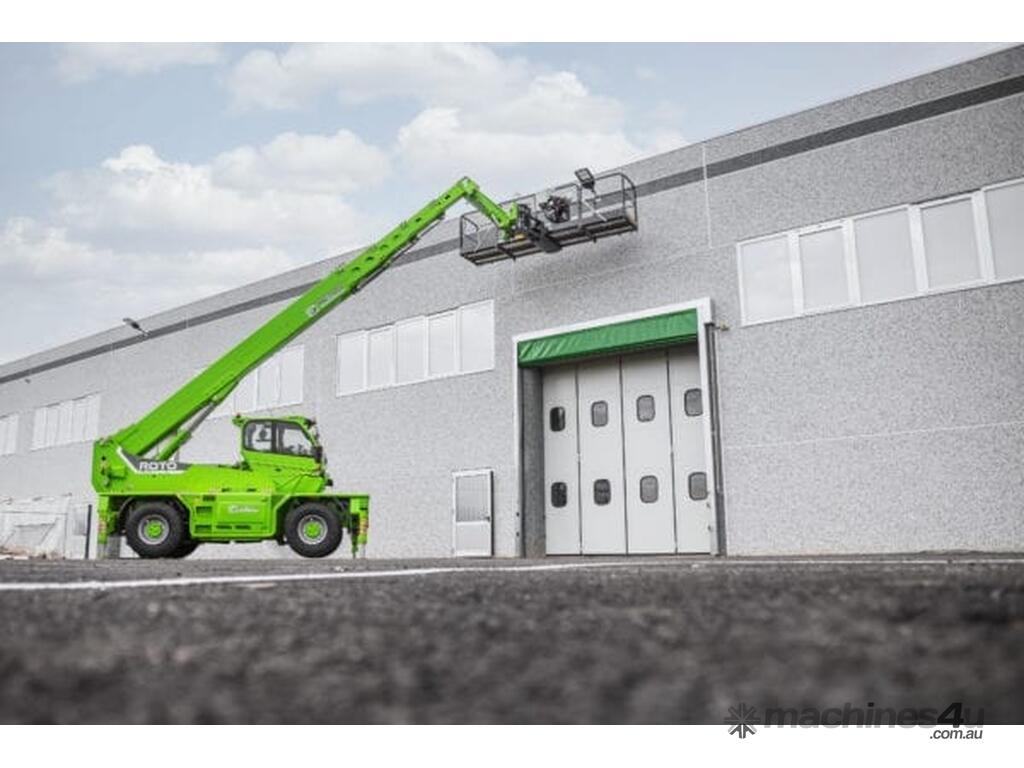

Provision for a platform Yes

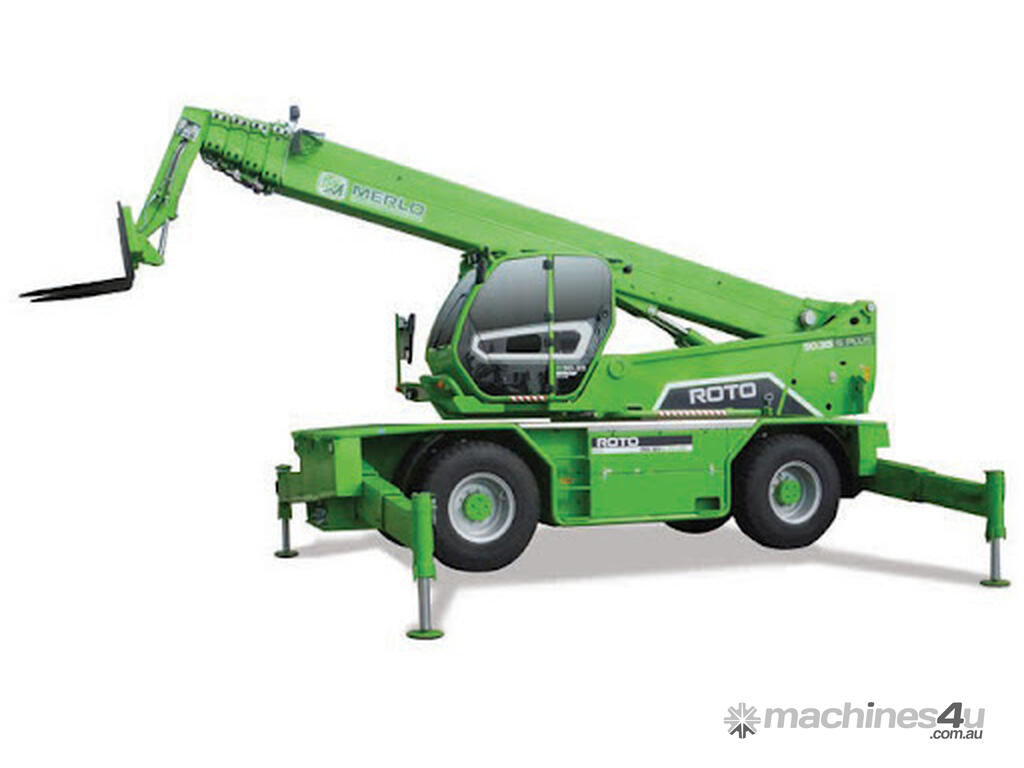

Two floating forks Yes
Inching-Control Yes
Four-wheel drive Yes
Four-wheel steering Yes
Three steering modes Yes
Standard tyres 18-22.5

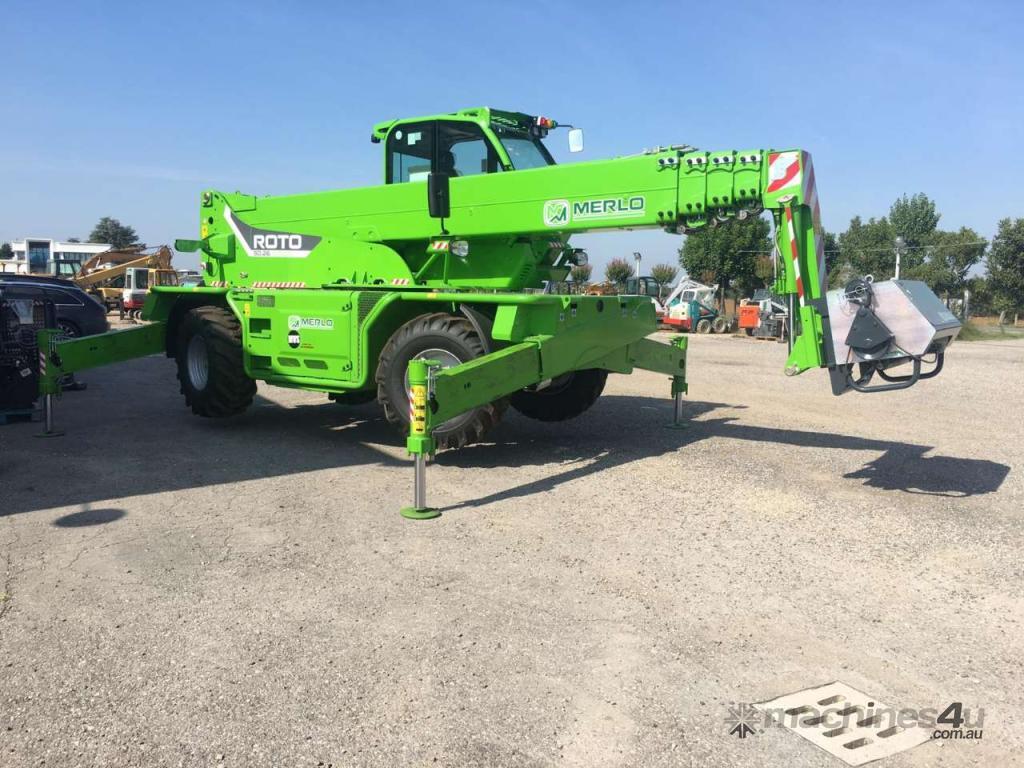

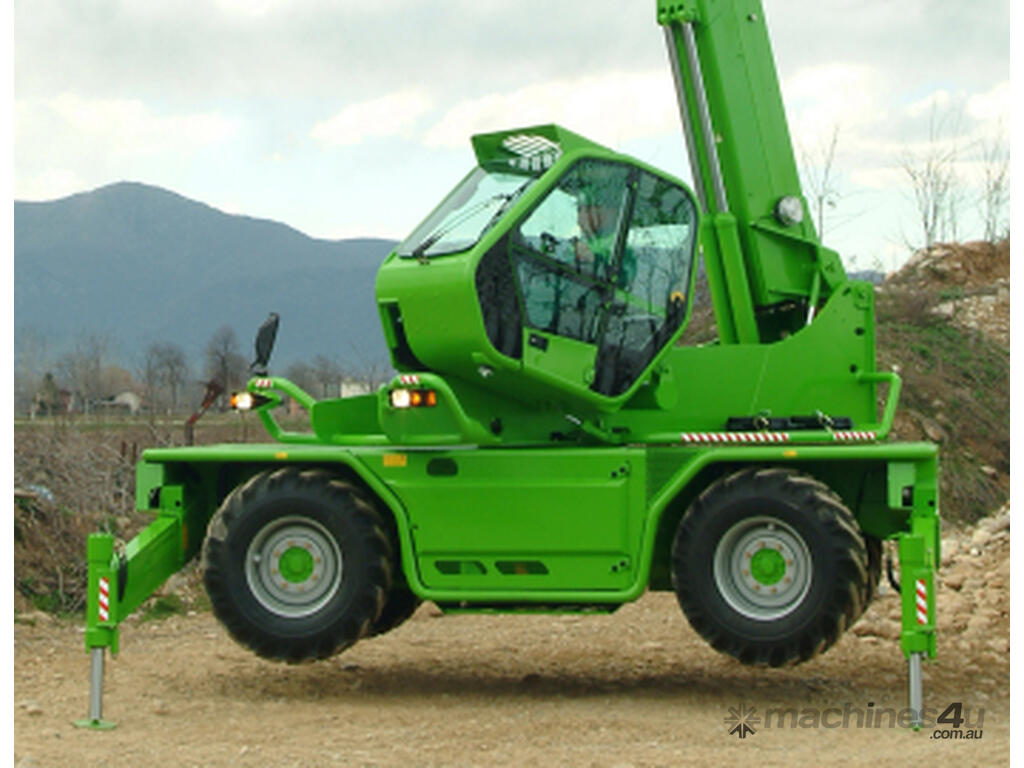

Stabilisers Multiposition
Turret rotation continuous
