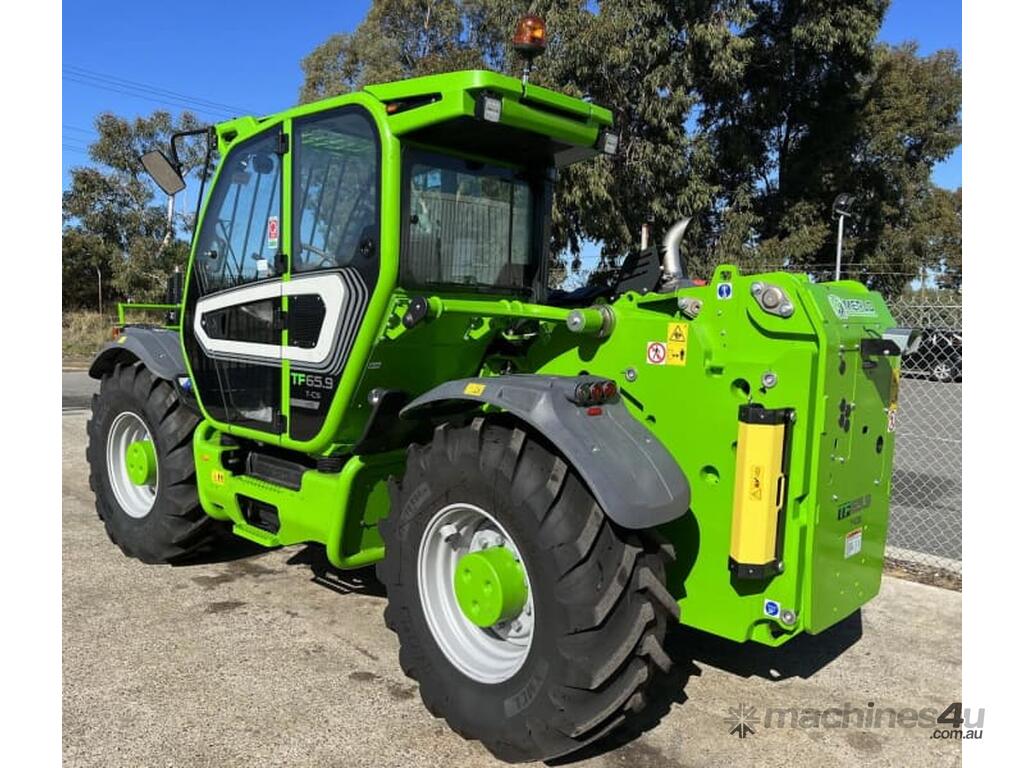

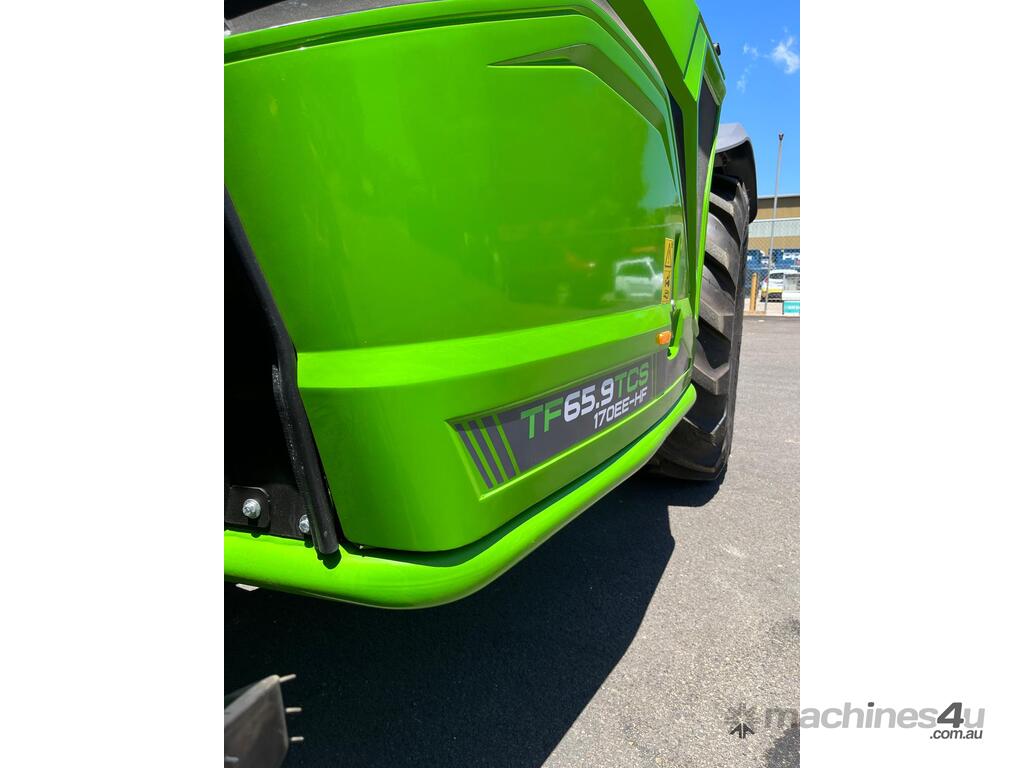

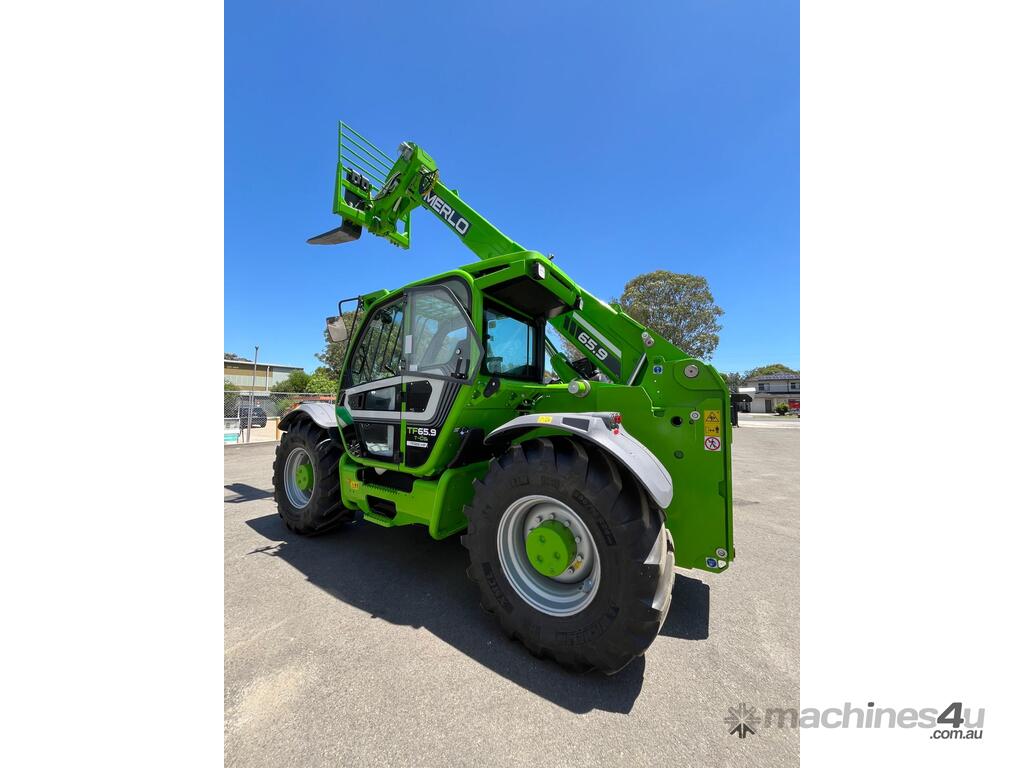

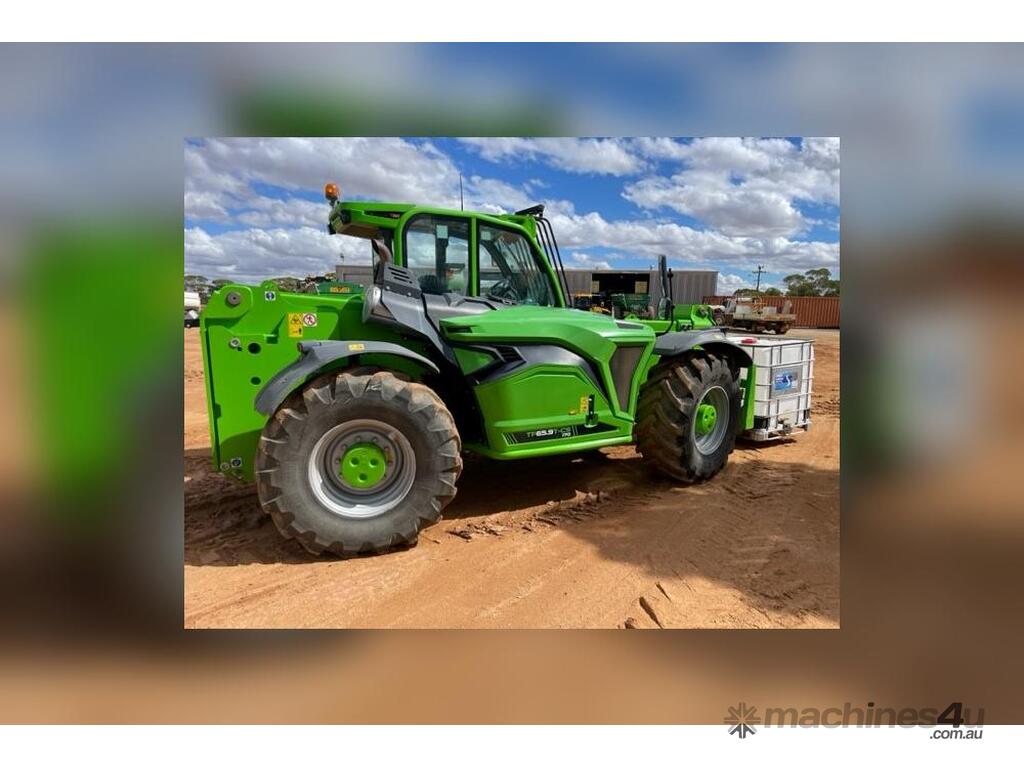

Merlo Telehandler: Turbofarmer 65.9TCS-170EE - 6.5 tons capacity 9 m lift

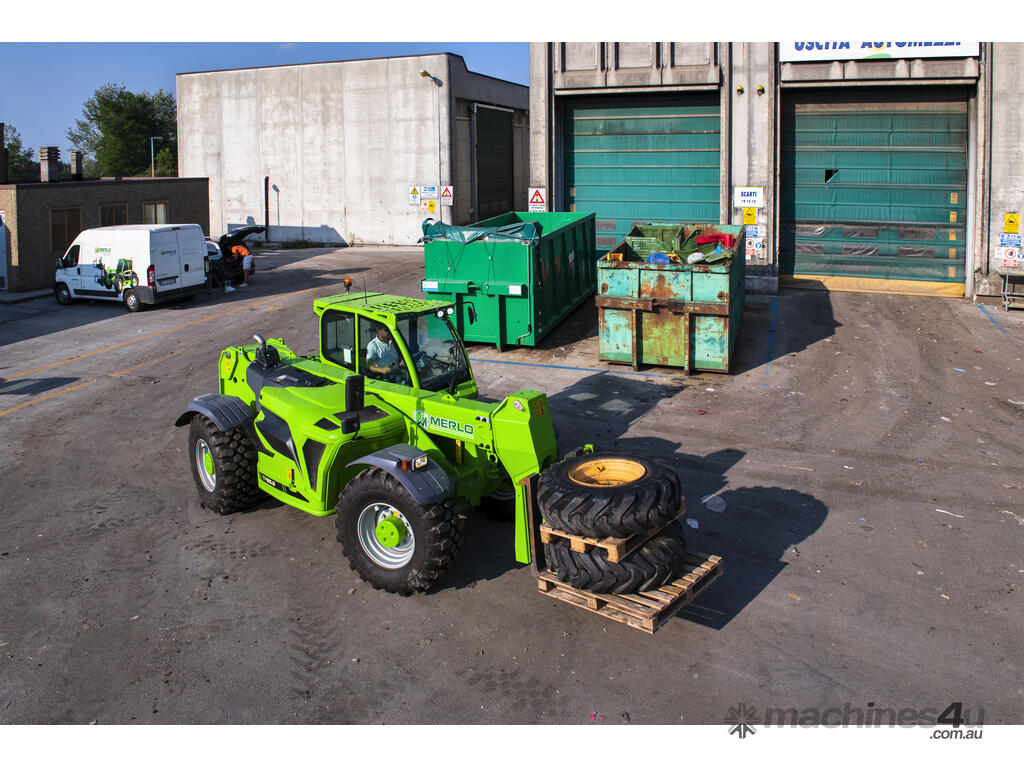

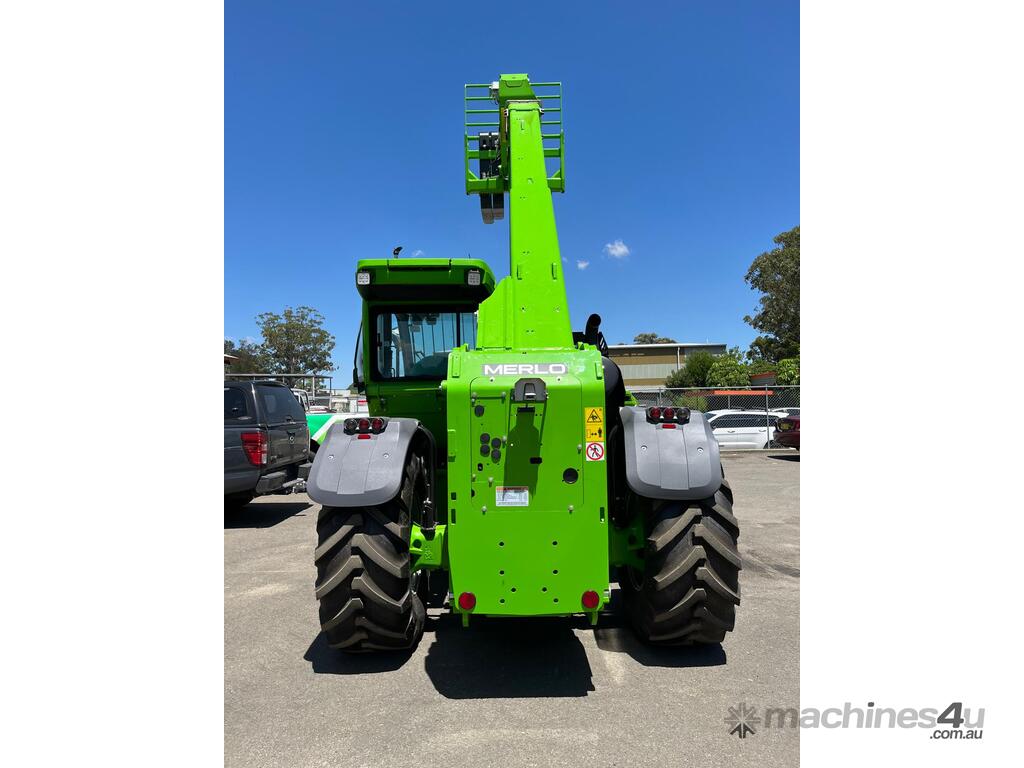

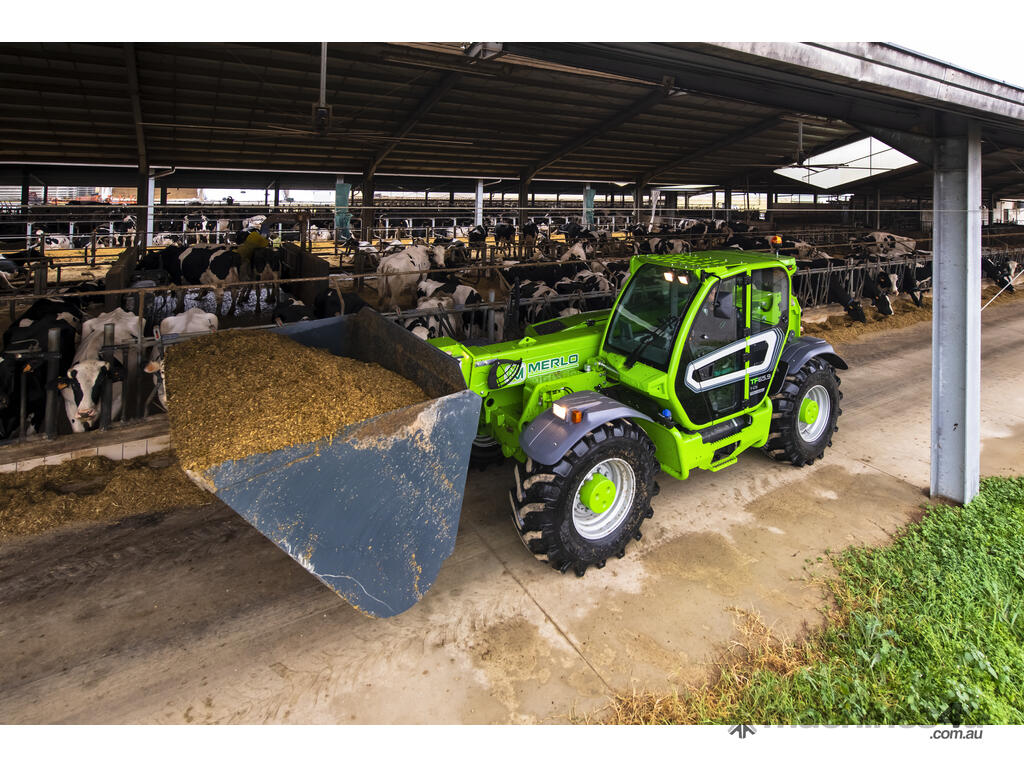

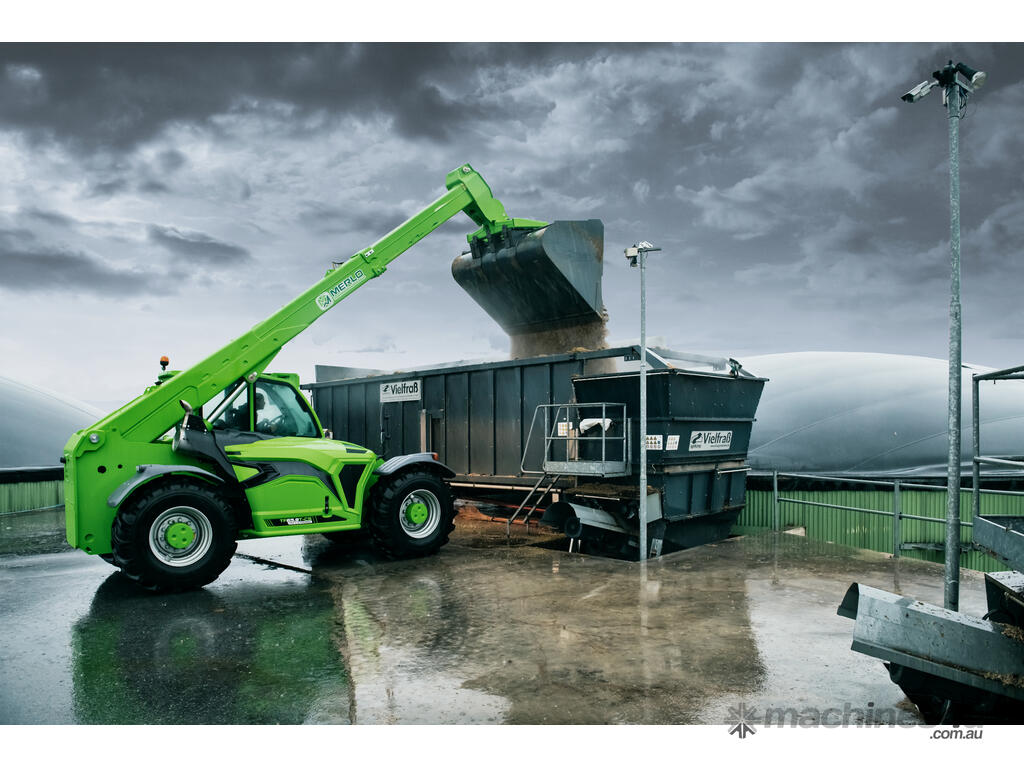

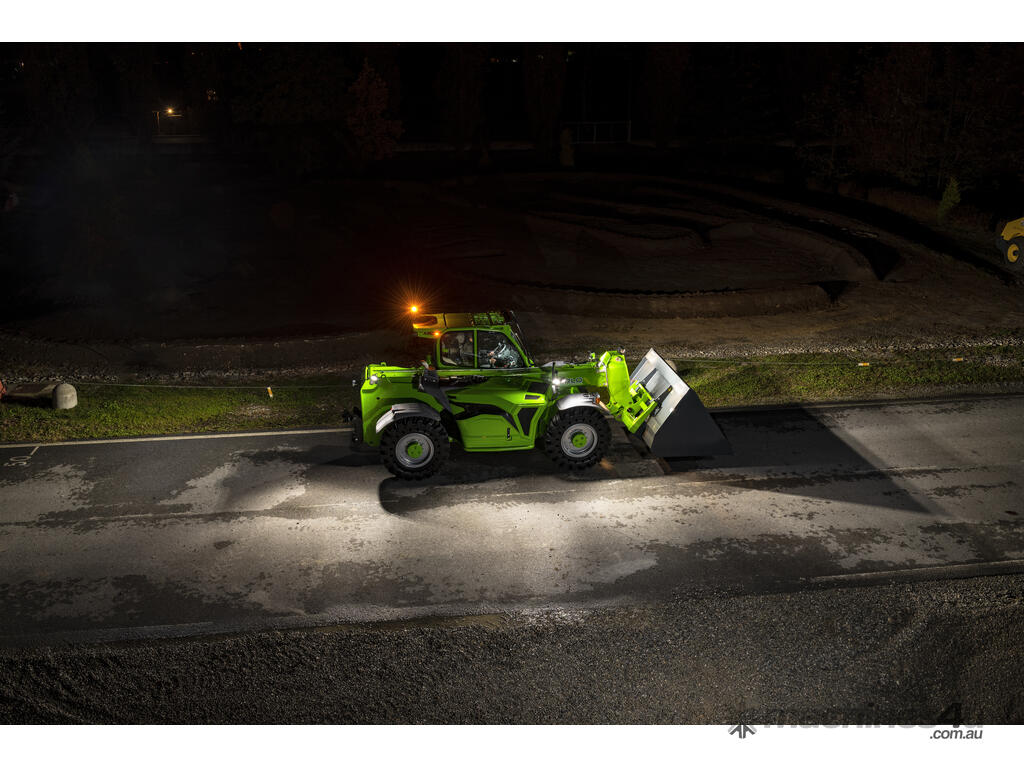

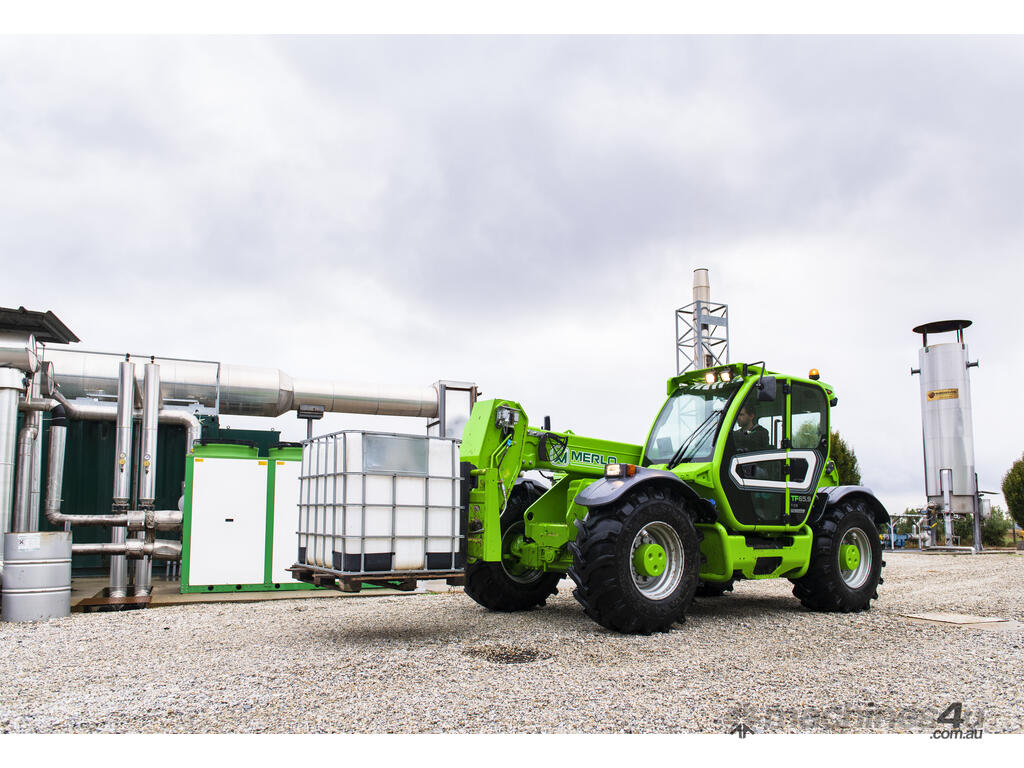

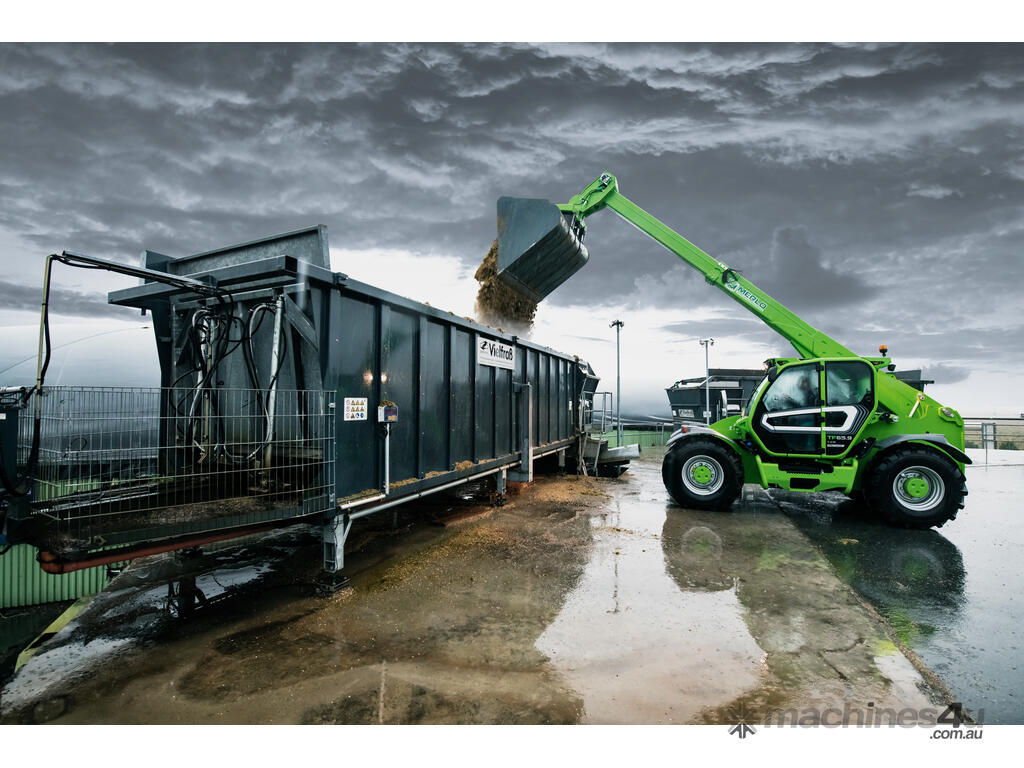

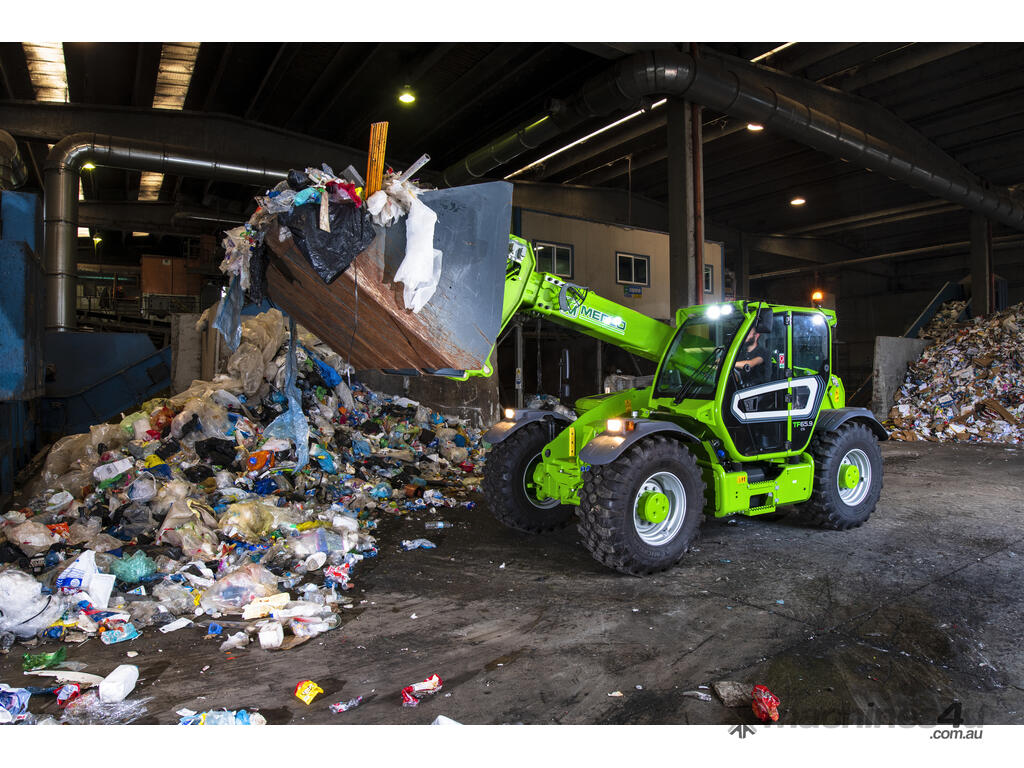

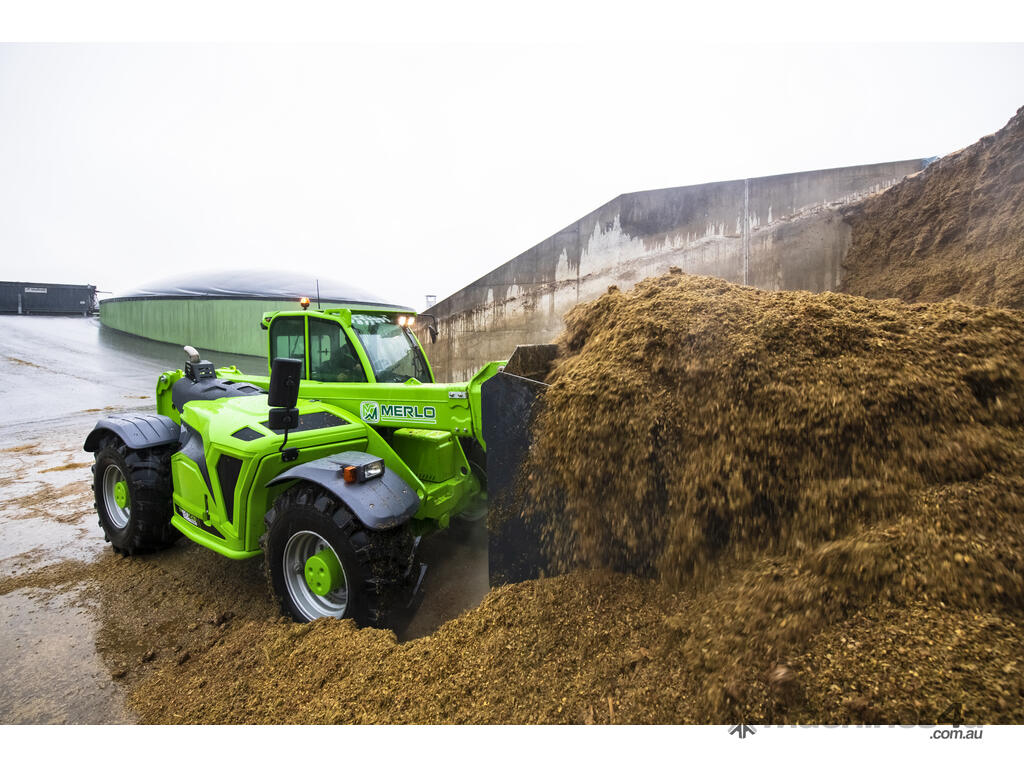

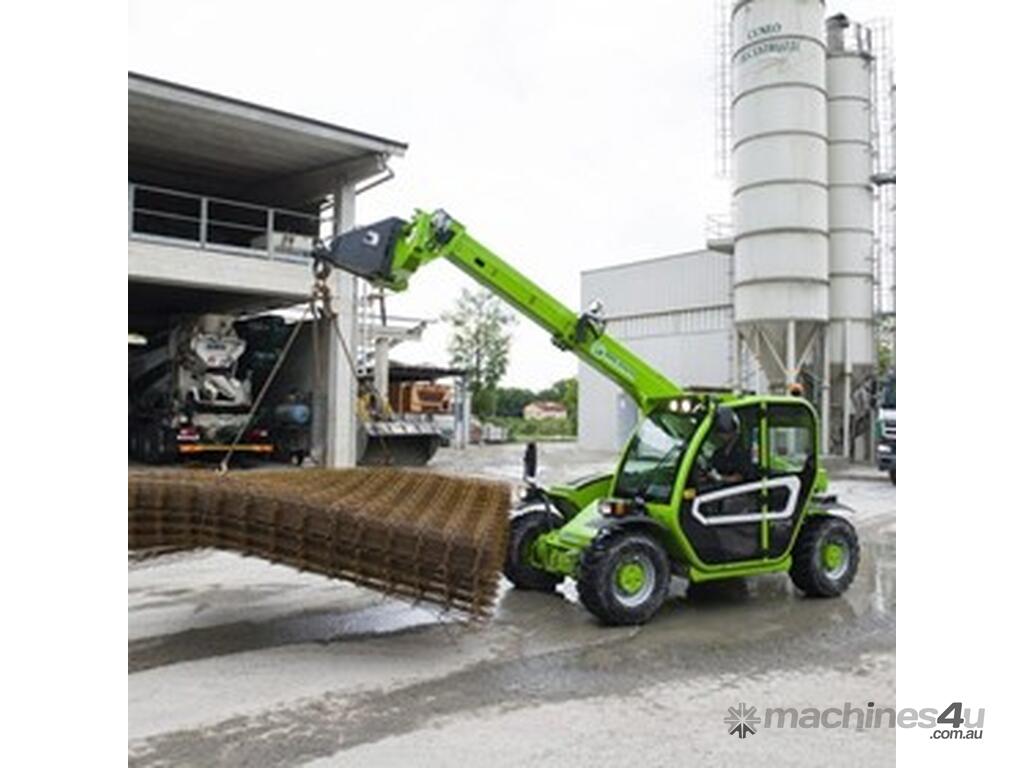

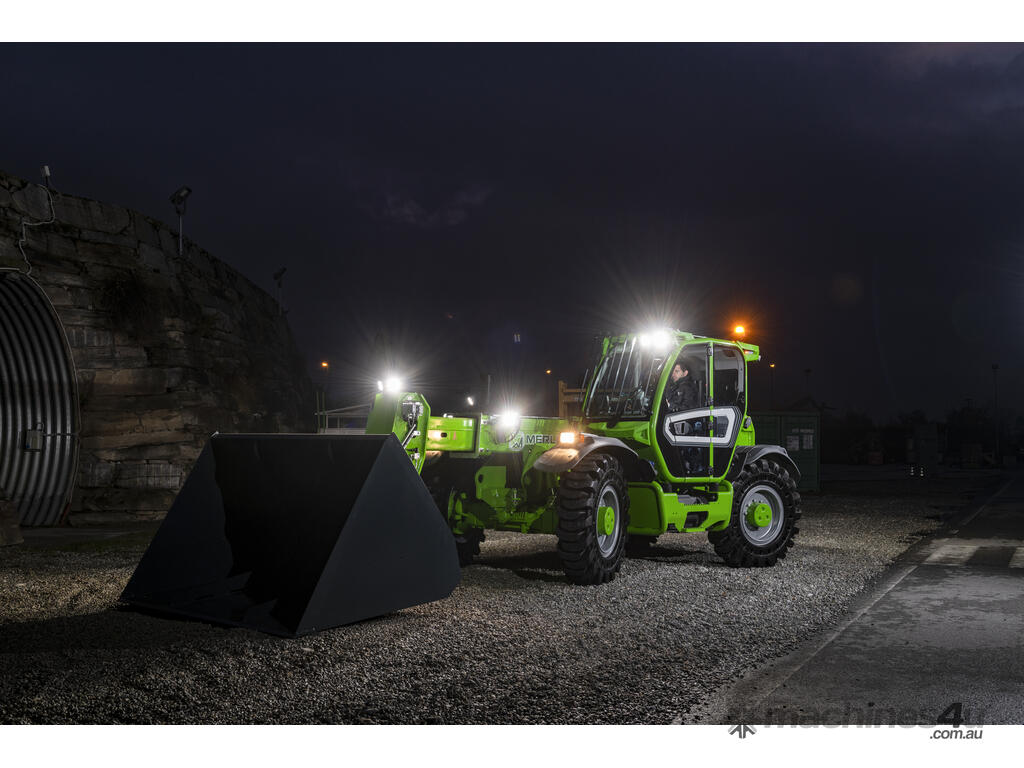

The Merlo TF65.9 telehandler is a powerhouse of versatility and strength, designed to tackle the most demanding tasks with ease. Boasting a remarkable lifting capacity of 6.5 tons and a reach of up to 9 meters, this machine is perfect for heavy-duty agricultural and construction applications. Equipped with advanced hydraulics, intuitive controls, and superior maneuverability, the TF65.9 ensures maximum efficiency and precision on every job site. Experience unparalleled performance and reliability with the Merlo TF65.9 telehandler, your ultimate solution for lifting, loading, and handling tasks.

BOOM SUSPENSION

Load protected in all conditions? Of course! Thanks to the active boom suspension (BSS technology). Precision and power guaranteed thanks to automatic deactivation below 3 km/h.

ASCS

The ASCS safety system: the ideal assistant! The system adjusts the speed and maximum extent of the movements based on the attachments in use, the load being handled and its position, thus eliminating the risk of overturning. Standard on the entire range with LS hydraulic system.

Suspended Cab

The models in this range can be fitted with the exclusive and patented Cab Suspension (CS). With CS, the cab is fitted with an active hydropneumatic suspension, which can be controlled by the operator with an electric switch.

When the suspension is active, the total displacement of the passenger compartment is 110 mm (-60 mm / +50 mm). This decreases vibrations in the cab, increasing operator comfort during transport and work operations on even or uneven ground.

LOAD CAP: 6500
LIFT HEIGHT: 8.8
UNLADEN: 11200
TYRES: 500/70R24
WIDTH: 2400
HEIGHT: 2510
LENGTH: 5260
SIDE SHIFT (MM): 0
FRAME LEVELING (%): +/-8
ENGINE: FPT NEF45
EMISSION: TIER 2
CAP/CYL: 4500/4
ENG POWER KW/HP: 125/170
EPD: PLUS
HYDRO TRANS: SI-2V
MAX SPEED: 40
HYD PUMP: HF
PRESS L/MIN-BAR: 160-250
ASCS: FULL
CAB SUSP: YES
