Metered Transfer - Mobile Pumping Station - Liquids, Chemicals, Acids 10L to 1000L+

100% AUSTRALIAN MADE AND LOCALLY SERVICED

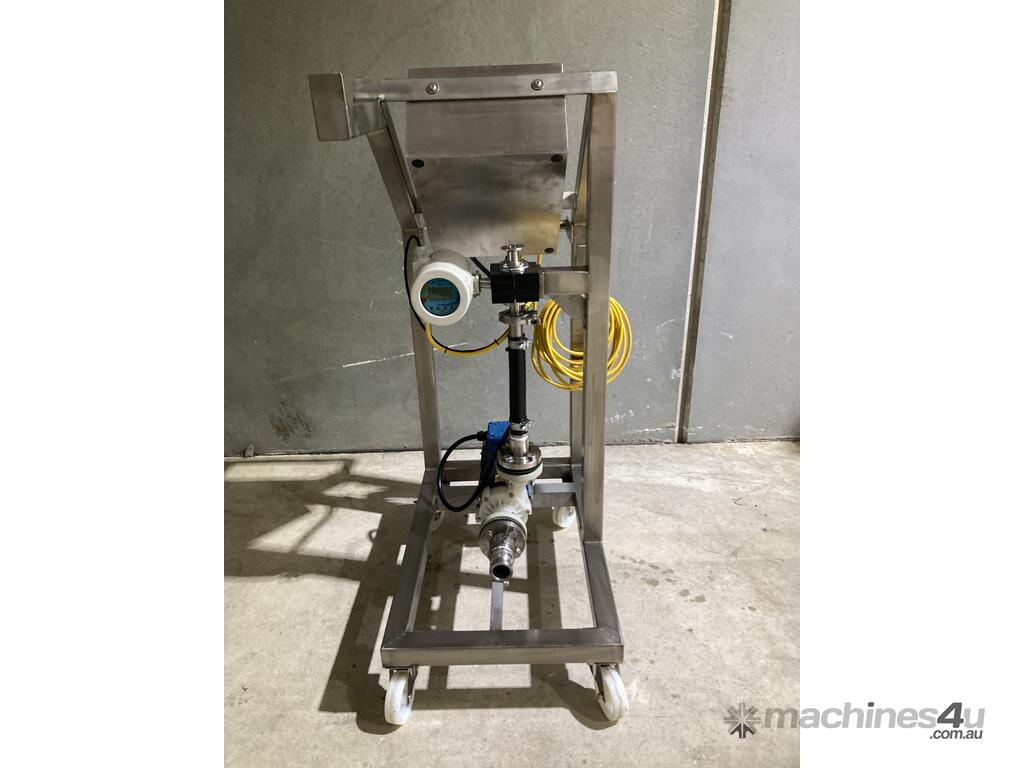

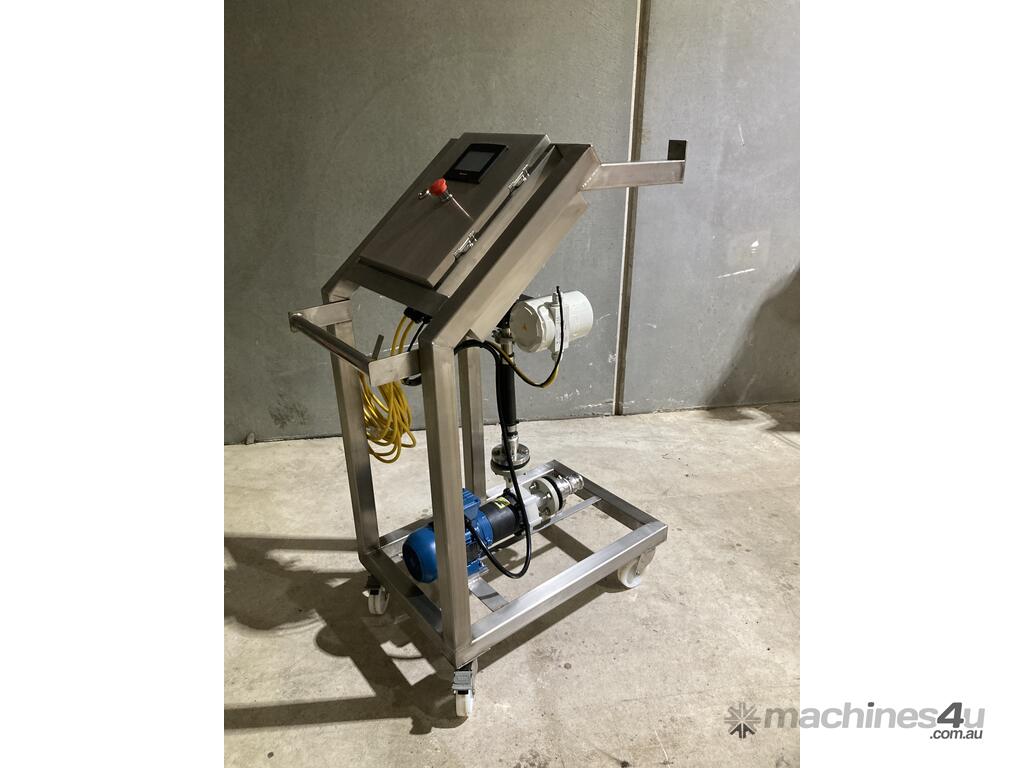

'Liquid Transfer Trolley' by Omicron Automation.
Designed and built by our team of engineers and tradesmen in Leongatha, Victoria.

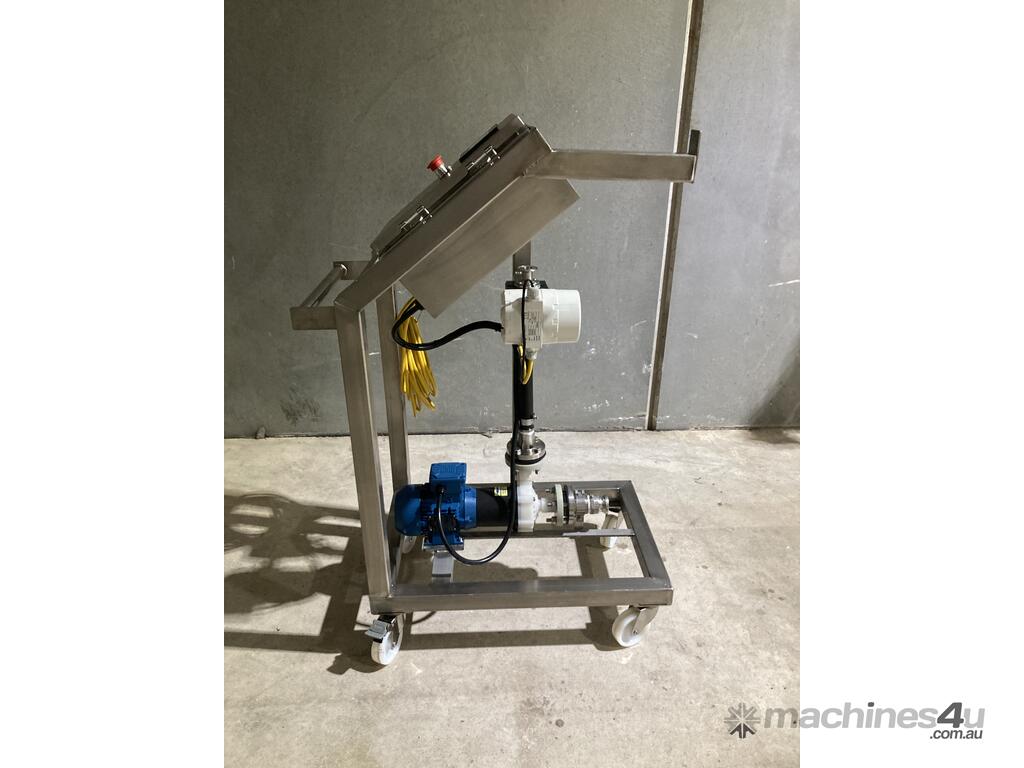

This mobile batching system is designed to make blending a breeze by accurately transferring volumes of liquid from IBCs, with minimal waste and mess.

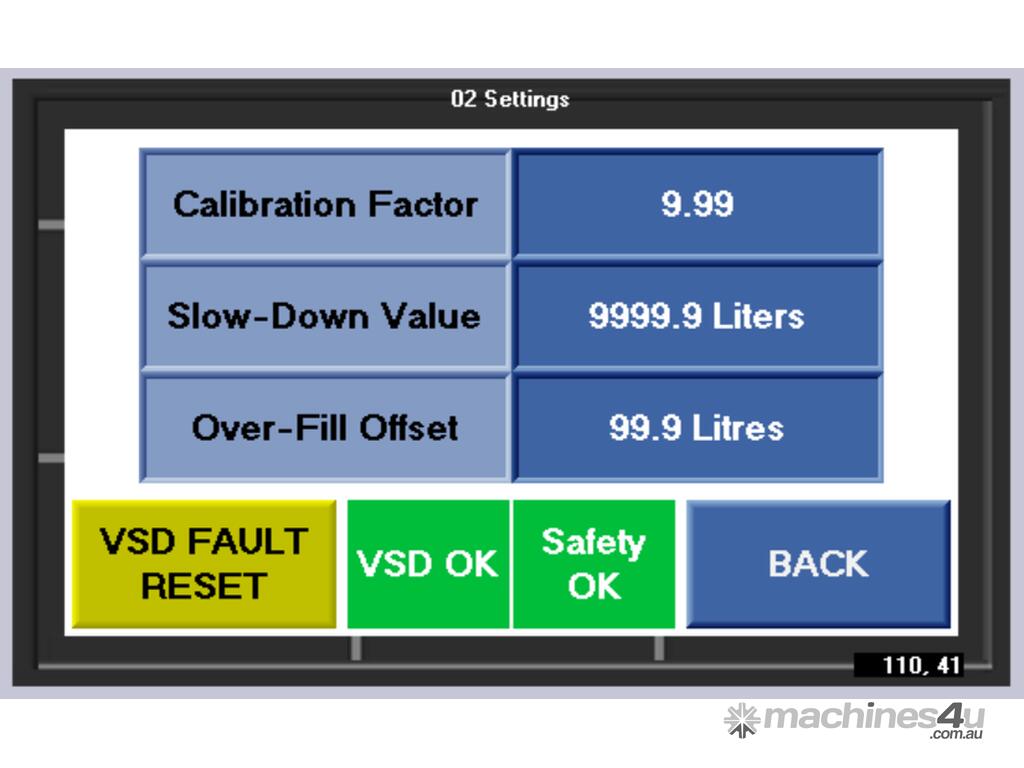

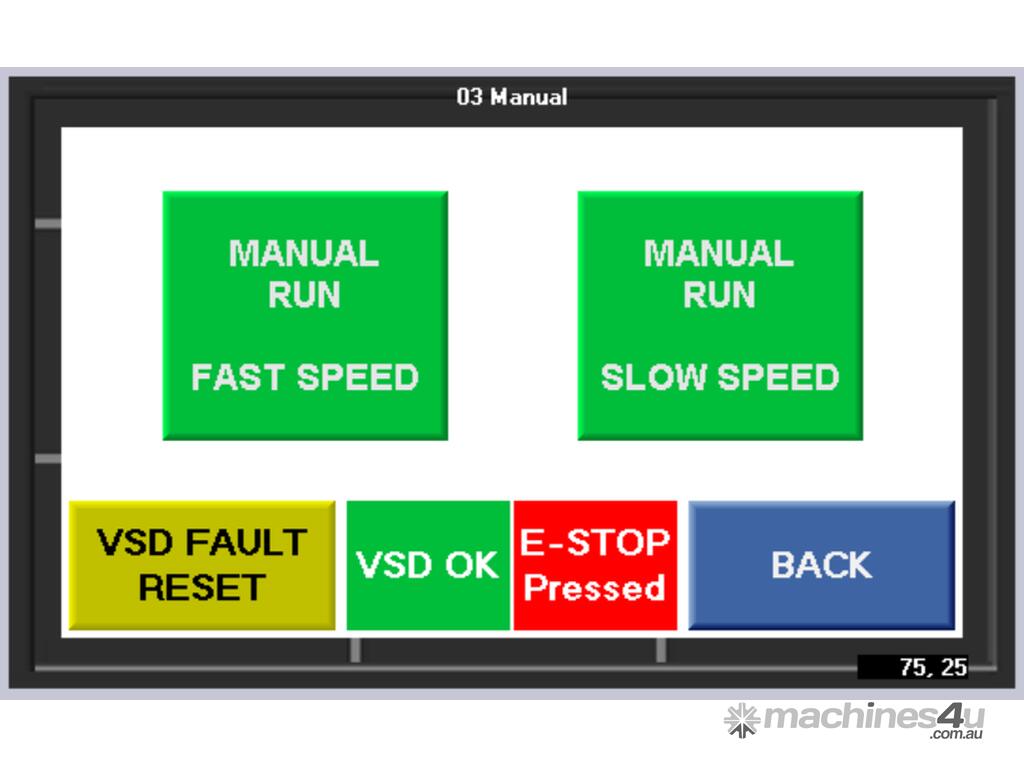

Equipped with a mag-drive centrifugal pump, a flow rate of 2L/sec is expected transferring low viscosity chemicals, including strong acids and alkalis such as nitric acid and sodium hypochlorite. Two speed pump control ensures transfer accuracy of +/-0.4L. A positive displacement pump option is available for use with less aggressive, higher viscosity products.

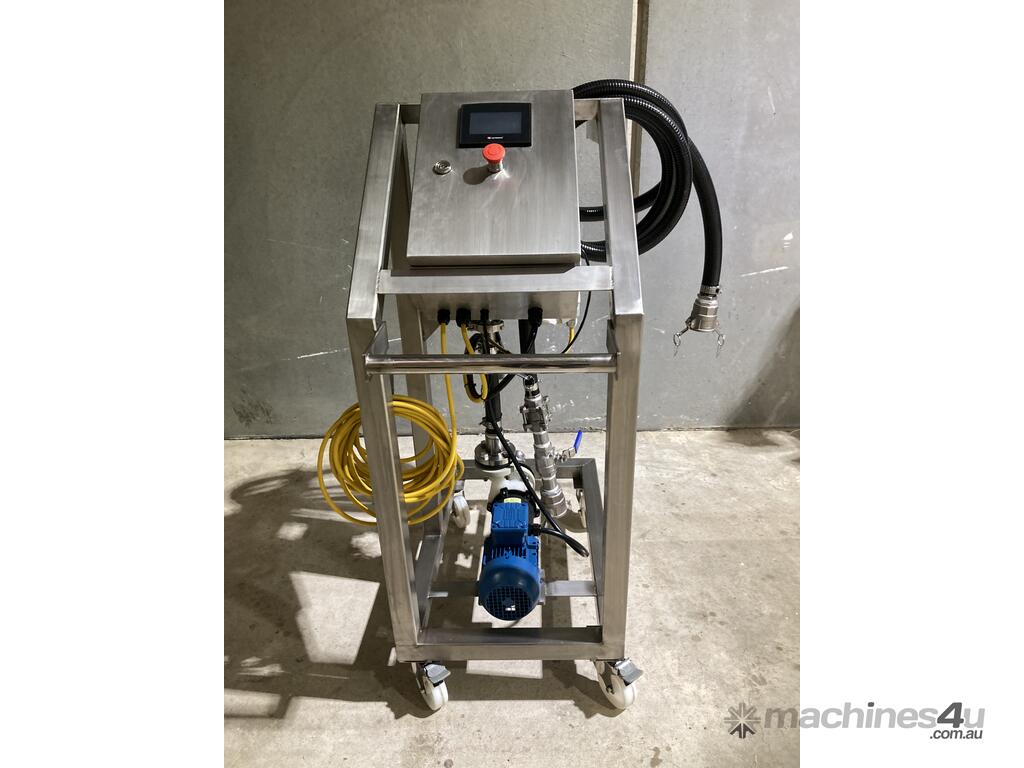

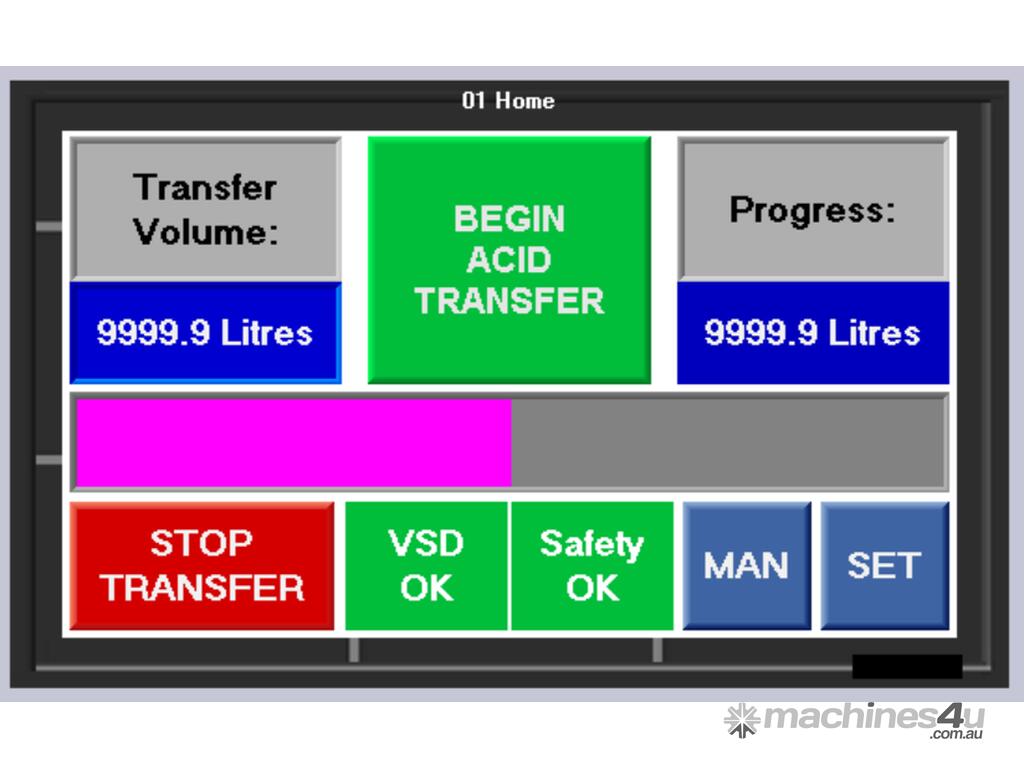

The 4.3in colour touch screen is intuitive and concise. With just a few 'clicks' an operator can set the batch quantity and start the automatic transfer. The screen displays the quantity successfully transferred in real time, along with a progress bar.

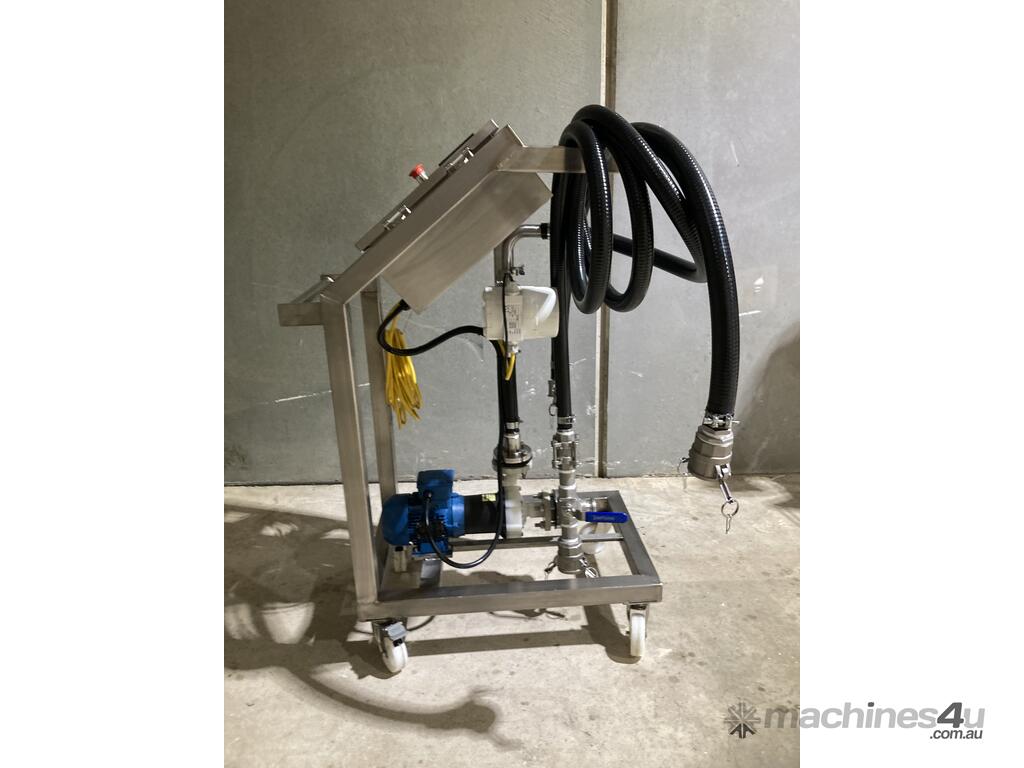

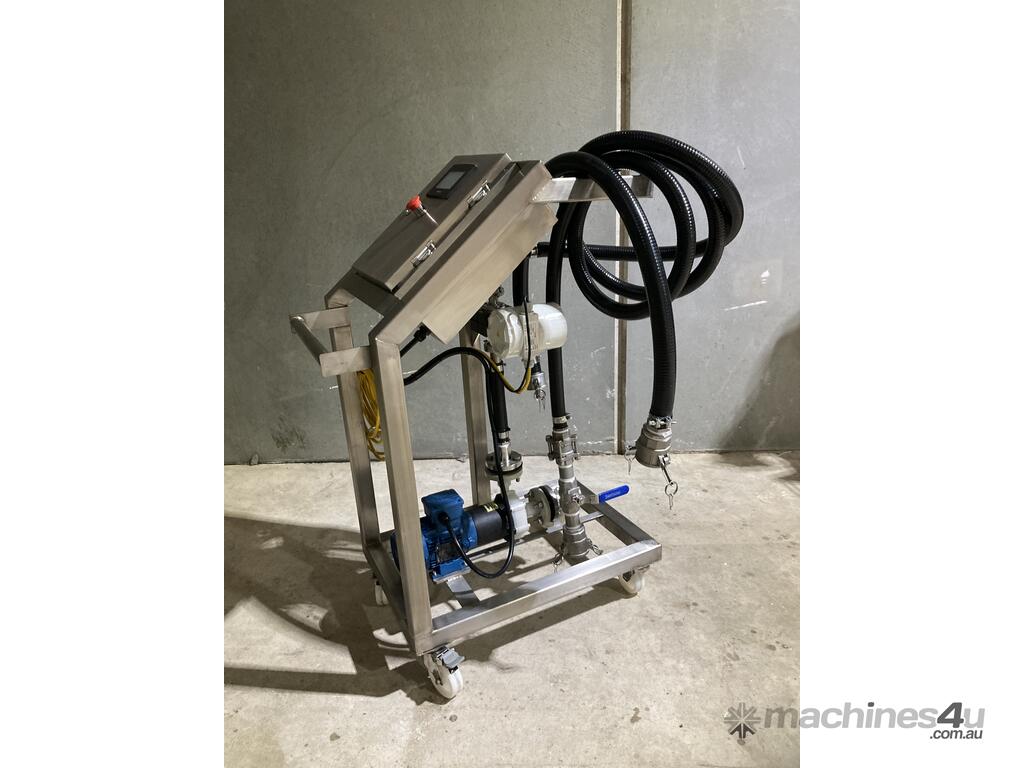

The system can be optioned with an inlet hose and outlet hose made from high quality chemical resistant material (as pictured). Camlocks, a check-valve and a manual ball valve, hold prime in the system and reduce the mess and wasted product associated with product transfer.

Built with high quality componentry, stainless steel, and specifically selected chemical resistant plastics, Omicron Automation's Liquid Transfer Trolley is a proven asset to any large or small liquid batching plant.
