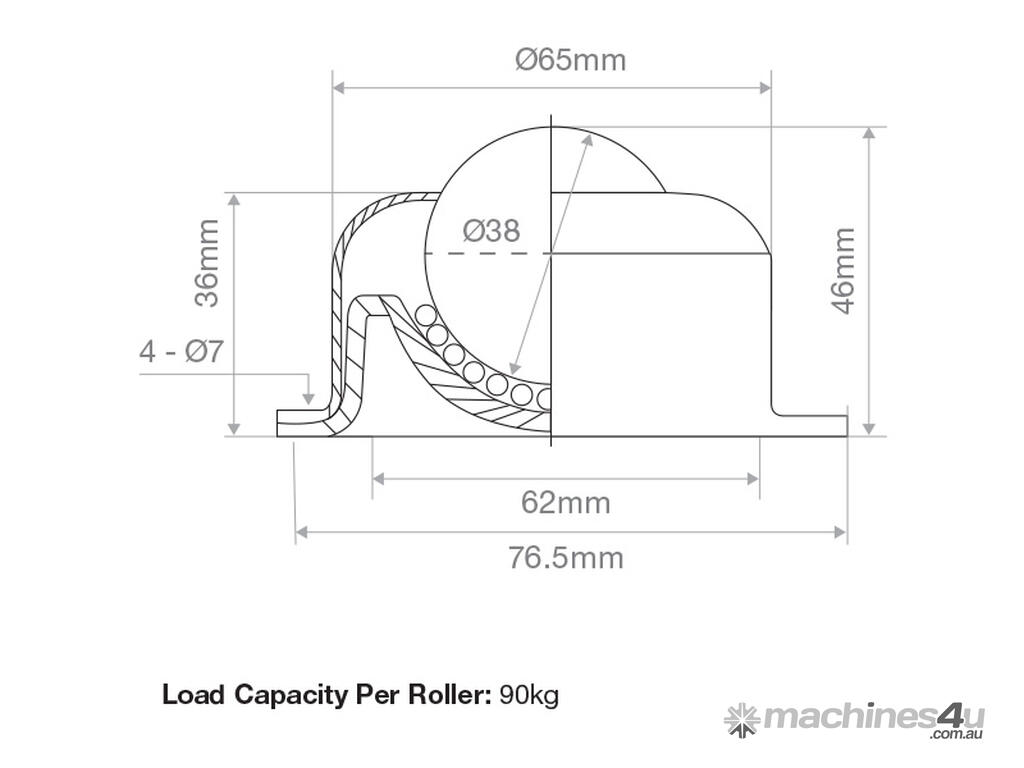

Mild Steel Square Flange Mount Ball Transfer 38.1mm Roller Diameter (BTR638MS)

Material: Mild Steel

Ball Diameter: 1.5? (38.1mm)

Overall Height: 45mm

Hole Centres: 62mm

Mounting Hole Diameter: 7mm

Load Capacity: 90kg


Also available in stainless steel, stainless steel part number BTR638SS
This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.

Commonly used around presses, guillotines and machining centres, Richmond’s Ball Transfer enable smooth and simple transfers of objects in any direction. Multi directional movement is essential where the need to move heavy loads is paramount. Consisting of a large load bearing roller sitting upon many smaller balls encapsulated in a cup the engineering in this design makes for a perfect transfer station from one conveyor to another. Richmond can customise ball transfer tables to suit your application whether the requirement is for a recessed transfer table or a multiple ball transfers in a designated area.
