Mill Turning Centre (Korean) - DL 4500LY

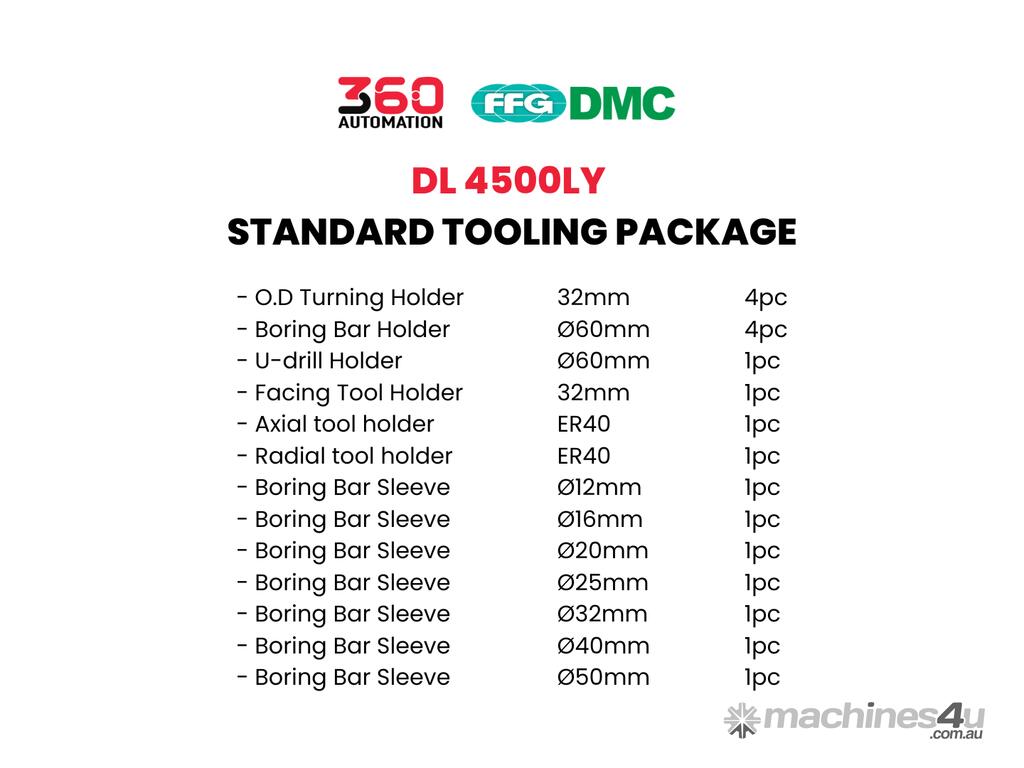

Amazing priced turn mill! Tooling included!

Maximum Swing (on the Bed): dia 1,150mm
Cutting Diameter (Maximum): dia 560mm
Maximum Cutting Length: 2,265 mm
Distance Between Center: 2,475 mm
Bar Capacity: dia 116.5 mm
Chuck Size: 457.2mm

Spindle Nose: A2-11 (ASA)
Bore Diameter: dia 132 mm
Main Spindle Motor: 30 / 37 kW (40/50 hp)
Spindle Speed: 2,000 rpm with 457.2mm chuck
Spindle Torque (30 min. rating): 300.4 kg.m

Main Spindle Motor: 7.5/5.5kW
X-axis Servo Motor: 1.6kW
Z-axis Servo Motor: 1.6kW

"X" Axis Travel: 350 mm
"Z" Axis Travel: 2,330mm
"Y" Axis Travel: ±80mm
Rapid Traverse "X": 20 m/min
Rapid Traverse "Z": 18 m/min
Rapid Traverse "Y": 10 m/min
Guide Ways (X / Z / Y): Box way
Bed Structure: 30degrees Slant bed

Number of Tool Stations: 12 Tools/12 stations / BMT75
Tool Size (Turning and Facing): dia 32 mm – wedge clamp
Tool Size (Boring Bar Max. Diameter): dia 60 mm
Tool Size (Radial/Axial Milling): ER40

Options on this machine:
Air blow
A/C
Air gun
Chip conveyor
Coolant gun
Coolant pump power up to 1.8kW
Tool presetter (Renishaw, HPRA)
Transformer
CF memory card 1GB


Who is FFG DMC? Part of the largest machine tool company in the world.

FFG DMC stands as a renowned name in the CNC machining industry, renowned for its precision engineering and innovative solutions. Since its inception, FFG DMC has been dedicated to delivering top-quality machinery to meet the evolving needs of manufacturers worldwide.

360 Automation and FFG DMC Partnership.

In a significant collaboration, FFG DMC has joined forces with 360 Automation to extend the reach of its advanced CNC machines. As an appointed representative of FFG DMC, 360 Automation ensures businesses receive comprehensive support, from initial consultation to installation and beyond. This partnership underscores a shared commitment to delivering cutting-edge technology and unparalleled service to clients across various industries.
