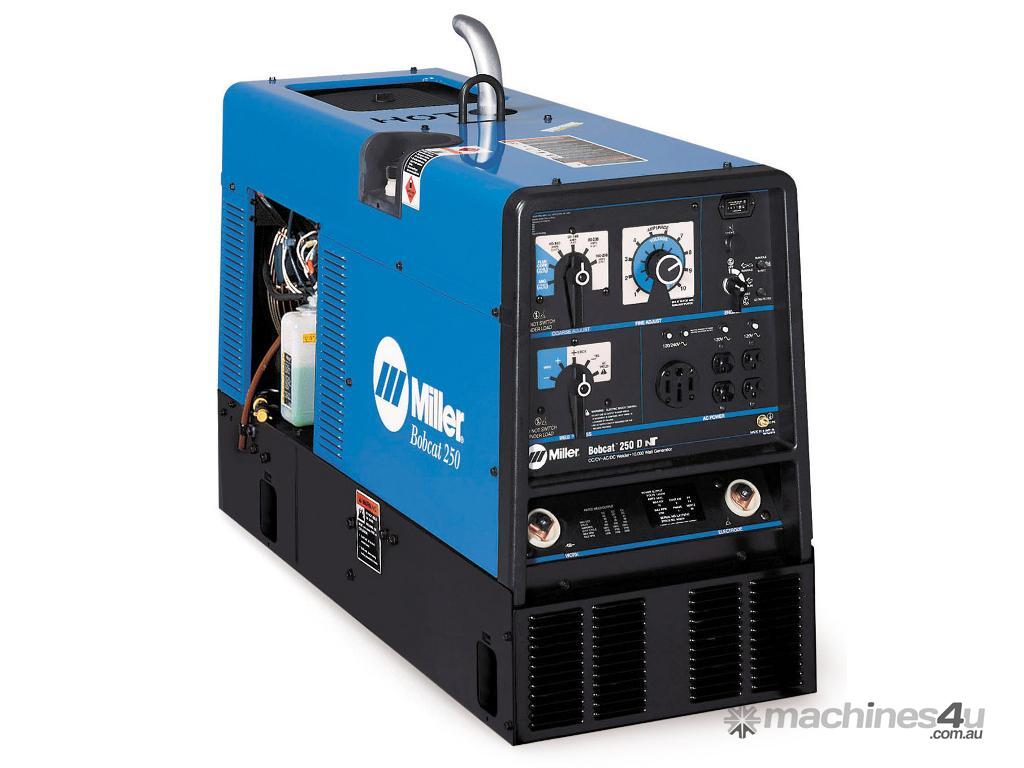

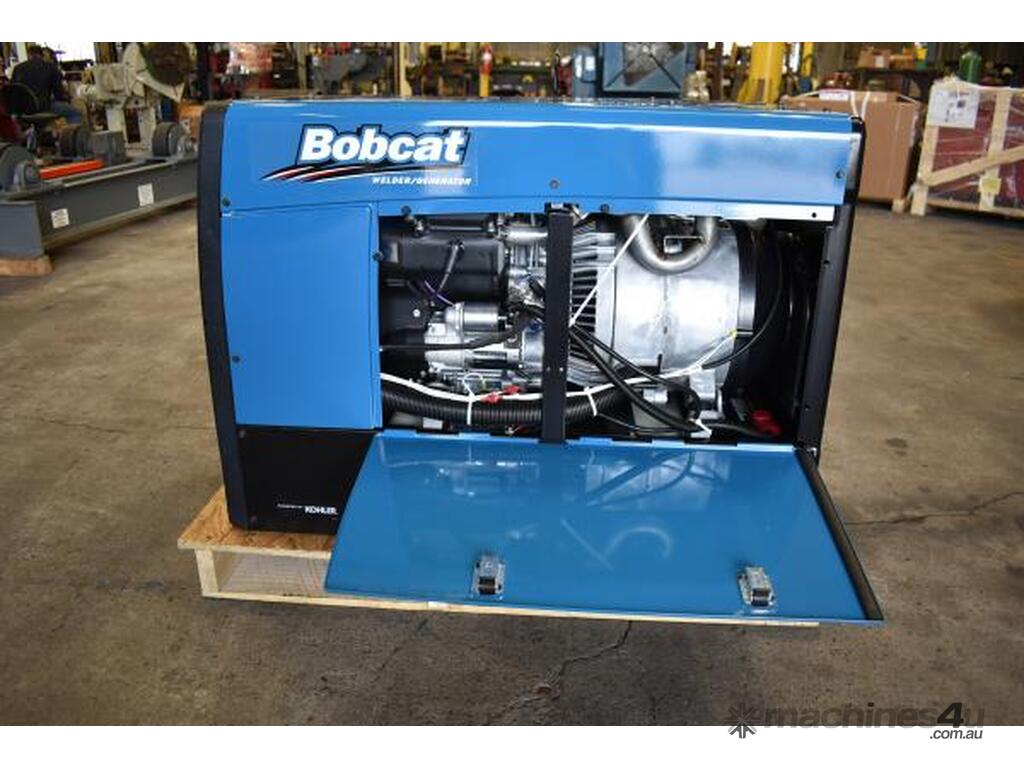

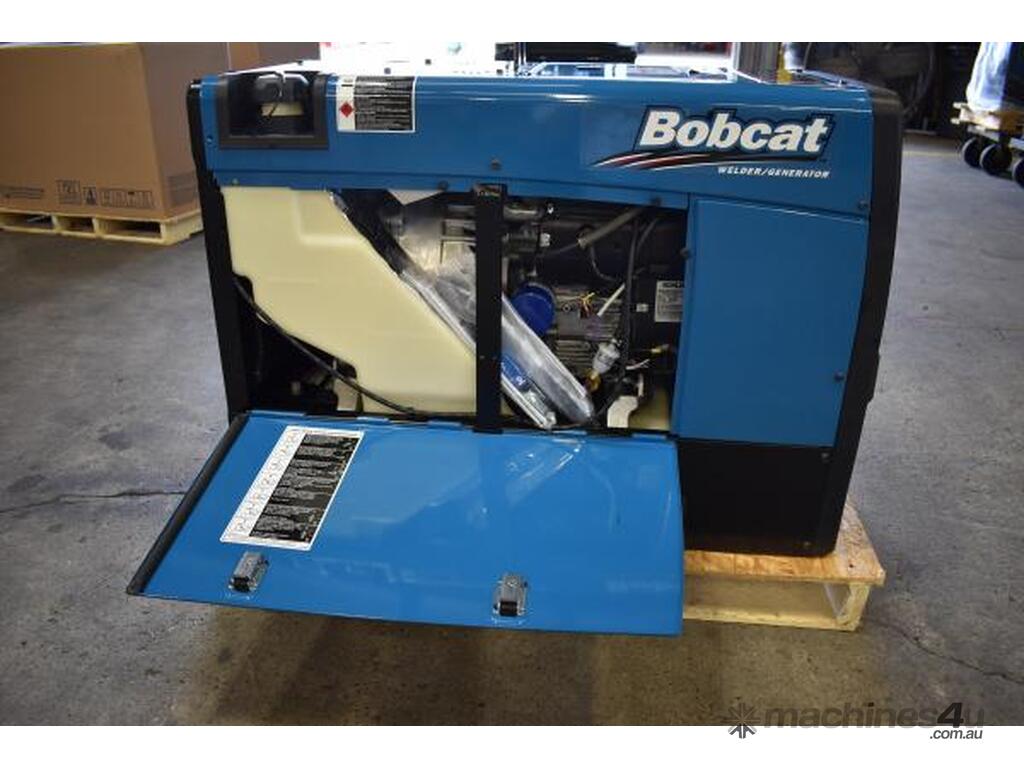

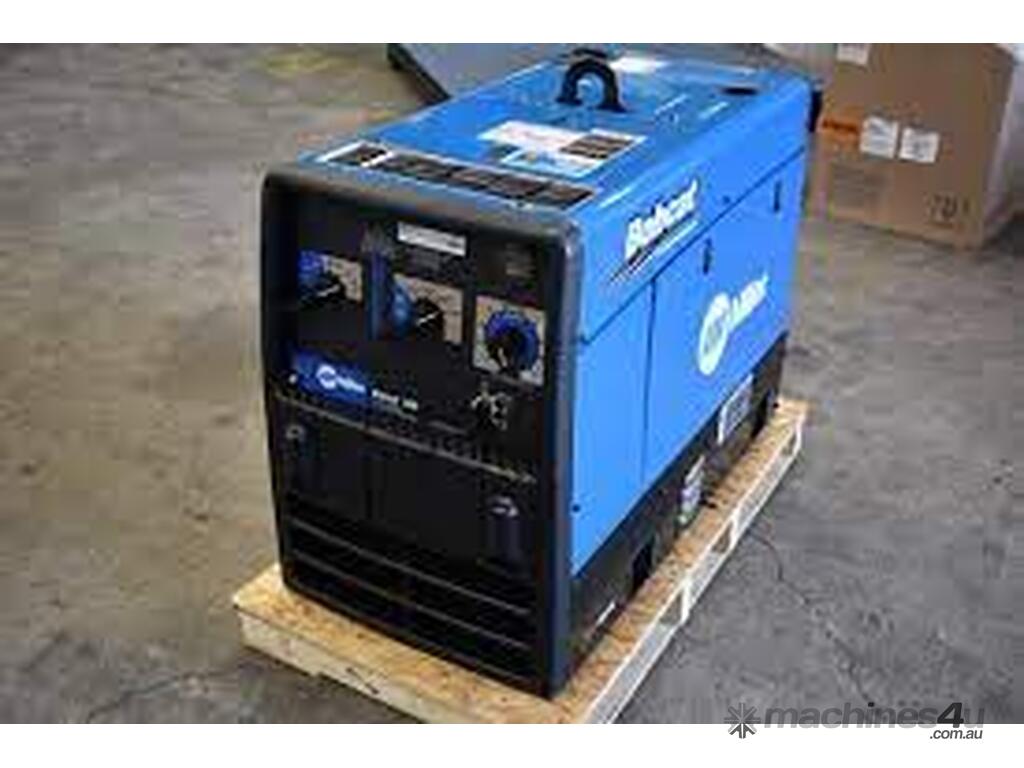

Miller BOBCAT Diesel 250

DESIGNED FOR MAINTENANCE & REPAIR, CONSTRUCTION, RURAL & GENERATOR USE.

-BOBCAT 250 DIESEL SPECIFICATIONS-
> Engine: Diesel, Kubota D722, 19 HP at 3,600 RPM
> Stick/TIG: DC/AC: 250 Amps 25 Volts, 100% Duty Cycle
275 Amps 25 Volts, 60% Duty Cycle
> Welding Amperage Range:
40 - 275 Amps
17 - 28 Volts
> Generator power: 11,000W Peak, 9,500W Continuous
> Dimensions: H870mm x W508mm x D1321mm
> Weight: 318kg

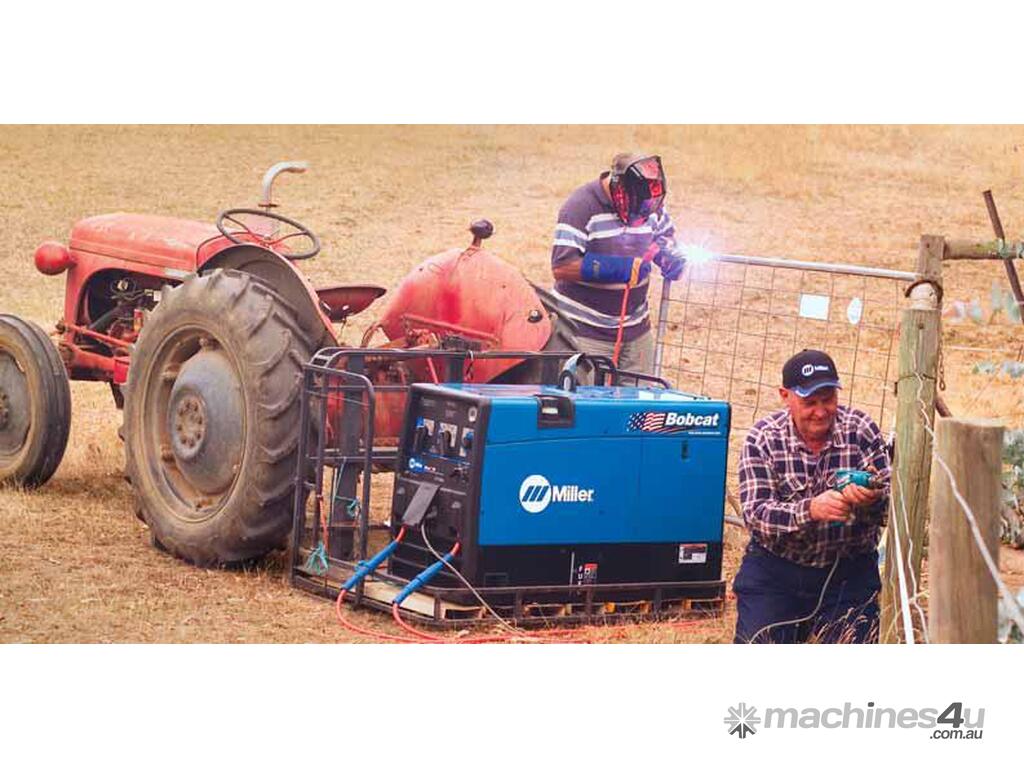

-APPLICATIONS-
> Maintenance
> Repair
> Rural
> Fabrication
> Structural Steel Work
> Stand-Alone Generator

-DESIGNED FOR RELIABILITY-
> Copper winding's and iron generator components for a quality-built machine.
> Lugged - not soldered - heavy internal leads for better fi eld durability.
> Superior cooling technology for maximum performance and engine life.
> Super-tough Armour to protect the welder/generator from accidental impact.
> Lift hook integrated into the center frame, which bolts to the machine’s base for greater durability.

-LONG RUNTIMES-
Large 45L fuel capacity means many hours of run time before refueling.

-VERSATILE AC AND DC WELD OUTPUT-
Provides quality welds on all types of metals. DC is smooth and easy to run while AC Stick is used when arc blow occurs.

-MULTI-PROCESS CAPABILITY-
> Stick (SMAW)
> Flux-Cored (FCAW)
> MIG (GMAW)
> DC TIG (GTAW)
> Non-Critical AC TIG (GTAW)
> Air Carbon Arc (CAC-A)
> Cutting and Gouging (4.8mm Carbons)

-SMOOTH GENERATOR POWER-
Revolutionary ten-degree skewed rotor design optimises generator performance.
Typical equipment which can be run includes hand tools,circular saw, air compressor and fl ood lights.

-AUXILIARY OUTPUT-
> 2 X 15 Amp Sockets.
> 1 X 50 Amp Hubbell.

-3 YEAR WARRANTY-
