Table Size 1370 x 254mm
Travel 865 x 420 x 400mm
Motor 5hp 3ph 415v
Speed 60-4500rpm Variable
Quill Diameter 105mm
Quill Travel 130mm
Nose to Table 446mm Max
Nose to Column 690mm Max
Head Swivels +/-90deg left to right
Head Tilts +/-45deg Front to rear
Table slot 14mm

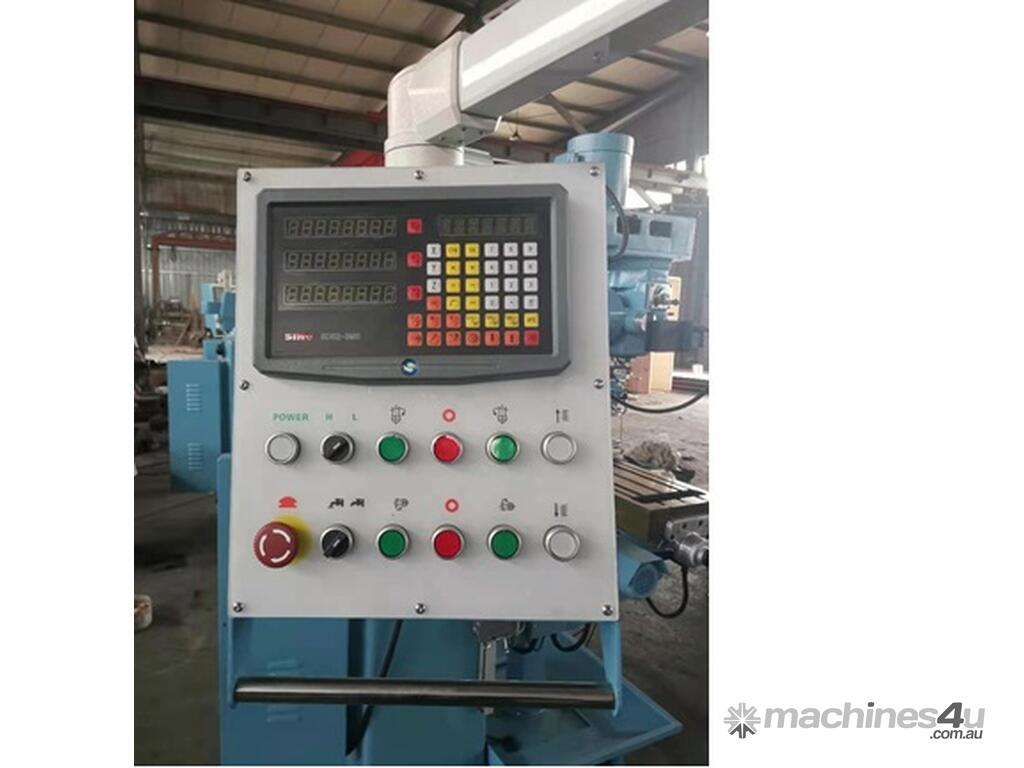

3 Axis Digital Readout
Ball Screws on X & Y direction

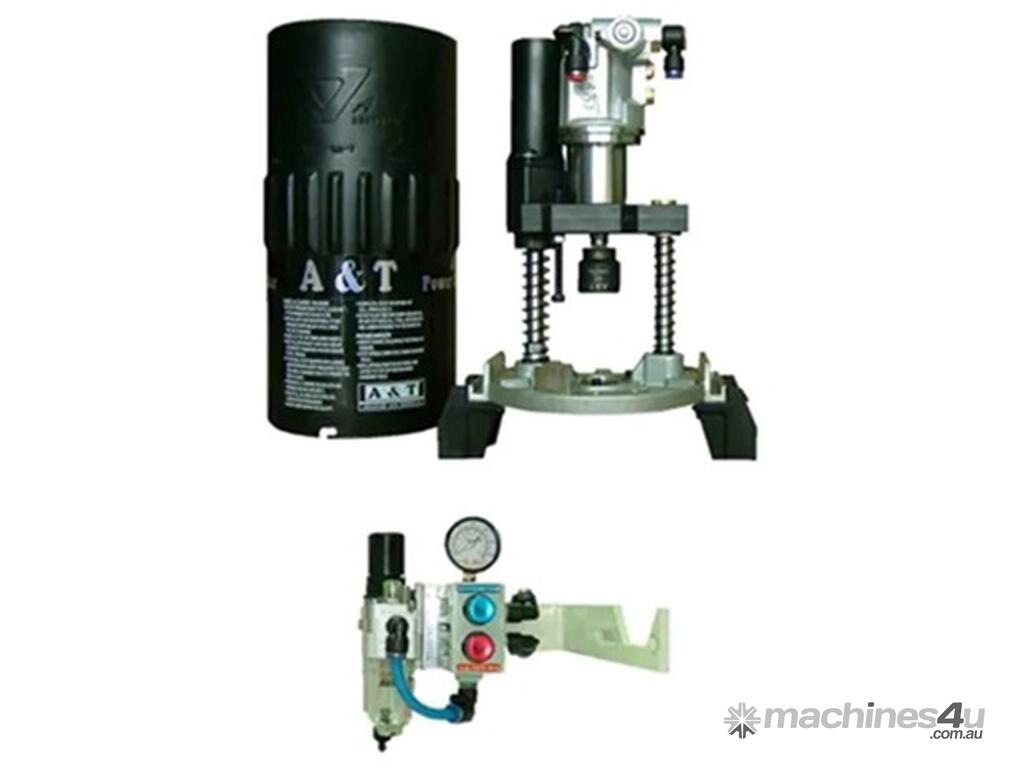

Pneumatic Drawbar
Coolant System
