Mine spec Pressure Washer Trailer - YANMAR 10HP Diesel - 4000psi 13LPM - 5 year warranty

MINE SPEC PRESSURE WASHER TRAILER-AVAILABLE NOW FOR IMMEDIATE SALE.
Designed and built for the mining and civil industries with performance and maximum operator safey. Available in civil and mine spec versions.

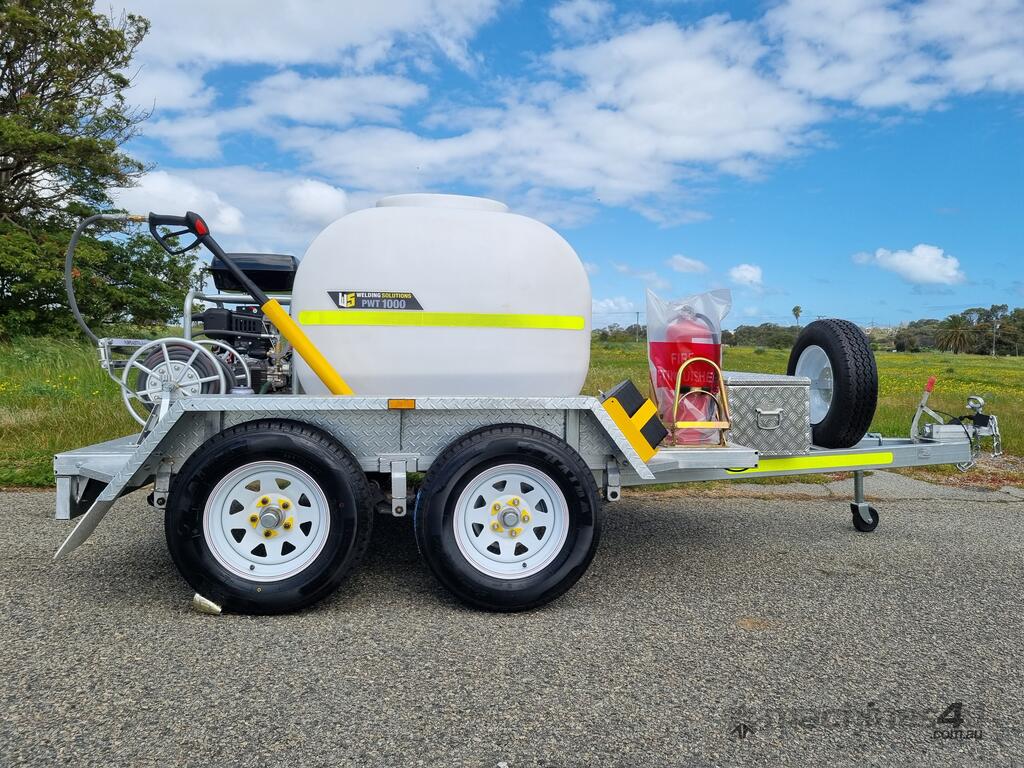

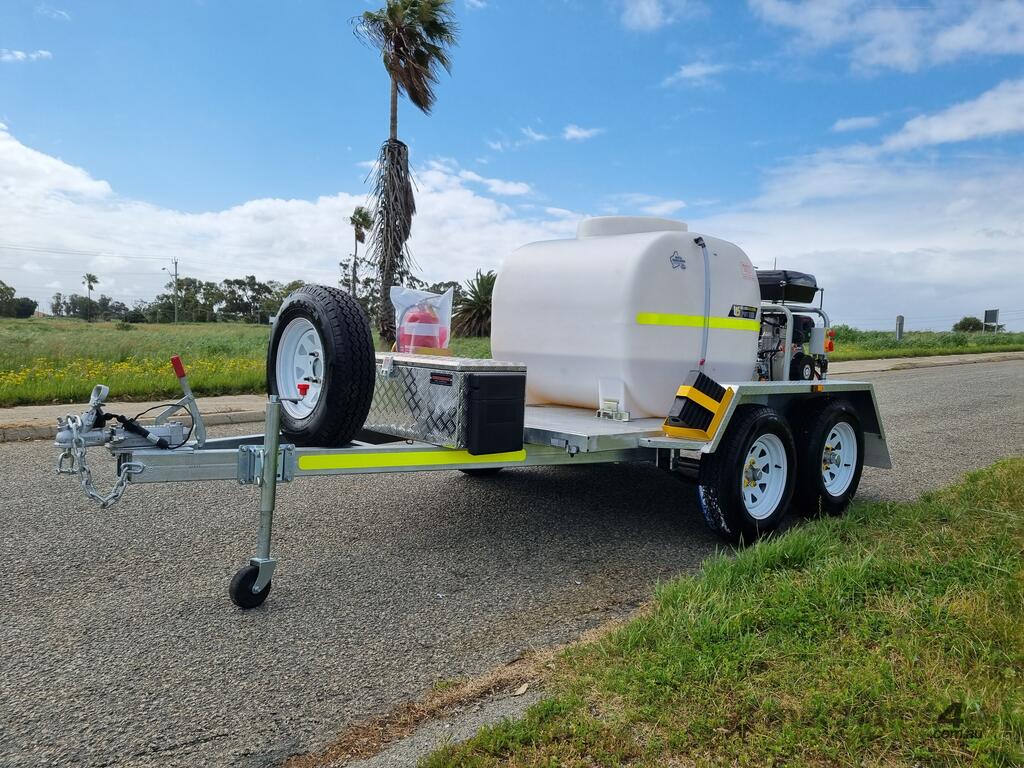

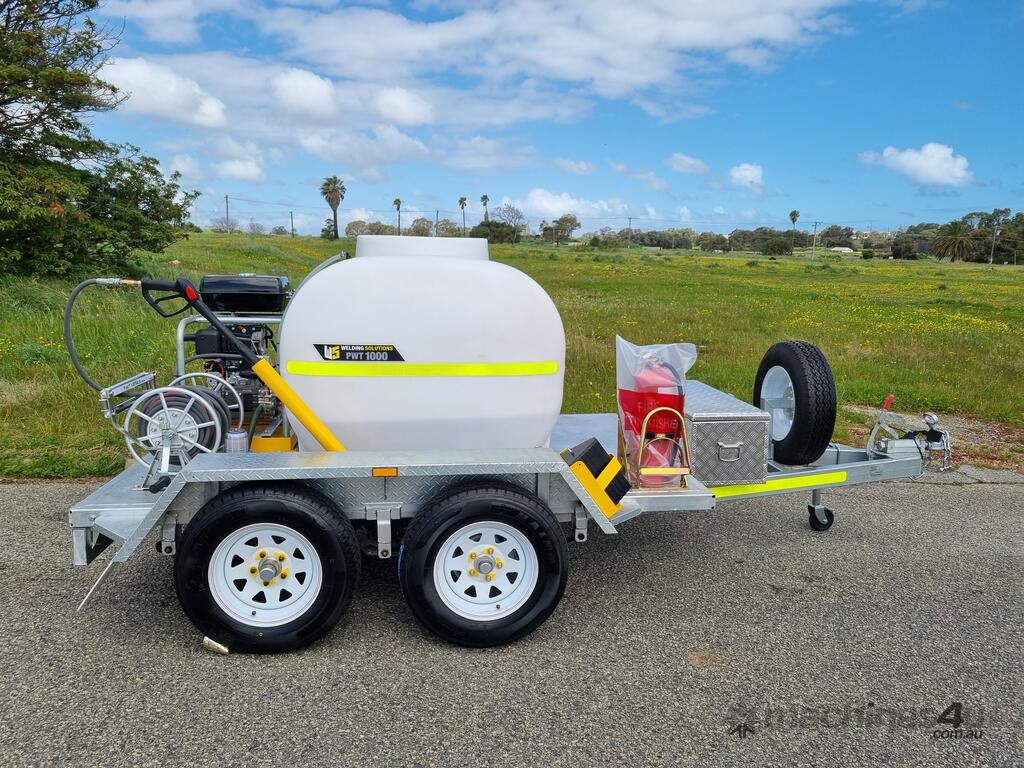

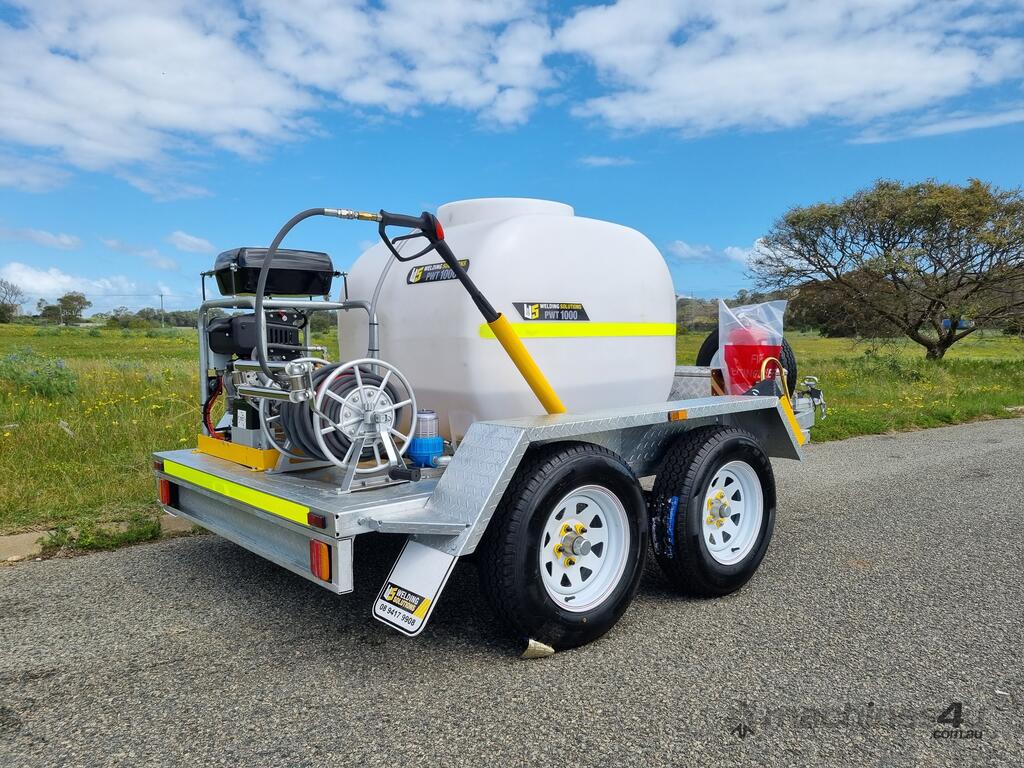

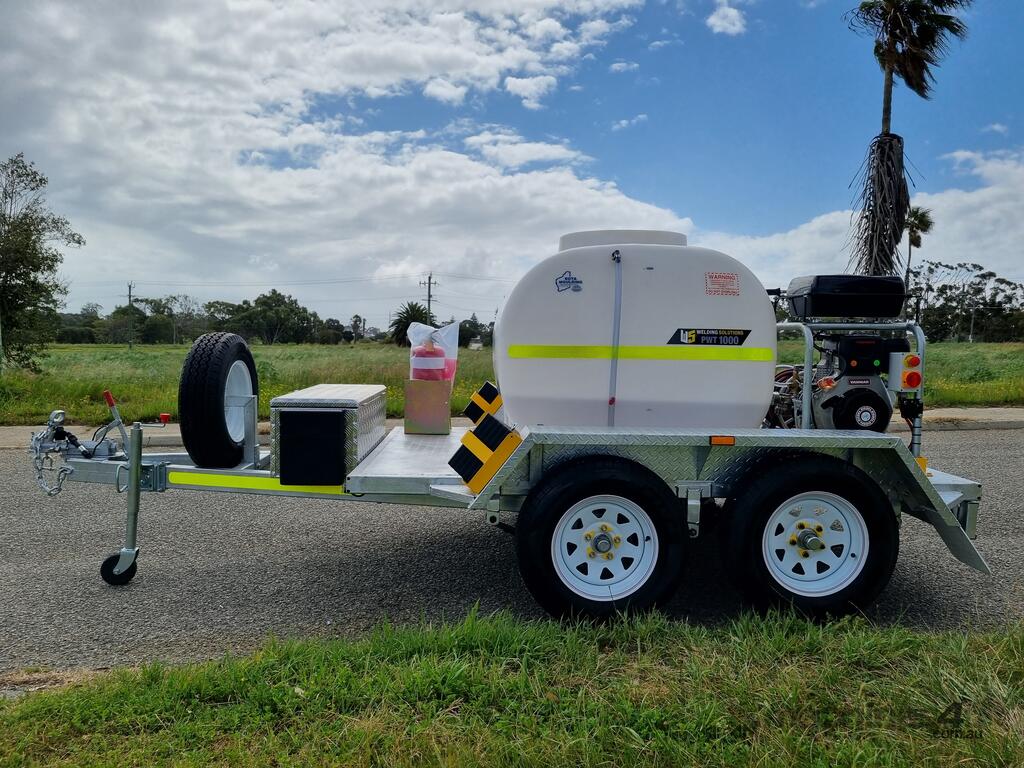

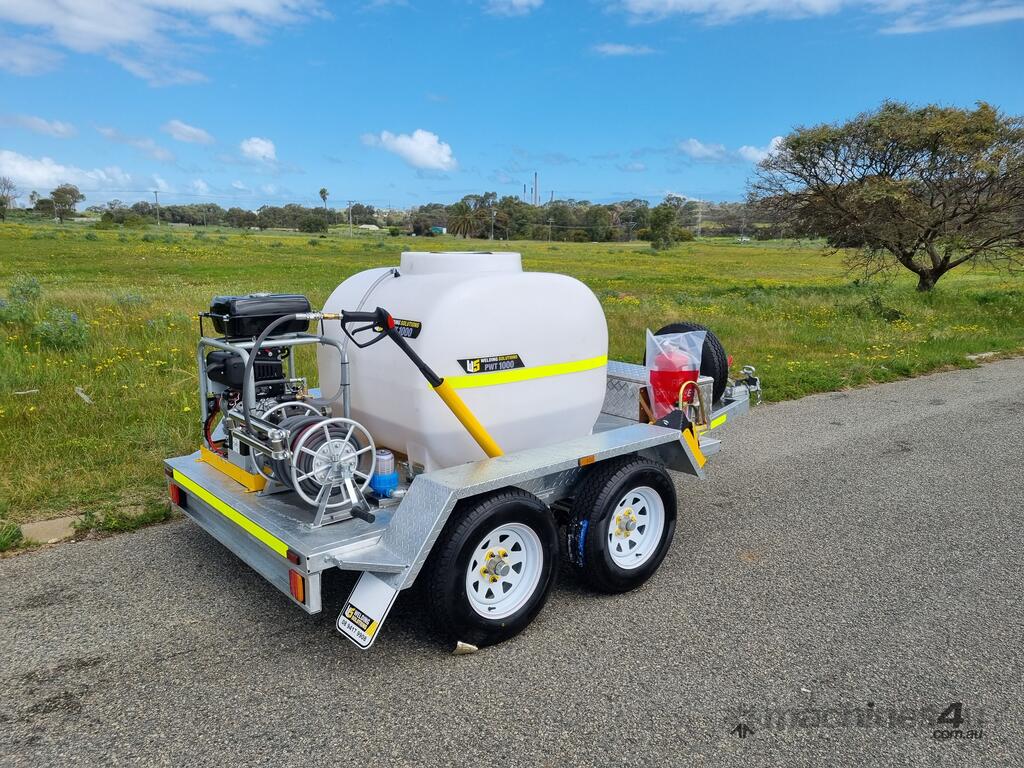

Specifications for New 2024 1000L pressure washer trailer.

Trailer -

Tandem axle flat top
• Fully welded hot dipped galvanised
• 300mm box sides
• Atm 1990kg
• Double heavy duty round axle 50mm Solid
• Mechanical disk brake
• 7 Leaf Spring 1500 kg rating
• 14” Commercial rated tyres
• Solid checker plate floor and guards 2.5mm

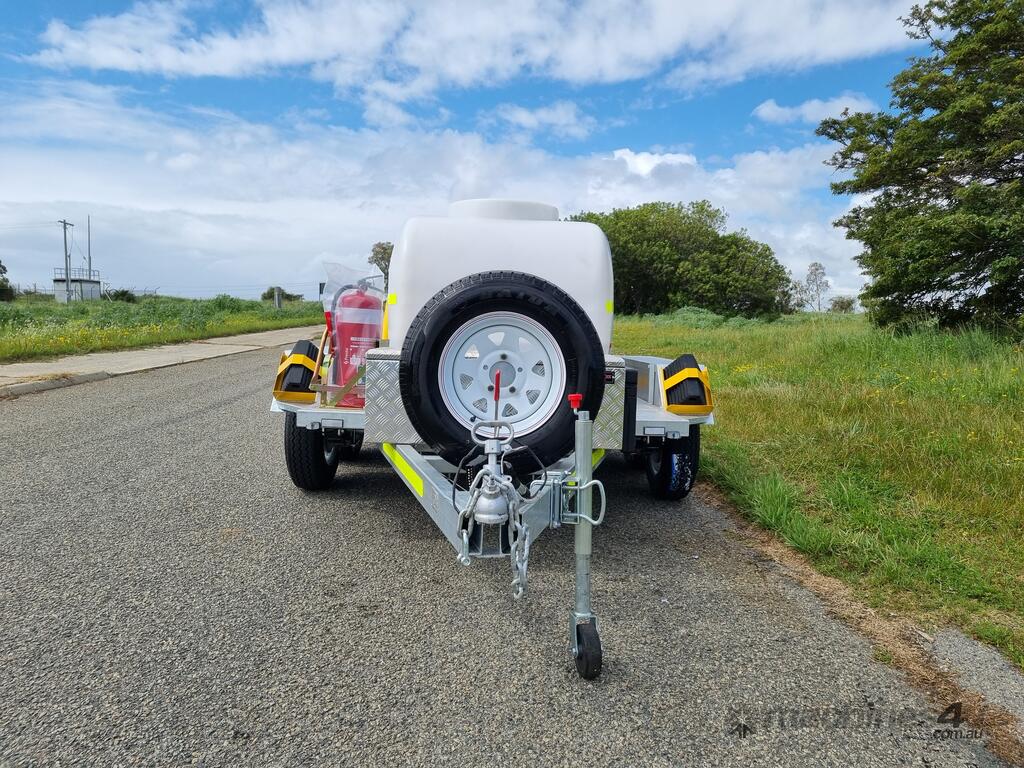

• Heavy duty swing up jockey wheel
• LED Rear lights
• Spare wheel on bracket at front
• 7 pin round plug
• 1 months structural warranty on trailer

Water tank
• 1000 Litre Poly water tank mounted to trailer
• Litres marked on rear of tank
• Clear sight gauge at one end of tank.
• Tested all water pump functions with water before delivery
• 5 Year Warranty on Poly Tank

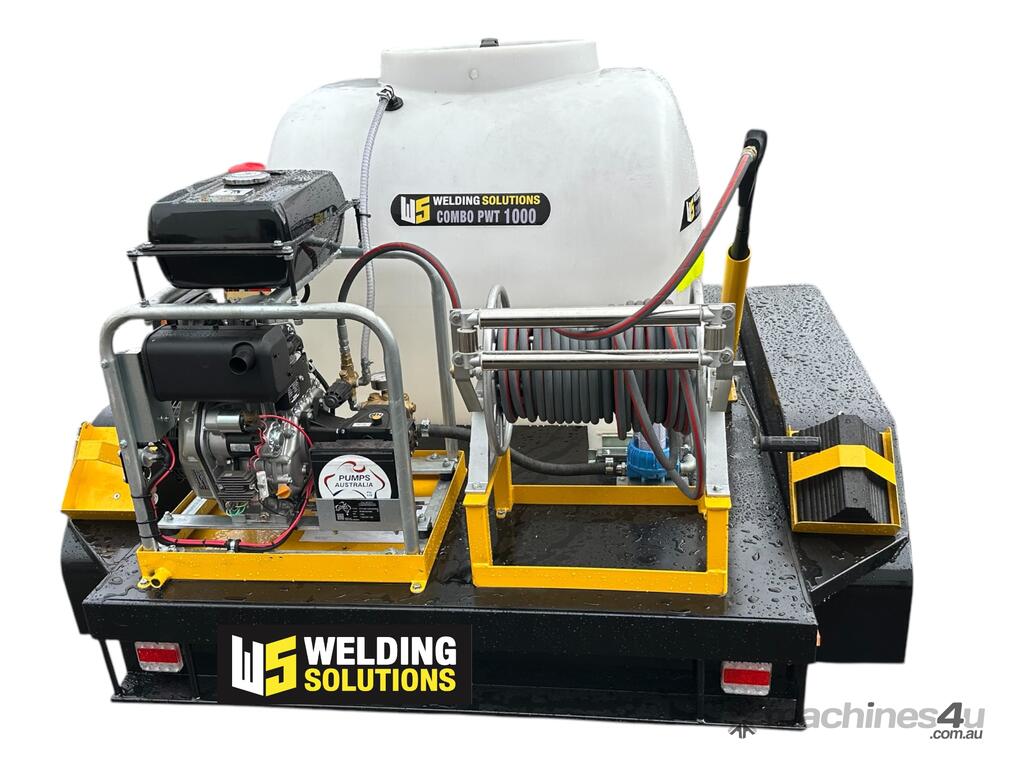

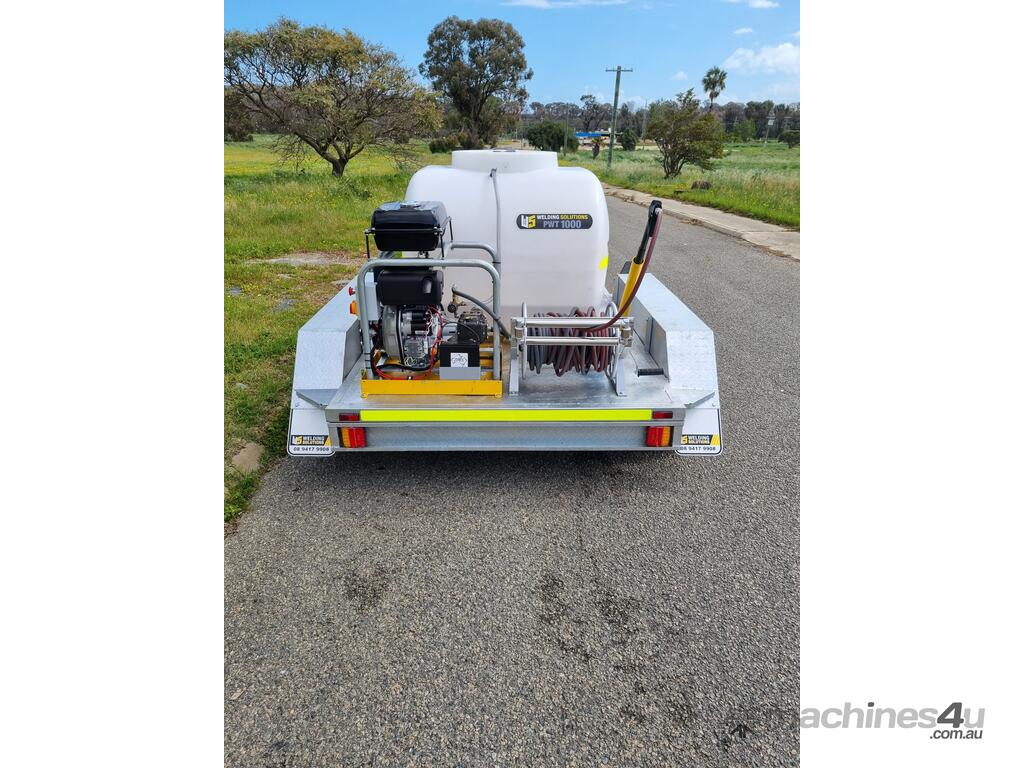

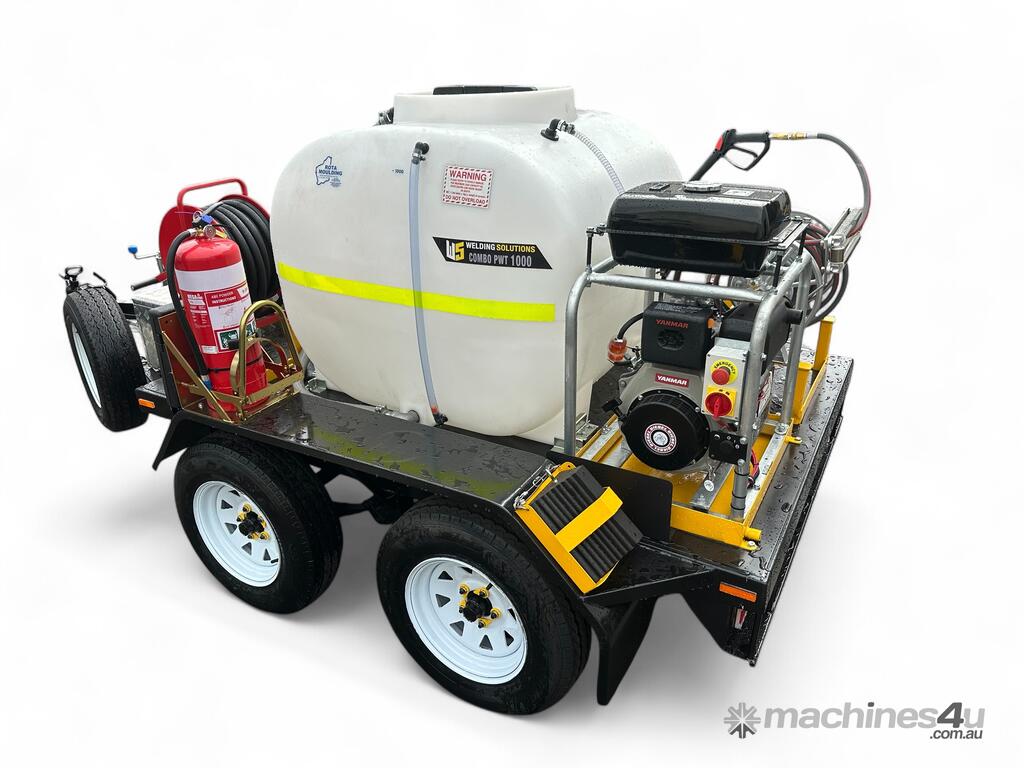

Pressure washer pump- High pressure
• L100 YANMAR 10HP Diesel engine electric start
• 4000psi 13LPM
• Long range 15ltr fuel tank
• Industrial Grade AR pump with ceramic pistons, stainless steel valves
• Relief valve and unloader valve with hose plumbed to return to tank to protect pump
• Heavy Duty hose reel with 30 metres of 3/8” high pressure hose
• Stainless-steel high-pressure lance
• Galvanised engine mounted frame with vibration mounts

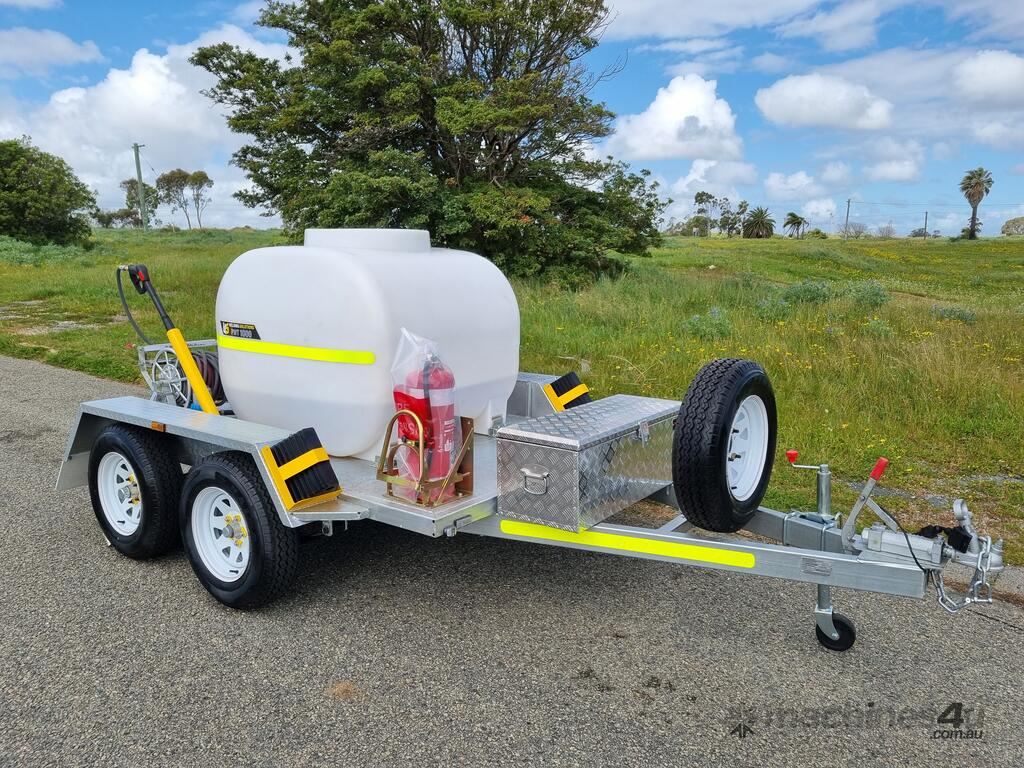

Mine Spec Options Included in build
• 9 KG tested and tagged fire extinguisher fitted with bracket

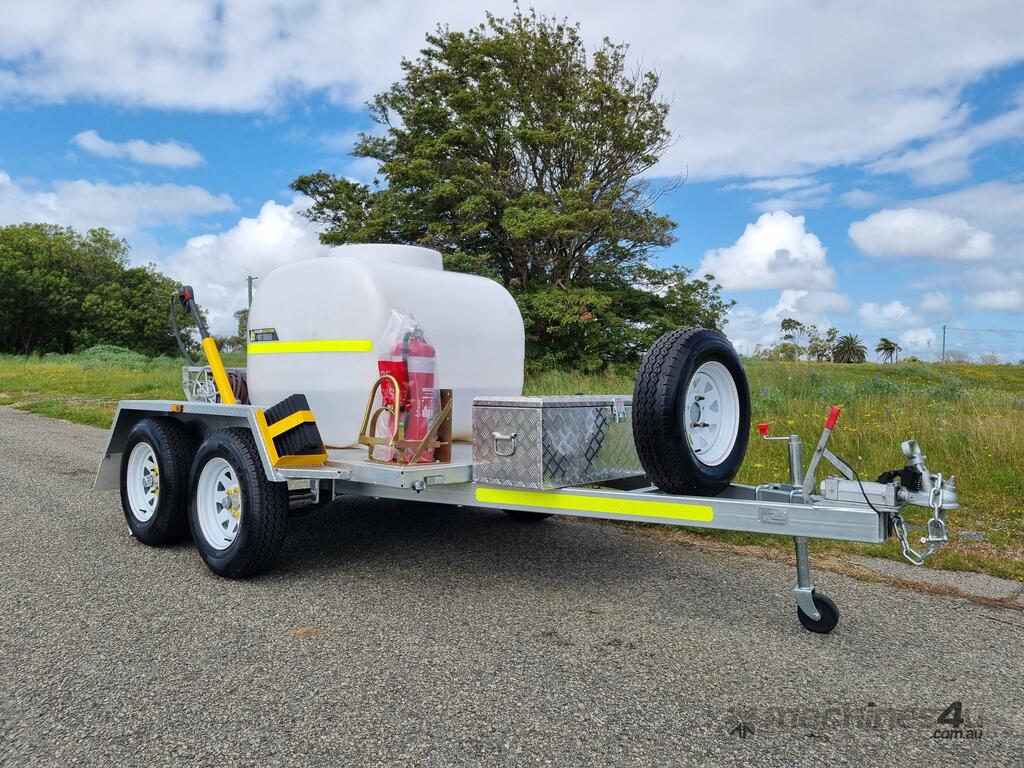

• Front mounted Aluminium tool box
• Emergency stop fitted to water pump
• Battery isolator fitted to water pump
• MSDS Document Holder
• Reflective tape 50 mm wide around the trailer
• Turbo nozzle for pressure washer
• Inline water filter fitted
• Pressure gauge fitted
• 2 x Wheel chocks fitted
• Bunding tray to hold 110% of pump engine fluids
• Wheel nut indicators

NOTE – TRAILER IS NOT SOLD AS REGISTERED
Please advise at time of order If trailer is to be road registered in WA – as licensing fees will apply. 12 Months licence/pit pass $450+GST
Plus government stamp duty ( 3%) based on total price.


Welding Solutions is an industry leader in water truck manufacturing due to our high-quality innovative designs. We supply to Australia’s largest Mining, Civil and Plant Hire companies.
Our water trucks are manufactured in Australia at our fabrication facility in Bibra lake WA. Postproduction our water trucks undergo stringent testing to ensure they can operate efficiently in the harshest of Australian conditions.
We can supply a turnkey water truck package ready to go or we can manufacture to suit specific client requirements.

Go to the Weldiing Solutions showroom on Machines4u to see the rest of our equipment, send us a message about the item or vehicle you are interested in, or give Welding Solutions a call - we are happy to answer any of your questions.

*CLICK ON THE PDF SPEC BROCHURE FOR MORE INFORMATION *
