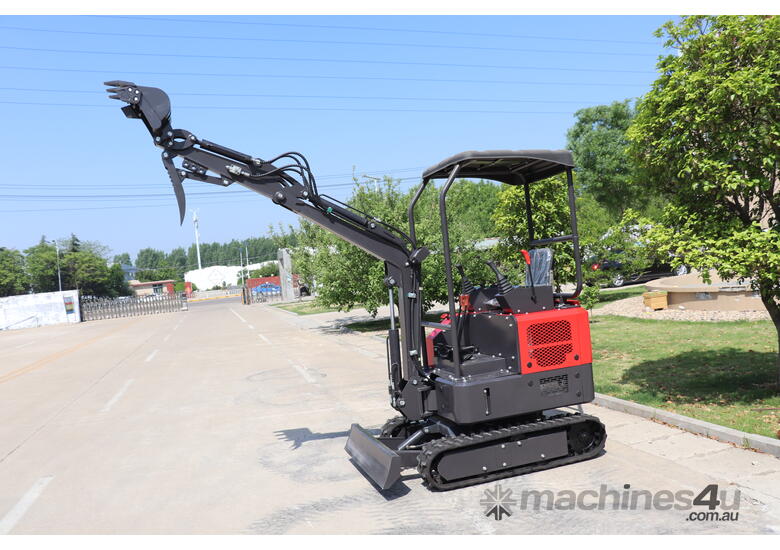

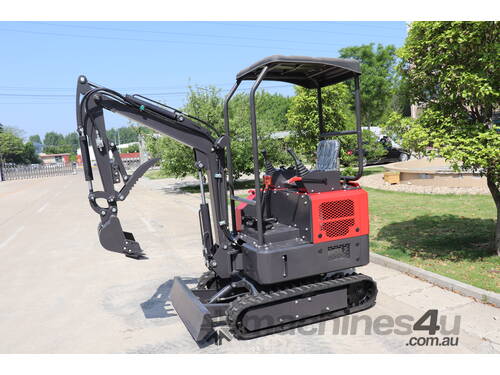

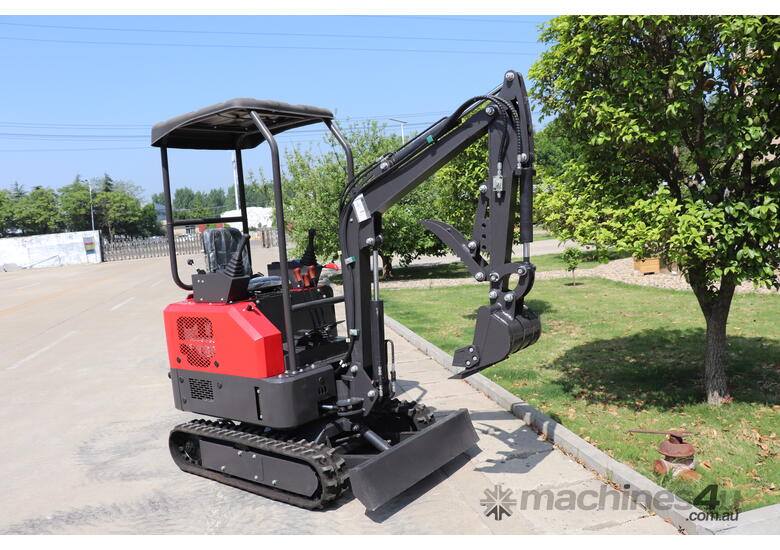

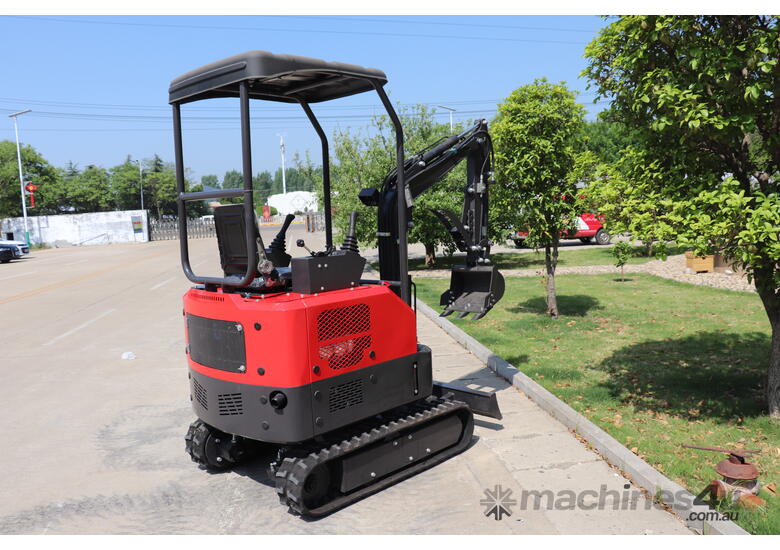

Mini Excavator 1.7T Swing Boom with 8 Attachments

Introducing the Sirocco Machinery Mini Excavator – Your Versatile Partner for Construction, Family, and Farm Projects

Engineered for efficiency and reliability, this mini excavator is perfect for a range of tasks from heavy lifting to precise digging, making it ideal for construction sites, family projects, and farm work. Now featuring a remote control function, this mini excavator offers enhanced convenience and safety, allowing you to operate the machine from a distance.

General Specifications
Operating Weight: 1700 kg
Bucket Capacity: 0.03 m³
Working Device Form: Excavator
Weight: 1300 kg

Engine Specifications
Model: Changchai ZN390Q
Rated Output Power: 28.5 KW
Maximum Torque: 2200 r/min

Performance
Maximum Travel Speed: 4 km/h
Slewing Speed: 9 rpm
Maximum Climbing Ability: 30°
Maximum Digging Force: 8 KN

Dimensions
Total Length (Transportation): 2480 mm
Total Width: 1120 mm
Total Height (with/without ceiling): 2320/2150 mm
Bulldozer Blade Width: 1120 mm
Bulldozer Blade Height: 220 mm
Maximum Cleaning Depth: 240 mm
Maximum Ground Clearance Height: 150 mm
Caterpillar Band Center Distance: 910 mm
Standard Caterpillar Band Board Width: 200 mm
Platform Clearance: 410 mm
Standard Bucket Width (with/without side teeth): 380/415 mm
Total Length of Caterpillar Band: 1440 mm

Caterpillar Band
Ground Pressure: 0.4 kgf/cm²
Caterpillar Band Material: Rubber
Tension Type: Screw tension

Hydraulic System
Hydraulic Pump Type: Gear pump
Hydraulic Tank Capacity: 22.5 L
Engine Oil Capacity: 5 L
Fuel Tank Capacity: 13.8 L
Working Pressure: 13 MP
Flow: 22 L/min

Operating Parameters
Maximum Excavation Height: 2700 mm
Maximum Unloading Height: 1850 mm
Maximum Excavation Depth: 1900 mm
Maximum Vertical Arm Excavation Depth: 1800 mm
Maximum Excavation Distance: 2920 mm
Minimum Turning Radius at Front End: 1680 mm

Discover the power and versatility of the Sirocco Machinery Mini Excavator. Its robust Changchai ZN390Q engine delivers reliable performance, while its compact dimensions make it easy to maneuver in tight spaces. The added remote control function enhances safety and convenience, allowing you to operate the machine from a safe distance. Perfect for contractors, landscapers, DIY enthusiasts, and farmers, this excavator is designed to handle a variety of tasks with ease.

Upgrade your equipment today with the Sirocco Machinery Mini Excavator and experience enhanced productivity and efficiency in all your projects. Don't miss out on the opportunity to own a machine that combines power, precision, and reliability in one compact package. Transform your workflow and achieve outstanding results with Sirocco Machinery.
