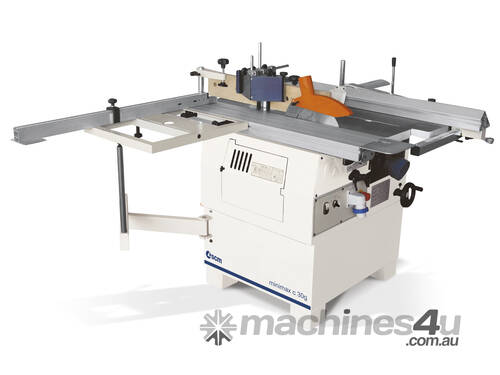

Minimax C30G Combination Wood Working Machine

Unleash your creativity with the Italian-made MINIMAX C30 GENIUS!
With its unbeatable features and price, you're guaranteed a precise, powerful and safe wood machining experience.
With the sliding table and squaring support frame, tilting saw, spindle moulder, surfacer and thicknesser all onboard, you can take your woodworking projects to the next level.
With the added mortising unit option for extra versatility, you simply can't go wrong!

This "Space Saving" solid wood machining centre is the perfect combination machine that provides you with brilliant precision, performance, and safety for all your woodworking needs.
Whether you're a hobbyist or professional craftsman, this universal machine has everything you need to take your fine woodworking to the next level - at an unbeatable price!

The MINIMAX C30 GENIUS is an ideal solid wood machining centre for those tight on floor space, which makes it one of our most popular units. Its equipped with all you expect from a larger combination machine –

EASE-OF-USE
The system of surfacing worktable opening toward the inside of the machine guarantees excellent ergonomics. The Planer head is SCM's own Xylent spiral head with 3 rows of cutters. (Other cutter heads available)

FLEXIBILITY

Maximum flexibility when using the cutters, with the spindle moulder unit equipped with various speeds. The machines are equipped with spindle moulder hood with micro metric adjustment, very useful for moulding working.
The tenoning operations (option) are easy thanks to the aluminium carriage and the dedicated speed

PRECISION

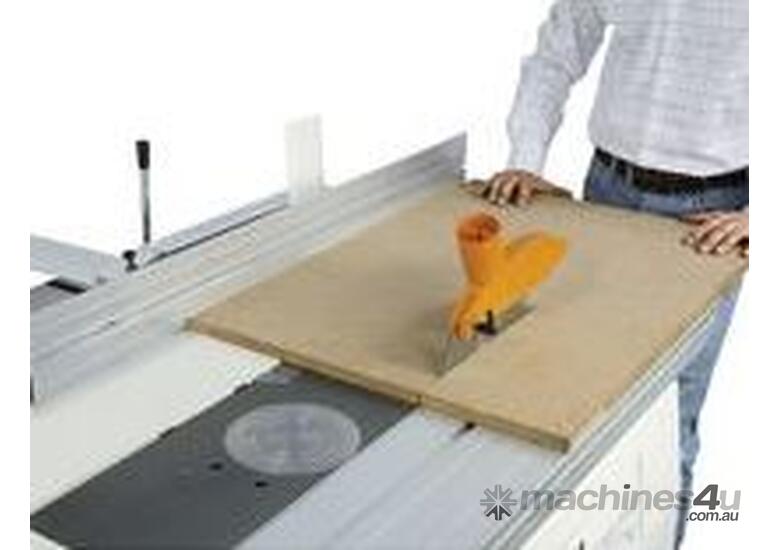

A tilt able saw unit, and a sliding anodised aluminium carriage next to the blade gives better cutting precision on MINIMAX woodworking combined machines.

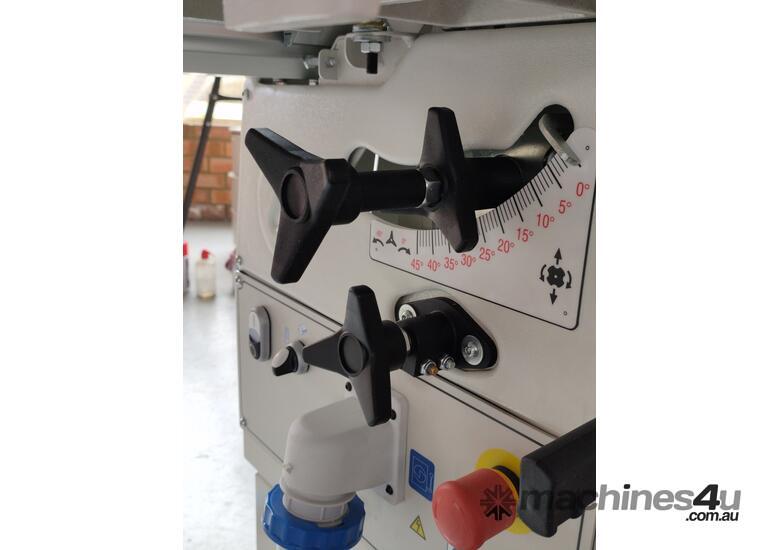

The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.

Technical data:
c 30 genius
Planer working width 300 mm
Surfacing tables total length 1200 mm
Min. ÷ max. working height on thicknesser 3 ÷ 200 mm
Saw blade tilting 90° ÷ 45°

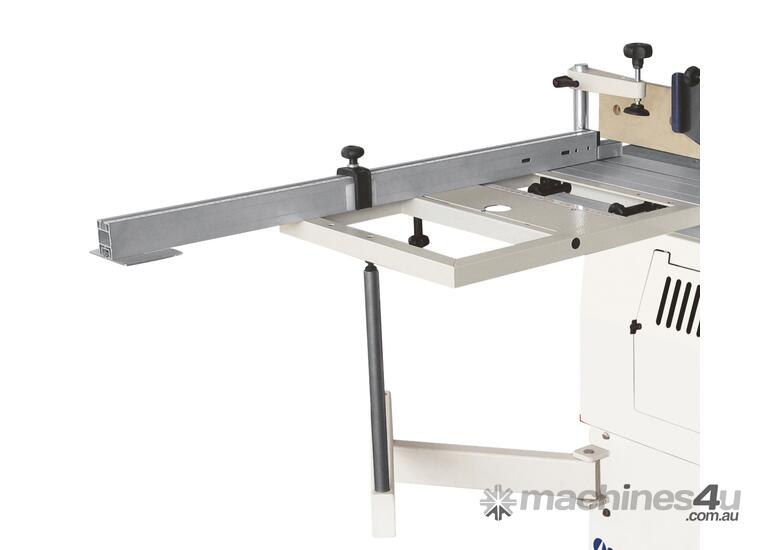

Squaring Support Frame
Cutting width on parallel fence (Rip capacity) mm 540
Max. saw blade projection from table at 90° 80 mm
Max. Squaring stroke 1200 mm
2 spindle moulder speeds 4000/6500 rpm
(3x) Single-phase motors Hp 2.5 15 Amp
Wheel Kit

Don't risk your hard-earned money on an unknown brand!
Make the smart choice today and get started on your woodworking dreams with the Minimax C30G!
