Minimax F 41ES Elite 410 Jointer

The high-performance minimax f 41es surfacing planer is ideal for demanding craftsmen and carpentries. This machine offers an impeccable finish with its 95mm diameter cutter block. The planer also includes a high rigid fence with central locking and an overturning fence that ensures optimum operator safety when machining thin work pieces. Spiral knives for exceptional results, reduced noise, and improved dust extraction. Each cutter has 4 rotating tips, extending the cutter block’s lifespan.

Additional Information
Perfect finish
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block.

High rigidity
High rigid fence with a smooth movement thanks to the central locking on round bar.

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

TECHNICAL DATA
Working width mm 410
Cutterblock diameter / no. of standard knives mm 95
Max. stock removal mm 8

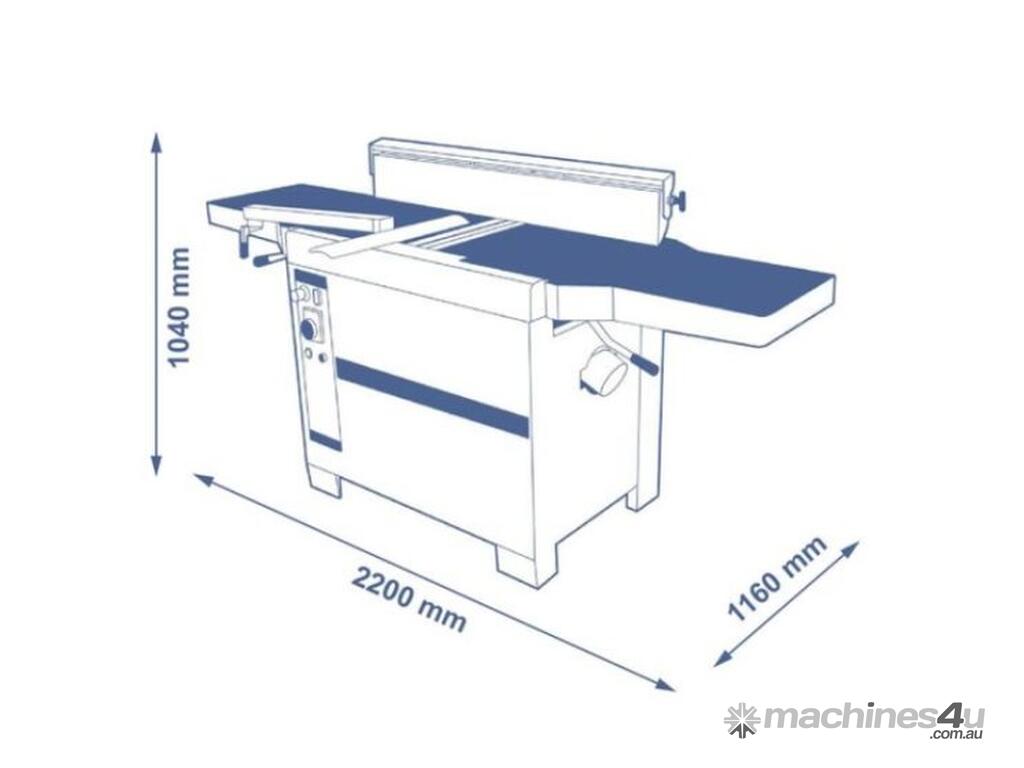

Surfacing tables total length mm 2200
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)
Exhaust hood diameter mm 120
