Minimax Lab 300P X1 Combination Machine

Experience woodworking excellence with the minimax lab 300p universal combined machine. Designed for demanding hobbyists and professional crafts workshops, it offers precision and efficiency. Featuring user-friendly elements like an inward-opening surfacing worktable and anodized-extruded guides, it ensures smooth operation. Enjoy adjustable speeds on the spindle moulder unit, a tiltable saw unit with a sliding aluminum carriage, and safety features such as CE-approved shaft protection. Expand its capabilities with the optional “Xylent” cutterhead. Unleash your woodworking passion with this all-in-one solution, delivering precision, versatility, and reliability.

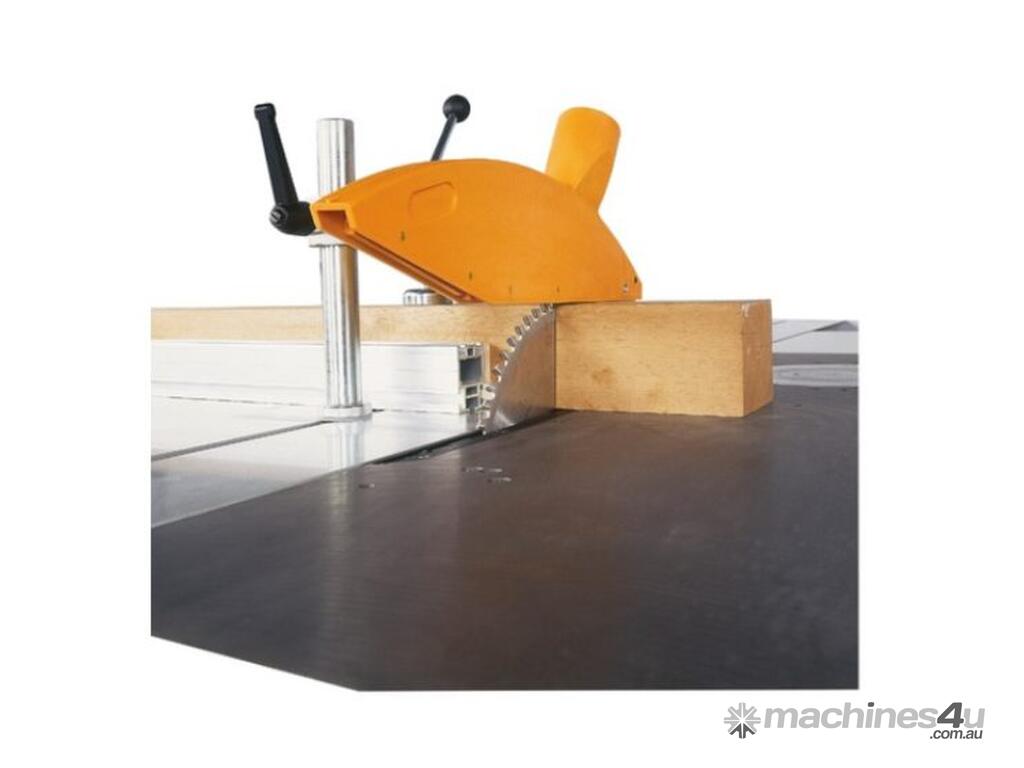

-Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the -European safety regulations!
-The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required.

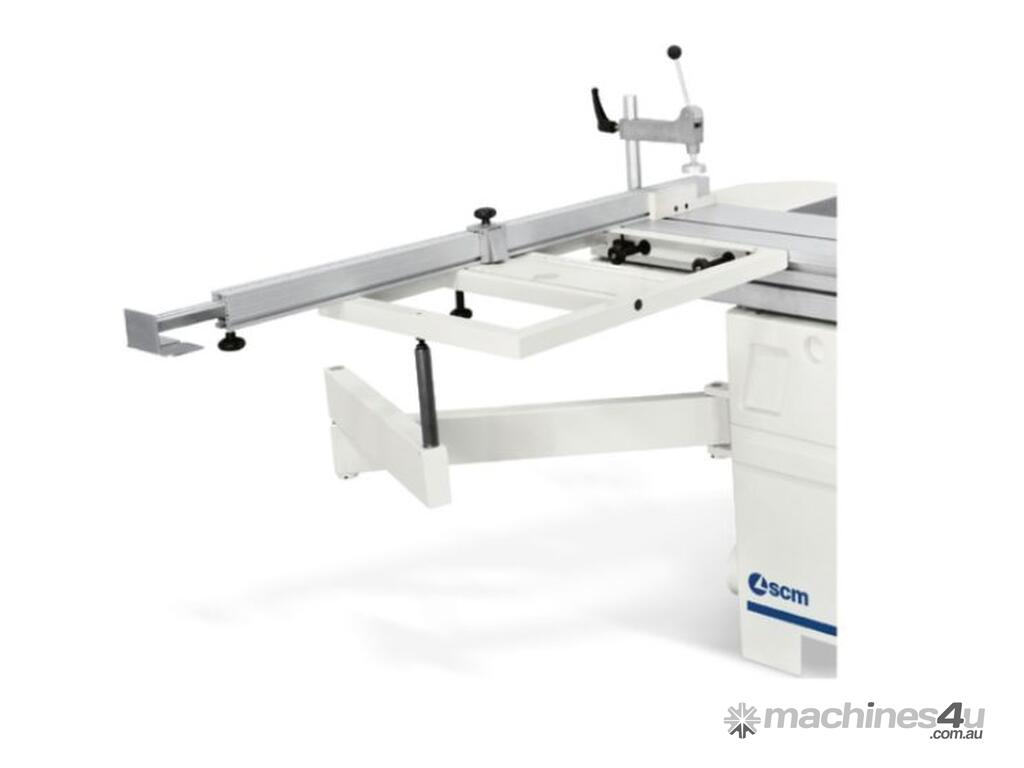

-The sliding carriage is equipped with an additional table for the support of large dimensioned panels.
-The angular cutting device with flip-over stops allows to rapidly perform mitre cuts without moving the squaring fence and it is very useful for small work pieces
-The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed, the sandblasted steel thicknesser outfeed roller maintains the perfect post-machining finish

Additional Information
Best cutting

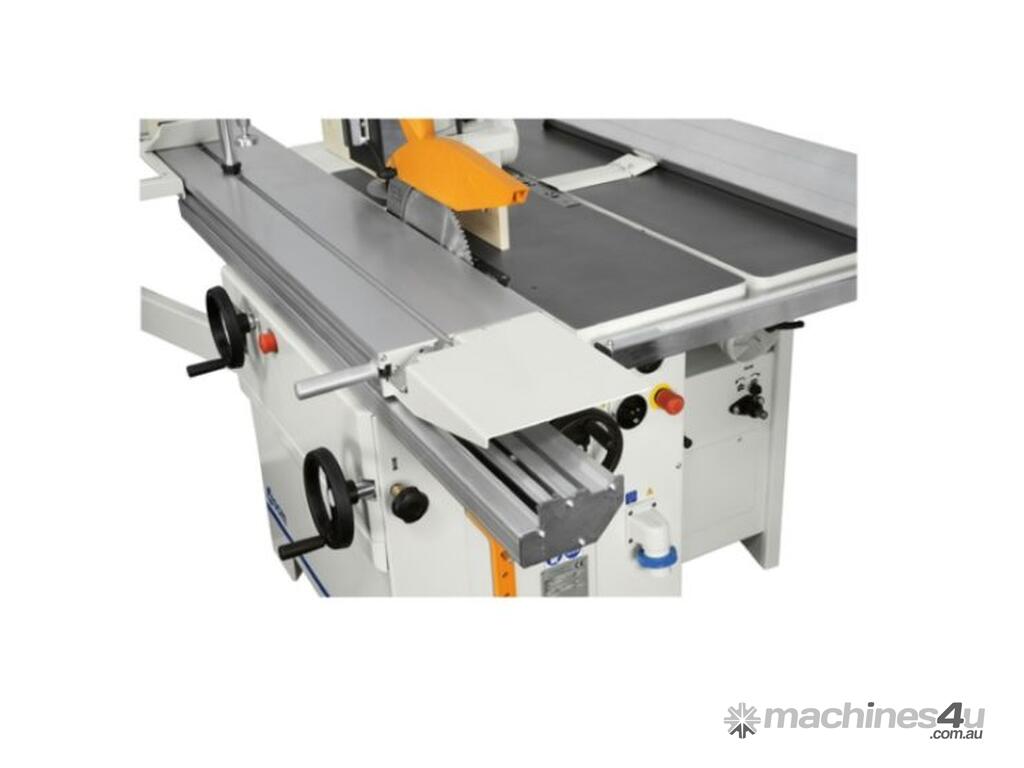

New saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade installed. The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.

Perfectly stable support
Easier, more precise cutting is possible thanks to perfectly stable support guaranteed, even for large work pieces, by the 270 mm wide sliding table.

Higher efficiency
During the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine with a 90° angle, facilitating thicknessing. Work pieces with a maximum height of 220 mm can be machined to the thicknesser. The new design of the dust-conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.

Superior performance
The spindle moulder unit has a spindle with a useful working length of 100 mm. A tool with a maximum diameter of 180 mm can be retracted under the worktable. For machine maximum safety and increased flexibility, a spindle moulder protective hood for shaping is supplied as standard.

TECHNICAL DATA
Cutterhead working width mm / in 300 / 12
Jointer bed length mm / in 1300 / 51
Max. sawblade diameter with scoring blade installed mm / in 315 / 12
Max. sawblade projection from table at 90°/45° mm / in 100 / 78 3.94 / 3.07
Cutting width on parallel fence (Rip capacity) mm / in 800 / 31.5
Max. useful spindle length mm / in 100 / 4
Max. tool diameter when profiling mm / in 210 / 8.27
Spindle moulder speed rpm 4000 / 7000 / 9000
Single-phase motors kW (Hp) 2,2 (3)
Voltage-Frequency 240V-50Hz
Max. squaring stroke of sliding table saw mm / ft 1600 / 5.5
