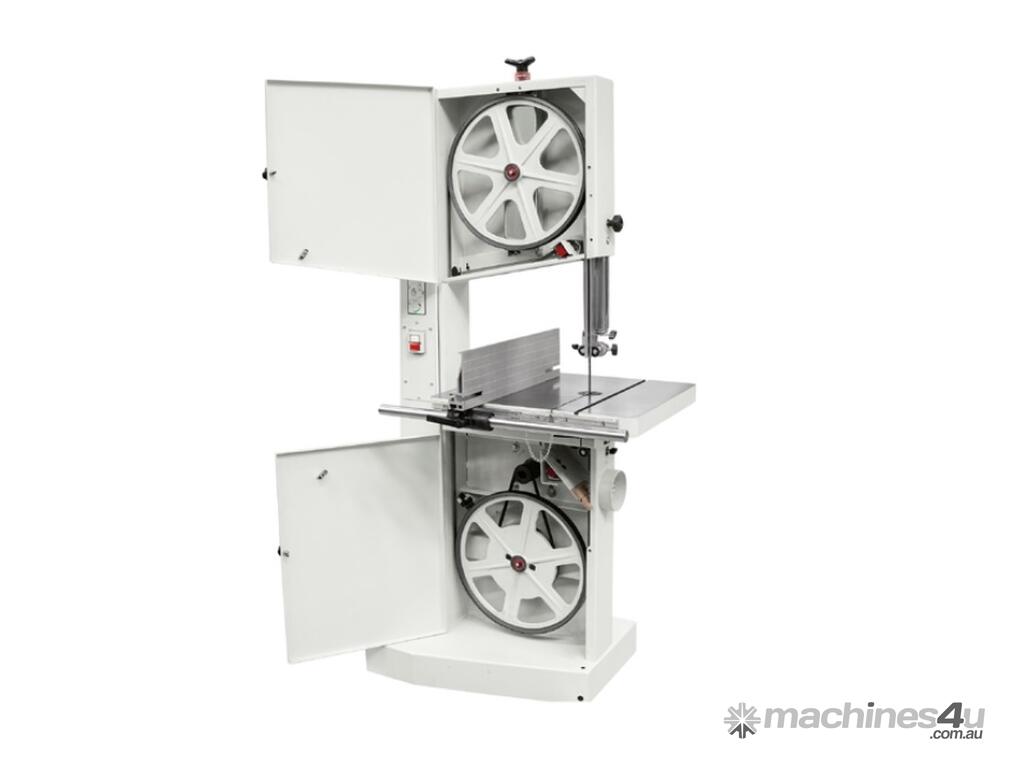

Minimax S 45N Bandsaw

The S45N is a great saw for custom furniture makers. Some features include a large cast iron table, an easy to remove aluminium hi-low fence and large balanced wheels creating a fly wheel effect.

-Practical machine suitable to perform straight and tilted cuts on wood, plastic and aluminum
-The wheels run on sealed for life ball bearings for total reliability
-The mitre fence for angular cutting allows a versatile machine use.

Additional Information
Safety first
Total safety machining with telescopic protections with rackwork to the blade.

Perfect results
A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.

Solidity and sturdiness
Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.

TECHNICAL DATA
worktable dimensions [mm] 600 x 520
worktable height from floor [mm] 900
cast iron saw wheels diameter [mm] 450
saw wheels [rpm] 700
max. cutting height [mm] 300
max. cutting width [mm] 440
worktable tilting (CE) 0° ÷ 20°
min./max. saw blade length [mm] 3690/3742
min./max. blade dimensions [mm] 6 x 0,5/25 x 0,5
single phase motor 2,2kW (3hp) 50Hz
exhaust outlet diameter [mm] 120
