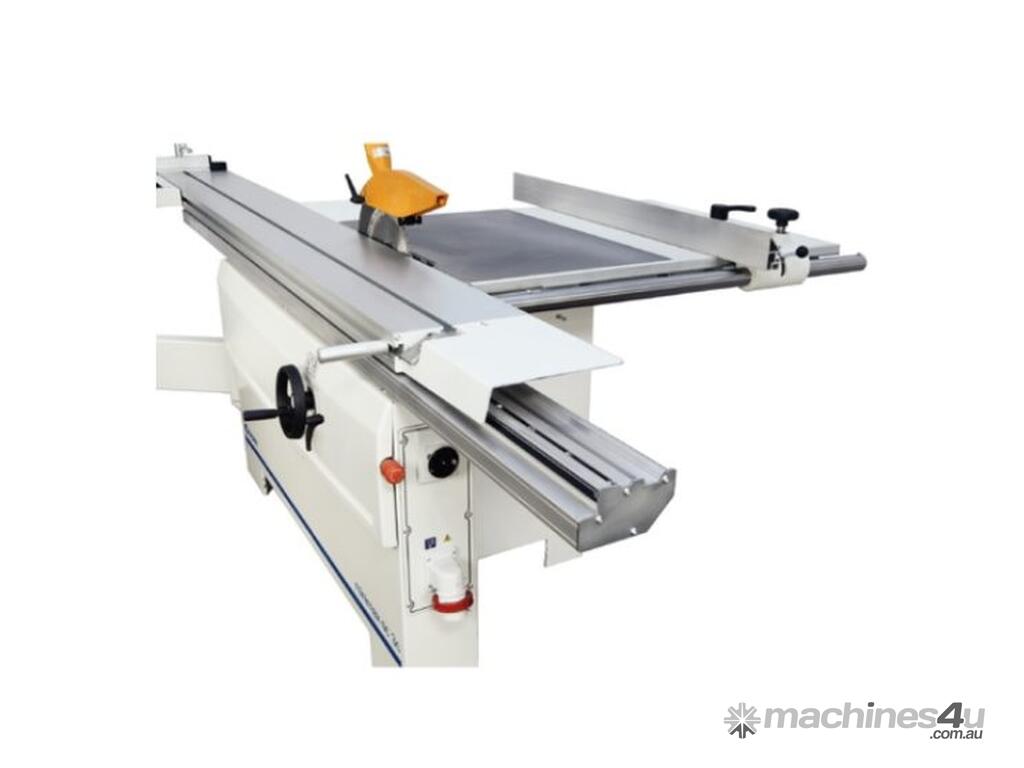

Minimax SC 2C (1.6m) Panel Saw

The minimax sc 2c compact panel saw with an extensive range of standard features. This machine is designed for efficiency and versatility in a limited workshop space. It includes an aluminum sliding table with a 1660mm stroke, a scoring saw for minimizing chipping and breakout, and a large ripping capacity of 900mm to the right of the blade. With a 300mm blade capacity and a powerful 3hp motor, this sliding table saw delivers accuracy, repeatability, and reliability. The combination of the aluminum sliding table and support table enables easy handling of large sheet sizes, ensuring precise cuts with a superior finish.

-Very high effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!
-The sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required.
-The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.

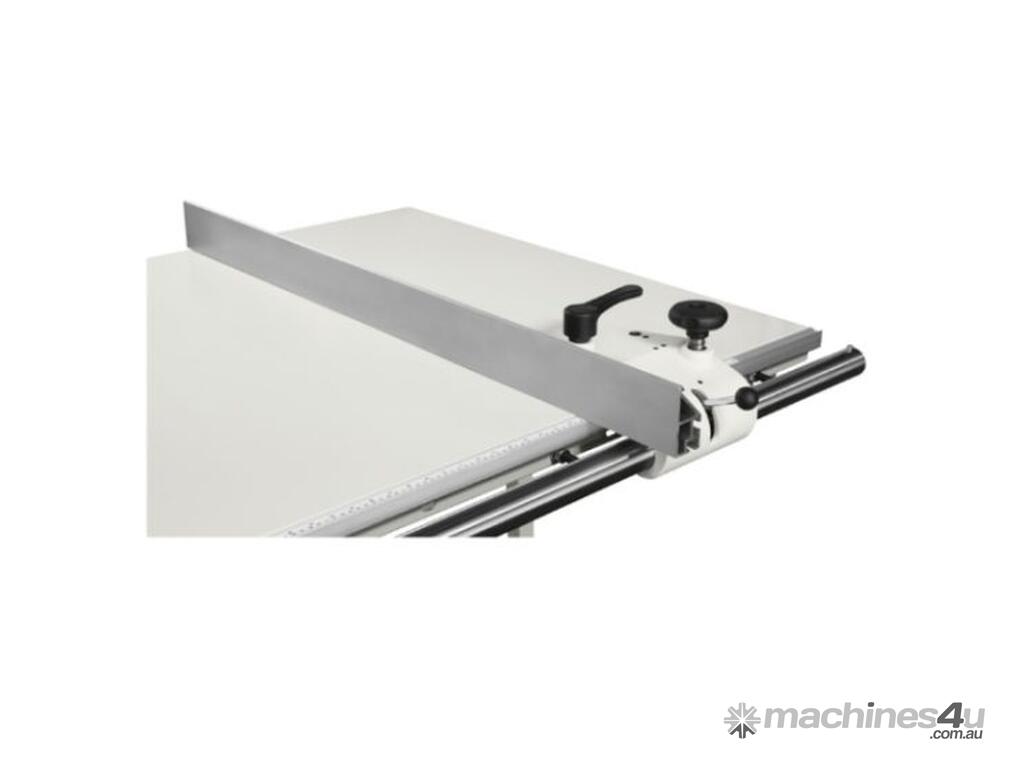

-Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar
-Extruded aluminum fences with support and rapid locking guarantee maximum practicality

Additional Information
Performance without limits
Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

Exclusive
Easier and more precise cutting is possible due to a perfectly stable support that is guaranteed, even for large work pieces, the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustment required.

The table
The table is made of extruded anodized aluminium with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX

TECHNICAL DATA
Max. sawblade diameter mm / inches 315 / 12
Sawblade arbor size mm / inches 30 / 1.18
Max. sawblade projection from table at 90°/45° mm / inches 100/78 3.94/3.07
Cutting width on parallel fence (Rip capacity) mm / inches 900 / 50
Max. squaring stroke of sliding table saw mm / ft 1660 / 5.5
Single-phase motor Hp 3.4
