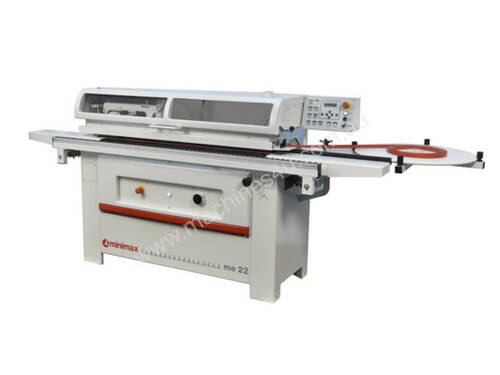

Automatic edge bander with glue pot to edge band, with great flexibility, with melaminic edges, PVC and ABS up to 2 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.
Advantages:
Maximum versatility: gluing, end cutting with shear device and trimming, together with the possibility to equip the machine with scraping and brushing units. Semplicity and precision: automatic positioning of all operating units synchronised with presser lifting and based on the panel thickness. High-precision panel feed on a high-adherence belt with a top presser fitted with rubber wheels. Easy-to-use in all working conditions with the control panel on the machine front side.
Technical data:
me 22
Worktable dimensions 2600 x 530 mm
Minimum panel length/width 190/65 mm
Worktable height 904 mm
Thickness of rolled edges 0,4 ÷ 2 mm
Min. ÷ max. panel thickness 12 ÷ 50 mm
Feed speed 7 m/min
