Mining Apron Feeder | Heavy Duty | 600tph |

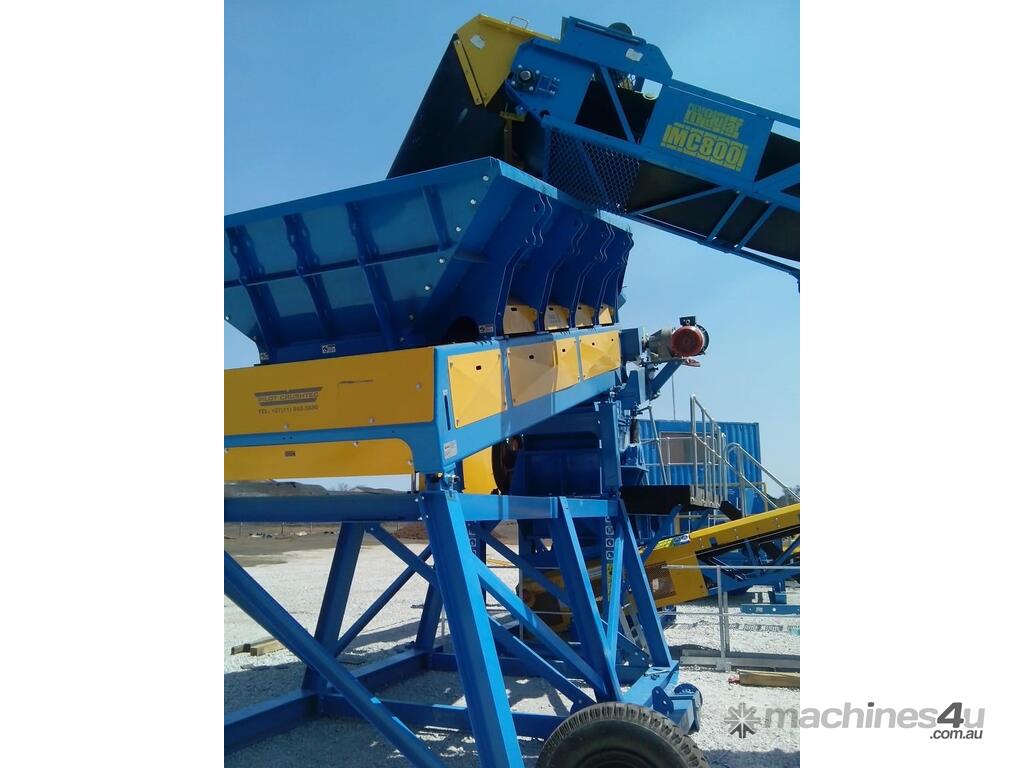

The MAF85 Apron Feeder is a heavy-duty, single primary loading station.

This heavy-duty apron feeder is designed to take an excavator or front-end loader all-in feed and create a controlled feed output into your processing plant.

The MAF85 is fitted with a surge hopper for loading capacity. The MAF85 Apron Feeder is particularly suited towards feeding large oversize and sticky material.

This apron feeder is supplied standard on a heavy-duty skid frame and does not require any civils for installation – simply a level, compact surface.

Technical Specifications:
- Feed opening of 850mm
- Approximate surge capacity of 5m³
- Abrasion resistant interlocking steel slats mounted onto a heavy-duty chain drive
- Maximum 600mm feed size
- Centralised greasing points
- Throughput up to 600tph (material dependent)
- 11kW motor

Dimensions:
- 4425mm wide x 6000mm long x 3550-5640mm high (adjustable)

Exclusions: Freight, Installation, Electrical works
