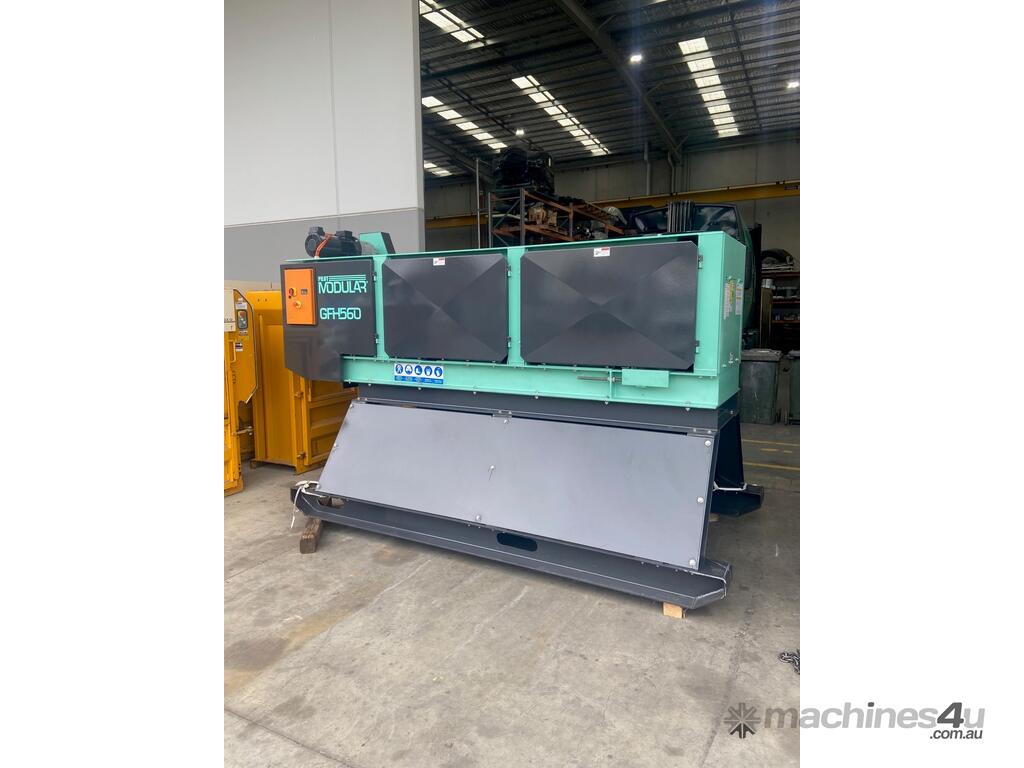

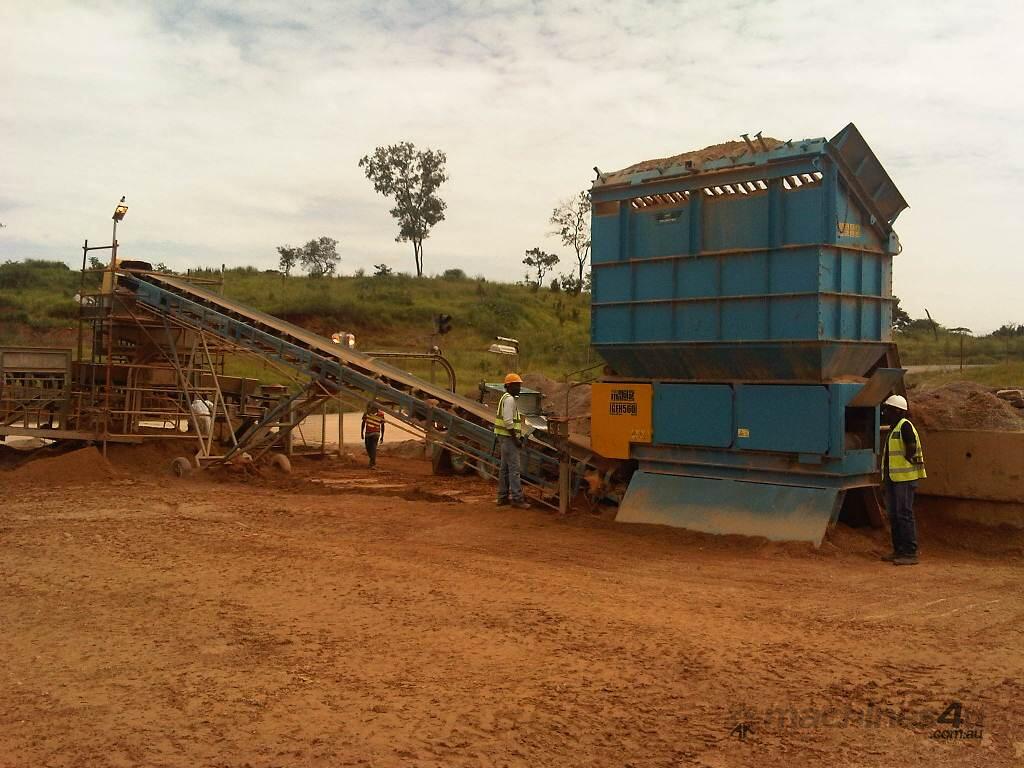

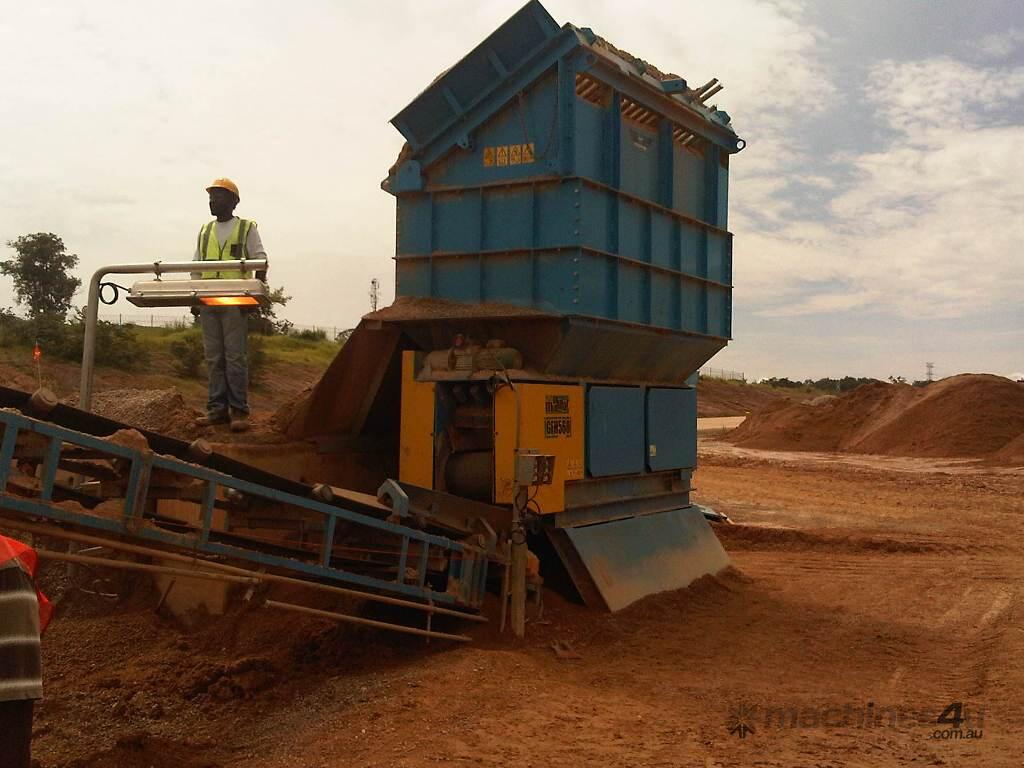

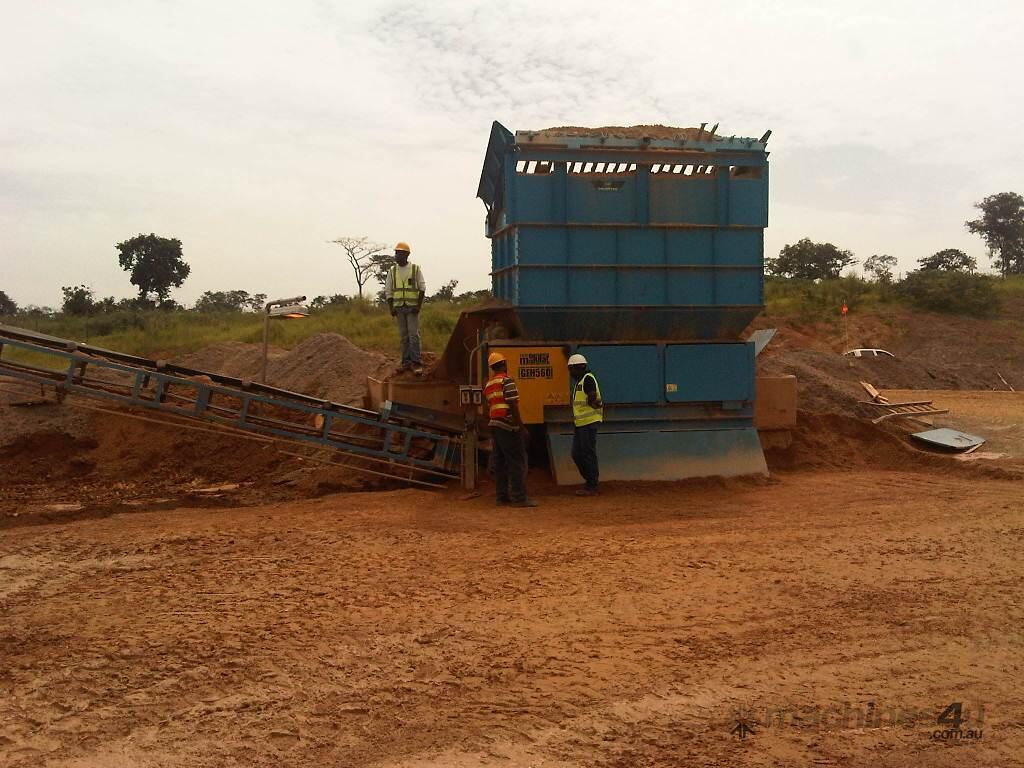

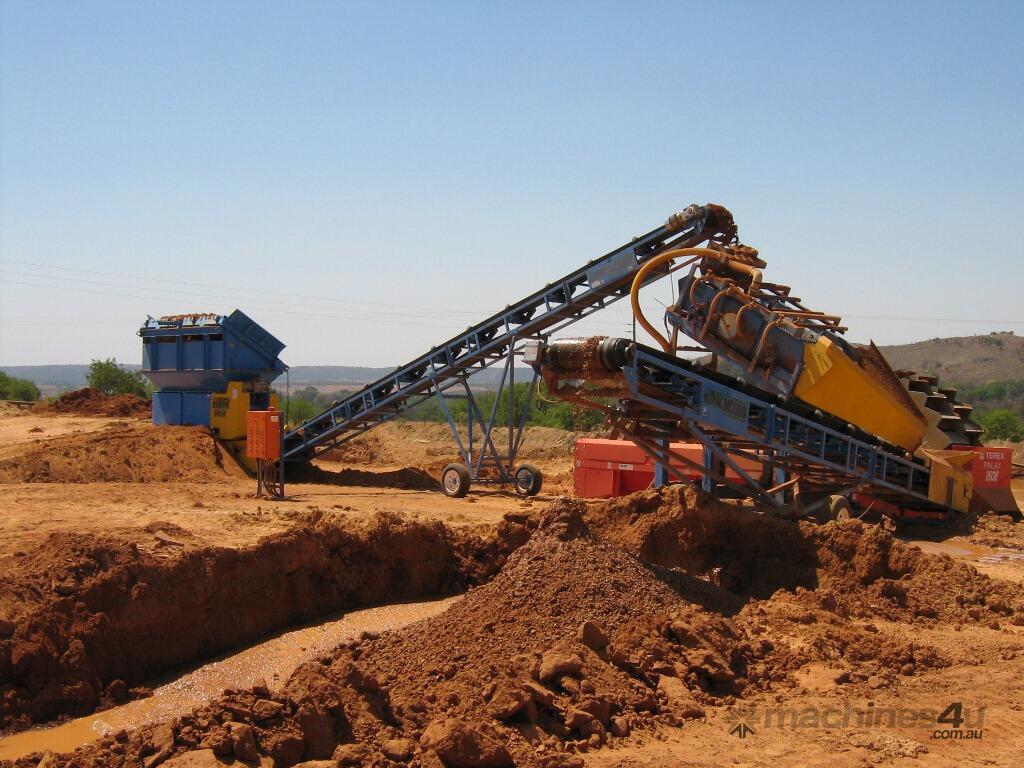

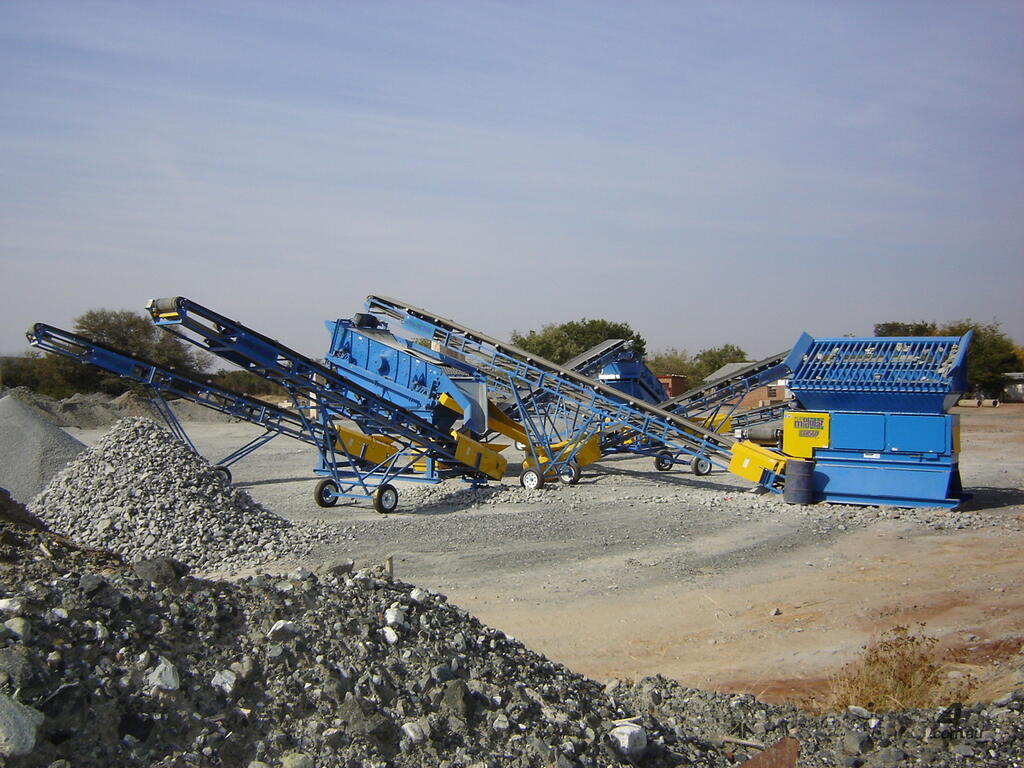

The GFH560 skid mounted grizzly feed hopper is designed to scalp out +100mm material.

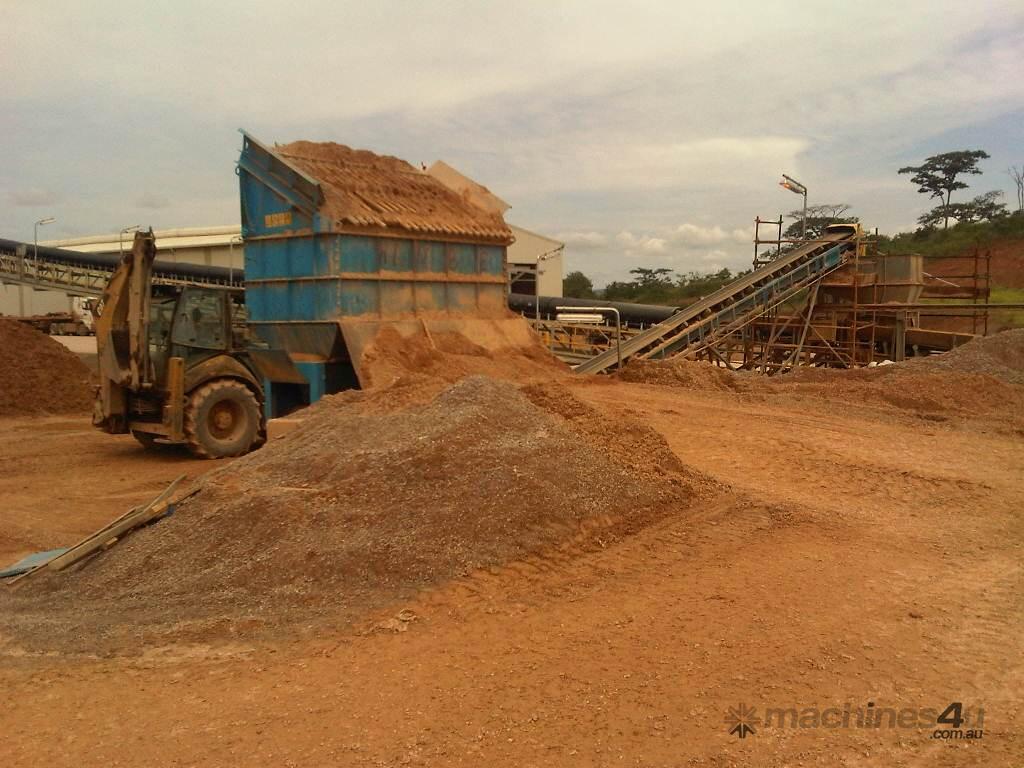

It is designed to be loaded by a front-end loader or excavator. It also provides a surge capacity and gives a controlled feed output.
Technical Specifications:
- Approximately 7m³ hopper capacity
- 650mm wide variable speed belt feeder
- Easy access grease points

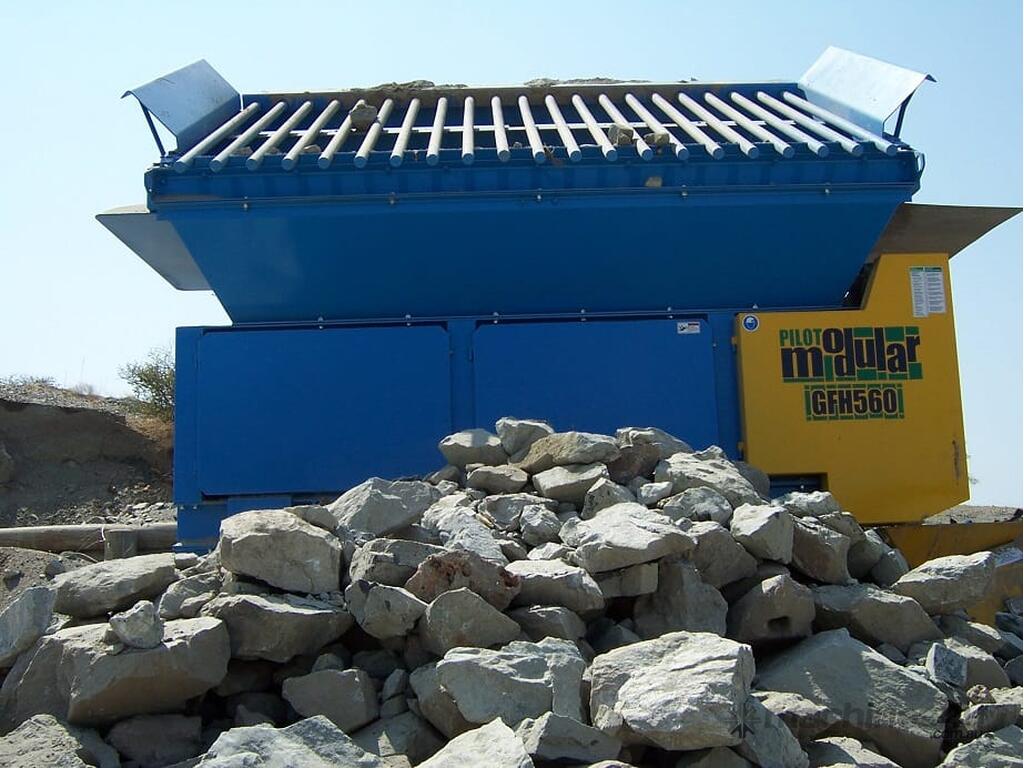

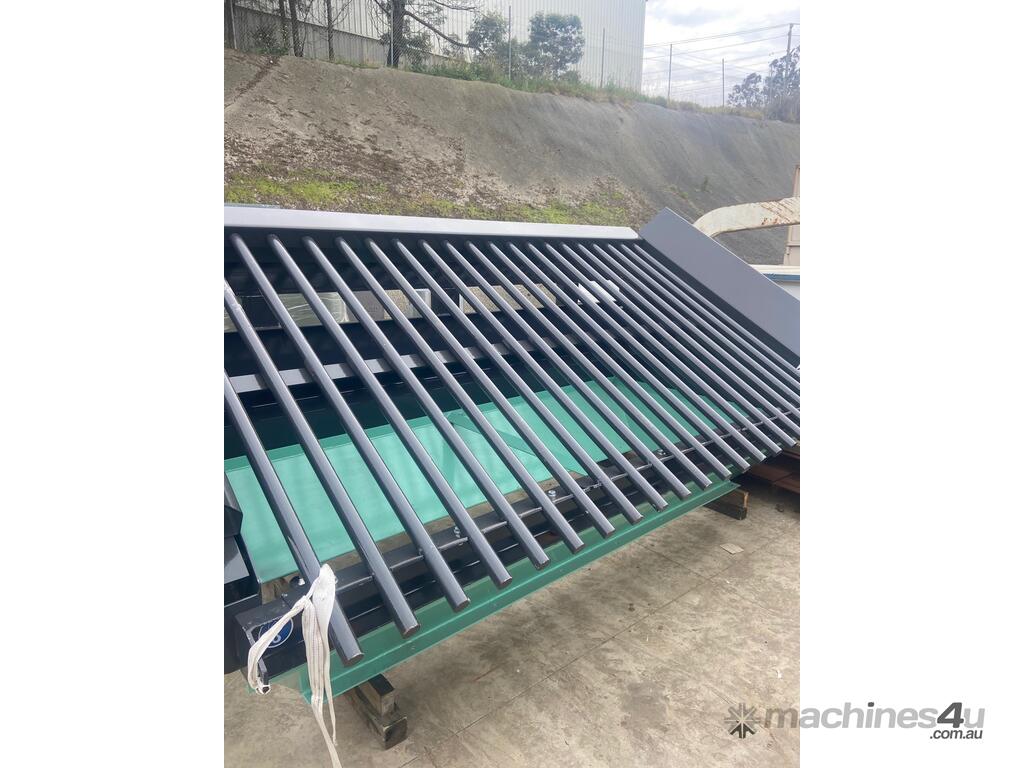

- Heavy-duty, manual tipping / reject grid with grizzly bars set at 100mm spacing
- Throughput between 50-300tph (material dependent)
- Maximum 350mm feed size
- 3kW motor
Dimensions:
- 2400mm wide x 3900mm long x 3450mm high
Options:
- Low friction liners
- Brinell high wear liners
- 500mm extensions to increase hopper capacity to 10m³
Exclusions: Freight, Installation, Electrical works
