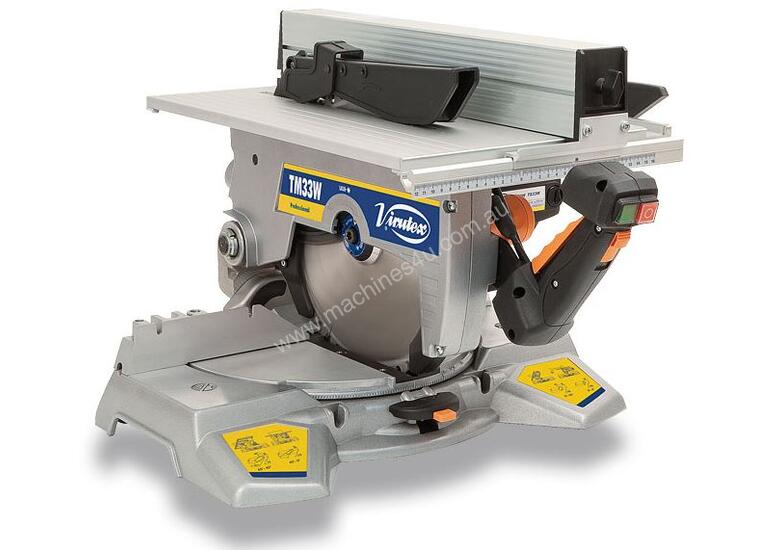

Mitre saw / saw bench

Exceptional cutting capacity.

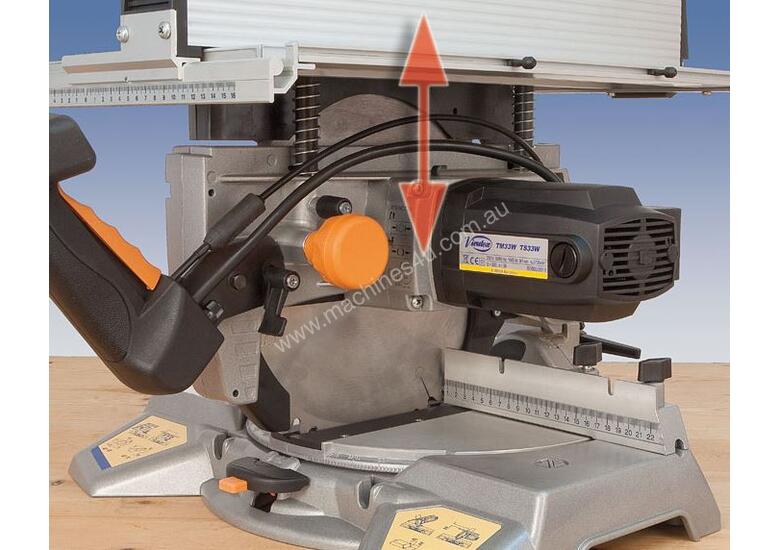

The cushion gas, its system of soft start and double transmission toothed belts, noiseless gears, ensure a high level of comfort translates into increased accuracy and therefore the quality of work performed.

The TM33W is equipped with a patented disc brake, which stops the disc within seconds after disconnecting the switch, insurance against accidental starts by power outage, saw blade guard and connection to external suction.

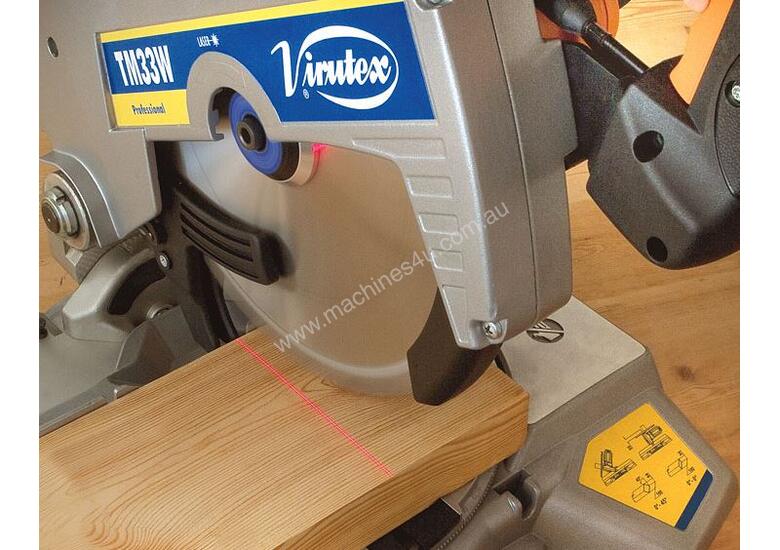

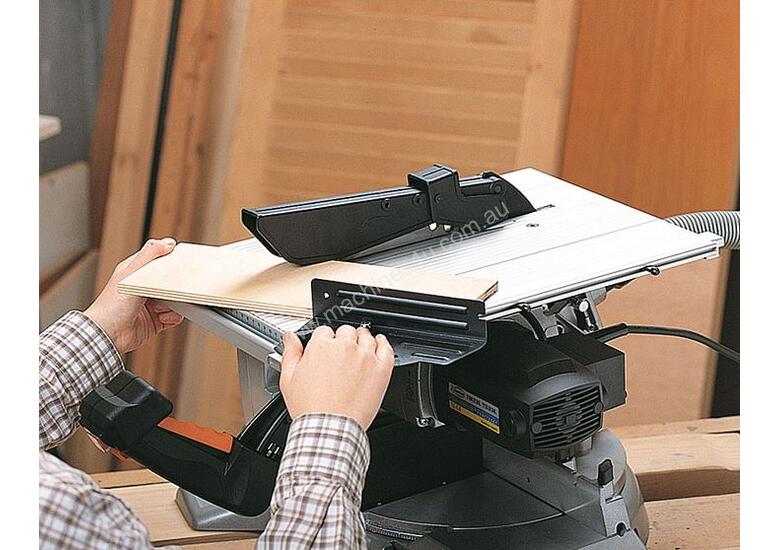

Equipped with laser precision to facilitate cutting. Automatic activation of it when the machine is running. It includes on / off switch, ideal to deactivate it when working with the top table.
The laser device is mounted on the saw.

Technical characteristics:
double insulation
Power: 1500 W
Idle speed: 3.700 / min
Ø saw blade: 300 mm
Weight: 20 Kg

Cutting capacity:
Cut to 0 ° x 0 ° 160x95 mm
(Surcharge of 36 mm) ref. 3346388 200x45 mm
Cut to 0 ° x 45 ° 110x95 mm
Cut to 45 ° x 0 ° 160x64 mm
Cut at 45 ° x 45 ° 75x64 mm
Cutting capacity max. table top 55 mm

Standard equipment:
Disco professional carbide saw (48 teeth) Ø 300 mm, precision laser, length cutting guide and service keys.
