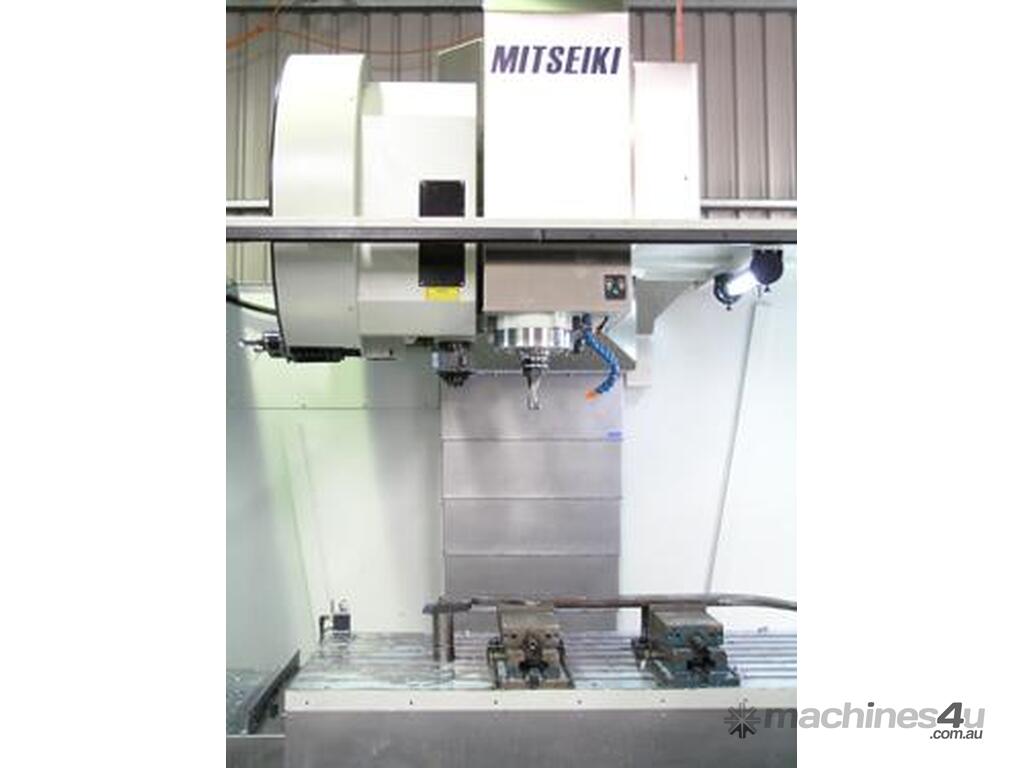

Mitseiki CV-2000 Vertical Machining Centre

Mitseiki CV-2000 Vertical Machining Centre

Table working area (mm): 2100 x 850
Max table load (kg): 3000
Travels X, Y, Z (mm): 2000 x 900 x 800
Rapid traverse X, Y / Z (m/min): 20 / 15
Cutting feed range (m/min): 1 ~ 8,000
Spindle taper: BT 40 & BT 50
Spindle speeds (rpm): 8000 & 6000
ATC (arm type): 24 tools
Spindle motor (kw): 18.5 / 15
Controller: Fanuc OiMD or Siemens 828D ShopMill Conversational Control
Machine weight (kg): 21000

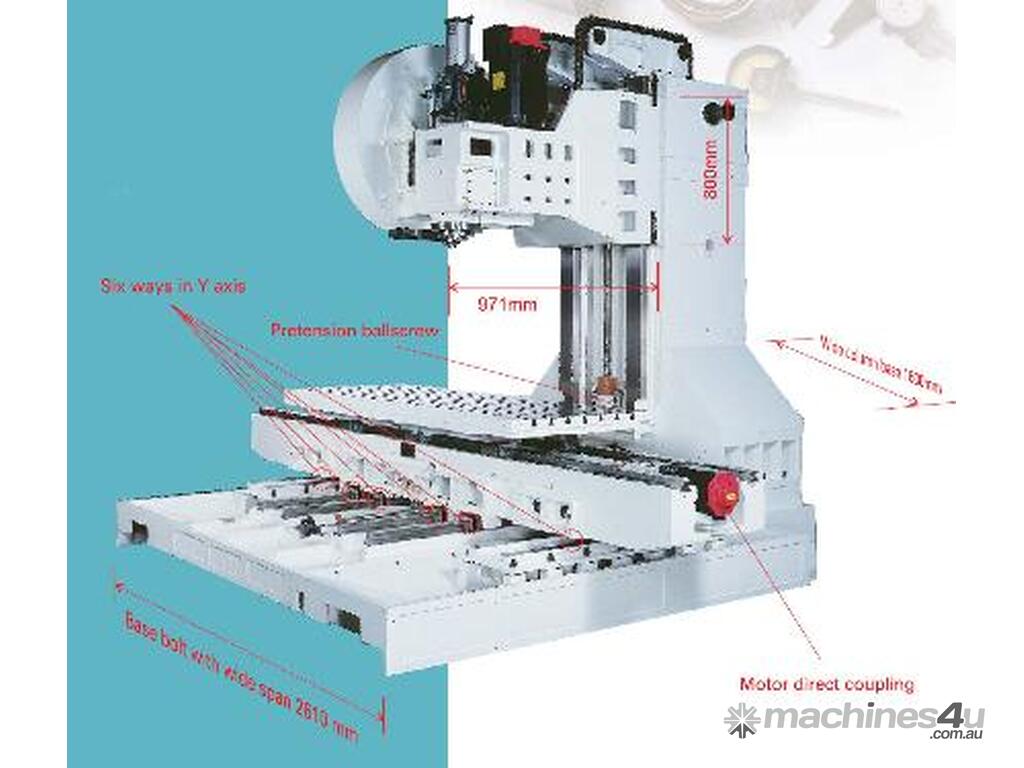

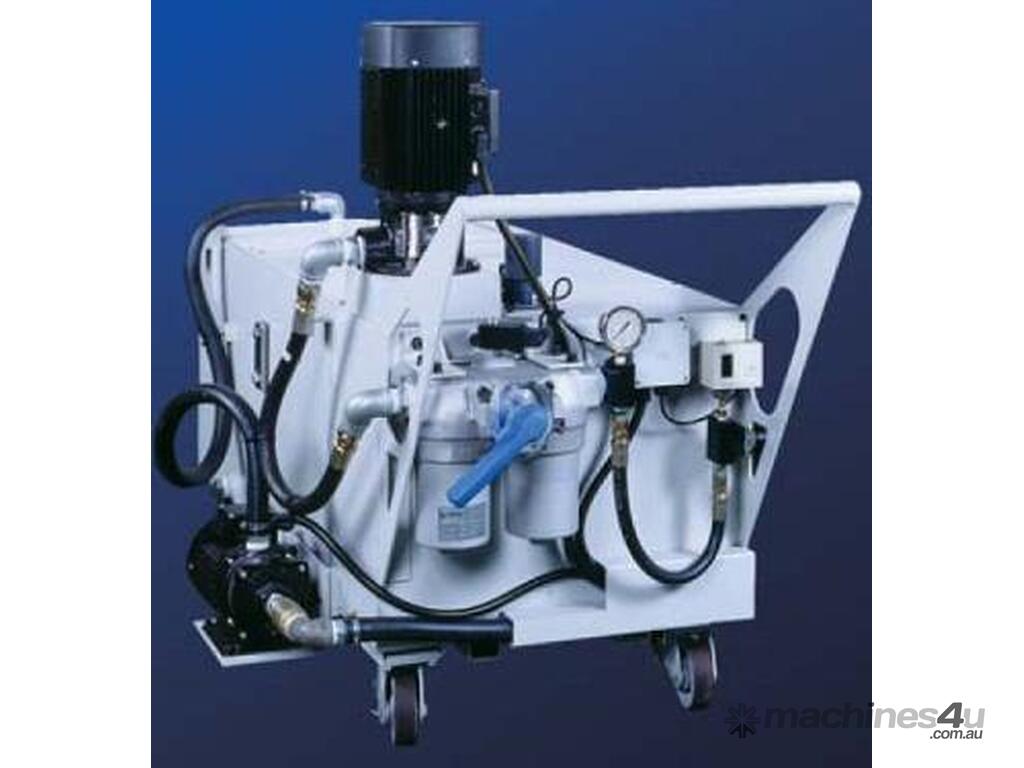

C/w: arm type ATC, coolant flood ring, preparation for CTS, preparation for 4th axis, oil skimmer, heavy duty roller type linear guide ways, integrated clipboard, tool storage rack, air line and coolant wash down gun. Many other options are available on request.

This is one of the highest quality machines currently available from Taiwan, the manufacturer says European specification & quality at affordable prices. The fact that most of our users never consider any other manufacturers machines when a second or third VMC is required speaks volumes about their performance, quality and reliability.
