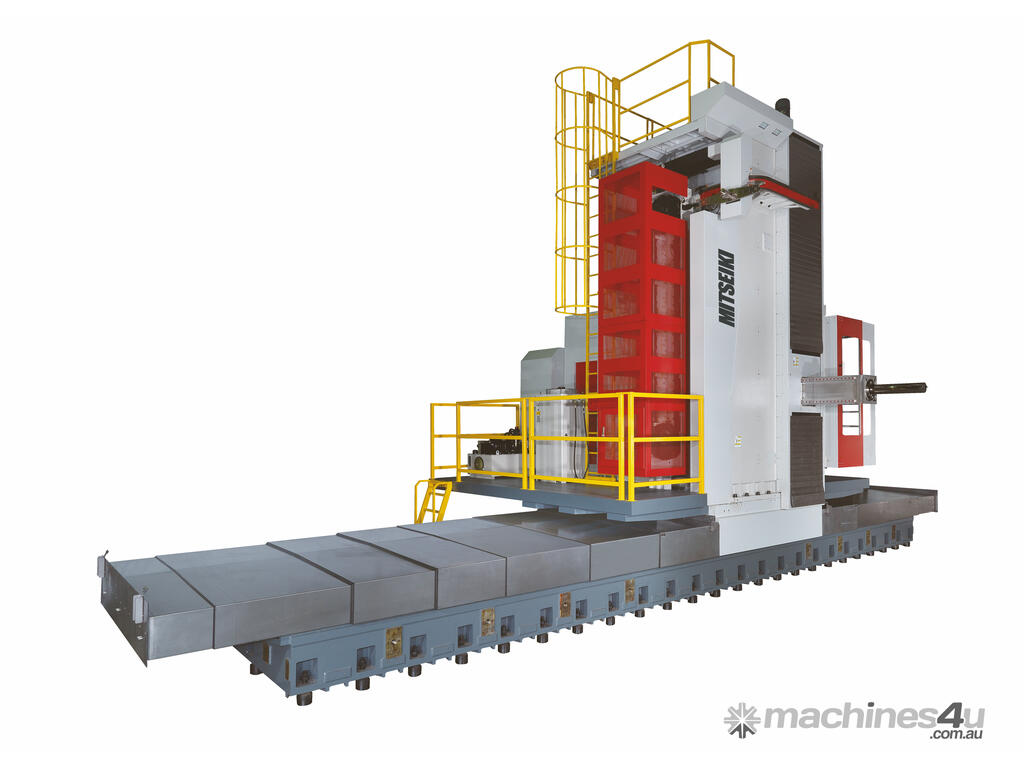

Mitseiki HBM-RF Series CNC Floor Borer, made 100% in Taiwan!
Spindle diameters (mm): 130, 140, 160 or 180
X travel (mm): 6000 ~ 16000
Y travel (mm): 3200 (opt 4500)
Z travel (mm): 800 ~ 1200
W travel (mm): 700 ~ 1000
Rapid traverse (m/min): 10
Spindle taper: BT 50
Spindle speeds (rpm): 2500 or 2000
ATC (optional): 60 tools
Spindle motor (kw): 37/45 or 60/75
Controller: Fanuc, Siemens or Heidenhain

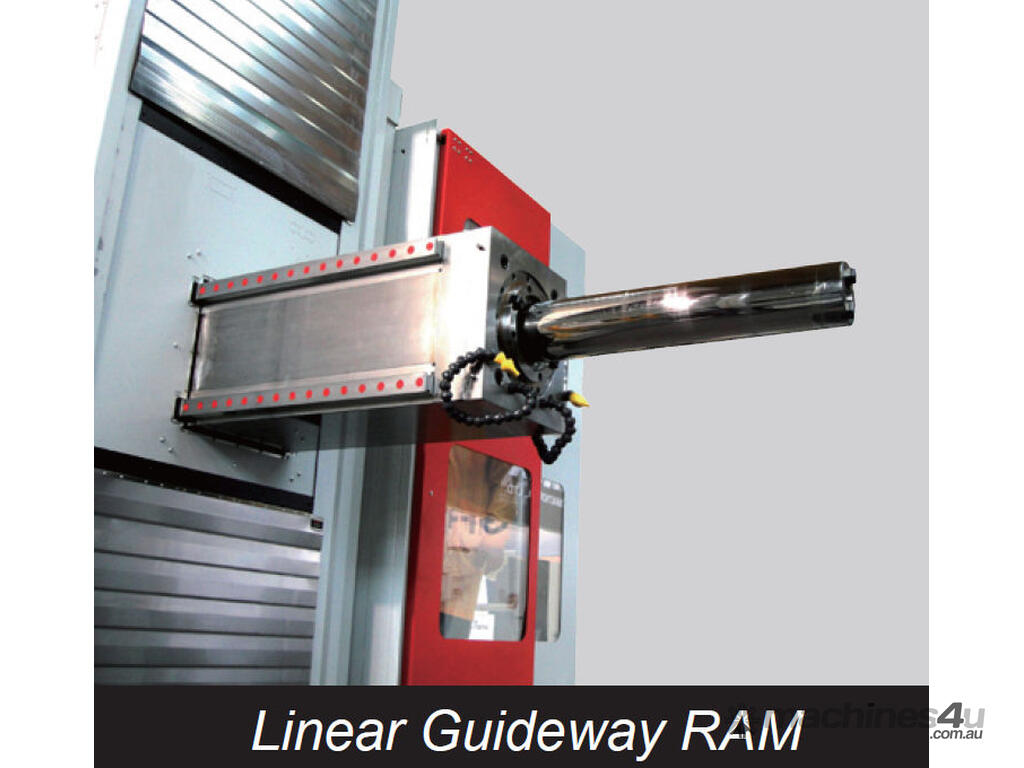

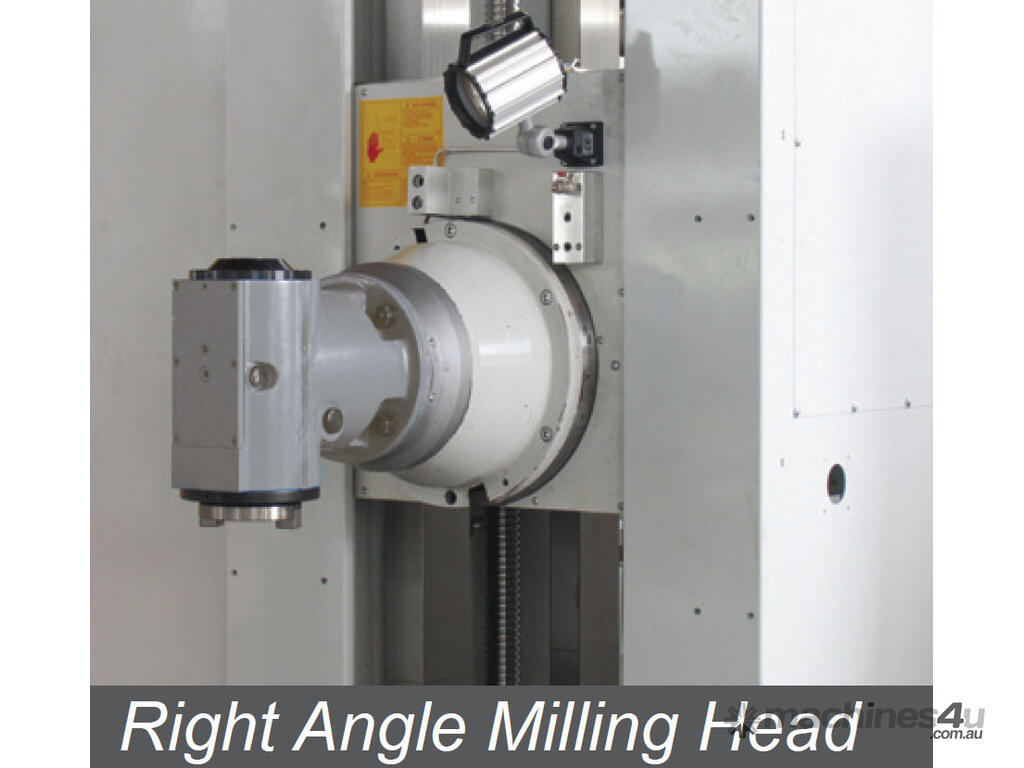

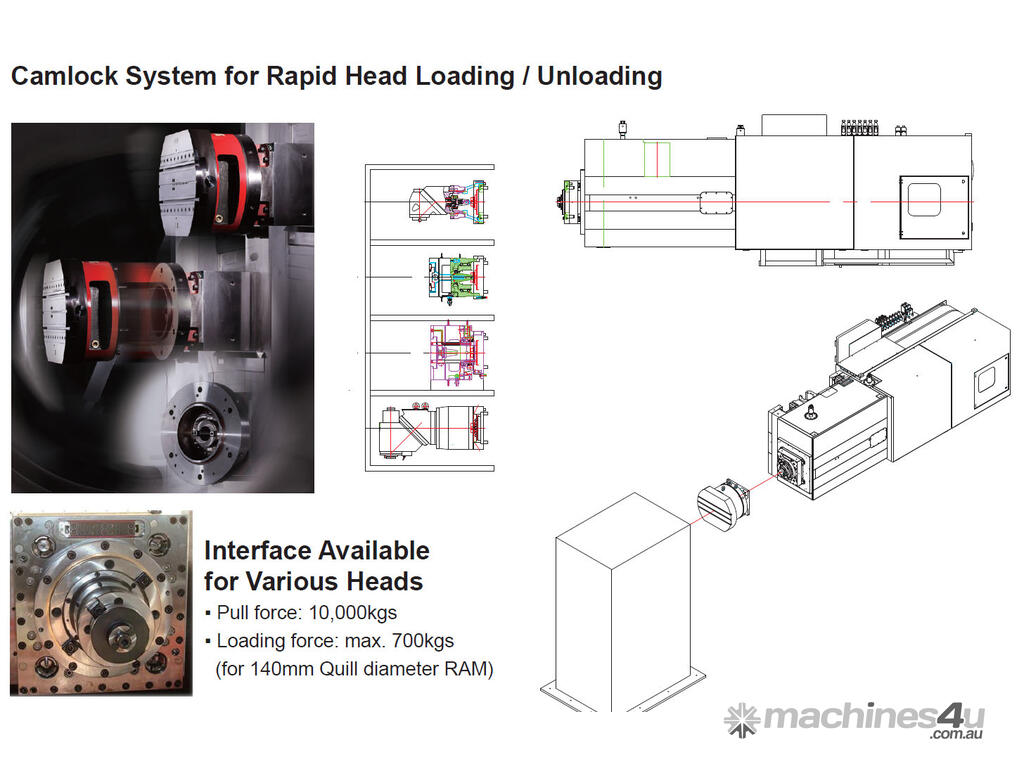

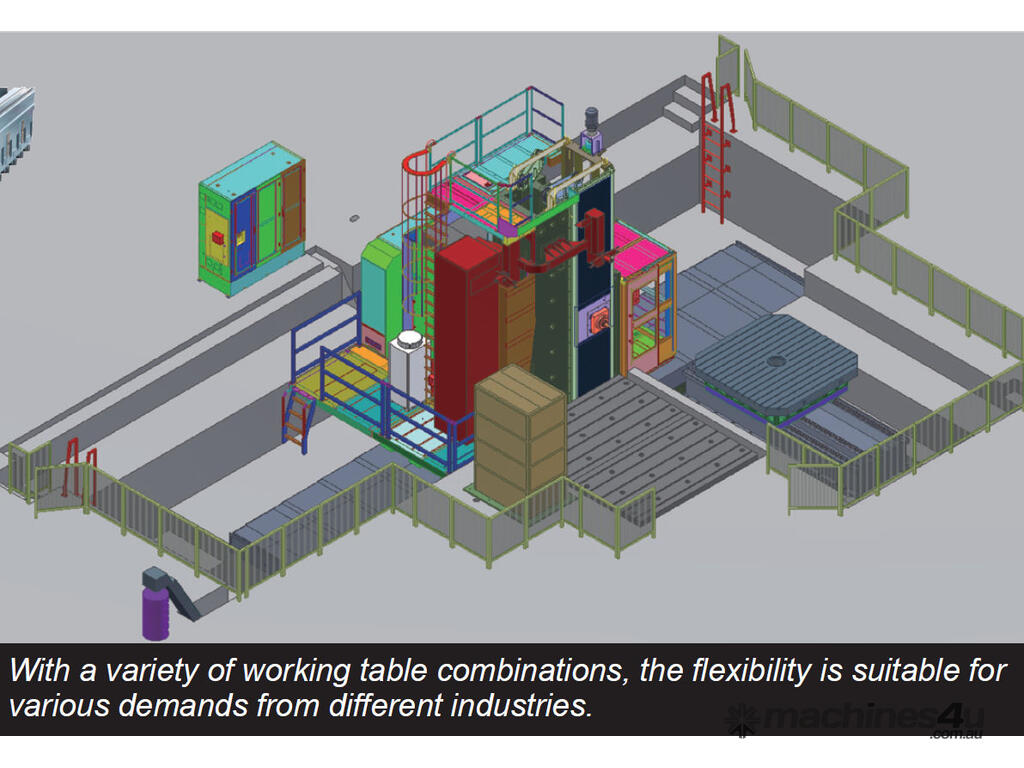

Linear scales for X & Z axes, a variety of table options available to suit all applications, linear guideway or hydrostatic ram available, various miling heads available with camlock mounting design for rapid clamping and unclamping.
